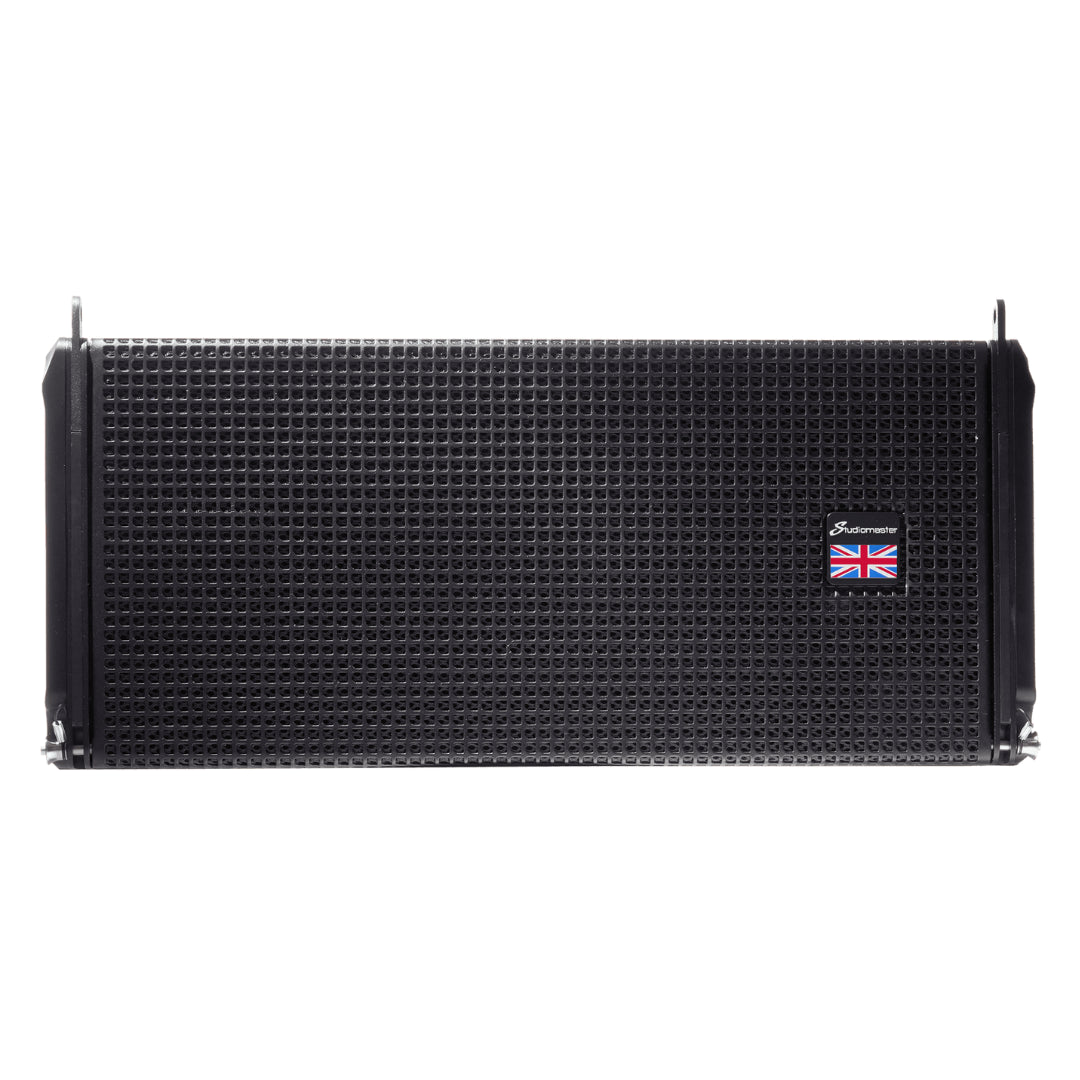

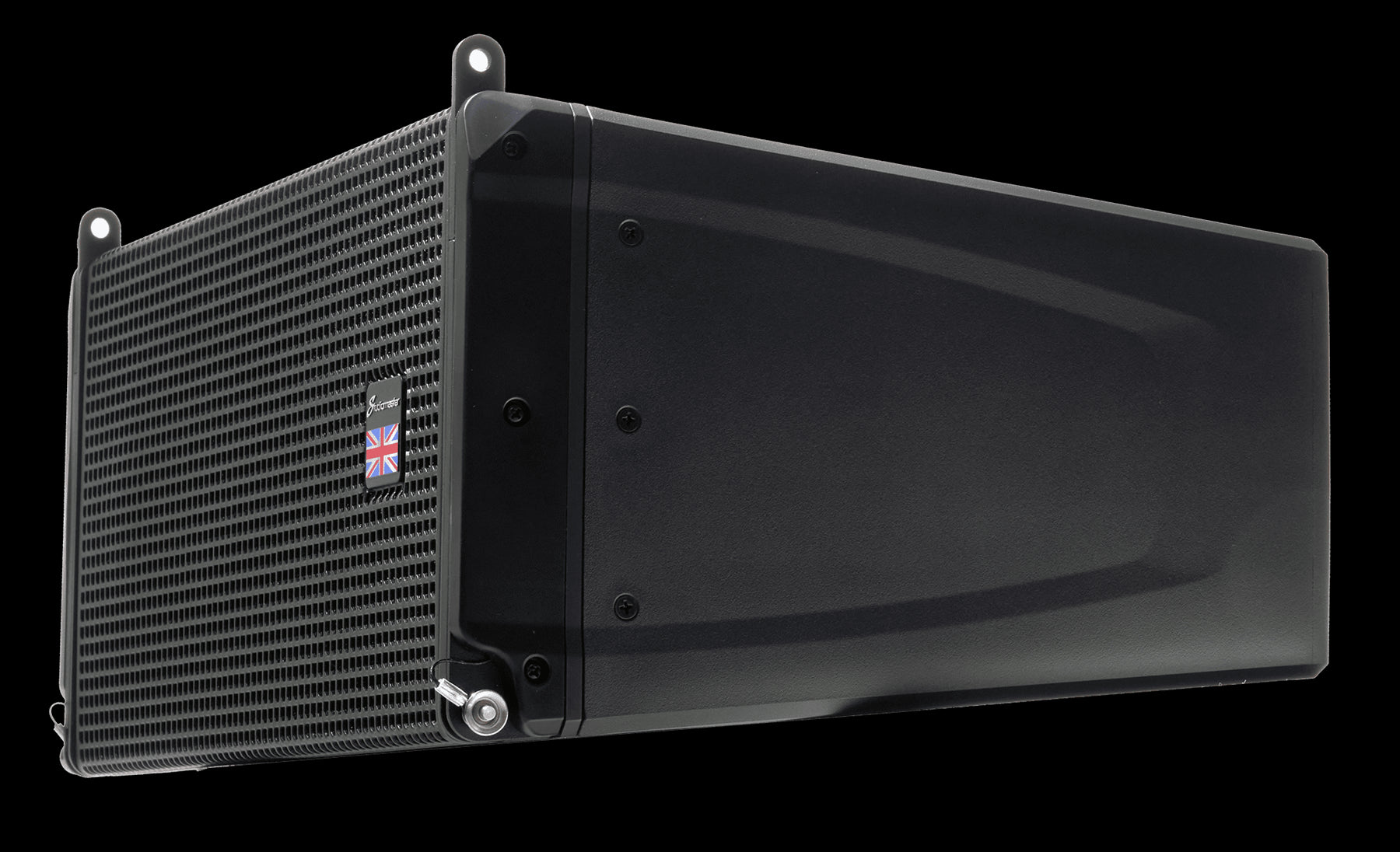

Studiomaster V6A Active Line Array Speaker Cabinet – Dual 6.5″

The Studiomaster V6A is a lightweight, high-performance 2-way active line array speaker designed for demanding professional audio environments. Featuring two 6.5" mid-frequency drivers with 38 mm voice coils and a 3" neodymium high-frequency driver with a 74 mm voice coil, the V6A delivers crisp, dynamic sound up to 130 dB SPL. Its reinforced composite PP enclosure ensures strength without unnecessary bulk, making it ideal for rental, touring, or fixed installations. The cabinet integrates a 550W amplifier (400W MF / 150W HF) and advanced DSP, offering full control over EQ, crossover, delay, threshold, and more—accessible via onboard controls or remote via RS485.

Features:
Active 2-way line array system with built-in DSP and amplification
Equipped with 2 × 6.5" MF drivers (38 mm VC) for detailed mids
Features 1 × 3" neodymium HF driver (74 mm VC) for clear highs
Delivers up to 130 dB SPL for powerful audio projection
Built-in DSP with gain, EQ, crossover, delay, and threshold control

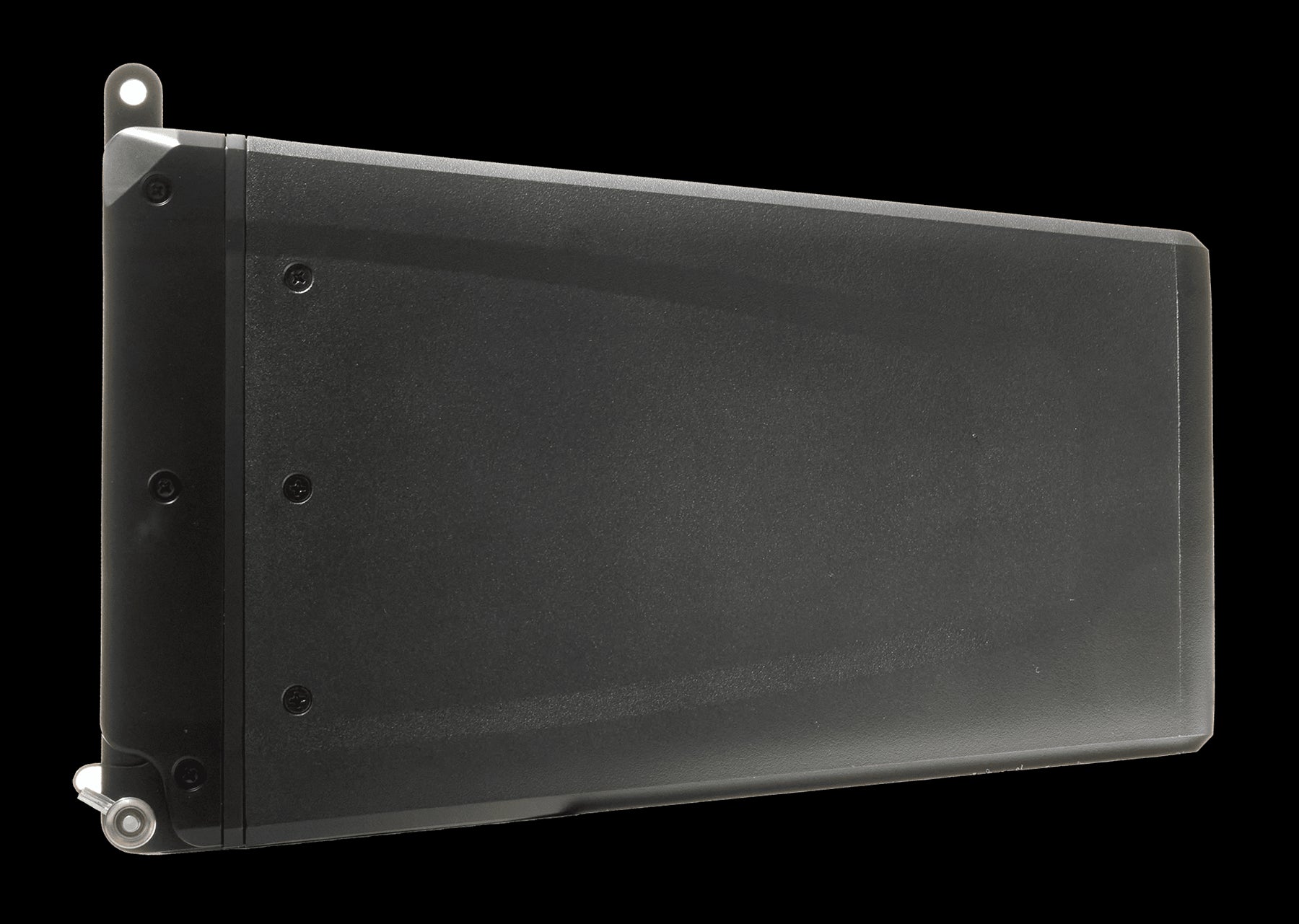

Reinforced PP composite cabinet for durability and portability
100° × 10° coverage angle with vertical splay adjustable in 1° steps (0–10°)
Includes through power and signal connectors for easy daisy-chaining

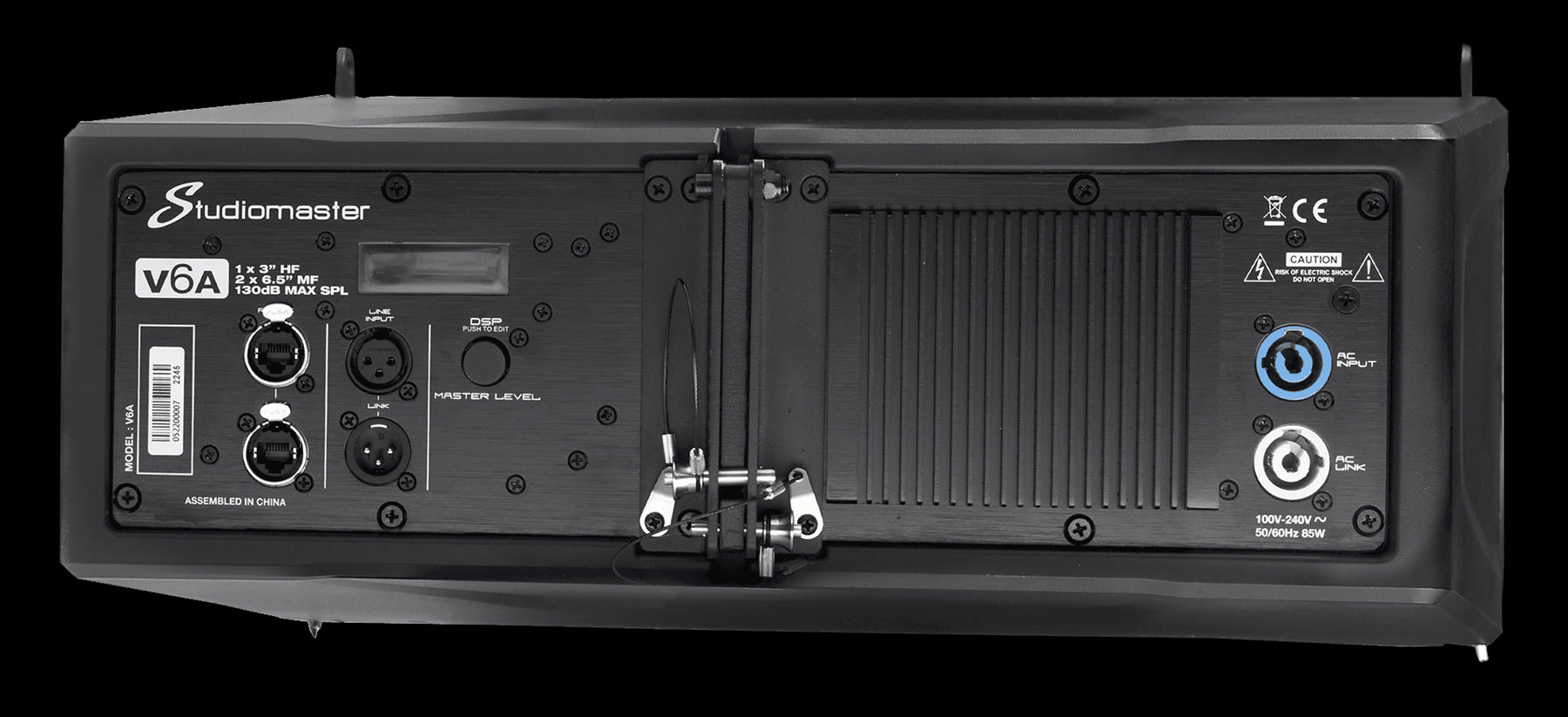

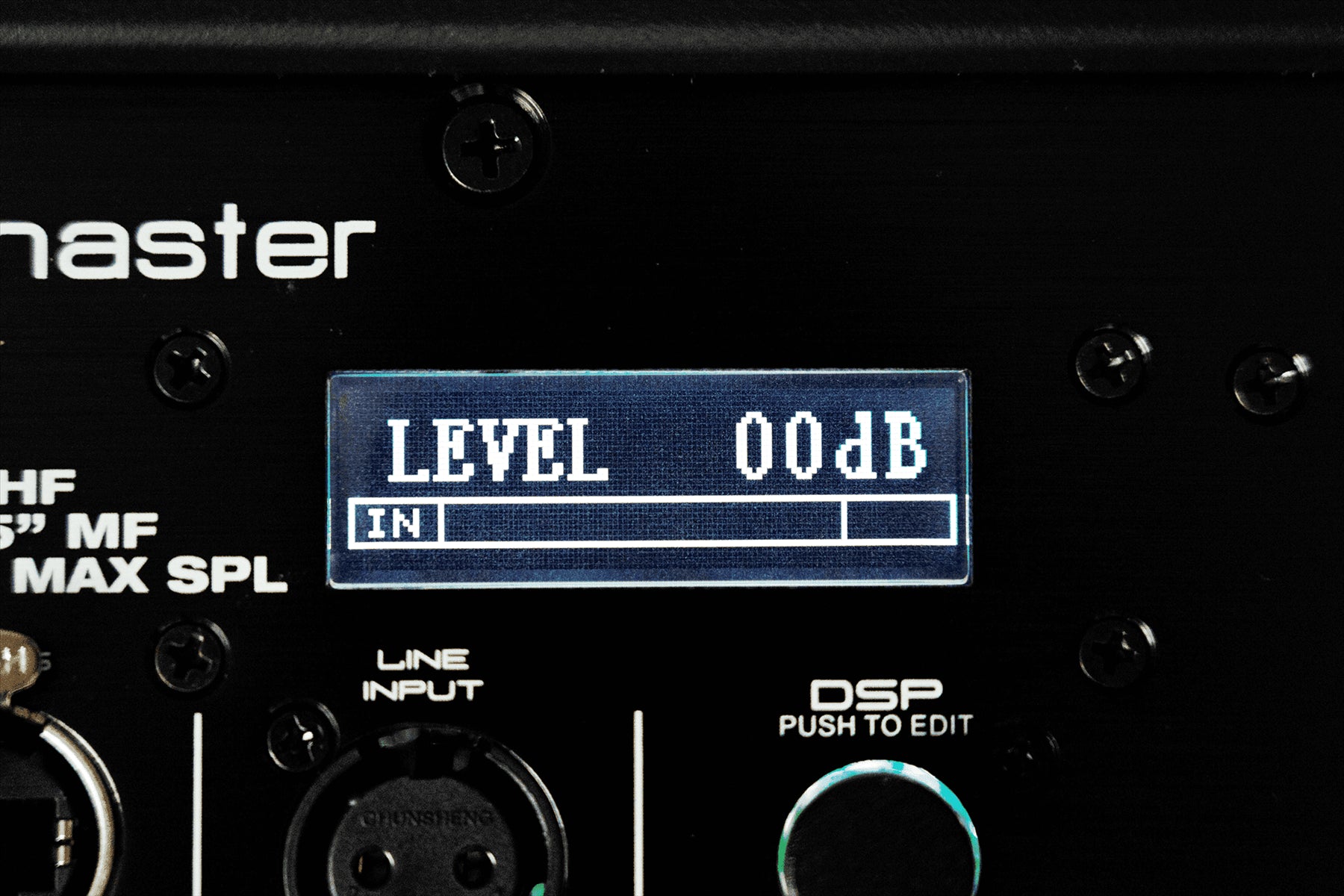

Rear display and encoder for onboard settings or remote control via RS485

Specifications:
Cabinet Type: 2-way active line array
Mid-Frequency Drivers: 2 × 6.5" with 38 mm voice coils
High-Frequency Driver: 1 × 3" with 74 mm voice coil (neodymium)
Amplifier Power: MF 400W / HF 150W
Maximum SPL: 130 dB
Frequency Response: 70 Hz – 20 kHz (-10 dB)
Coverage: 100° horizontal × 10° vertical
Impedance: N/A (active system)
Sensitivity (1W @ 1m): 0 dBu
DSP Functions: Gain, EQ, crossover, delay, threshold
Crossover Frequency: DSP controlled
Vertical Splay Angle: 0–10° (1° step)
Dimensions (W × H × D): 470 × 207 × 341 mm
Weight: 15 kg
