Studiomaster V6SA Active Line Array Subwoofer 1200W

The Studiomaster V6SA is a compact yet powerful active line array subwoofer specifically designed to complement the V6A MF/HF cabinets. It features a high-performance 15" low-frequency driver with a large 4"/100 mm voice coil, delivering rich, deep bass response with a maximum SPL of 130 dB. With an integrated 1200W amplifier and built-in DSP, the V6SA offers professional-grade tuning capabilities, including EQ, delay, gain, crossover, and threshold control—accessible directly via the onboard interface or remotely via RS485. Housed in a durable, portable enclosure with integrated scoop handles and an optional suspension system, the V6SA is ideal for demanding live sound reinforcement and installation applications.

Features:
High-performance active line array subwoofer with DSP control
Equipped with 1 × 15" LF driver and a large 100 mm (4") voice coil
Delivers powerful low-end with up to 130 dB SPL output
Built-in 1200W amplifier ensures consistent high-power performance
Integrated DSP with full control over gain, EQ, crossover, delay, and threshold
Designed for optimal pairing with V6A line array speakers
Durable and lightweight enclosure with reinforced structure
Includes scoop handles for easy handling and transport

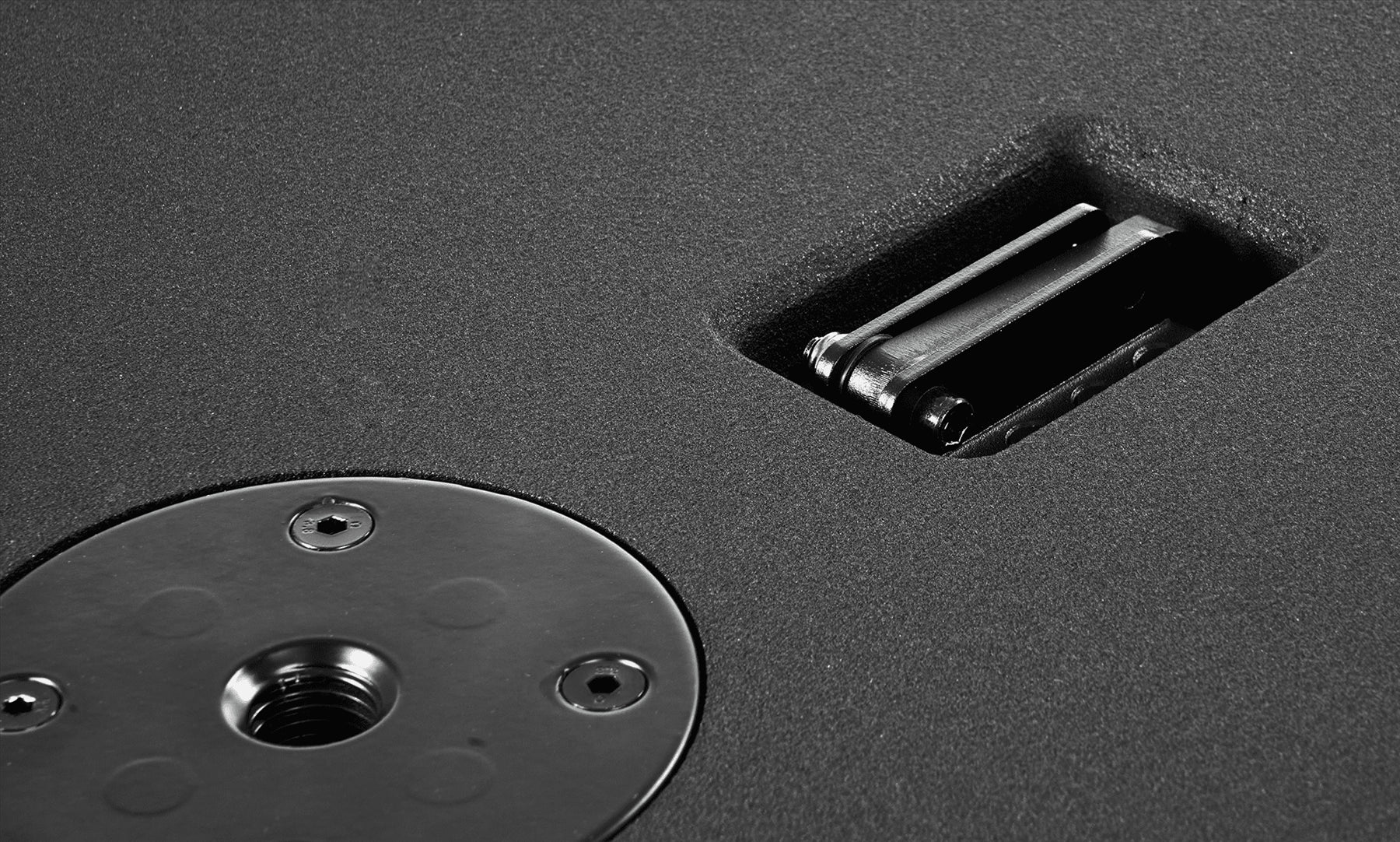

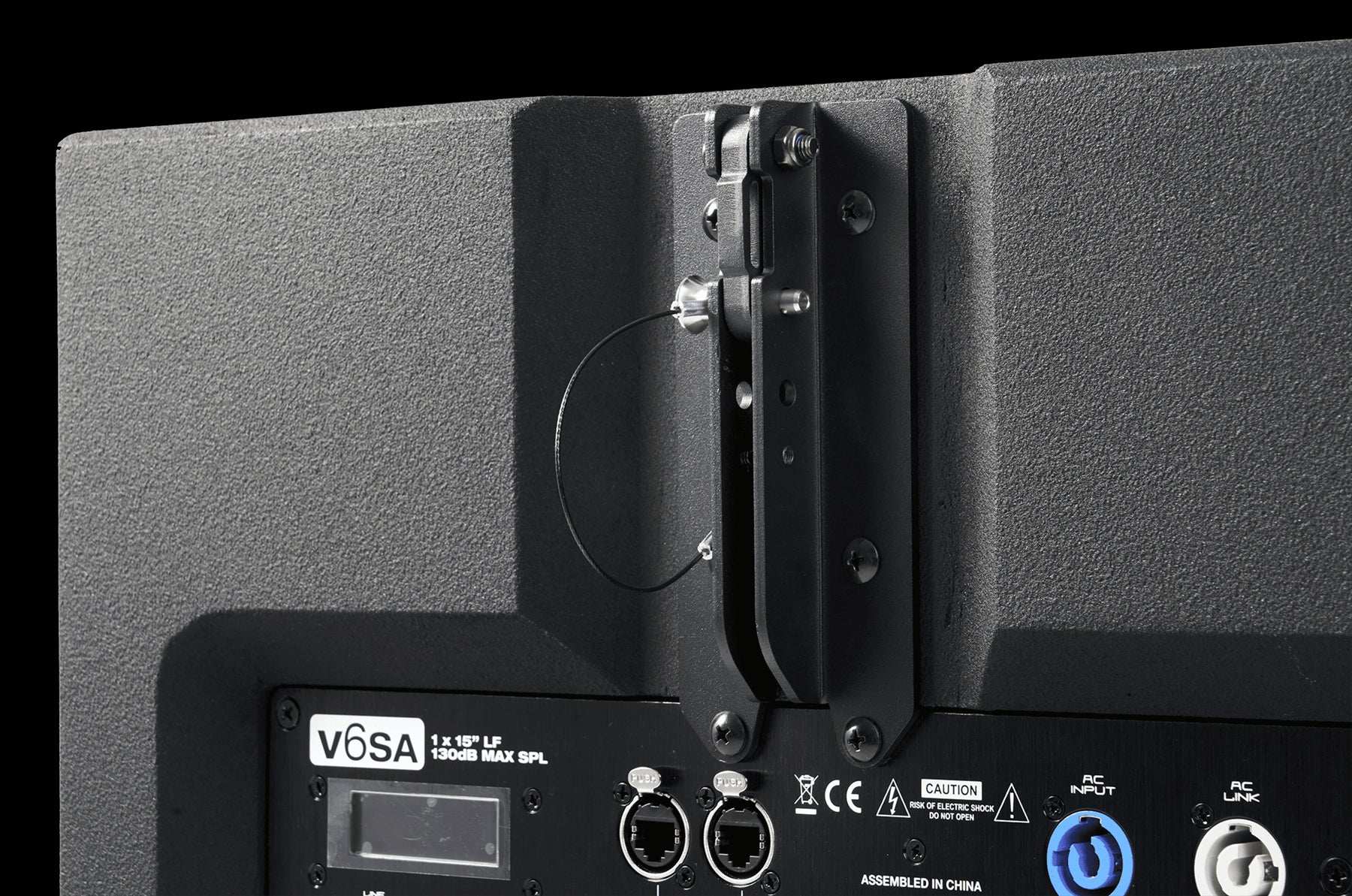

Optional adjustable suspension system for versatile rigging options

Specifications:
Cabinet Type: Active line array woofer
Low-Frequency Driver: 1 × 15" / 100 mm voice coil
Amplifier Power: 1200W
Maximum SPL: 130 dB
Frequency Response: 40 Hz – 150 Hz (-10 dB)
DSP Functions: Gain, EQ, crossover, delay, threshold
Crossover Frequency: DSP controlled
Sensitivity (1W @ 1m): 0 dBu
Impedance: N/A (active system)
Coverage (H × V): N/A
Vertical Splay Angle: N/A
Dimensions (W × H × D): 474 × 506 × 673 mm
Weight: 41 kg
