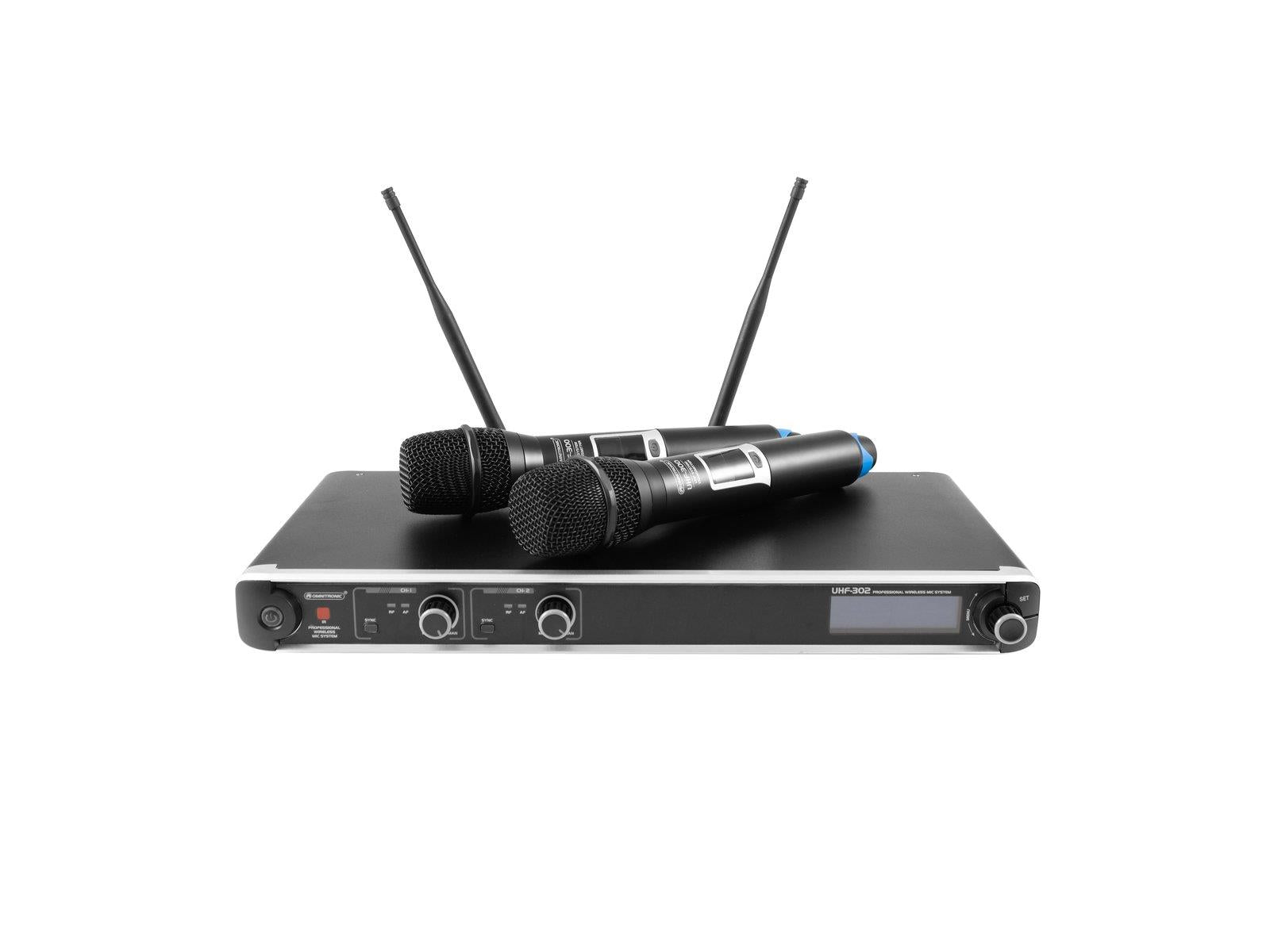

Omnitronic UHF-302 Dual Channel Handheld Wireless Microphone


Omnitronic 2-channel UHF PLL microphone system.

Vendor: Omnitronic
SKU: 154-13063302
Icon In Stock In Stock
Icon Delivery Time

Omnitronic 2-channel UHF PLL microphone system.

2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitters via infrared signal
LCDs for group, frequency and channel
LEDs for carrier and audio signal
2 separate channels with volume controls
Balanced XLR output per channel
Unbalanced 6.3 mm jack for mixed-signal output
Jack cable included
Removable antennas (BNC connection)
Incl. mounting brackets for 483 mm rack installation
2 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
Matching pocket transmitter can be ordered separately
License-free and approved in large parts of the EU (please check on a country-by-country basis)
Receiver - Housing design: (19") 48.3 cm rack installation possible 1 U
Mic - Polar pattern: Cardioid
Mic - Battery: 2 x Mignon (AA) (not included)

Type: Wireless set
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency range: 50 - 18,000 Hz
S/N ratio: >80 dB
Number of channels: 2
Range: 60 m

Power supply: 100-240 V AC, 50/60 Hz
14 V DC 350 mA
Power consumption: 4 W
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Material: Metal
Housing design: (19") 48.3 cm rack installation possible 1 U

Power supply: 3 V DC
Power connection: Battery/battery pack
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Capsule type: Dynamic
Material: Plastic
System: Non-diversity, 2 channels
Receiving frequencies: 93
RF power output: 10 mW
Modulation method: FM
Frequency stability: 10 ppm
Sensitivity: 6 dBµV
T.H.D.: <0.5 % at 1 kHz
Audio outputs:
Mic: 2 x XLR, bal.
Mix: 6.3 mm jack, unbal.
Current consumption: 130 mA

Receiver: 410 x 47 x 235 mm
Microphone: 250 x 51 mm


Receiver: 2.30 kg
Microphone: 0.23 kg
