Relacart Ur-222D 2-Channel Uhf System

Description

True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz

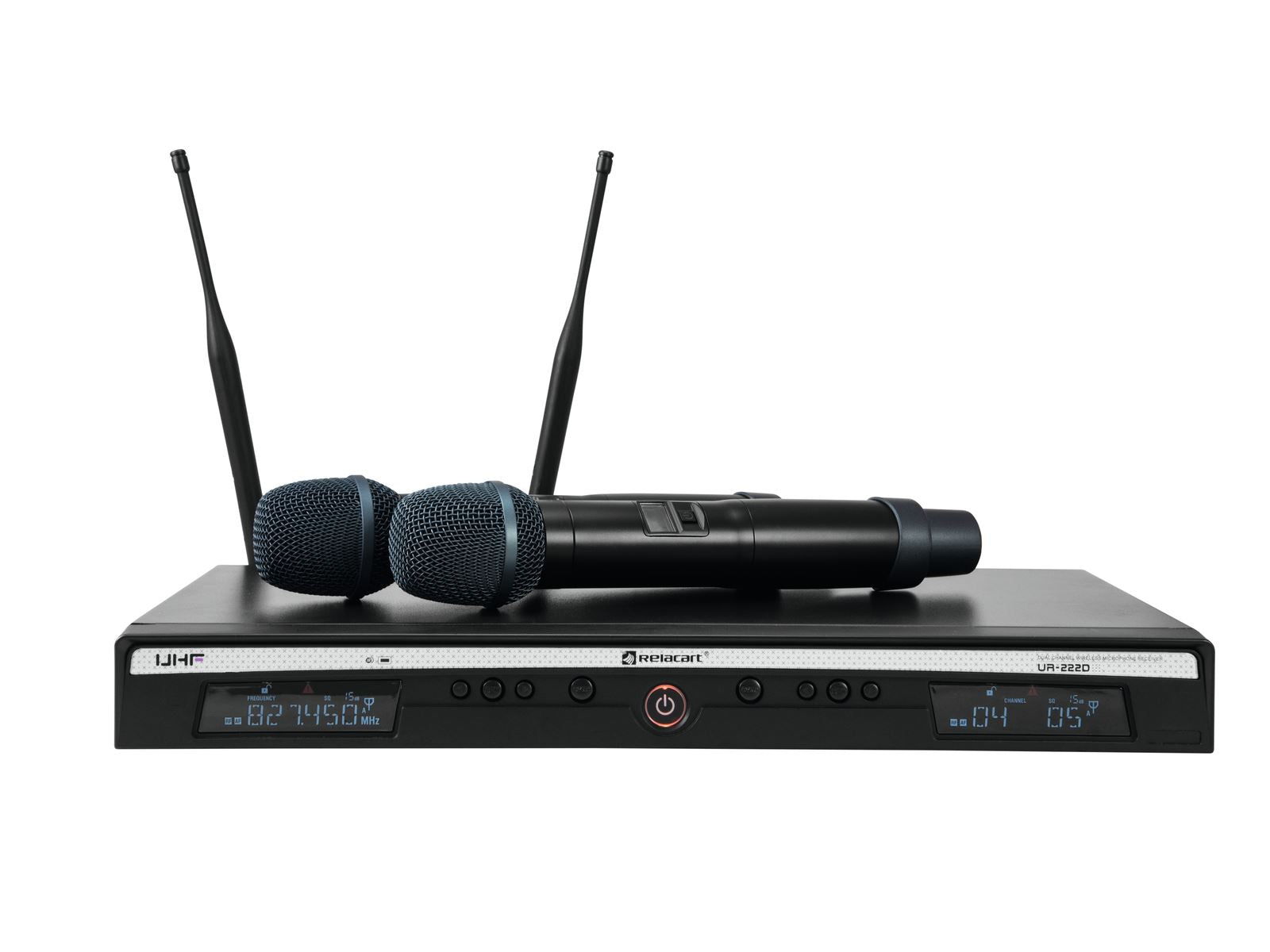

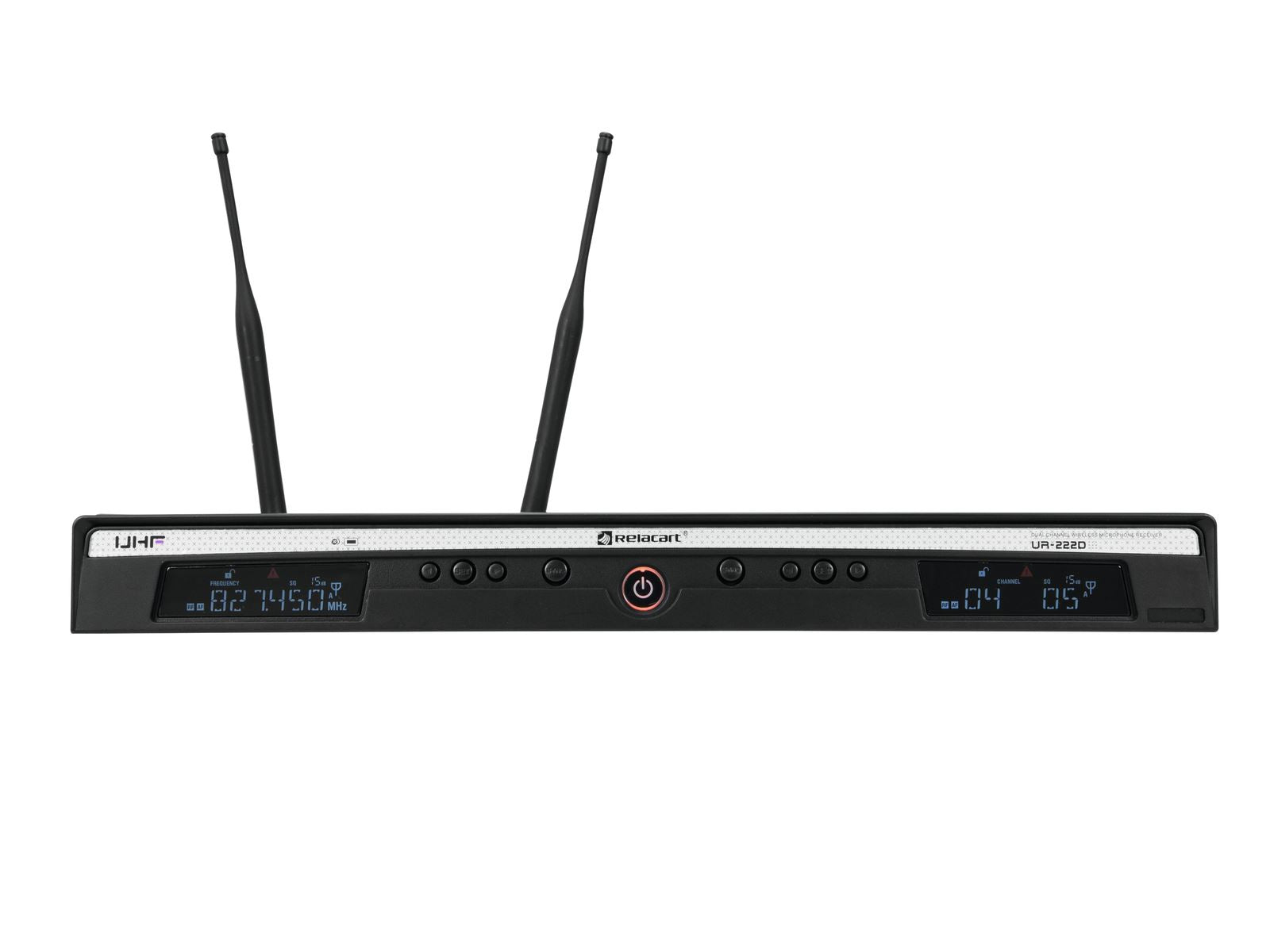

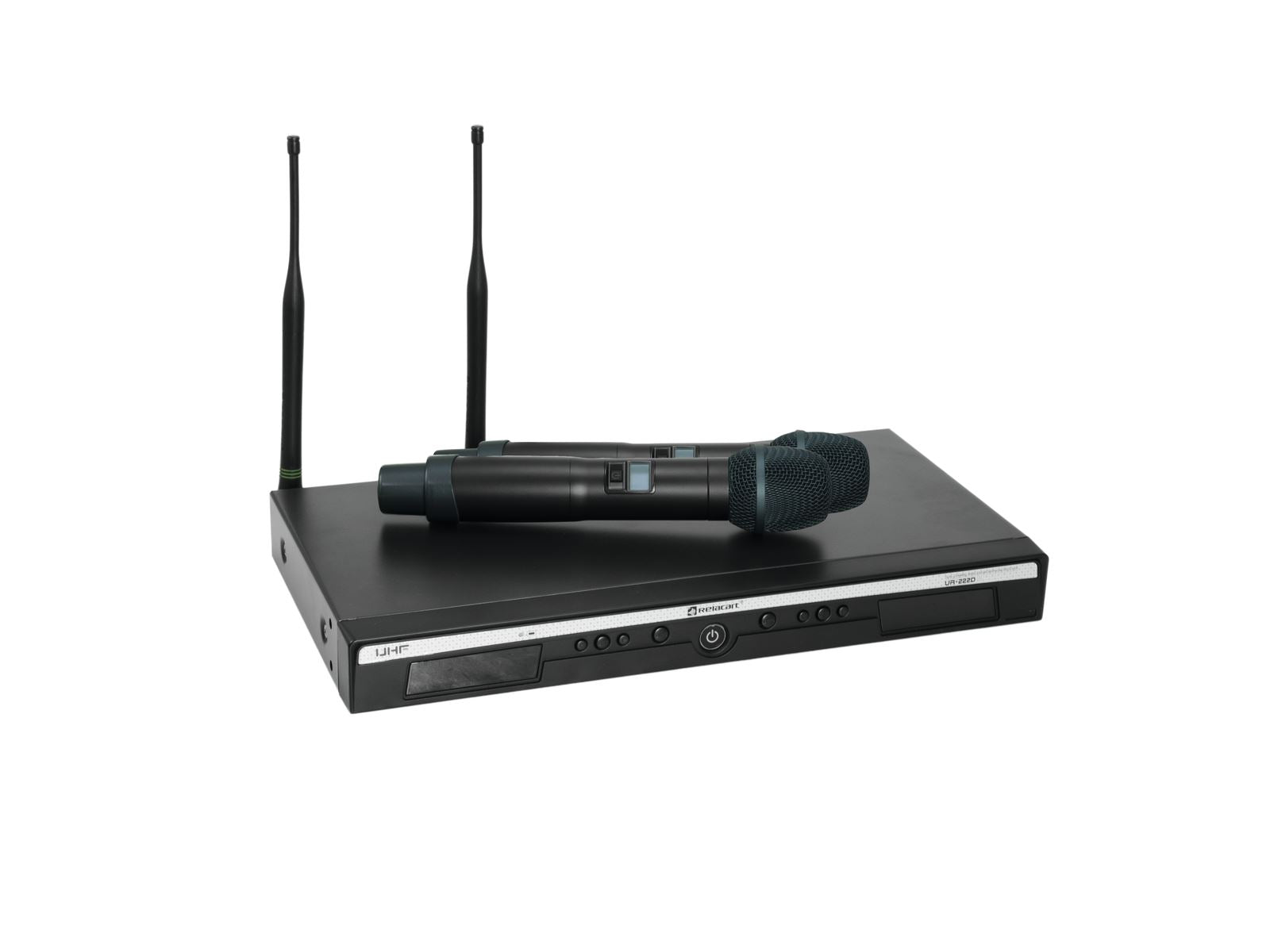

13055189 RELACART UR-222D 2-Channel UHF Receiver

2-channel multifrequency wireless receiver with true diversity reception

• 2-channel multifrequency wireless receiver with high-quality true diversity reception
• 2 license-free frequency ranges: 823-832?MHz (Duplex Gap)?and 863-865?MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free reception
• Automatic frequency scan (AFS) finds interface-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency

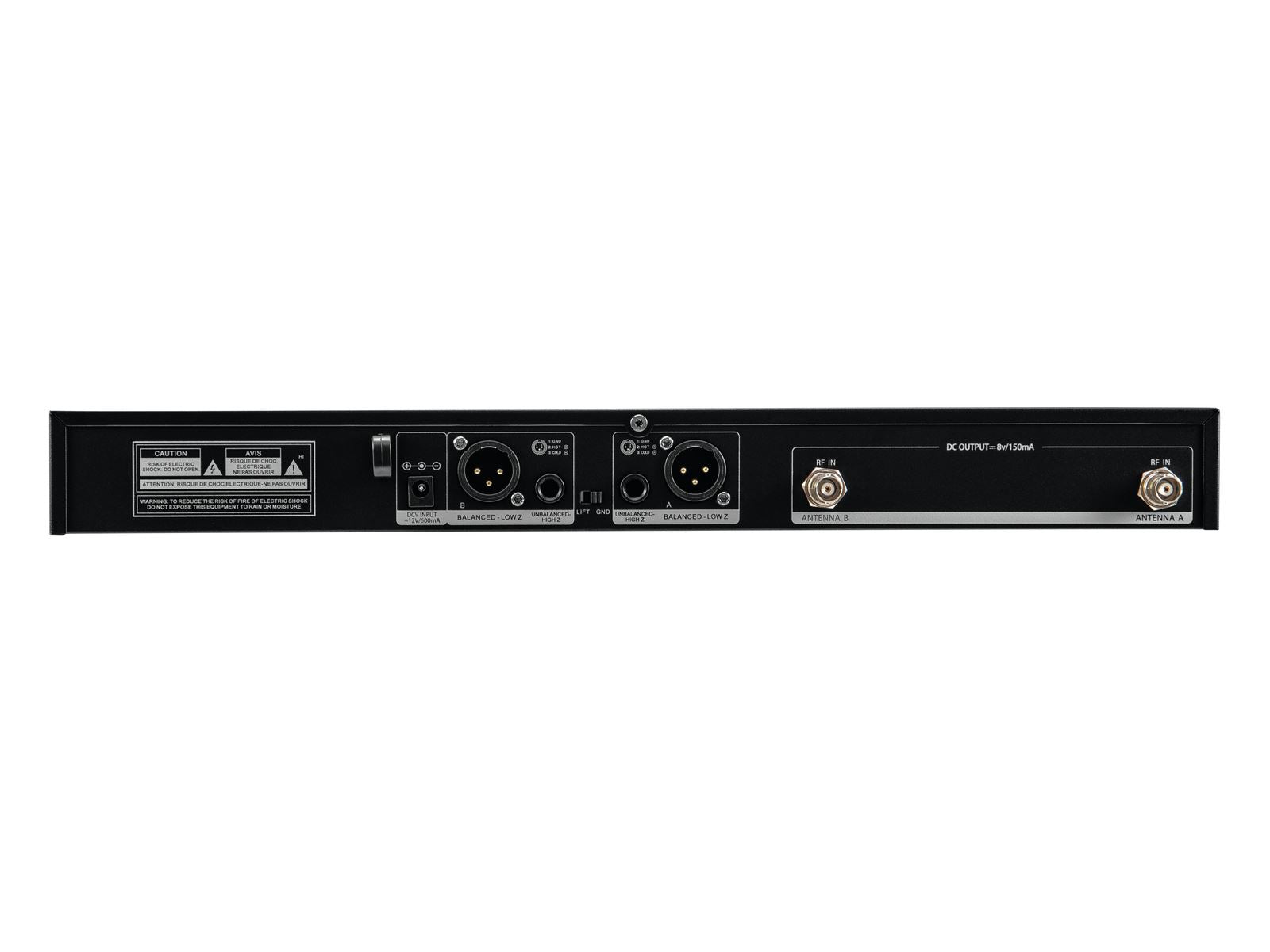

• XLR and 6.3 mm jack output

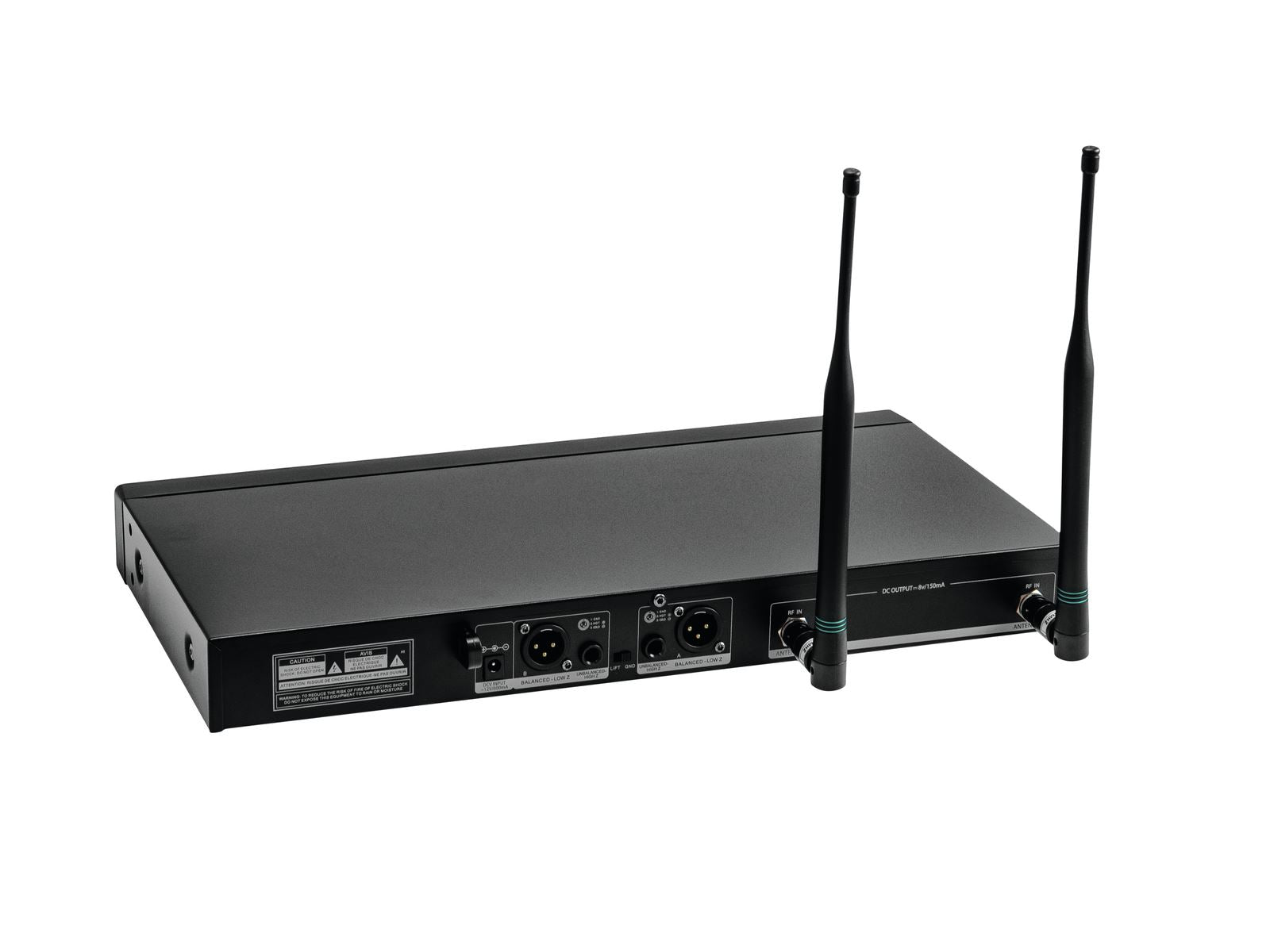

• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Delivery includes practical transport bag with jack cable and power unit
• Durable metal housing
• 483 mm rack installation possible with supplied mounting brackets
• Matching transmitters optionally available: hand-held microphone (UH-222D) and pocket transmitter (UT-222)
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Use a operating range up to 80m with line of sight
• Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

13055206 RELACART UH-222D Microphone

Hand-held microphone with PLL multifrequency transmitter

• Dynamic hand-held microphone with UHF pilot tone technology (PLL)
• Ergonomic aluminum alloy housing, applicable for touring
• Matches receivers UR-222S and UR-260D
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• OLED display for battery status and frequency
• RF output power Hi/Low adjustable
• Gain level Hi/Mid/Low adjustable
• Directly compatible with Shure's SM58 capsule
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Polar pattern: Cardioid
• Use a operating range up to 80m
