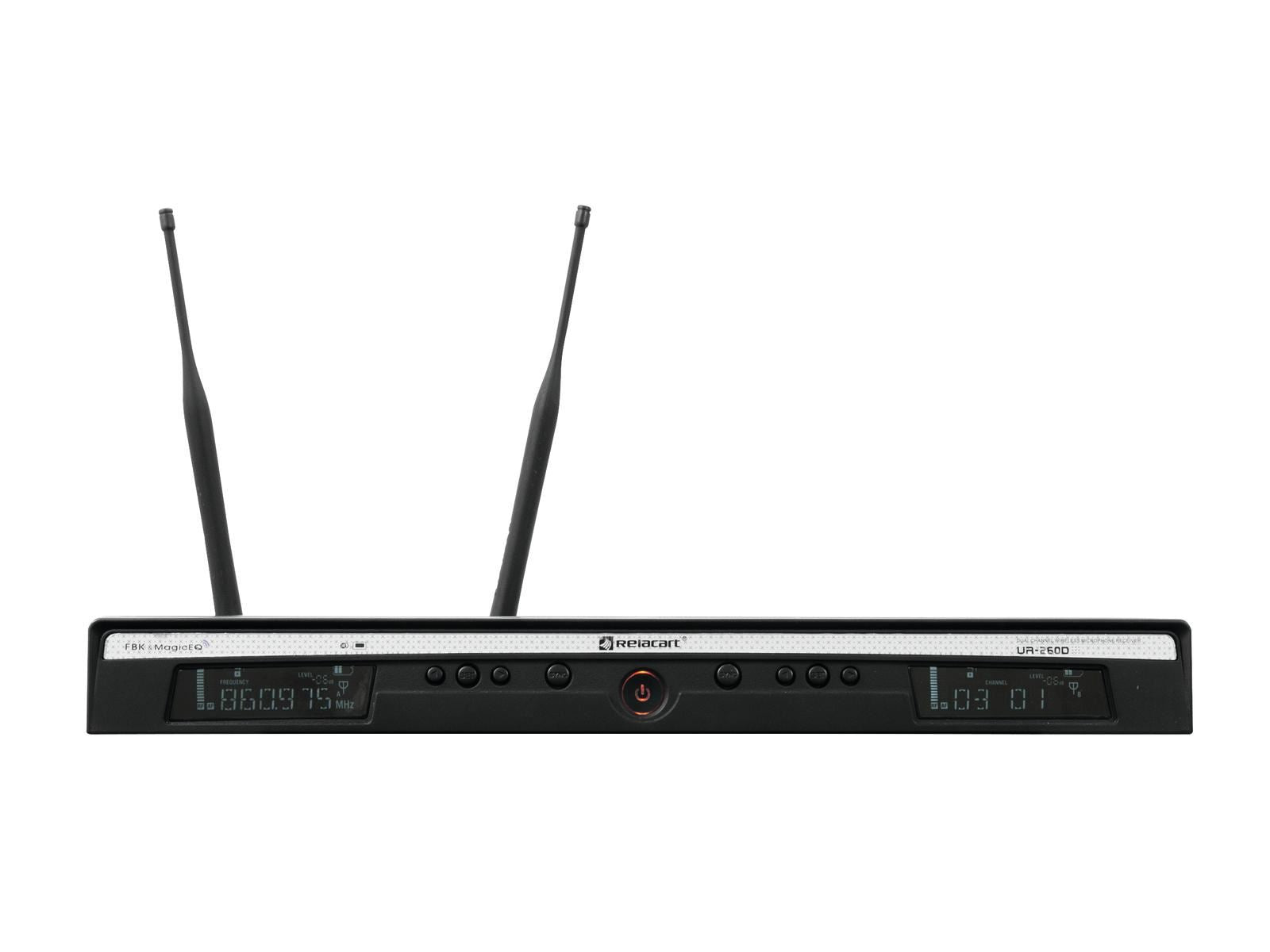

Relacart Ur-260D 2-Channel Uhf Receiver

True diversity wireless receiver with DSP for microphone modeling and PC software
Vendor: Relacart
SKU: 154-13055210
Icon In Stock In Stock
Icon Delivery Time

The UR-260D is a dual-channel true diversity UHF system with a host of innovative features. In addition to automatic frequency scanning for interference-free transmission, one also finds an intelligent feedback suppression system. With MagicEQ, various sound characteristics of world-known microphone capsules can be emulated or created yourself. The presets can be changed from a computer via software - even during live operation.

True diversity wireless receiver with DSP for microphone modeling and PC software

  • 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
  • Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
  • Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
  • Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
  • DSP programming and management via Ethernet port and intuitively operated PC software
  • High-quality true diversity reception
  • 2 license-free frequency ranges: 823-832?MHz (Duplex Gap)?and 863-865?MHz
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Parallel operation of up to 9 wireless channels is possible without any interference
  • Pilot tone technology (PLL) and noise squelch for interference-free operation
  • Automatic frequency scan (AFS) finds interface-free channels
  • Infrared interface for easy and error-free channel transfer to transmitters via infrared signal

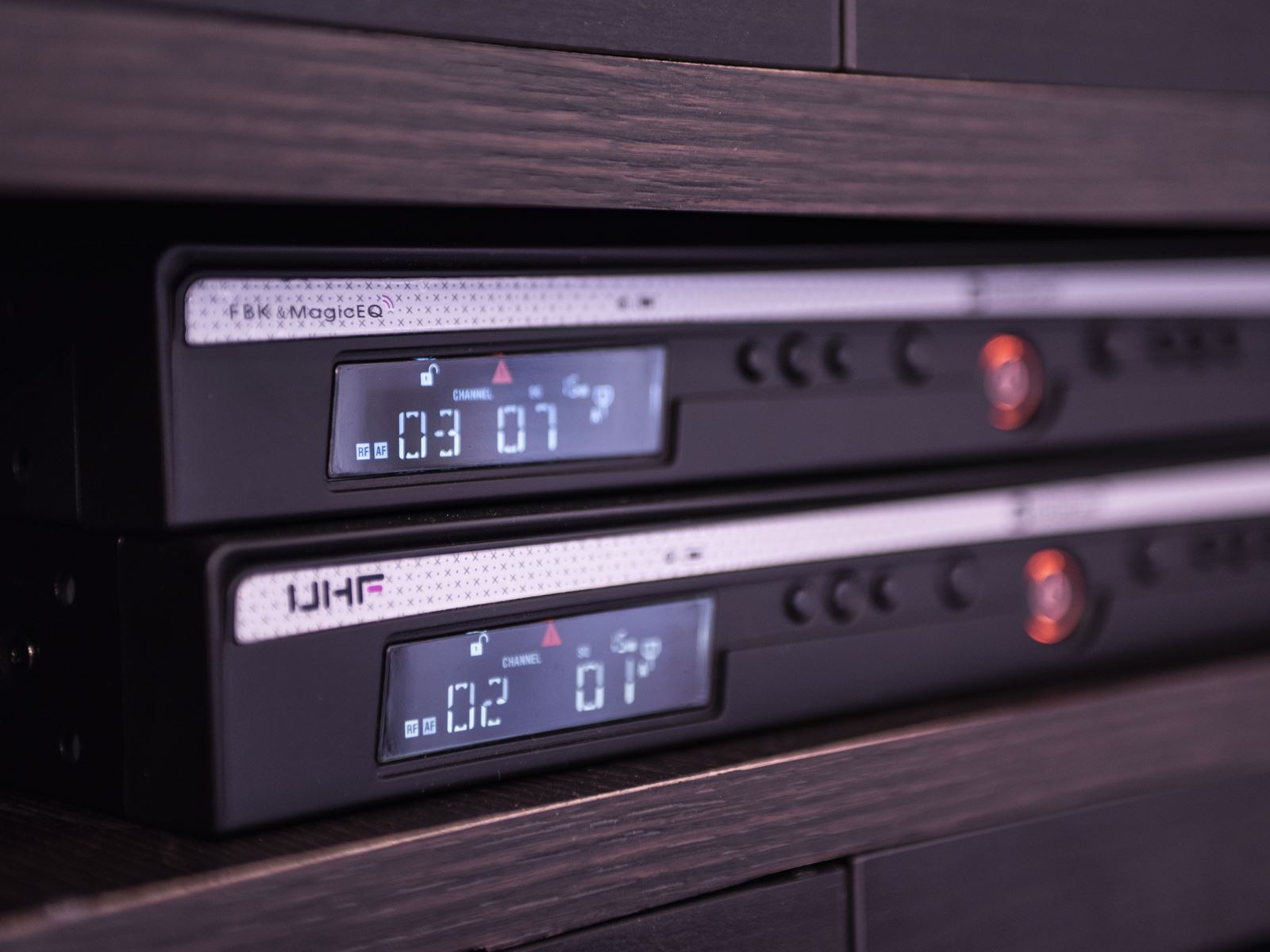

  • LCDs for battery status of the transmitters, antenna A/B, RF reception level, AF audio level and frequency
  • Multiple units can be linked with network cables
  • Lock function avoids accidental changing of settings

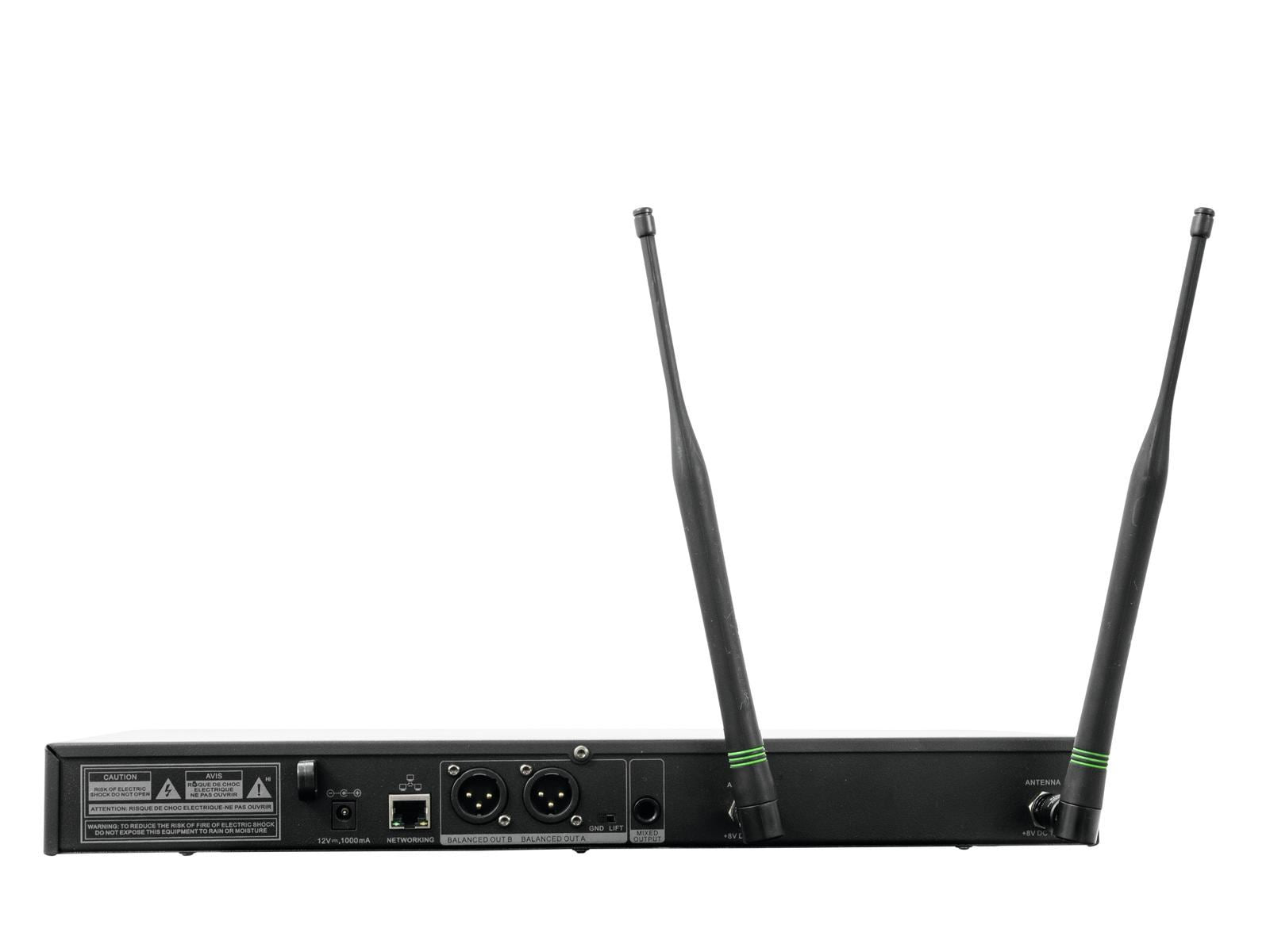

  • XLR and 6.3 mm jack output
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Matching hand-held microphone (UR-260D) optionally available
  • Matching pocket transmitter UT-222 optionally available
  • Delivery includes jack cable and power unit
  • Durable metal housing
  • 483 mm rack installation possible with supplied mounting brackets
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Digital signal processor 96kHz, 24 bit
  • Use a operating range up to 80m
  • The device can be connected via RJ45 (F) mounting version to the PC in connection with Relacart Magic EQ software
  • Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

Type: Receiver
Power supply: 100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption: 12 W
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Number of channels: 2
Frequency range: 45 - 18000 Hz
S/N ratio: >100 dB
Network connection: Protocol: ethernet TCP/IP via 1x RJ45 (F) mounting version
DSP: Digital signal processor 96kHz, 24 bit
Connections: 2 x antenna via BNC (F) 8 V
Output: 2 x Microphone via 3-pin XLR
Output: 2 x Microphone via 6.3 mm plug (unbal.)
Frequency band: UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection: 90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each
Modulation: FM
Frequency stability: ? 0.0005 %
Range: 80 m
Switching bandwidth: 11 MHz
Switch: On/off switch
Diversity: True diversity
Material: Metal
PC connect: Relacart Magic EQ software via RJ45 (F) mounting version
Housing design: Desktop console housing 1 U
(19") 48.3 cm rack installation (provided)
Dimension: Width: 41 cm
Depth: 22.5 cm
Height: 4.3 cm
Weight: 2.23 kg
