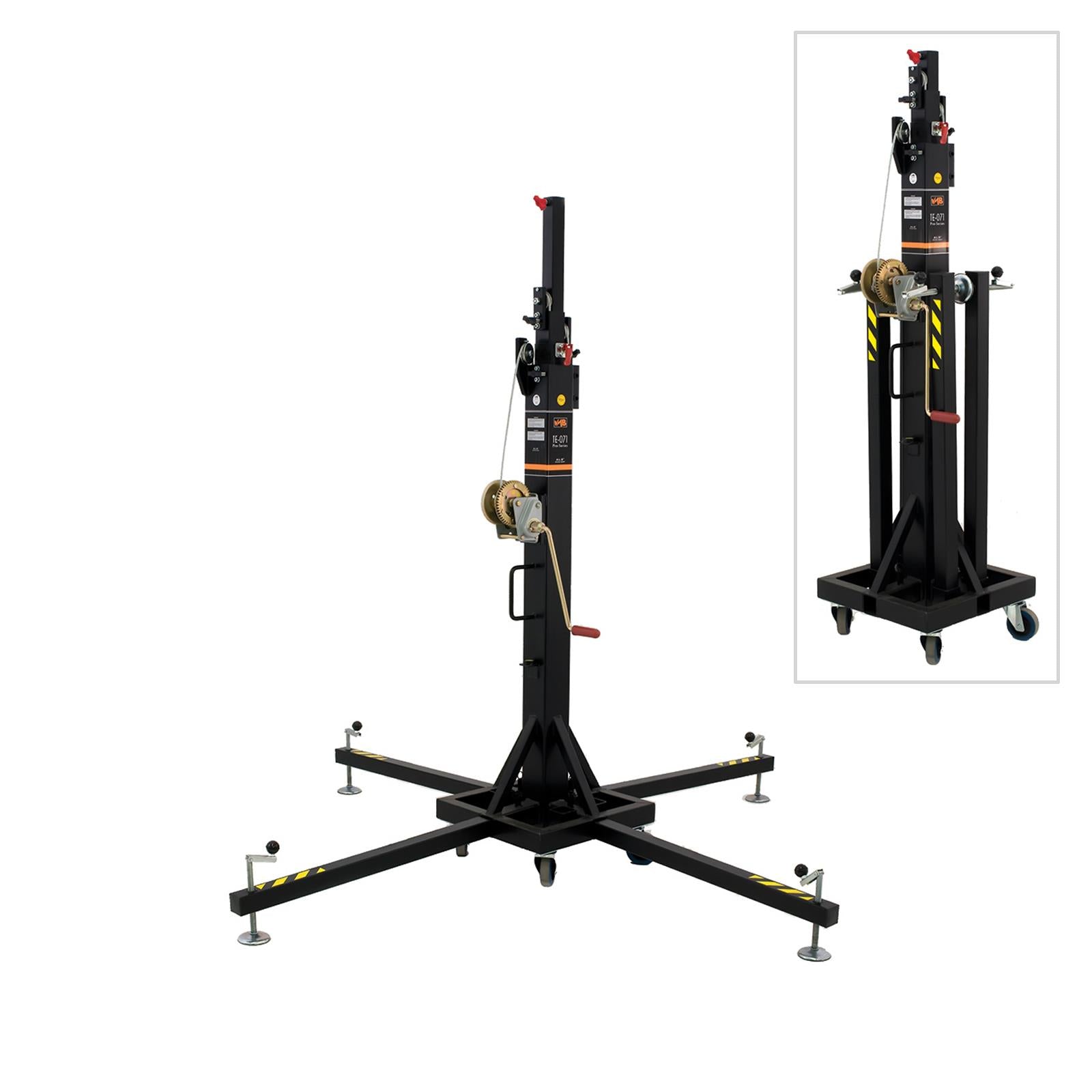

VMB TE-071B Telescopic Lifter 5.35m 220kg

Description:

This lifting tower has a larger steel base than its predecessors, which gives it greater stability. The tower can be pushed into a van or truck by pre-assembling the RH-1 transport accessory. It is capable of lifting 220kg to 5.35m, has 4 large stabilizers with non-slip rubber plates and a spirit level for accurate levelling. It is composed of four steel X profiles with high resistant, anti-torsion steel cable and is guided through reinforced pulleys. Safety is guaranteed with our ALS automatic locks, patented and exclusive to VMB Prolifts. The ALS is an automatic blocking system which ensures the lift is secured during erection and descent and makes it impossible for the load to fall in the unlikely event of cable breaking.

Features:

2 year warranty
Max. height: 5.35m (17.5ft)
Max. load: 220kg (485lb)
ALS Locks offer the best in load protection
High quality AL-KO winches loaded with steel cable
Manufactured in Europe to both BGV C1 and CE (2006/42/CE) standards

Specifications:

Working footprint: 1.53 x 1.53m (5.02 x 5.02ft)
Folded height: 1.73m (5.7ft)
Winch: 450kg (990lb)
Adaptor size: 35mm internal diameter
Weight: 71kg (157lb)
