Wharfedale PMX-500 System PA System inc Mixer 150w, Speakerks and Mic

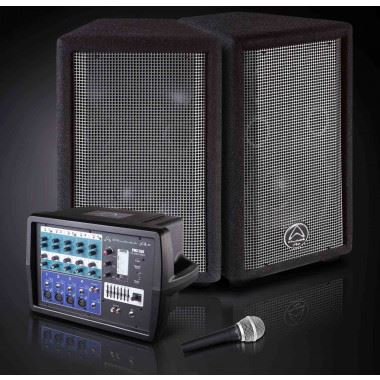

The Wharfedale Pro PMX 500 System is a complete portable PA sound package consisting of a Wharfedale PMX500 powered mixer, two PTX-8 2-way loudspeakers, a DM1.0 dynamic microphone and the necessary cables to get up and running for a public performance.

Setting up a PMX System has been designed to be simple even for absolute beginners. All elements of the PMX system use high quality industry standard connectivity to ensure that it can stay useful as your equipment is incrementally upgraded.

The Wharfedale PMX500 powered mixer features built in digital FX processing, expanding your creativity and improving your sound quality without the need for additional processors. A graphic EQ allows fine tuning of the overall mix.

Phantom powered XLR microphone inputs allow you to connect any type of microphone and line level inputs are available with both jacks and RCA connectors.

The main outputs use Speakon/Jack Combi connections for maximum reliability and versatility.

The lightweight, yet rugged portable public address system benefits from:

PMX-500

150W RMS power output
4 phantom powered XLR mic inputs
Jack and RCA line level inputs
Peak indicator for each channel
2 band EQ on every channel
Built in digital FX
7 band Graphic EQ
4 segment LED metering

The Wharfedale PMX 500 is a class leading portable mixer which is lightweight, compact as well as portable. Designed to be a balance betwen power and portability, the PMX 500 is suitable for use in a wide range of portable sound applications.

The Wharfedale PMX 500 provides everything needed to mix and amplify microphones and line level sources in one box, as well as an ergonomic carry handle for ease of transportation. By having everything in one unit, setup time is reduced meaning you can start your performance quicker than ever before.

Offering built-in digital FX processing, expanding creative possibilities as well as improving sound quality without the need for costly and cumbersome processors, the Wharfedale PMX 500 also features a graphic EQ allowing you to fine tune the mix.

There are 4 phantom powered balanced XLR mic inputs, as well as 1/4″ Jack and RCA line level inputs. Each channel has a peak indicator, and there is also a 2 band EQ on every channel. The main outputs are 1/4″ jack/speakon.

Dimensions (H x W x D) 392 x 261 x 243 mm

Net Weight 4.65 kg / 10.33 lbs

2 x PTX-8 Speaker

Frequency response (+/- 10dB) - 65-20kHZ
Frequency response (+/- 3dB) - 70-20kHZ

Power handling -
Continuous - 75W
Programme - 150W
Peak - 300W

Nominal Impedance 8Ω
Sensitivity (dB SPL @ 1W / 1M) - 95db
Max SPL (Calculated) - 119dB
Nominal coverage (HxV) - 90°x60°
Crossover frequency - 3.0kHz
Woofer - 205mm/8"
LF Power (RMS) - 75W
Sensitivity (free field 1W @ 1M)
LF Voice coil - 1.5"
Cone material - Paper
LF Voice coil material - Copper
LF Voice coil former material - Fibre Glass
Basket material - Steel
Basket type - Pressed
Magnet structure mass - 0.792kg/1.73lbs
Magnet structure material - Ferrite

Pole mount - 35mm
Handles - 2 on side
Input Connector Type - Jack 1/4"
Net Weight kg - 8.1

H - 429mm / 16.9"
W - 280.7/146.7mm / 11.1/5.8"
D - 250mm / 9.8"

Dm 1.0 Handheld Microphone & 4.5m XLR microphone cable, 2 x Jack speaker cables
