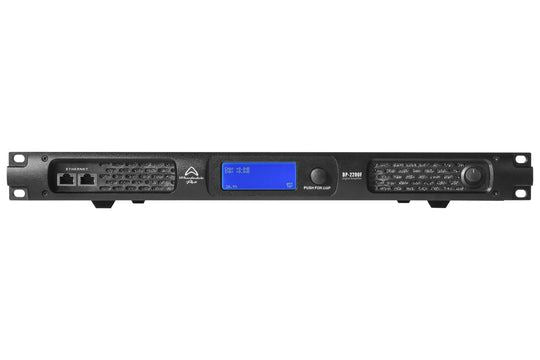

Wharfedale Pro DP-2200F Class D Amplifier 9520W

Description:

The Wharfedale Pro DP-2200F is a powerful Class D amplifier with two discrete amplification channels. It uses internal DSP and computer control for excellent performance, all editable with the supplied editing software. This software is easy to connect to, with control via Ethernet Network connectors on the front of the unit, also allowing for remote performance monitoring.

The DP-2200F delivers a huge output power, and is stable all the way down to 2 Ohms, allowing you to drive multiple 8 ohm or 16 ohm speakers with extreme power. Plus, multiple FIR filters allow for independent control of magnitude and phase, detailed equalization, and optimization of frequency and power response. In addition, it is compatible with both 70 V and 100 V systems, so can be used for a range of speaker configurations.

Features:

Massive Class D power fit into a 1U rack
Provides up to 9520 W of power for speaker systems
Combine with other DP-F or D-N units to create larger and larger systems
Comes with two discrete amplification channels
Stable all the way down to 2ohms, and able to drive multiple speakers or line array modules
FIR Filtering with 512 allows detailed equalisation, independent magnitude and phase control, and frequency/power response frequency
Use in multiple countries with 90 V to 260 V AC working voltage

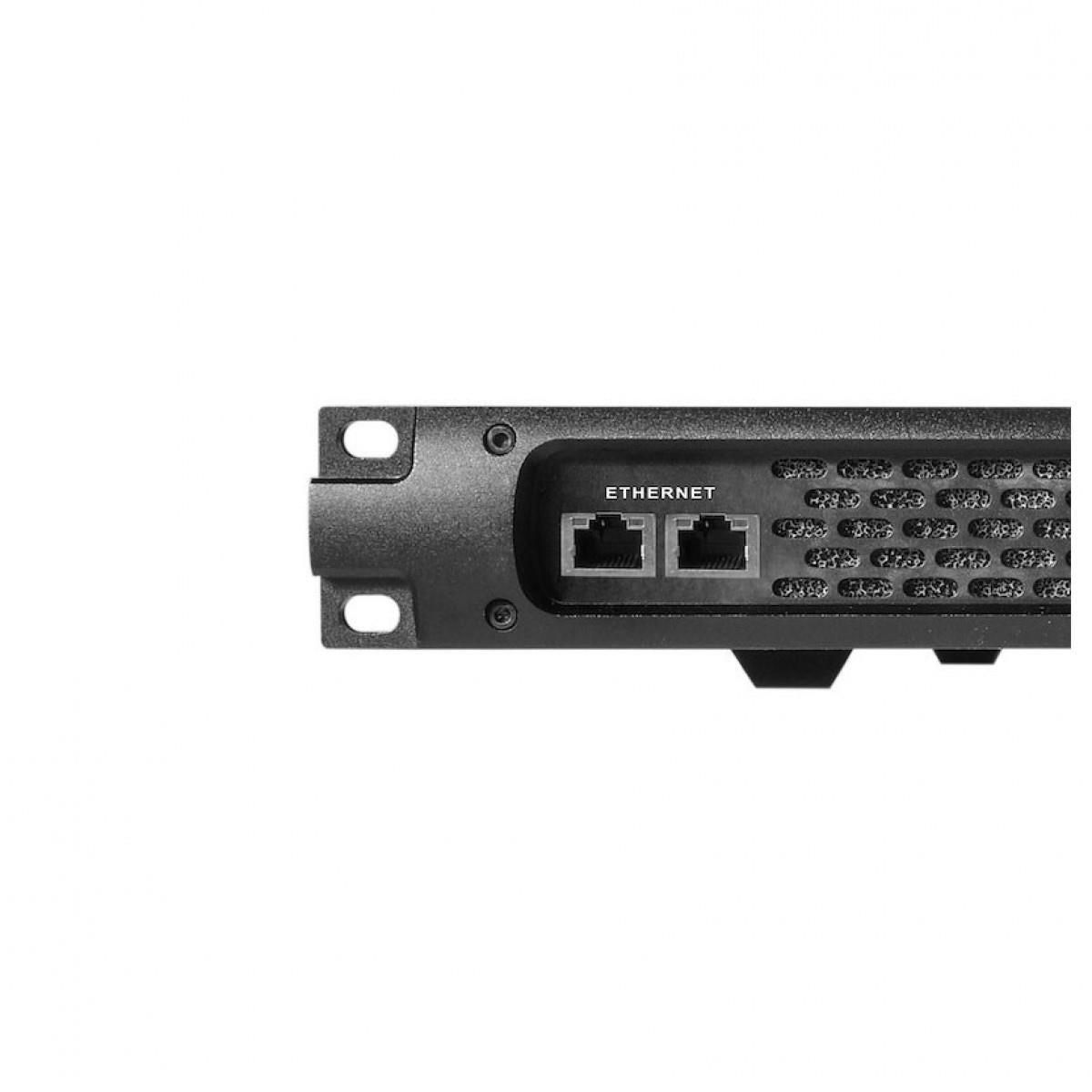

Remote control possible with two ethernet network connectors
Compatible with both 70 V and 100 V speaker systems
Supplied with editing software for parameter control

Specifications:

Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz):8 Ω / Stereo: 2 x 2000 W
4 Ω / Stereo: 2 x 3400 W
2 Ω / Stereo: 2 x 4760 W
16 Ω / Bridge: 1 x 4000 W
8 Ω / Bridge: 1 x 6800 W
4 Ω / Bridge: 1 x 9520 W
100 V Hi-Z: 2 x 3400 W
70 V Hi-Z: 2 x 2400 W
Output RMS voltage: 126.5 V
Maximum Input Level: 8.7 Vrms(+21 dBu)(Default Gain)
Default Gain (Rated Power,1 KHz): 24 dB
Gain(Rated Power,1 KHz): 24 dB 42 dB
THD+N: Typical value:0.05%(10% Rated Power,8 Ω)
Cross-Talk: ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω)
Frequency Response: Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance: 20 kΩ(Balance),10 kΩ(Unbalance)
Damping Factor: ≥1000(20 Hz-200 Hz,8 Ω)
SNR: ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power: 90 260 VAC,50/60 Hz
Protection: Power under-voltage protection; Amplifier output DC protection; Thermal Protection; Temperature Power Control; Overload Power Control
Size(W×H×D): 483 x 45 x 376 mm
Net Weight: 9.3 kg
