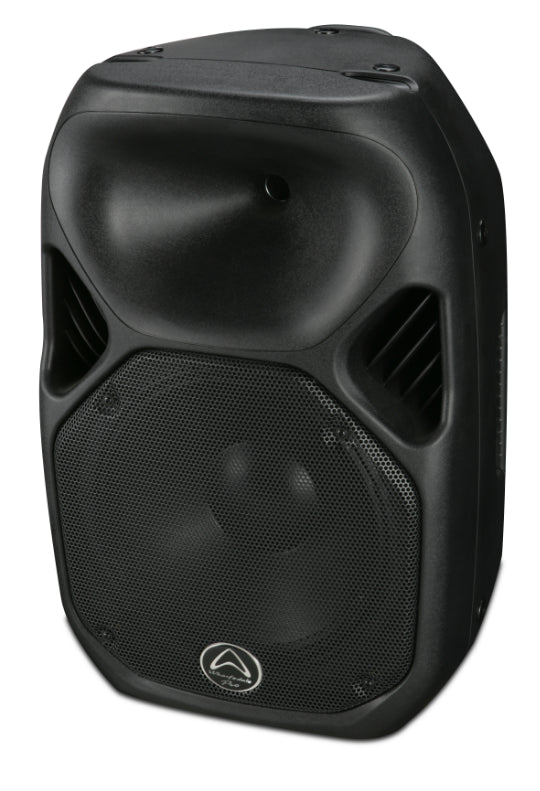

Wharfedale Pro Titan 12Z 12" Passive Speaker 2000W

As well as its potent sonic performance, the Wharfedale Pro TITAN 12Z features an organically-shaped polypropylene cabinet. Producing powerful acoustic properties, this cabinet design is tough and lightweight, making it an ideal choice for touring and mobile use. The trapezoidal design allows you to use the 12Z as a main PA speaker, a high-performance wedge monitor, or within an array. With ten M8 rigging points and a 35mm pole socket, the TITAN 12Z offers outstanding versatility for use in a diverse range of venues.

Proven Cabinet Design
Performance you can rely on. The TITAN 12Z combines powerful technology with a familiar cabinet design. An organically-shaped composition with an internal laminar flor rib pattern and polypropylene construction provides phenomenal sound with outstanding portability. Perfectly-suited to mobile applications, the TITAN 12Z is ideal for use as a main PA speaker, or as a high-performance wedge monitor. Plus, with a versatile selection of mounting options, including ten M8 threaded inserts for rigging and integrated 35mm pole receptacle, you can install your loudspeaker in any venue with ease.

Thunderous Low-Frequency Transducer
Colossal sound with incredible reliability. Every TITAN series loudspeaker has been meticulously-crafted to give you the best possible sonic performance for any application. At the heart of the 12Z, you'll find one of Wharfedale Pro's custom-made 12'' LF transducers. Made in-house, this high-performance driver boasts a massive 3'' voice coil. Combined with a rigid steel basket and intelligent design, the TITAN 15Z ensures smooth reproduction of mid and low-frequencies whilst distortion is kept to an absolute minimum. Plus, with the ability to deliver a huge maximum SPL of 132dB, you'll have plenty of volume for any event.

IRIS X Compression Driver
Proprietary technology for outstanding performance. The IRIS X Compression Driver in each TITAN Z loudspeaker has been intelligently-designed with an increased coil radius and electrical sensitivity. Heat is dissipated evenly during long periods of use at high levels, whilst the driver itself is able to convert as much electrical power into high-quality sound output as is physically-possible. Thanks to the efficiency of IRIS X technology, you can take advantage of much higher sound pressure levels with dramatically-reduced distortion. Made in-house by Wharfedale Pro themselves, IRIS X Compression Drivers are purpose-built to reproduce high-frequencies with phenomenal quality and reliability.

Features:

500W(RMS)/1000W(Program)/2000W(Peak) power handling
Capable of producing a huge maximum SPL of 132dB
Wide frequency response ranging from 50Hz to 20KHz
IRIS X Compression Driver technology for efficient high-performance HF reproduction
Custom-made 12'' LF transducer built to deliver phenomenal sound with exceptional reliability
LF driver rejects moisture, providing excellent protection in a wide range of environments
Proprietary 100° x 80° Hybrid Symmetry horn design
Tough and lightweight dynamic polypropylene cabinet with two rubber-padded handles
Ten M8 rigging points and a 35mm pole socket provide versatile mounting options
Rugged protective steel grille and top-stacking receptacles
Trapezoid design allows for use within arrays or as a high-performance wedge monitor

Specifications:

System Type: Passive 12'' 2-way loudspeaker
Frequency Range: 50Hz - 20kHz (+/-10dB)
Frequency Response: 55Hz - 20kHz (+/-3dB)
Sensitivity: 99dB (2.83v/1m)
Rated Impedance: 8 Ohms
Calculated Maximum SPL: 132dB at 1m
LF Transducer:Size: 12'' / 305mm
Voice Coil Size: 3'' / 75mm
Rated Impedance: 8 Ohms
LF Power: 500W (AES-2012)
HF Transducer:Type: IRIS X Compression Driver
Voice Coil Size: 1.75'' / 44mm
Exit Size: 1'' / 25mm
Diaphragm Material: Titanium
Rated Impedance: 8 Ohms
HF Power: 40W (AES-2012)
Nominal Coverage: Hybrid Symmetry Horn, 100° x 80° (H x V)
System Power:Continuous: 500W
Program: 1000W
Peak: 2000W
Crossover Frequency: 2.1kHz
Enclosure:Material: Injection-moulded polypropylene
Finish: Black
Grille: Steel
Hardware:10 x M8 threaded inserts
35mm pole socket

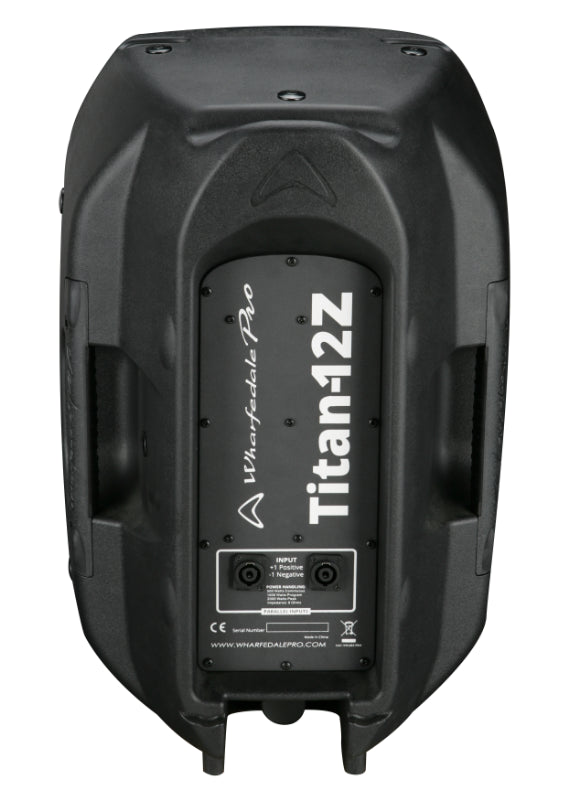

2 x SpeakON-compatible connectors
2 x handles (one on each side)
Dimensions: 582.7mm x 384.6mm x 318.6mm / 22.9'' x 15.1'' x 12.5'' (H x W x D)
Weight: 15.7kg / 34.5lbs
