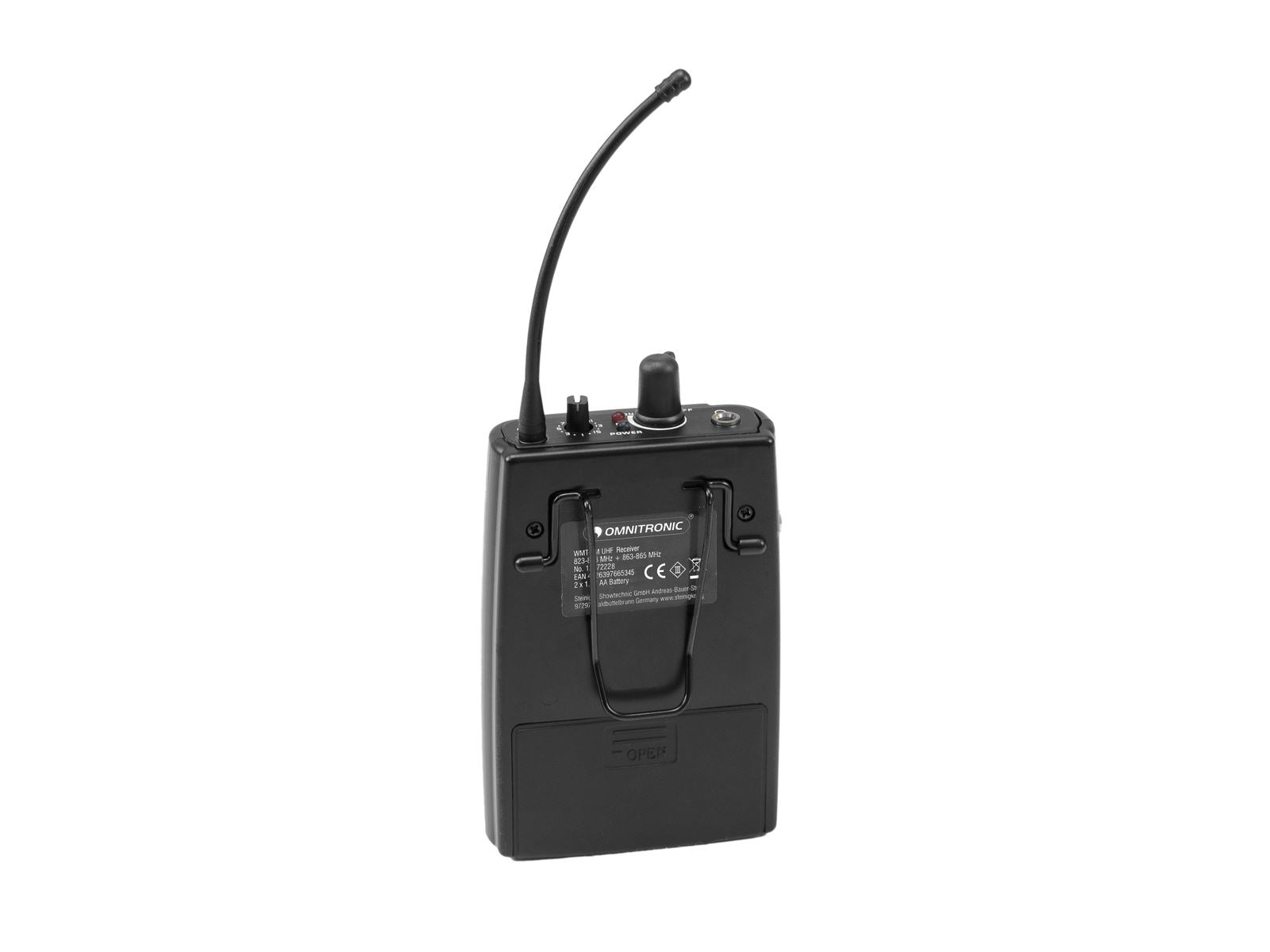

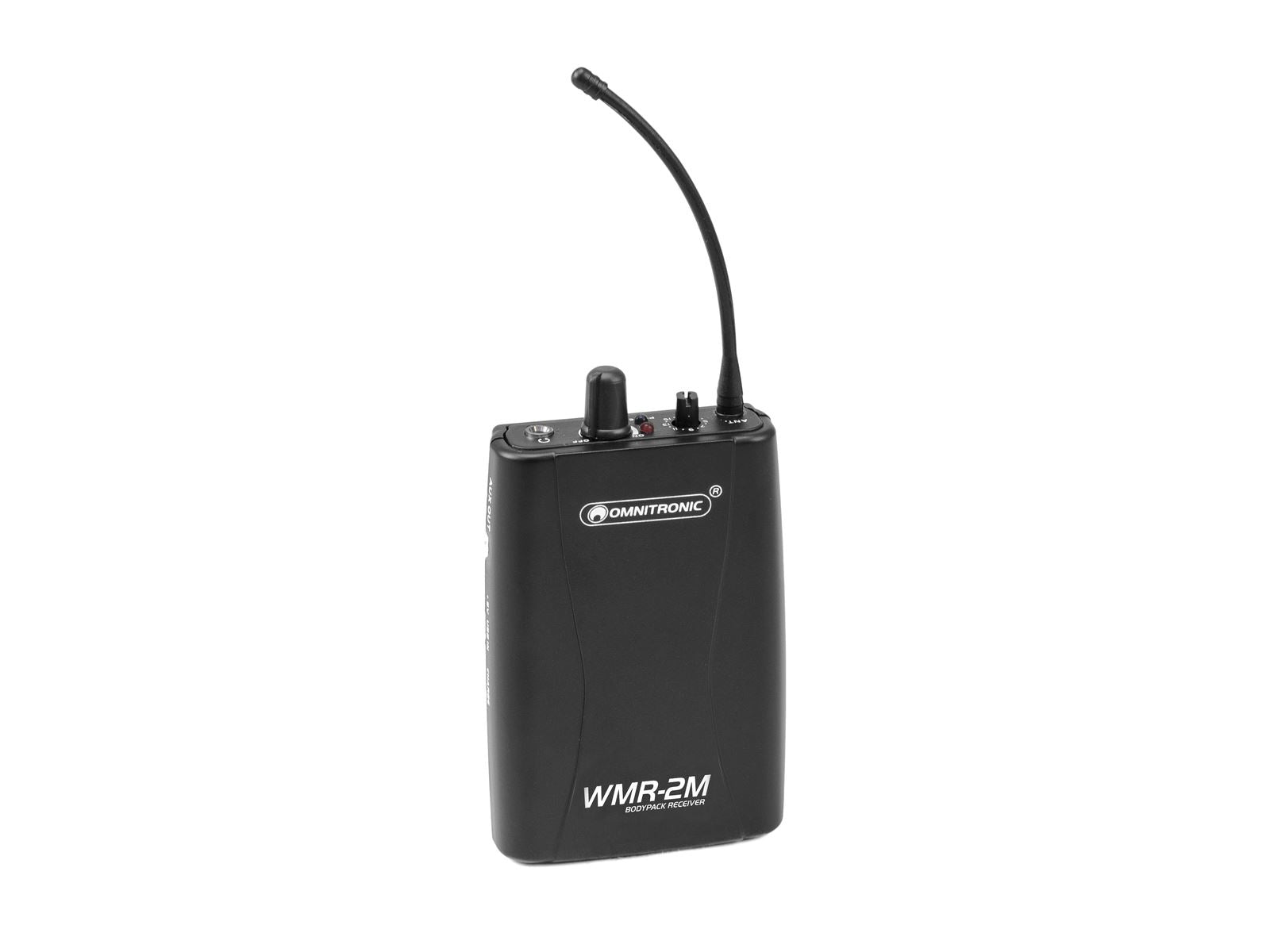

OMNITRONIC WMR-2M UHF Receiver, mono

Wireless mono audio transmission system, 823-832 MHz + 863-865 MHz

• Wireless audio transmission system with UHF PLL technology
• For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
• Compatible with wireless modules and microphones of the MOM and DAD series
• 16 channels selectable
• Parallel use of up to 4 transmitters possible
• Audio line output and earphone connection via 3.5 mm jack
• Volume control

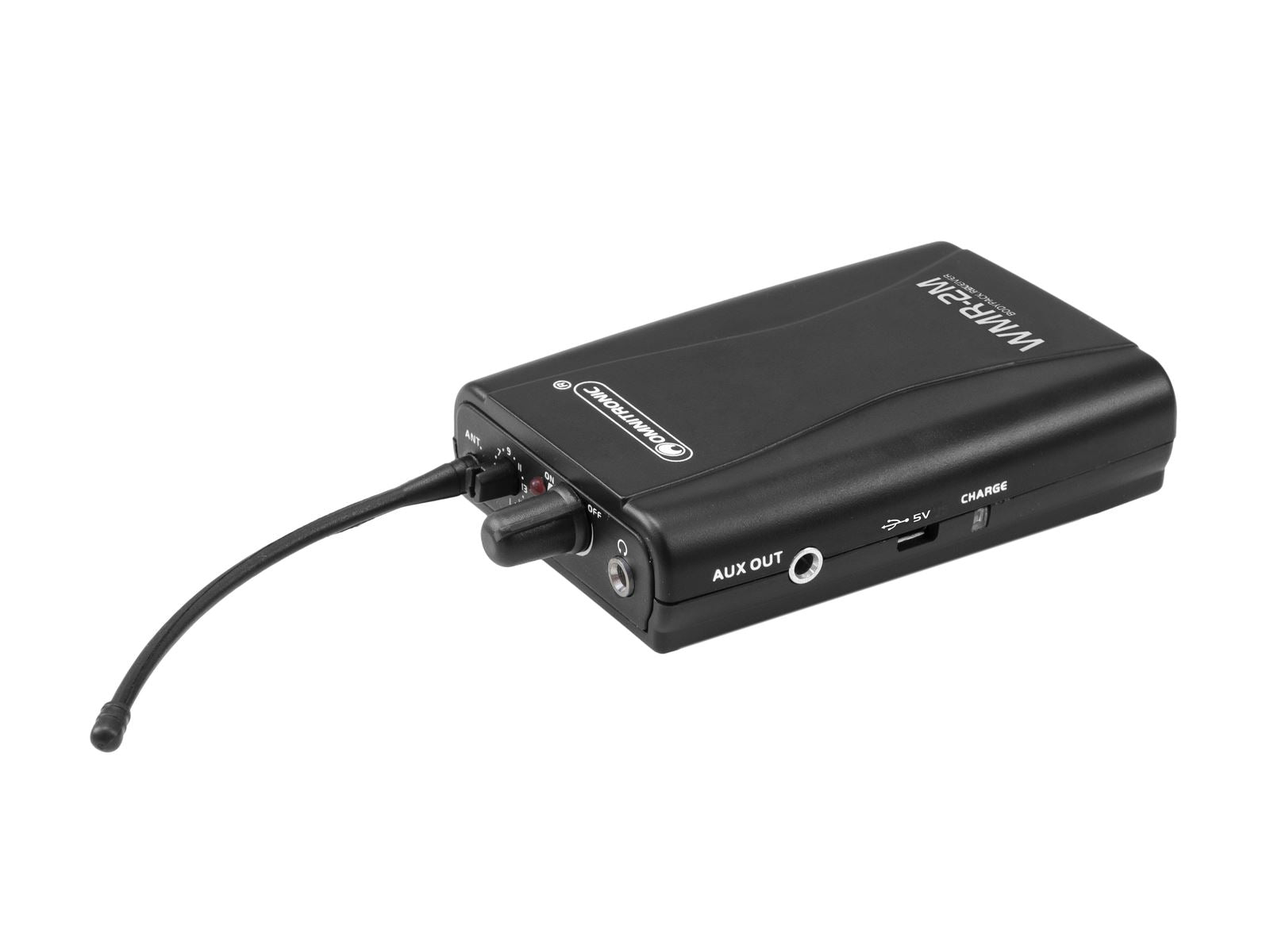

• Built-in charging function via micro USB port with LED indicator
• Supports operation and simultaneous charging
• Robust metal fixing clip

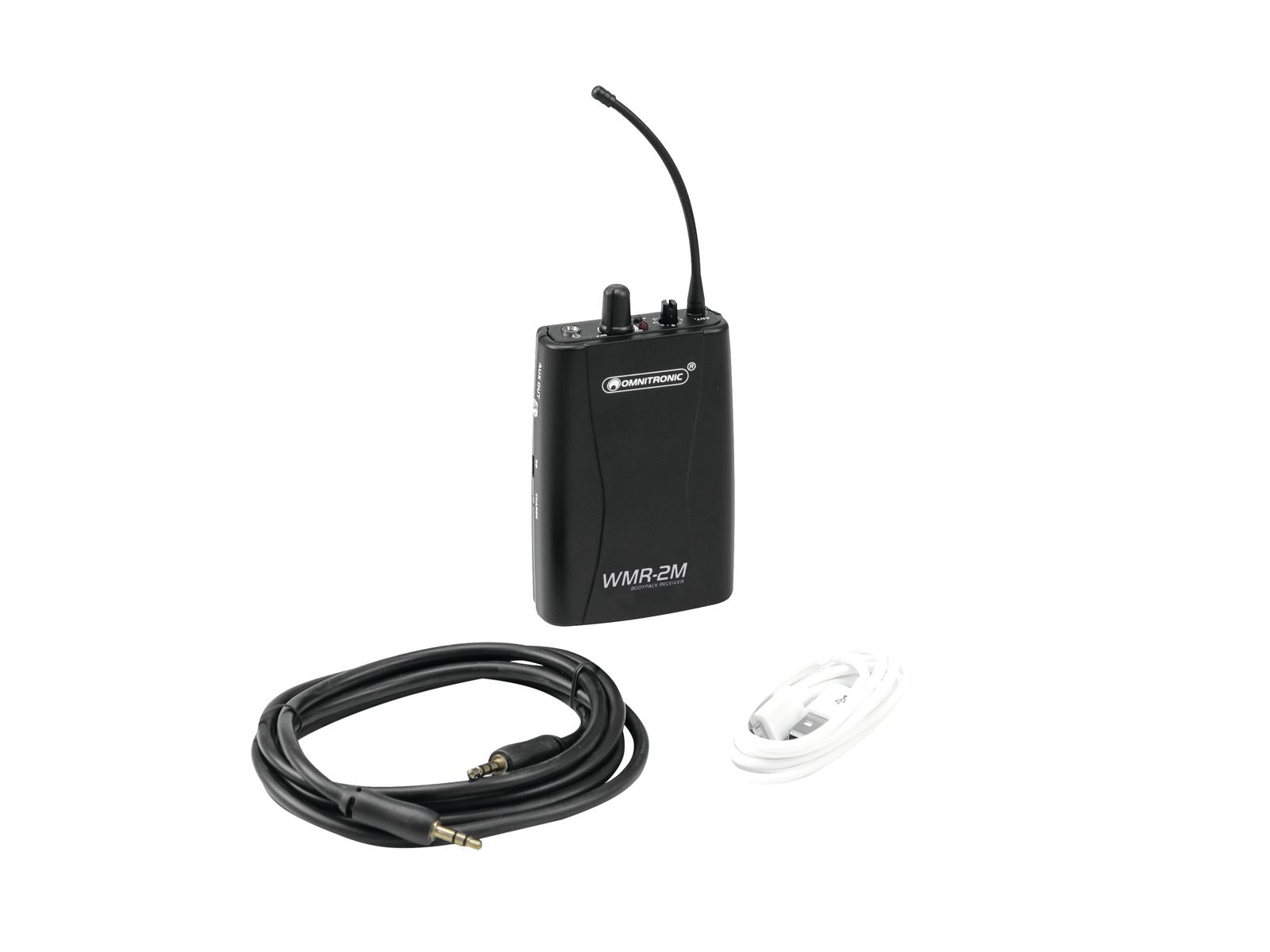

• Incl. USB charging cable and 3.5 mm audio cable
• WM-2M camera tripod optional
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Use a operating range up to 50m
• Type: Audio transmission
• Power supply: 3 V DC
• Or
• 5 V DC
• Power connection: Battery/battery pack
• Mains input micro USB (F) mounting version included
• Battery: 2 x Mignon (AA) (not included)
• S/N ratio: >80 dB

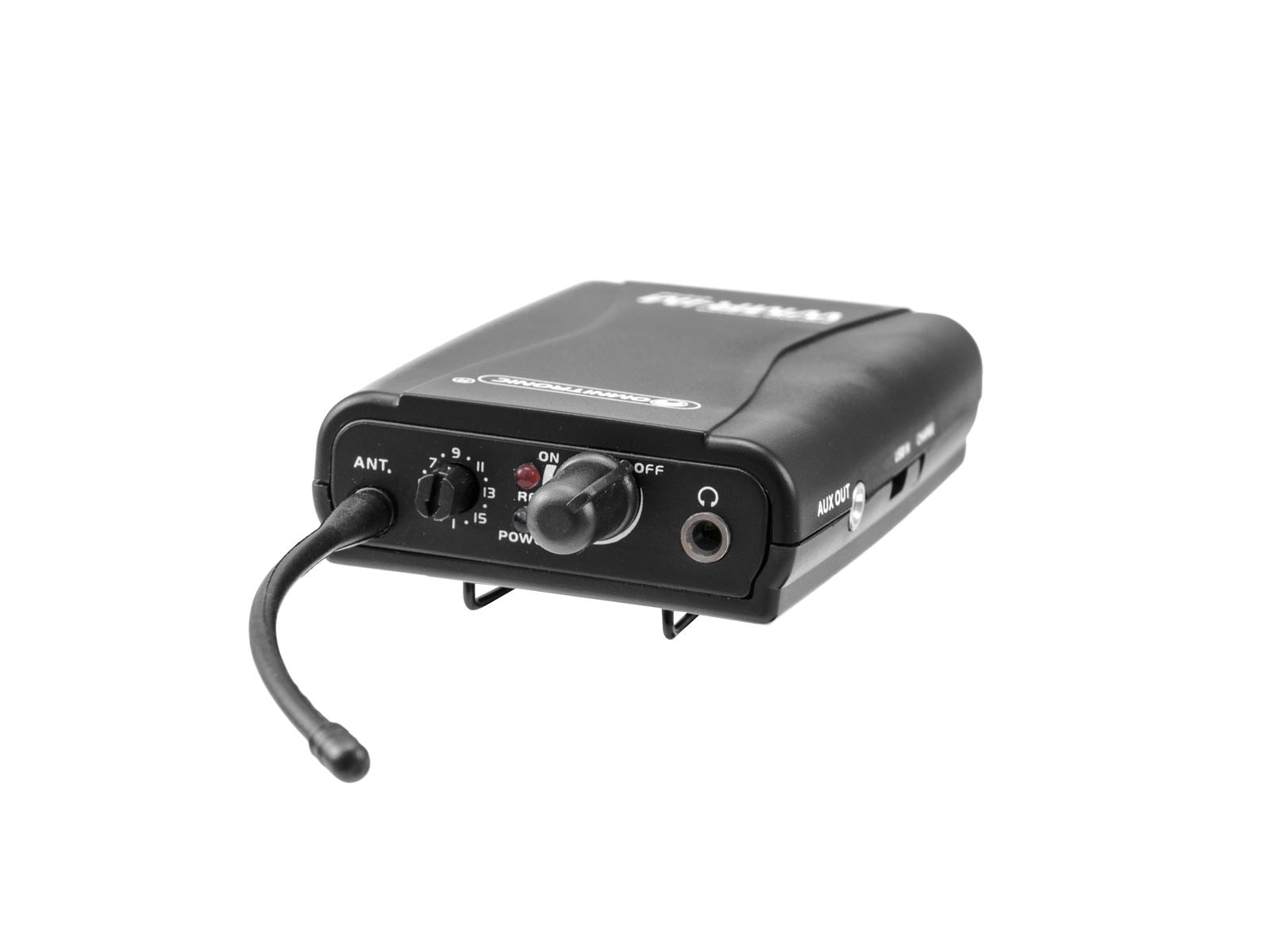

• Control elements: , frequency selector switch, level control
• Status LED: Power, signal
• Connections: Output: line via 1 x 3.5 mm jack (mono) mounting version
• 0,75 V
• Output: headphones via 1 x 3.5 mm jack (mono) mounting version 1 V
• Frequency band: UHF 823 - 832 MHz UHF 863 - 865 MHz
• Frequency selection: 16 Switchable frequencys
• Pilot frequency: 32,768 khz
• Modulation: FM
• Frequency stability: ± 0,01 %
• Range: 50 m
• Switch: On/off switch
• Material: Plastic
• Color: Black
• Dimensions: Width: 6,7 cm
• Depth: 3,0 cm
• Height: 11,2 cm
• Weight: 130 g
• Receiver
• Weight: 80 g
