OMNITRONIC XDA-1002 Class D Amplifier

Vendor: Omnitronic
SKU: 154-10451635
Icon In Stock In Stock
Icon Delivery Time

Stereo PA amplifier with class D circuitry
Low weight and height due to integrated switch mode power supply
Speaker switch-on delay and auto limiters
2 operating modes can be selected (stereo or bridged)
2 level controls
LEDs for activated protective circuit, limiter, signal, and power
Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, softstart
Ground lift switch against humming
Fan cooling

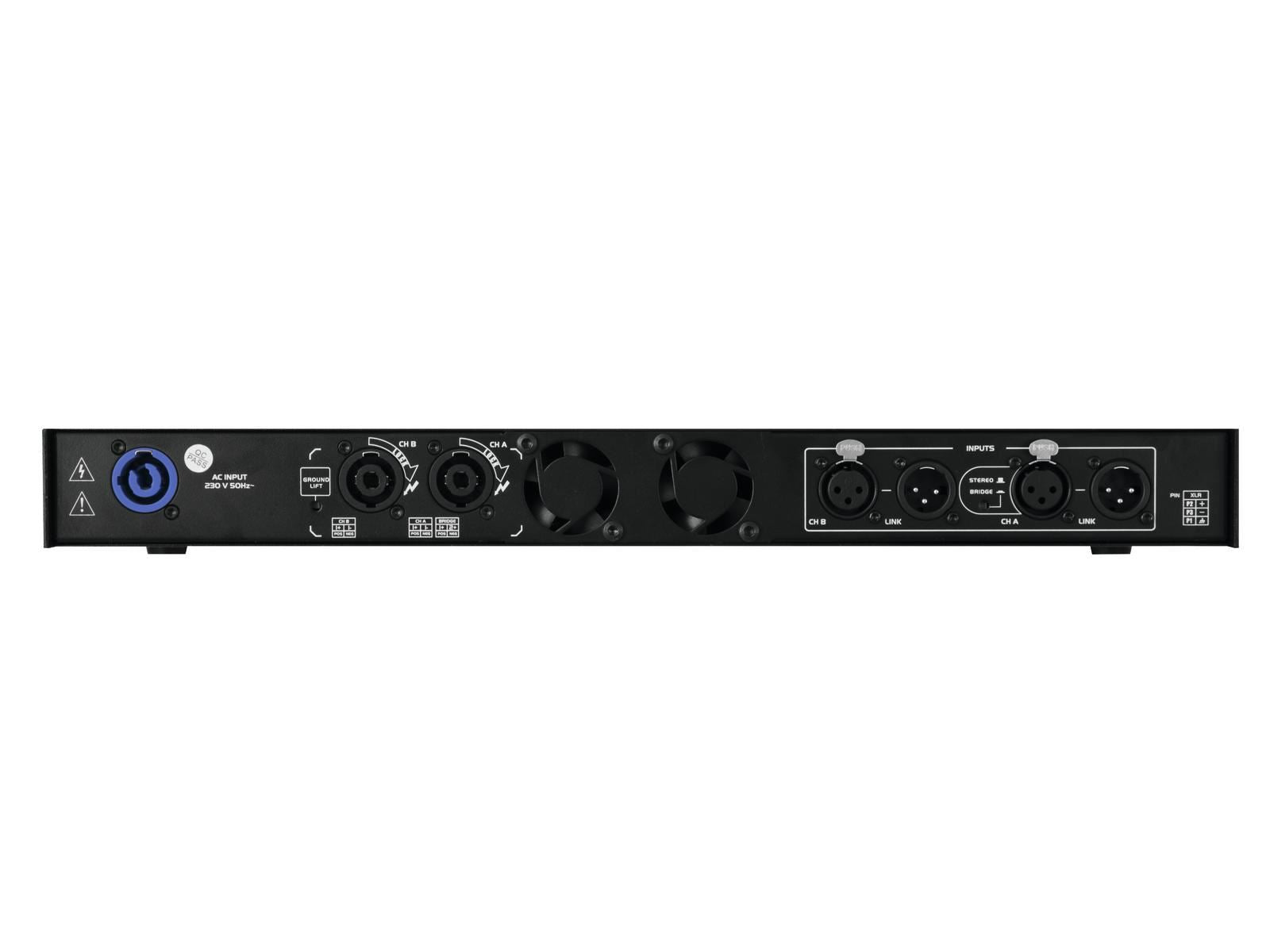

Electronically balanced inputs via XLR mounting jacks with feed-through output
Speaker outputs via lockable speaker jacks
Rack installation with 1 unit


Power supply: 230 V AC, 50 Hz
Power consumption: 210 W (1/8 power)
Power output (RMS):
Stereo 4 ohms - 2 x 510 W
Stereo 8 ohms - 2 x 300 W
8 ohms bridged - 1 x 1000 W
Frequency range: 30-20000 Hz
Distortion factor: <0.02 %
Voltage gain: 36 dB at 8 ohms
S/N ratio: >100 dB
Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
Input sensitivity: 1.25 V RMS
Input connectors: 2 x XLR
Output connectors: 2 x Speaker, 2 x XLR feed-through output
Circuitry: class D
Control elements: power switch, level control per channel, mode switch (stereo/bridged), ground lift switch
LED indicators: Protect, limit, signal, power
Protection circuits: Short-circuit, overheat, DC voltage, power on/off transients, soft start
Construction: steel chassis

9.4 x 19 x 1.7 in (240 x 483 x 44 mm)

8.81 lb (4 kg)
