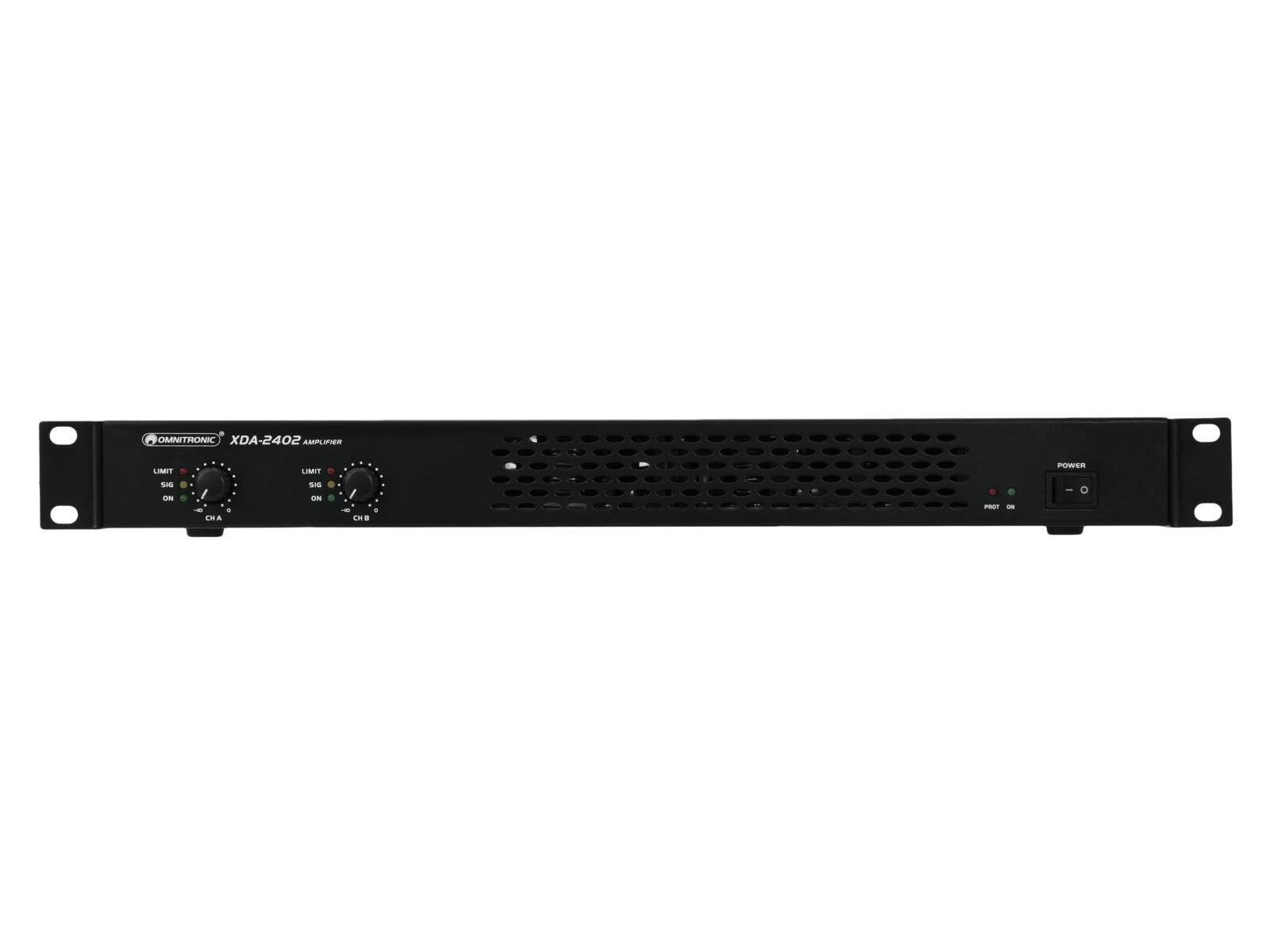

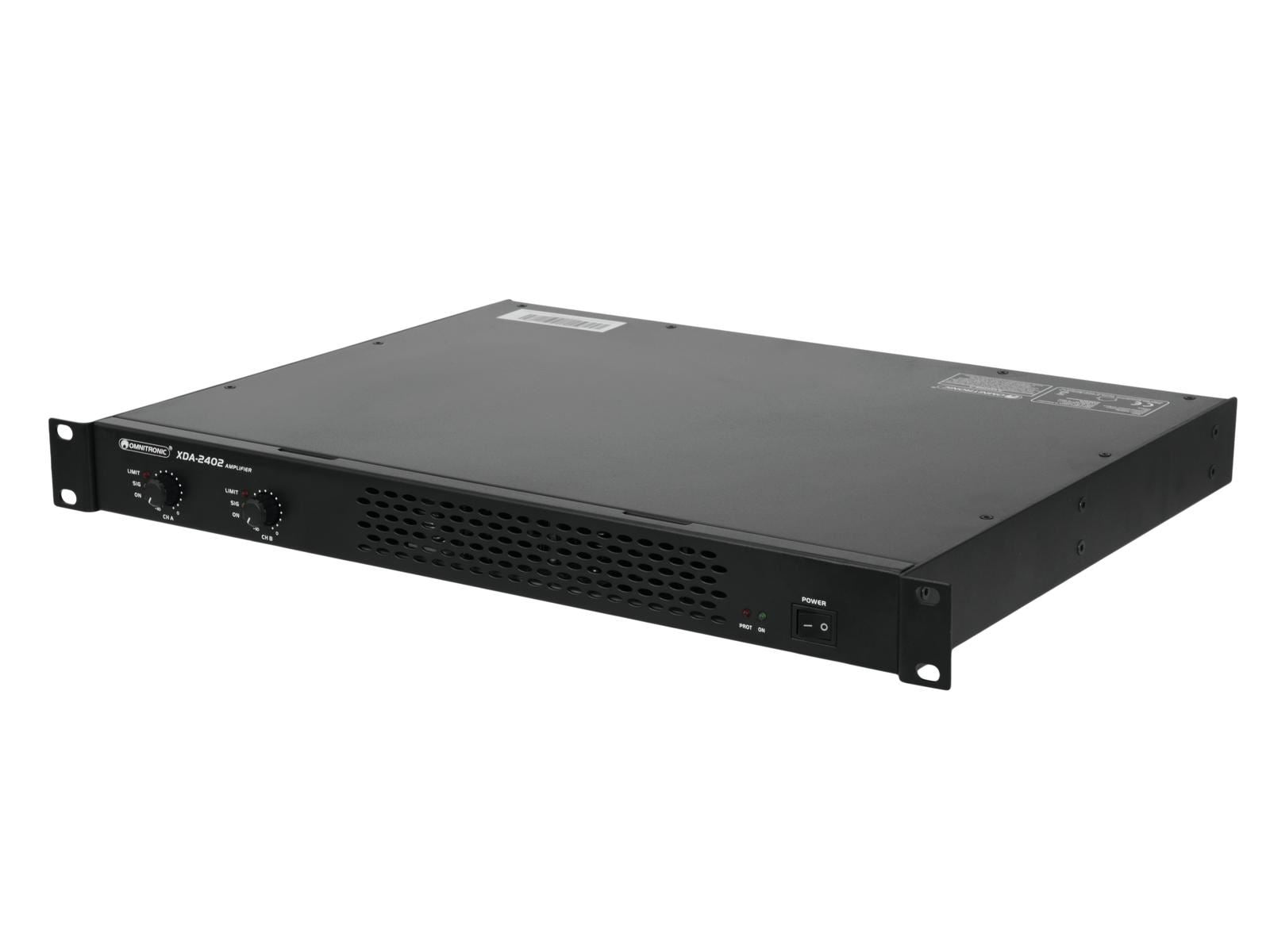

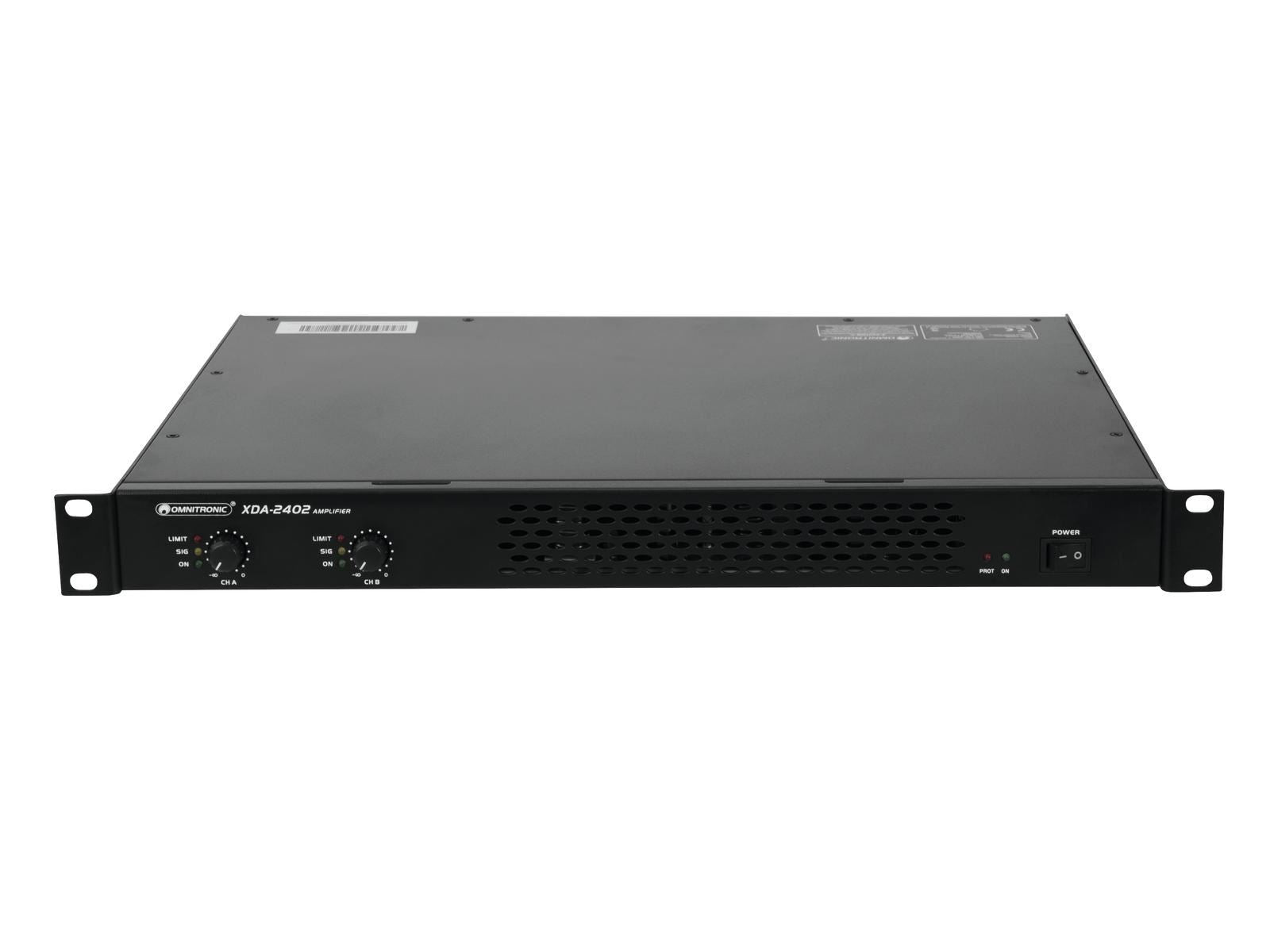

Omnitronic Xda-2402 Class D Amplifier

Stereo PA amplifier with SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms
Vendor: Omnitronic
SKU: 154-10451636
Icon In Stock In Stock
Icon Delivery Time


Stereo PA amplifier with SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms

  • Stereo PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Speaker switch-on delay and auto limiters
  • 2 level controls
  • LEDs for activated protective circuit, limiter, signal, and power
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
  • Ground lift switch against humming
  • Electronically balanced inputs via XLR mounting jacks with feed-through output
  • Speaker outputs via lockable speaker jacks
  • The device is cooled by cooling fan
  • (19") 48.3 cm rack installation 1 U

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 465 W 1/8 power
Output power: 2 x 880 W RMS (8 ohms)
2 x 1200 W RMS (4 ohms)
Power connection: Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Frequency range: 30 - 20000 Hz
S/N ratio: >100 dB
THD: <0.02 % at 1 kHz
Cooling: Cooling fan
Impedance: Input 20 kOhm , bal.
Input 10 kOhm , unbal.
Circuitry: Class D
Control elements: Power switch, level control per channel, groundlift selector
Controls: Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient; limiter
Status LED: Power, signal, limit, protect
Connections: Input: 2 x line via 3-pin XLR
Link: 2 x line via 3-pin XLR
Output: 2 x speakers via speaker built-in socket (f)
Input sensitivity: 1.25 V
Housing design: (19") 48.3 cm rack installation 1 U
Dimension: Width: 48.3 cm
Depth: 35.5 cm
Height: 4.45 cm
Weight: 6.40 kg
