Omnitronic Xpa-1200 Amplifier

PA amplifier with integrated limiter, 2 x 600 W / 4 ohms, 2 x 420 W / 8 ohms
Vendor: Omnitronic
SKU: 154-10451034
Icon In Stock In Stock
Icon Delivery Time


PA amplifier with integrated limiter, 2 x 600 W / 4 ohms, 2 x 420 W / 8 ohms

  • 2 operating modes can be selected (stereo or bridged)
  • Limiter, switchable
  • Speaker switch-on delay
  • 2 level controls
  • Each channel with LED for activated protective circuit (protect) and output meter with clip LED
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
  • Groundlift switch against humming
  • Signal inputs via XLR or 6.3mm jack connectors
  • Speaker outputs via lockable speaker jacks and pairs of screw terminals
  • Additional Speaker plug for 8-ohm bridge operation
  • Class AB circuitry
  • The device is cooled by cooling fan
  • (19") 48.3 cm rack installation 2 U

Power supply: 115/230 V AC, 50/60 Hz
Power consumption: 800 W 1/8 power
Output power: 2 x 610 W RMS (4 ohms)
2 x 420 W RMS (8 ohms)
1200 W RMS bridged (8 ohms)
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >95 dB
THD: <0.5 % at 1 kHz
Cooling: Cooling fan
Impedance: Input 20 kOhm , bal.
Input 10 kOhm , unbal.
Circuitry: Class AB
Slew rate: >20 V/?s
Damping factor: >350
Control elements: Power switch, level control per channel, groundlift selector, limiter selector, mode switch (stereo/bridged)
Controls: Short-circuit; overheat; DC voltage; power on/off transients; softstart
Status LED: Power, level meter, clip, bridged, protect

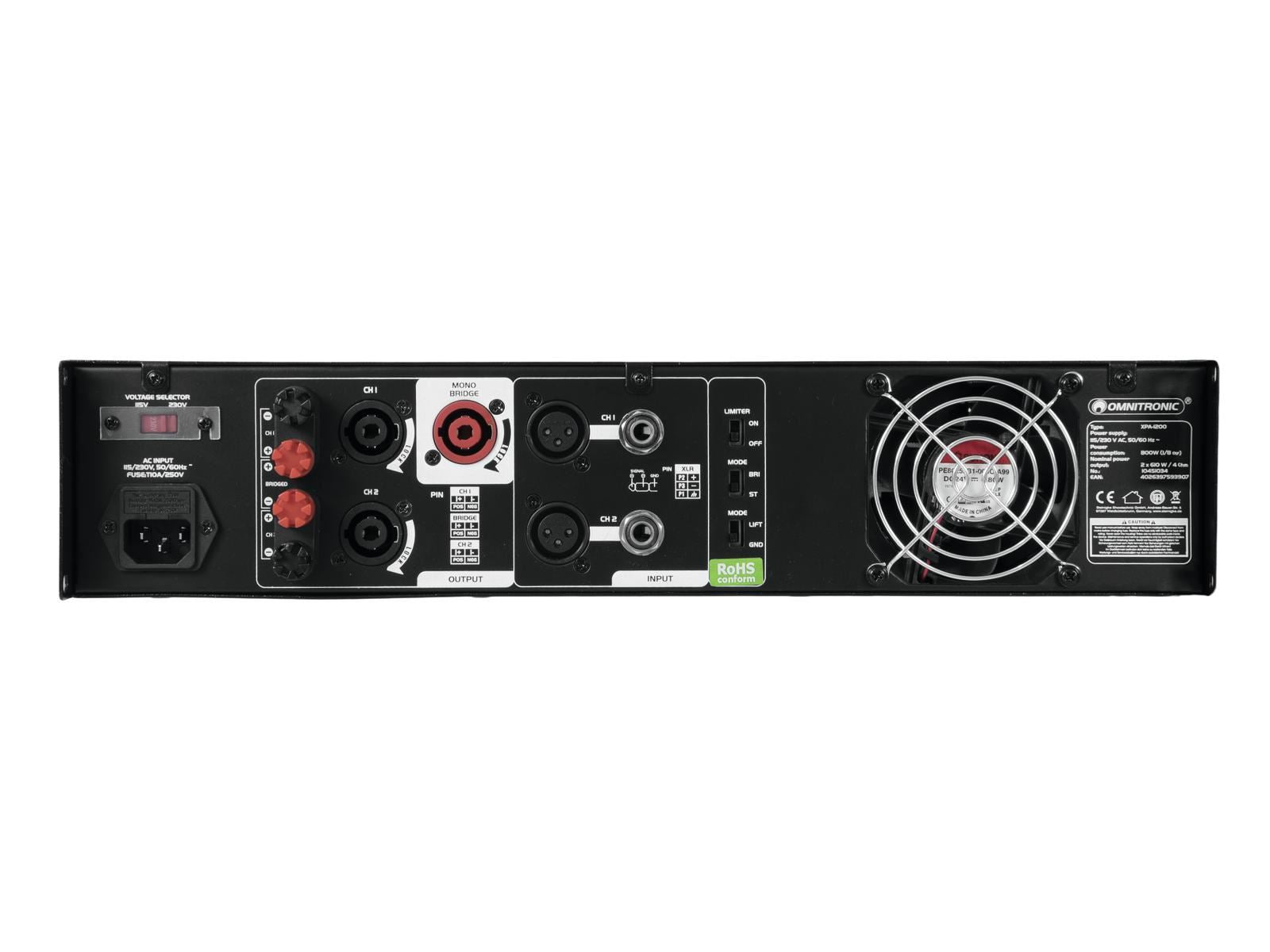

Connections: Input: 2 x line via 3-pin XLR
Input: 2 x line via 6.3 mm jack socket (mono) mounting version
Output: 2 x speakers via speaker built-in socket (f)
Output: speakers via screw terminal
Input: 1 x Speaker (bridge) via speaker built-in socket (f)
Input sensitivity: 1.4 V
Max. level: Input: +21 dBV
Input: +9 V
Housing design: (19") 48.3 cm rack installation 2 U
Dimension: Width: 48.3 cm
Depth: 35.4 cm
Height: 8.9 cm
Weight: 11.90 kg
