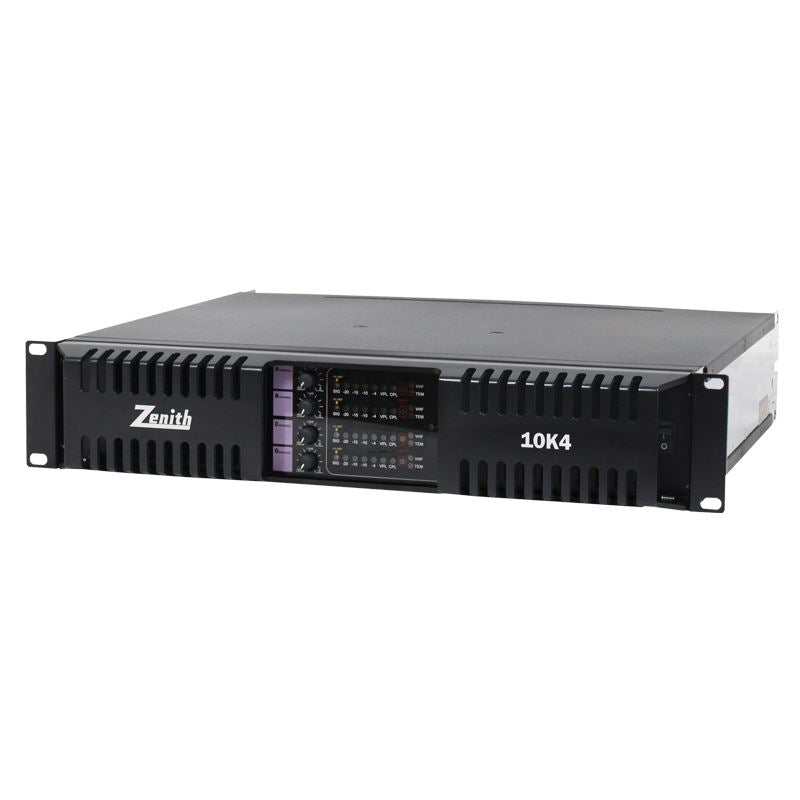

Zenith 10K4 4 x 2500W Amplifier

Description
The Zenith amplifier range has been designed and engineered to work in demanding environments including installation and touring with military endurance. Oversized multi-speed fans and large heat sinks improve heat dissipation, while the SMPSU optimises the amplifiers efficiency whilst reducing the weight. Both power amplifiers feature high efficiency TD class technology for high power output to weight ratio, and are housed within compact 2U chassis. With up to 6500W per channel these power amplifiers are equipped with an extensive set of protection circuits for reliable operation.

Features

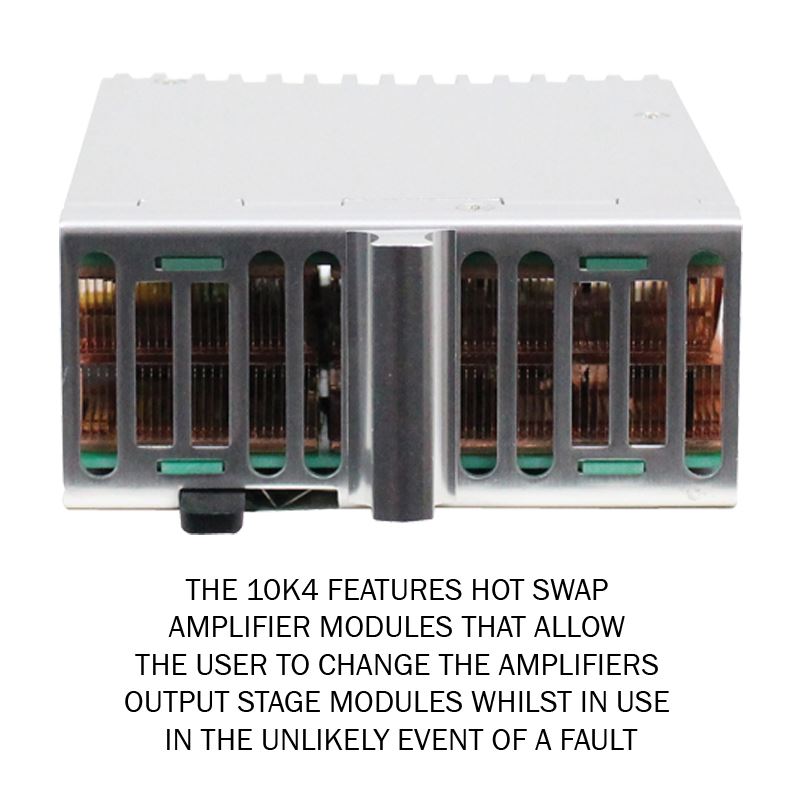

4 channels with hot swappable output modules
Amplifier gain selectable (all channels) 23
26
29
32
35
38
41
44dB (default gain 35dB)

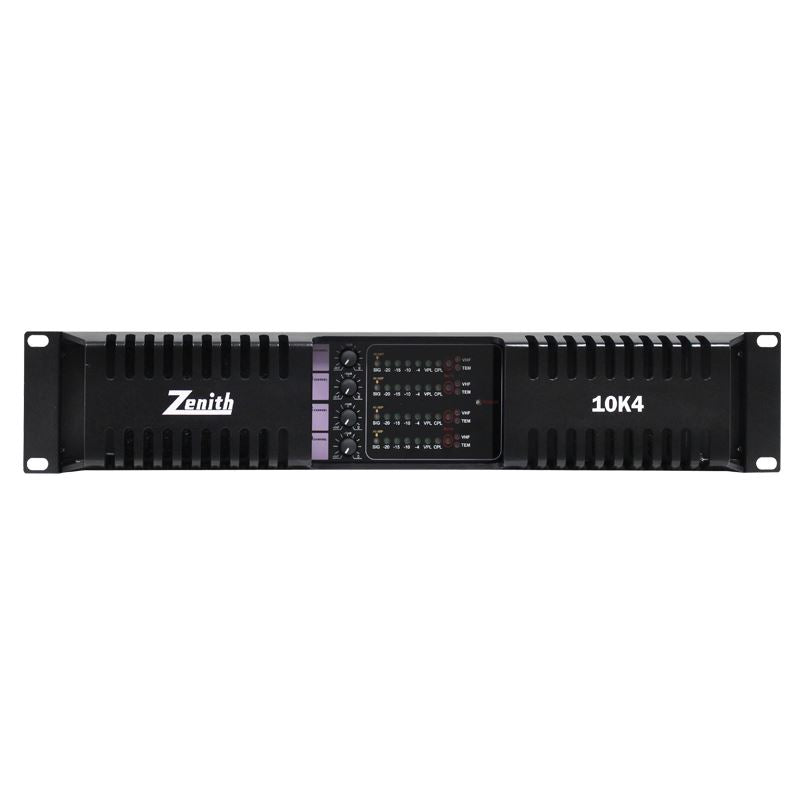

Level adjustment (per channel): frontpanel potentiometer
detented from ∞ to 0dB
Output bridge mode per two channel's A and B bridge
A as the input source
C and D bridge
C as the input source
Cooling system: Three fans
airflow design from the front to the rear for temperature control
Status indication: Signal present/highimpedance
output signal (20dB
15dB
10dB and 4dB)
Voltage Peak Limiter
Current Peak Limiter
Very High Frequency
High Temperature
Fault
Mute
Power average limiter

Specifications
4 x 660Wrms @ 16*Ohm
4 x 1300Wrms @ 8*Ohm
4 x 2100Wrms @ 4*Ohm
4 x 2500Wrms @ 2*Ohm
2 x Bridge 4200Wrms @ 8*Ohm
2 x Bridge 5000Wrms @ 4*Ohm
VPL (Voltage Peak Limiter) per channel: Selectable
VPL (Voltage Peak Limiter) when bridged: Selectable

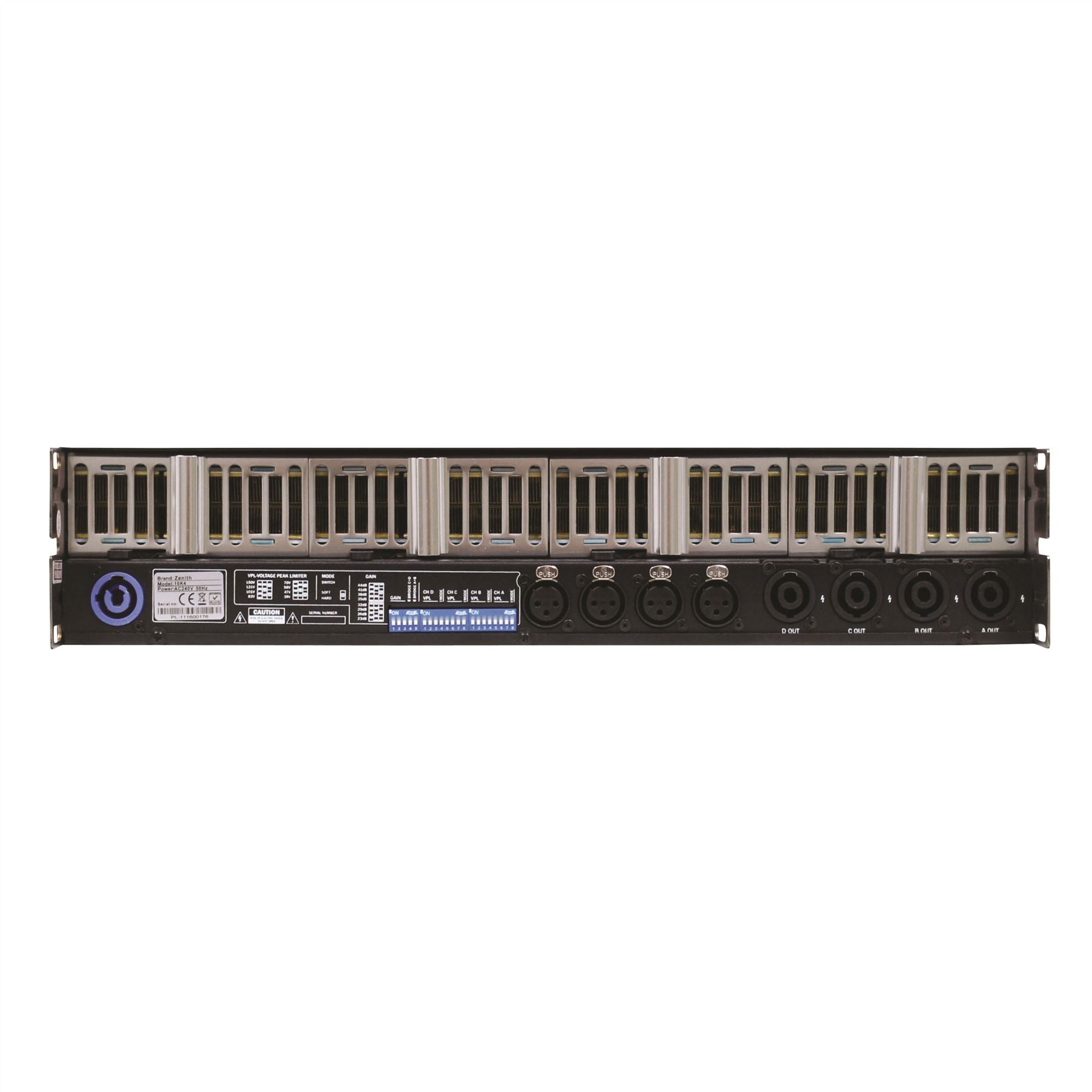

Input connectors: 3Pin XLR
electronically balanced
1 x powerCON mains input
Output connectors: Neutrik speakON
Inrush current draw: 5A max.
Dimensions: 88 x 483 x 425mm
Weight: 13.5kg
