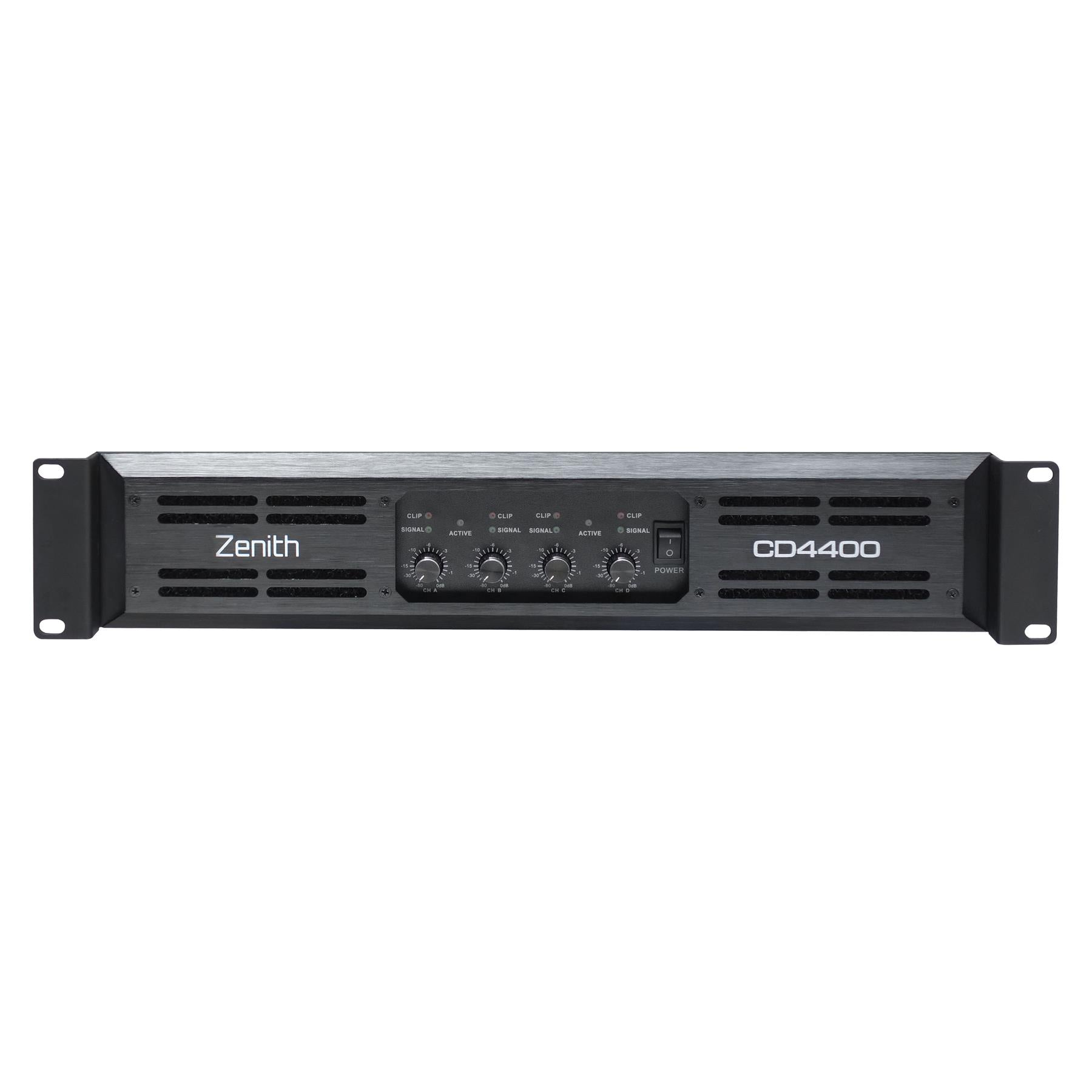

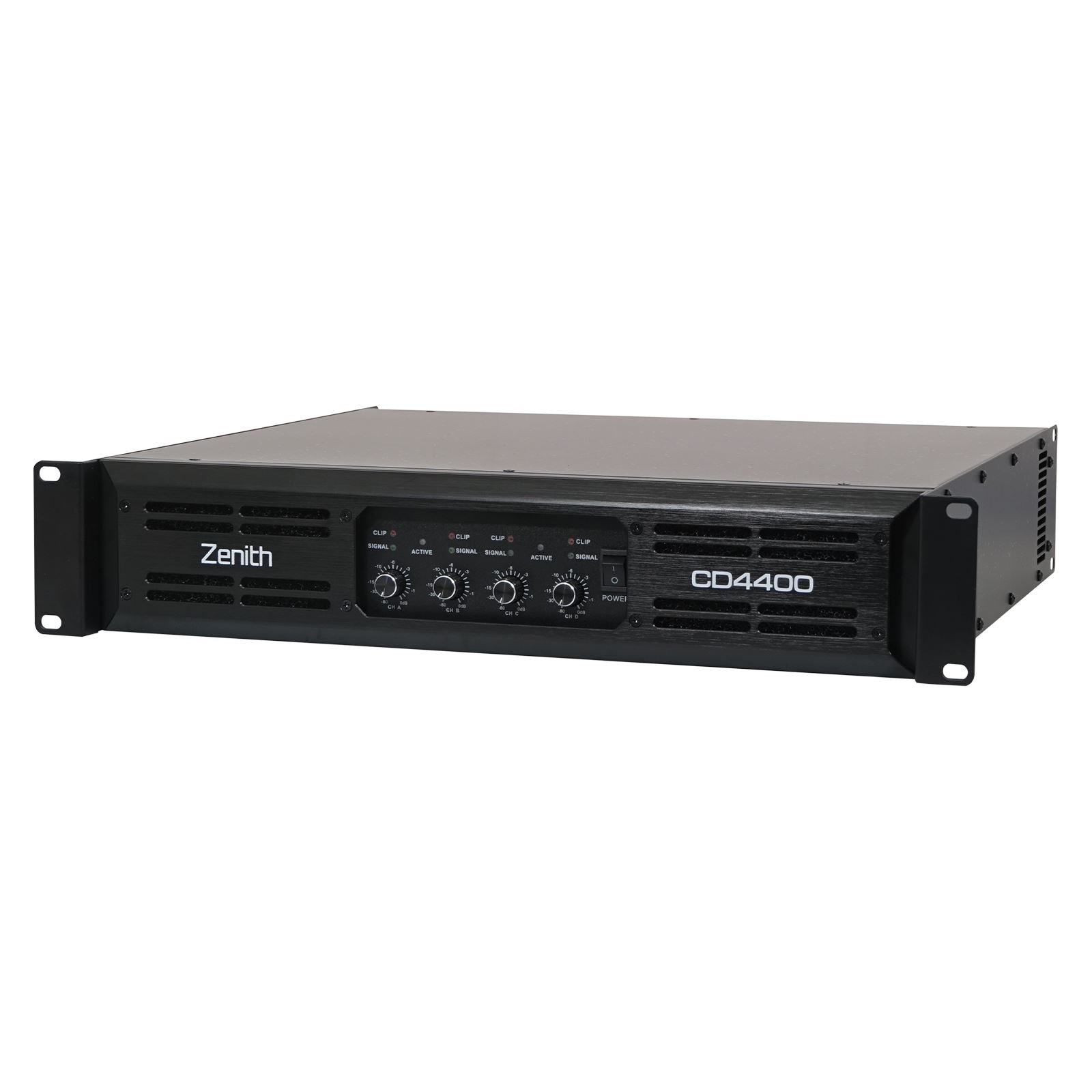

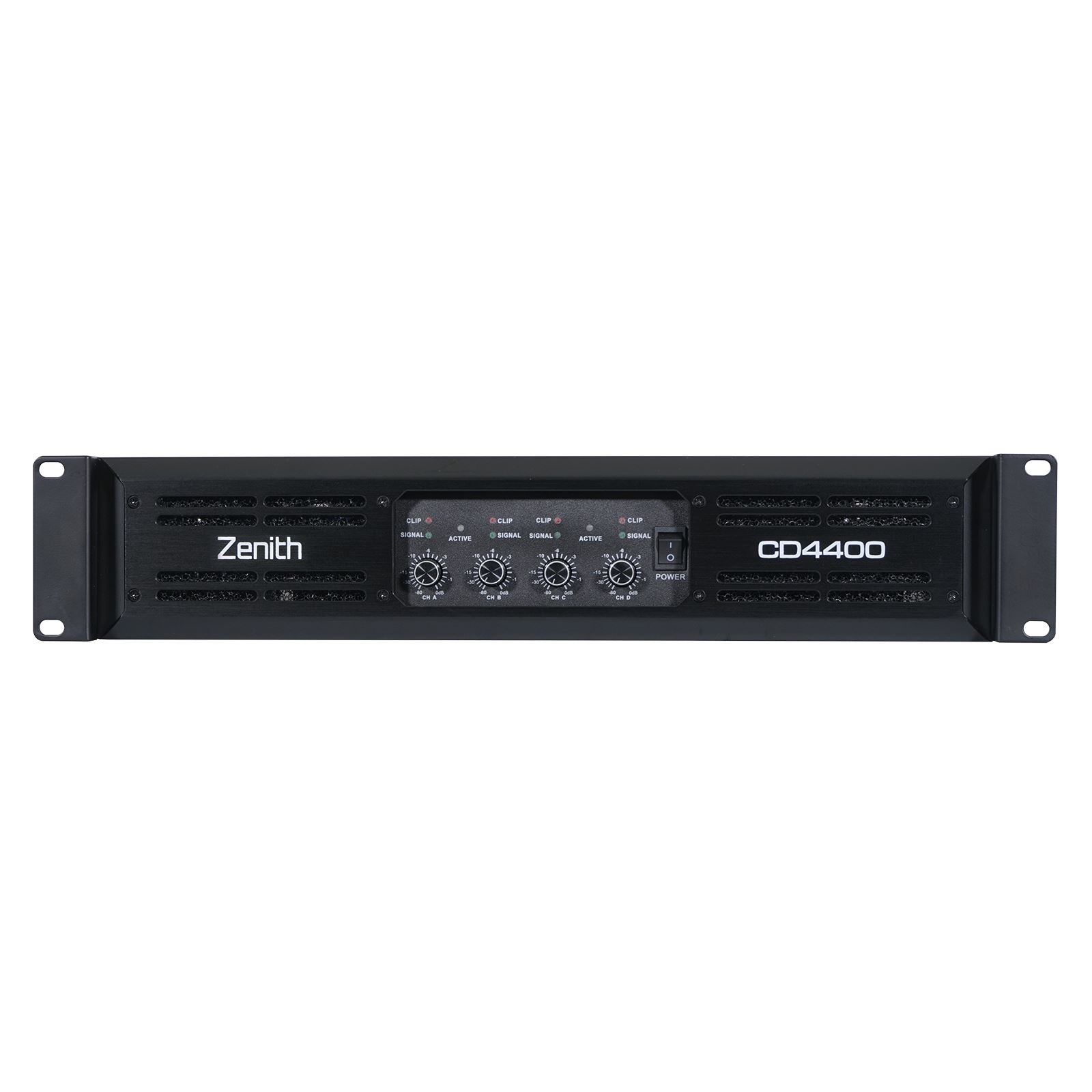

Zenith CD 4400 Amplifier

Description
The CD series feature high output power, outstanding sound quality and superior stability for a wide range of installed sound systems as well as portable live sound applications. Available in two and four channel versions and with an RMS wattage of up to 8000W this series feature class D technology in a compact 2U package. Automatic clip limiting along with high efficiency tunnel cooling and DC fans ensure reliability time after time.

Features
Power output @ 8Ohm: 4 x 400Wrms
Power output @ 4Ohm: 4 x 700Wrms
Power output bridge @ 8Ohm: 2 x 1200Wrms
Frequency response: 20Hz to 20kHz
Input sensitivity: 0.775V
32dB or 26dB
Damping factor: 250
Slew rate: 12V/uS
Min. Load impedance (Stereo): 4Ohm
Min. Load impedance (Bridge): 8Ohm
Protection circuits: Soft start
limit
thermal
short circuit
overload
DC fault protection and AC power supply fuse
LED indicators: Active
signal and clip

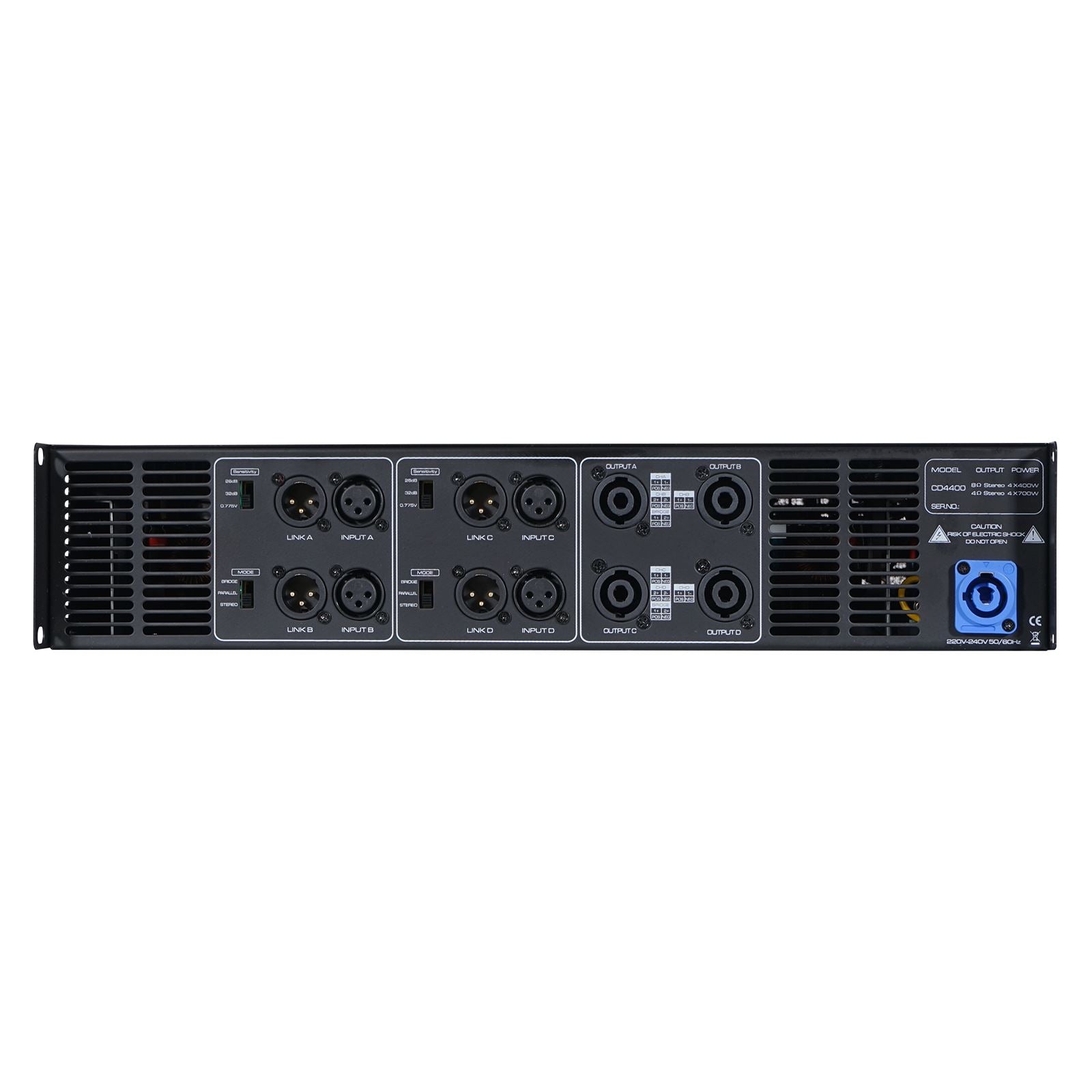

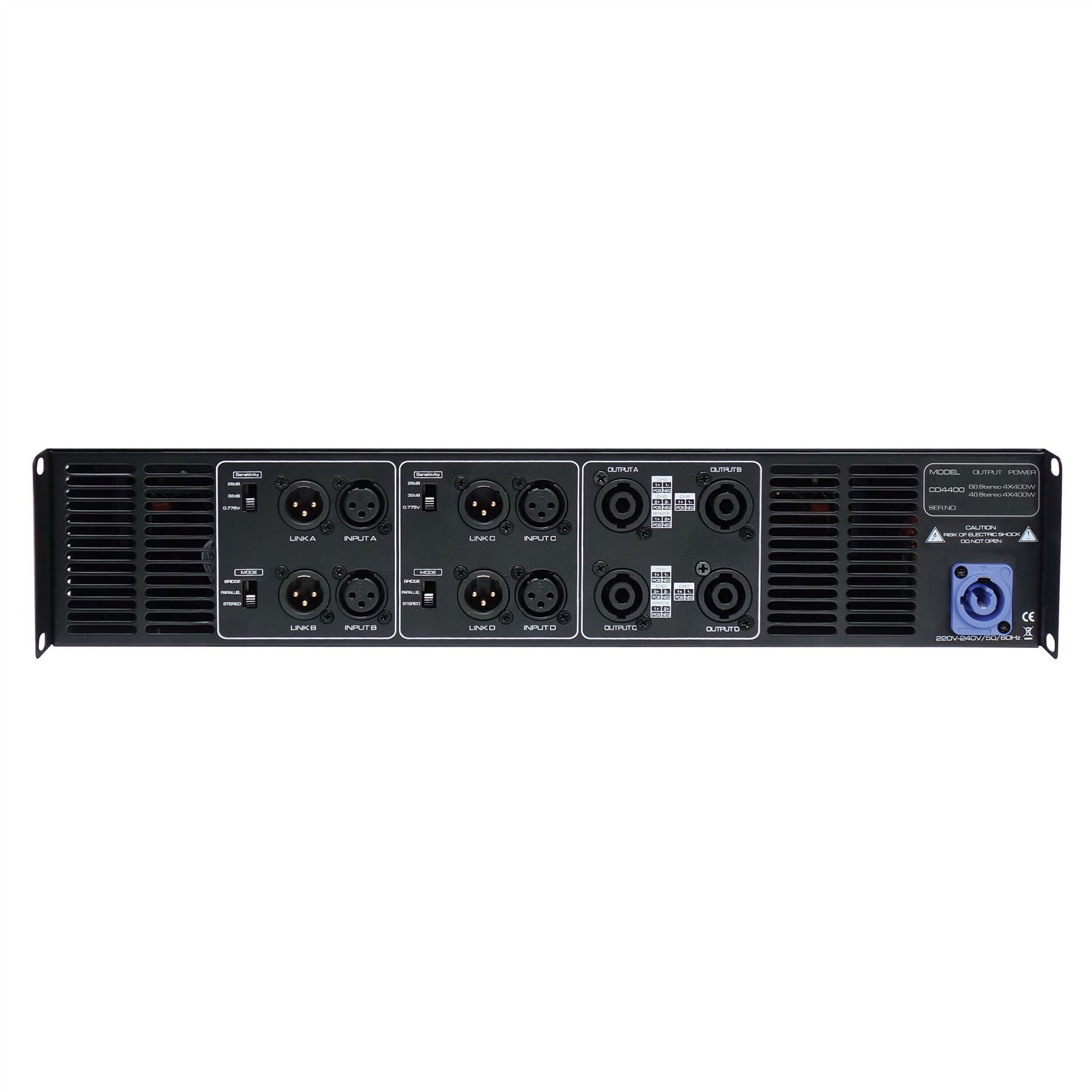

Input connections: 4 x XLR sockets
1 x powerCON input
Output connections: 4 x speakON connectors
Additional features: Switchable stereo
parallel and bridge

Specifications
Power supply: 220240V AC 50/60Hz
Power consumption: 530W (1/8 power @ 8*Ohm)
Dimensions: 88 x 483 x 460mm
Weight: 9.6kg
