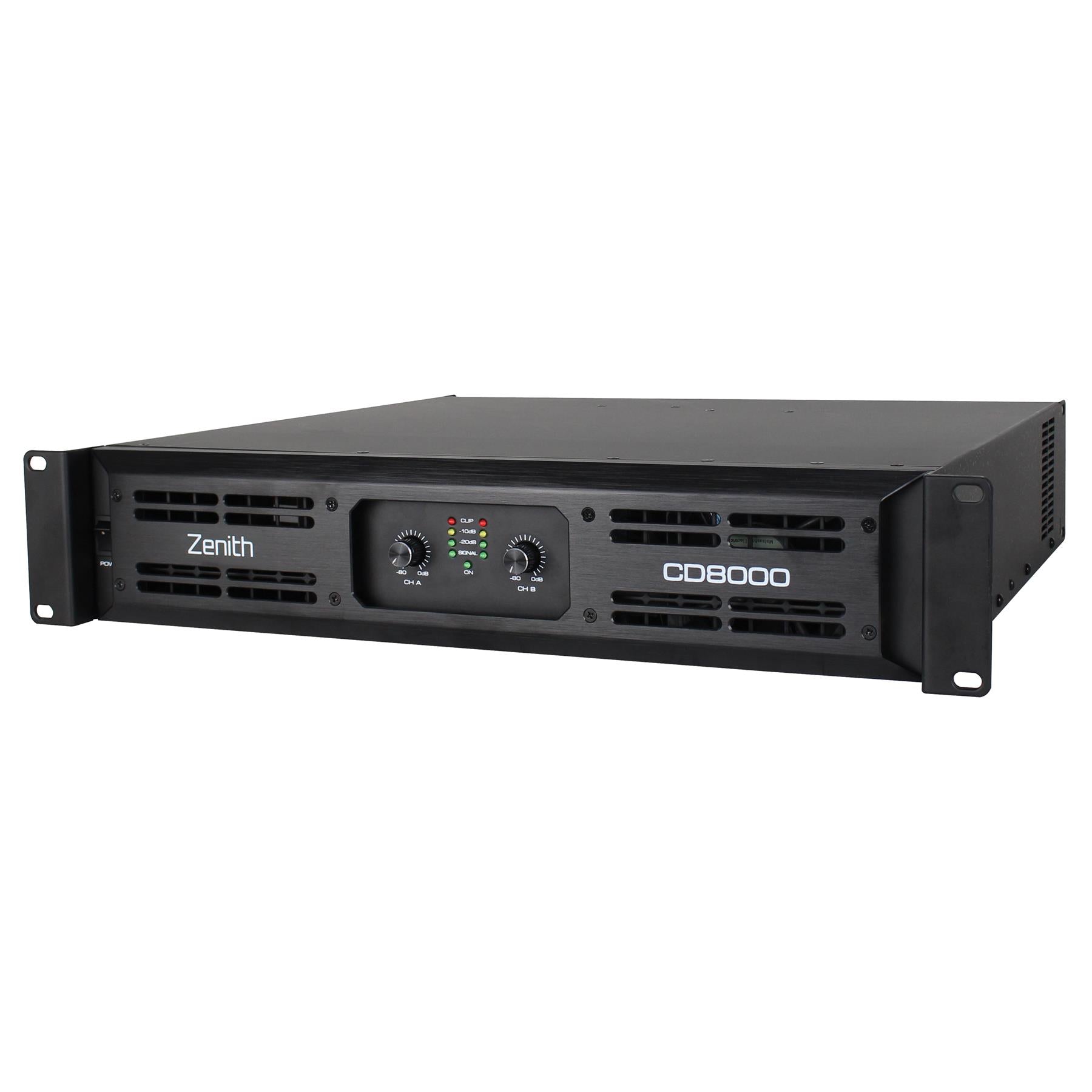

Zenith CD 8000 Amplifier

Description
The CD series feature high output power, outstanding sound quality and superior stability for a wide range of installed sound systems as well as portable live sound applications. Available in two and four channel versions and with an RMS wattage of up to 8000W this series feature class D technology in a compact 2U package. Automatic clip limiting along with high efficiency tunnel cooling and DC fans ensure reliability time after time.

Features
Power output @ 8Ohm: 2 x 1500Wrms
Power output @ 4Ohm: 2 x 2500Wrms
Power output @ 2Ohm: 2 x 4000Wrms
Power output bridge @ 8Ohm: 1 x 5000Wrms
Power output bridge @ 4Ohm: 1 x 8000Wrms
Frequency response: 20Hz to 20kHz
Input sensitivity: 1.2V
32dB or 26dB
Damping factor: 200
Slew rate: 22V/uS
Min. Load impedance (Stereo): 2Ohm
Min. Load impedance (Bridge): 4Ohm
Protection circuits: Soft start
limit
thermal
short circuit
overload
DC fault protection and AC power supply fuse

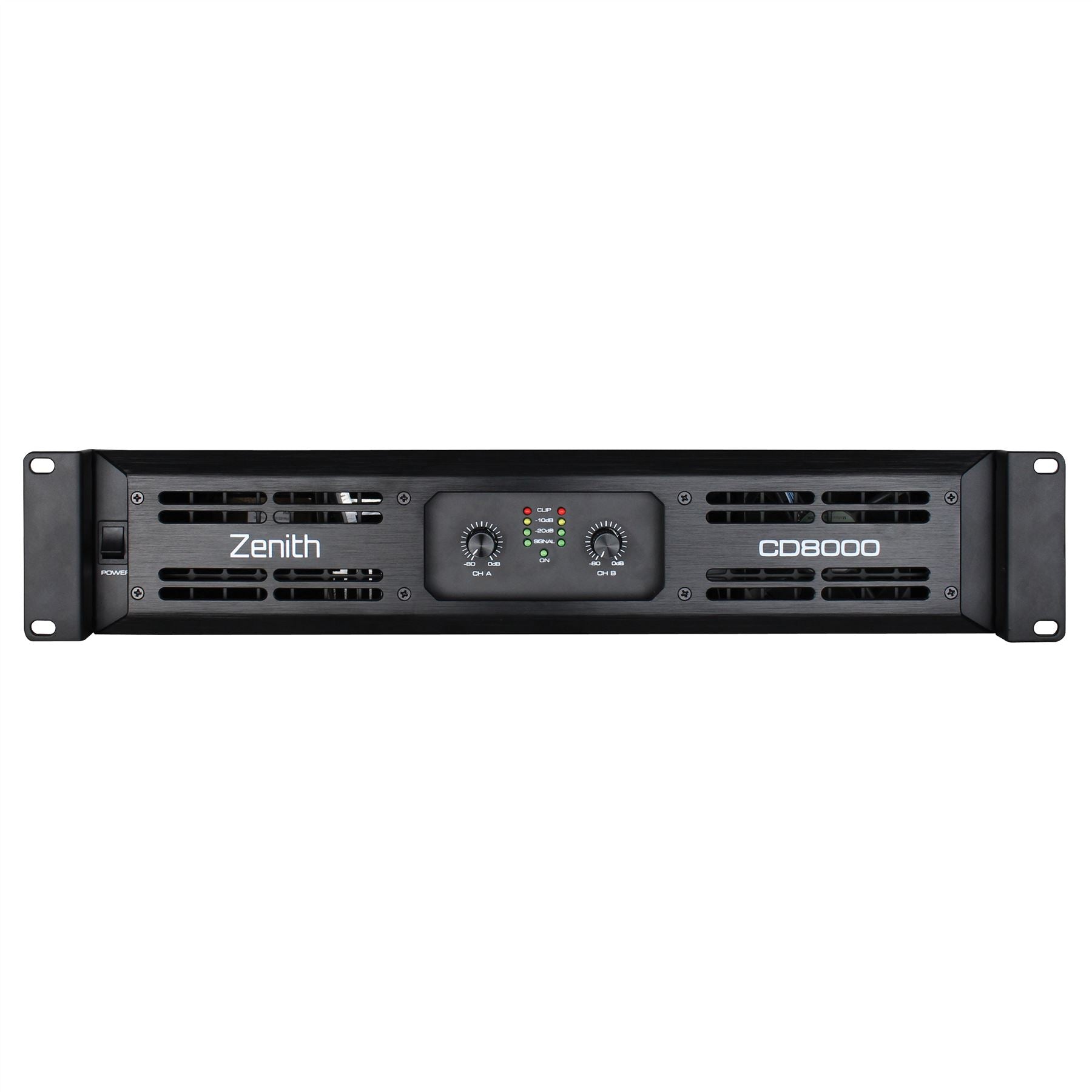

LED indicators: Power
active
signal and clip

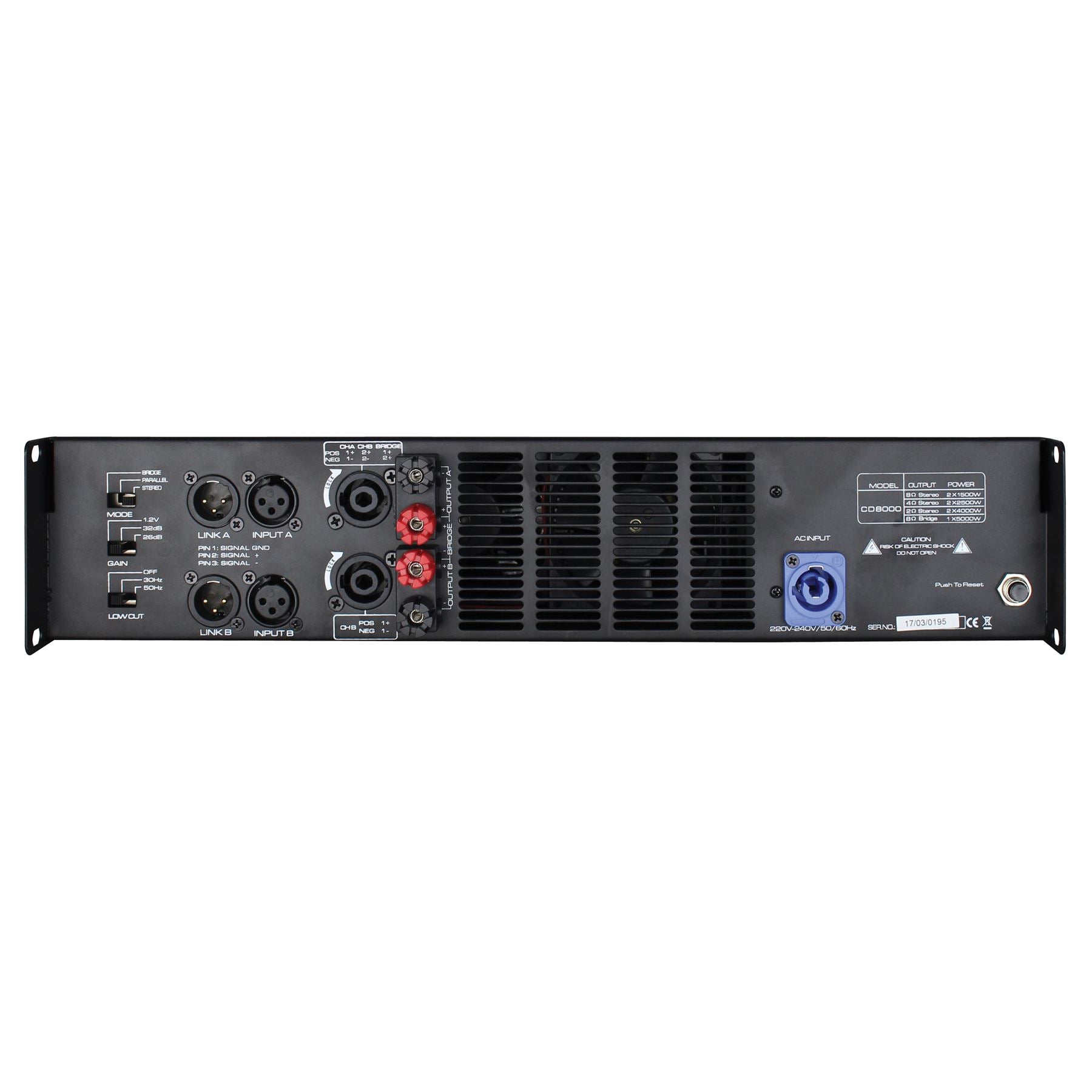

Input connections: 2 x XLR sockets
1 x powerCON mains input
Output connections: 2 x speakON connectors and 2 pairs of binding posts
Additional features: Switchable stereo
parallel and bridge and switchable low cut filters (30Hz
50Hz and OFF)

Specifications
Power supply: 220240V AC 50/60Hz
Power consumption: 1860W (1/8 power @ 8*Ohm)
Dimensions: 88 x 483 x 460mm
Weight: 10.8kg
