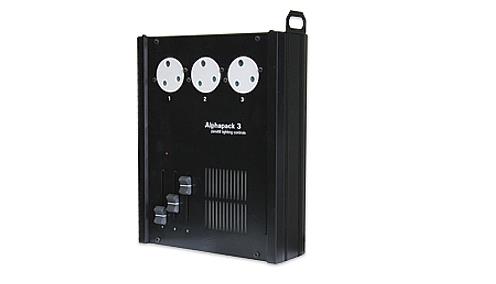

Zero 88 Alphapack 3 Dimmer 3 x 15AMP UK Socket Outlet Stage Lighting DMX Fader Control

Alphapack 3 is a three-channel portable dimmer unit, which can be safely secured to a vertical or horizontal bar by adding a standard clamp onto one of two new m10 mounting positions or attached to a wall with the use of an additional mounting bracket (sold separately). One of Zero88’s most popular dimmers, the Alphapack finds uses in all areas of the lighting industry. Rental, display, education, event services and live music users have all found the Alphapack to be a perfect solution. The local fader controls make the Alphapack 3 ideal for ‘fit and forget’ situations, as well as allowing use as a follow spot dimmer.

Three Dimming Channels
6.3 Amps per channel
Three fader Local Control
Autoprotect Overload
DMX Control (addressable to any channel)
M10 threaded mounting holes on top and rear
Safety bond connection
Optional wall mount bracket
3 x UK 15A Sockets

Specifications
Number of channels: 3
Channel capacity: 0.2 Amps Min / 6.3 Amps Max
Total dimmer capacity: 16 Amps electronically limited
Dimmer duty cycle: 100%
Supply Voltage: 200-250 V AC
Supply frequency: 50Hz
Rise time: 80µS
Control input: DMX512-1990 via 5 pin XLR with loop through
Channel protection: 20mm 6.3A HRC
Cooling: Convection
Operating Temperature: +5ºC to +40ºC
Humidity: 5% to 95% Non condensing

Dimensions
82 x 242 x 245 mm

Weight
3.7 kg
