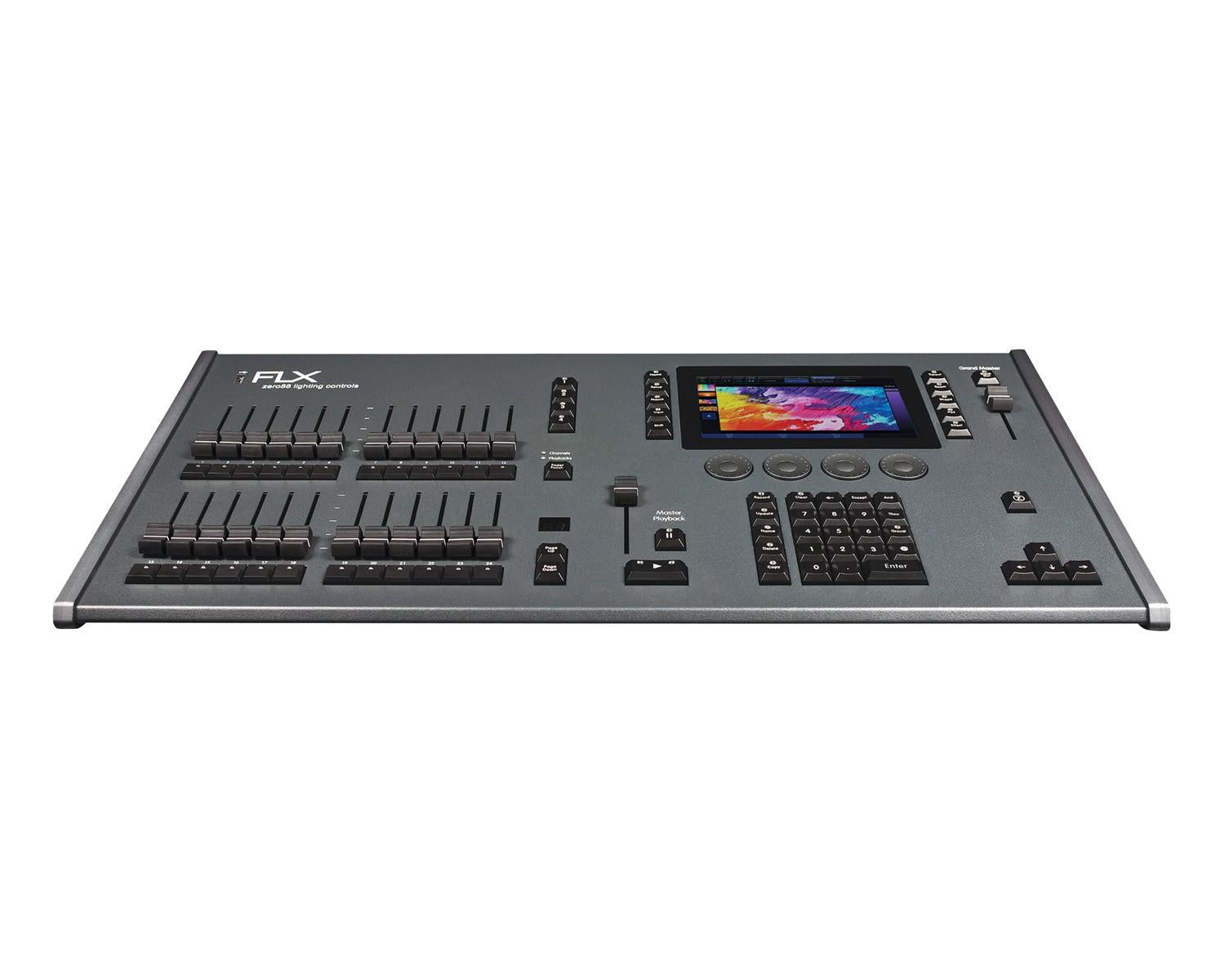

Zero 88 FLX 4096 8 Universe (4096) DMX Lighting Console

Description:

Designed to save you time and maximise your creativity, the FLX lighting console is fully featured, portable and easy to use.

From design to manufacture, FLX has been developed to work in a wide range of demanding situations, with specific considerations for live events & hire, touring productions, multi purpose venues, theatres and educational applications.

Whatever your background, FLX will feel instantly recognisable, due to the industry standard familiar syntax and intuitive fader-per-channel intensity control. FLX gives you unlimited access to 4096 channels, with no fixture patch limitations and no expensive upgrades ever needed.

FLX gives you more time to do what you do best – be creative. Tools such as Patch Wizard and Auto Palettes do all the prep work, getting you ready to operate quicker than ever before. Programming time is reduced with a simple three-step programming method for moving lights, colour changing and conventionals - what you want, how you want it, where you want it. And for all those really important features you need over and over again – you always have direct instant access via the Z button.

Picking exactly the right colour is no longer a laborious task! Quickly and accurately create the colour you want using either the encoder wheels, or the built in touchscreen colour picker and quickly record it straight onto any of the 240 instant-access colour palettes, to recall later.

Features:

Control up to 4096 fixtures (upgradable up to 8192)
24 multi-function faders
User Definable Keys (UDKs)
241 playbacks (each with submaster & full cuestack functionality)
240 groups, 4 x 240 palettes (Colour, Beamshape, Position, Effect)
DVI-D output for optional external touch screen
Dedicated GO, Pause & Playback Fader for theatrical control
Multi-touch interfaces for Colour & Moving Lights
Hands-on intuitive control via 4 encoder wheels
Free mobile apps for wireless control (iOS & Android)
Art-Net 4, sACN and CITP
7” multi-touch screen
Automatic Groups, Palettes, Effects and Macros
Colour mixing, picking & image picker
Filter libraries by LEE Filters, Rosco and Apollo
Mood Boards by LEE Filters
Additive, subtractive and HSV control
Store single or multiple cues on each of the playbacks
Fixture Library with over 10,000 personalities
RDM compatibility
Showfile compatibility with other ZerOS consoles
Quiet, dust free, fanless operation
Scratch-resistant rugged dual-skin construction
Channels patchable across 64 Universes
Two XLR Outputs (2 x 5 pin)
3 year warranty
CE compliant to all relevant standards
Designed and manufactured to ISO9001:2015 standards

Specifications:

Hardware - Front Panel
24 Multifunctional Faders (channels or playbacks, with select or go buttons)
Internal 7” multi-touch screen (using ‘PCAP’ technology)
Master Playback with Go Button playback, pause and master intensity
4 embedded encoder wheels with select buttons
4 User Definable Keys (advanced functionality or programmable)
Syntax Keys with familiar layout
Grand Master and Blackout button
Hardware - Inputs/Outputs
2 Neutrik 5-pin XLR connectors for DMX & RDM output
Ethernet via Neutrik etherCON (sACN, Art-Net 4, CITP (visualisation), Remote Apps and Tracking Backup)
5 multipurpose USB ports (saving shows, connection of accessories & Wings, software updates)
1 DVI-D monitor output (with option for touch screen control)
Midi In/Thru (Notes, Time-code, Show Control)
8 Contact Closure triggers via D-Sub connector
6.35mm (1/4”) Jack input for Sound to light
Internal power supply (Neutrik powerCON TRUE1 TOP connector)
Software - capacity
4096 control channels (upgradable up to 8192 channels)
241 Playbacks (equivalent of Cue Stacks, Submasters or Chases)
10,000 cues
4 x 240 Palettes (Colour, Beam, Shape, Position)
Fully customisable effects engine
240 Groups
240 Macros
Software - features
Familiar Command Line interface
Integrated colour picker, filter lookups, “Mood Boards by LEE Filters”
Multi touch Pan/Tilt grid
Auto palettes, groups and fixture macros
Gobo previews and library
Move on Dark
Tracking or Cue Only operation
Support for wireless remote control through handheld devices and remote monitors
Support for Tracking Backup over Ethernet
Electrical
Supply voltage range: 100 - 240V AC; MAX 1A
Frequency: 50 - 60Hz
Operating temperature: +5 to +40°C
Humidity: 5% to 95% non-condensing
Physical & Dimensions
Dimensions:  659mm x 342mm x 90mm
Weight:  7.5kg
