Alto TX212 PA System 1200W Sound Speaker System inc Mixer, Cables & Stands

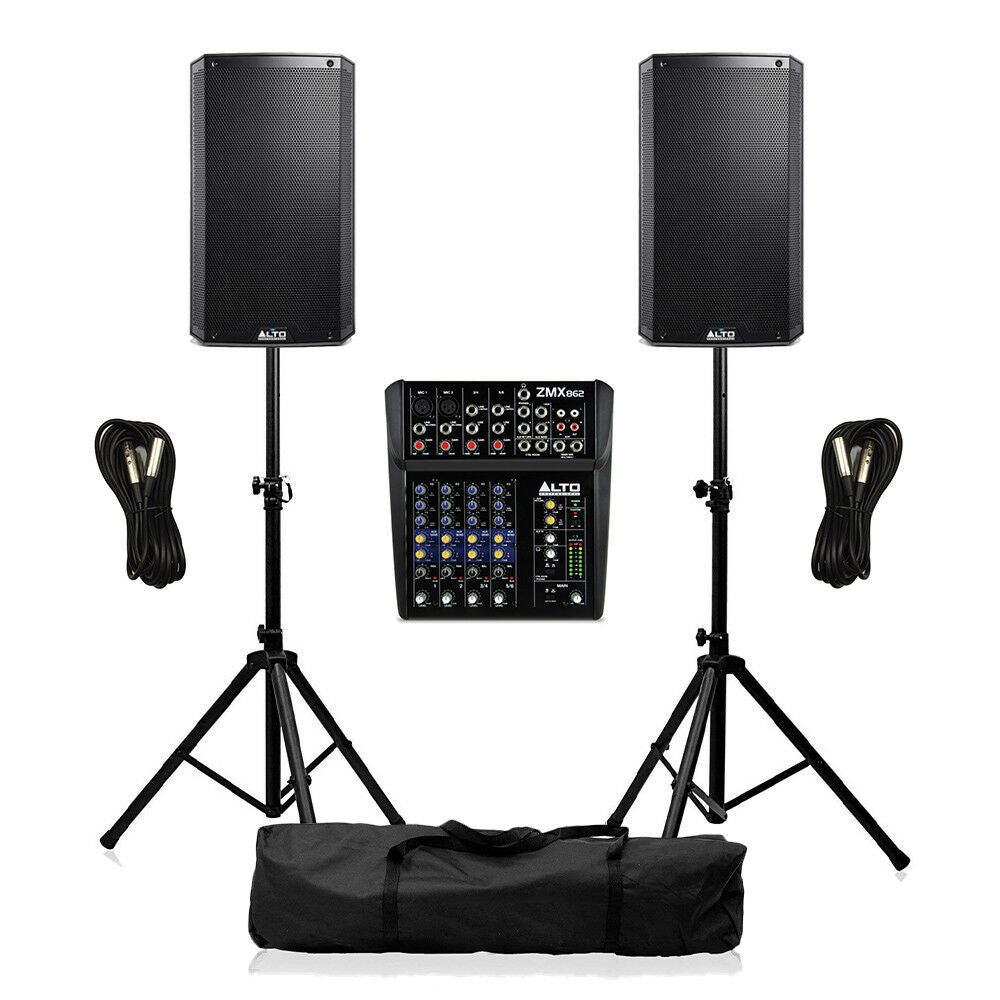

This bundle includes; 2x Alto Professional TX212 600W 12" Active Speakers, 1x Alto Professional ZMX862 Mixer, 1x NJS Economy Speaker Stand and Carry Bag Kit (2x stands), and 2x Soundlab 6M XLR Microphone Cables.

Alto Professional TX212 600W 12" Active Speakers
The 600-watt TX212 is a bi-amplified 2-way design, with a long-excursion woofer and a 1-inch titanium compression driver in a newly-designed precision horn. This new horn design improves the high-frequency performance and produces a very precise 90˚H X 60˚V radiation pattern—ideal for optimal audience coverage.

600 Watts peak, (300 Watts continuous Class D power)
The newly designed horn delivers greater coverage 90° H x 60° V
The full grille delivers style and provides protection for your investment.
12-inch (305 mm) LF driver, 2-inch (50.8 mm) voice coil
1-inch (25.4 mm) neodymium HF compression driver
Lightweight, portable design for main or wedge monitor operation
Standard speaker pole socket
Bi-amplified design with precision active crossover and EQ
Balanced XLR/TRS with selectable Mic/Line input. XLR Link Output, Contour EQ switch and Ground-Lift switch
Designed and tuned in the USA

Specifications
Power Output: 600 W peak (400 W LF + 200 W HF), 300 W continuous (200 W LF + 100 W HF) Class D power
LF Driver: 12-inch (305 mm) LF driver, 2-inch (50.8 mm) voice coil
HF Driver: 1-inch (25.4 mm) neodymium HF compression driver
Crossover: 2.5 kHz
Maximum: 118 dB at 1m
Frequency Response: (-3dB): 70 Hz – 20 kHz
Horn Coverage: 90° H x 60° V nominal
Equalization: Contour Switch Low and High-Frequency +3dB Boost
Connectors: (1) XLR/TRS 1/4” (6.35 mm) combo input, (1) XLR link output, (1) IEC power cable input
Controls: (1) Volume, Power on/off switch, Contour switch, Ground-Lift Switch
Indicators: (2) Power LED (front and rear), Clip limiter LED
Protection: Overload Analog Limiter / Compressor, Thermal Protection
Power Supply: 100V-240V ~ 50/60Hz
AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
Fuse:100–120V T4AL AC250V, 220–240V T2AL AC250V
Power Consumption: 260 W
Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
Mounting/Installation: Standard speaker pole socket, Wedge Monitor

Dimensions
602 x 381 x 348 mm

Weight
14.2 kg (single unit)

Alto Professional ZMX382 Mixer
The ZMX862 is a 6-channel, 2-bus mixer with the right amount of inputs, outputs, routing, and EQ for more intimate live performance reinforcement situations. Features two microphone inputs, each with Phantom Power, the ZMX862 also has a three-band EQ, two aux sends per-channel for external effects and monitoring, and even two track inputs for things such as audio playback. The ZMX862 is a perfect, take-anywhere professional mixer.

12 total inputs including XLR jacks w/ phantom power on ch. 1 & 2
Expanded channel count perfect for small groups or sub-mixes
High headroom circuitry offering extra dynamic range
Ultra-low-noise discrete mic preamps
2 aux sends per channel for external effects and monitoring
3-band EQ on each channel
Two stereo input channels with balanced TRS jacks
Aux inputs/outputs for external audio source integration
Switchable phantom power

Specifications
Input Channels: Mono channels (Ch. 1 - 2)
Microphone Input: Electronically balanced, discrete input configuration
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
Gain range: 0 dB to 50 dB (Mic)
Maximum Voltage Gain: 70 dB Ch. Mic Input→Main MIx out & Tape out, 80 dB Ch. Mic input→Control room & Phones, 60 dB Ch. Mic input→Aux send
SNR (Signal to Noise Ratio): ≧110 dBu
Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control

Line Input: Electronically Balanced
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ≦0.005% at + 4 dBu, 1 kHz
Gain Range: 15 dBu to 35 dBu

Stereo Channels: (Ch. 3 - 6)
Line Input: Electronically Balanced
SNR (Signal to Noise Ratio): ≧110 dBu
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ≦0.005% at + 4 dBu, 1 kHz
Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line → Main Mix out
Maximum Voltage Gain: 20 dB FX return → Main Mix out, 20 dB RCA Tape input → Main Mix out

Impedance
Microphone Input: 3.9 kOhms
All Other Inputs: 10 kOhms or greater
Tape Out: 1 kOhms
All Other Outputs: 120 Ohms

Equalization
Mono Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz

Main Mix Section
Tape, Aux, Phones Output
Output level: 0 dBu Unbalanced, 1/4" jacks, Max out +22 dBu Unbalanced, 1/4" jacks noise (Bus Noise): ≦-90 dB @ 20 Hz - 22 kHz (channel & Main level at 0 dB, other at minimum, DSP mute)

Dimensions
202 x 250 x 58 mm

Weight
1.7 kg

NJS Economy Speaker Stand and Carry Bag Kit
This economy speaker stand kit is perfect for mobile DJ's, bands and schools and more. This speaker stand kit comprises of a pair of black speaker stands which are strong and reliable. Also included is a large carry case for easy transporting & storage. Each speaker stand is height adjustable from 1100 - 1600mm so ideal for most venues. The speaker poles are a standard 35mm diameter and have a max. load of 45kgs. The carry bag is made from a lightweight material and helps to protect the stands in transit as well as making them easy to carry, zip fastening with a carrying handle.

Specification
2 x 35mm black economy speaker stands with carry bag
Pair of 35mm speaker stands
Perfect to fit most Speaker Cab's
Quick and easy to assemble
Includes: 2 x stands, 1 x bag - For Easy Transportation
Stylish Black Finish
Colour: Black
Max Load: 45 kg

Dimensions
Height Adjustment: 1100-1600 mm
Top Hat: 35 mm
Tube Diameter: 35 mm

Weight
4.90 kg
