Description

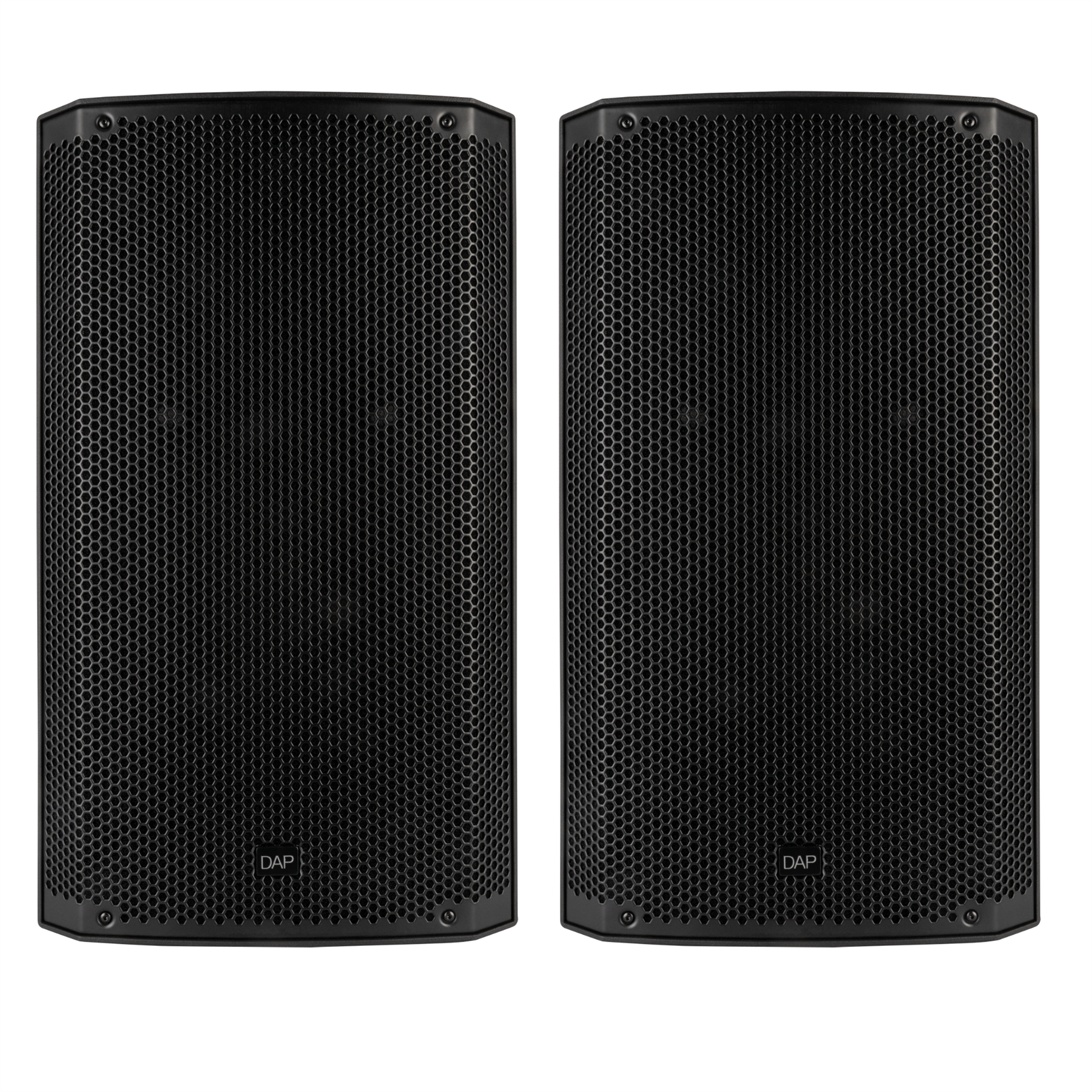

Bundle contains 2 x DAP NGA-12A Speaker

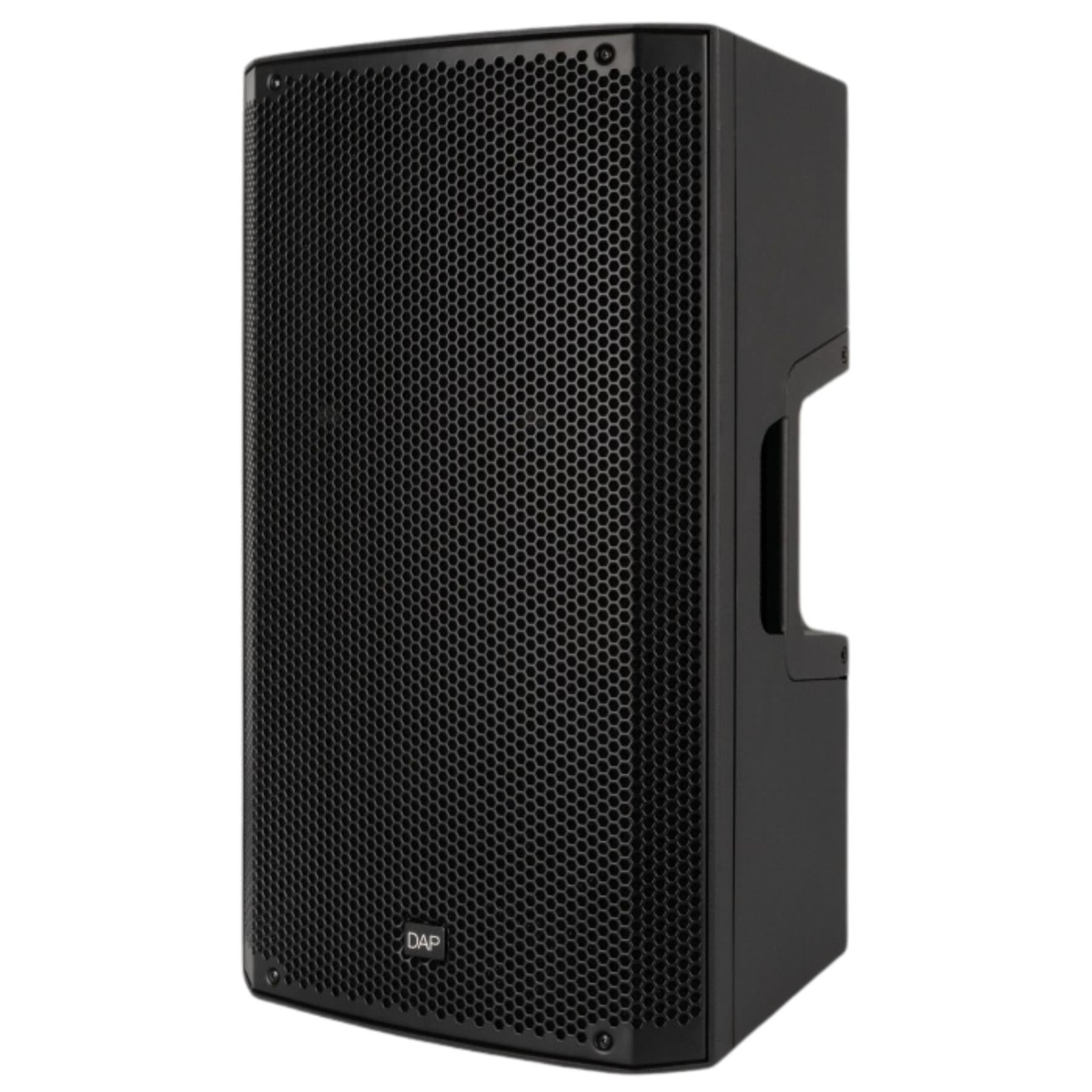

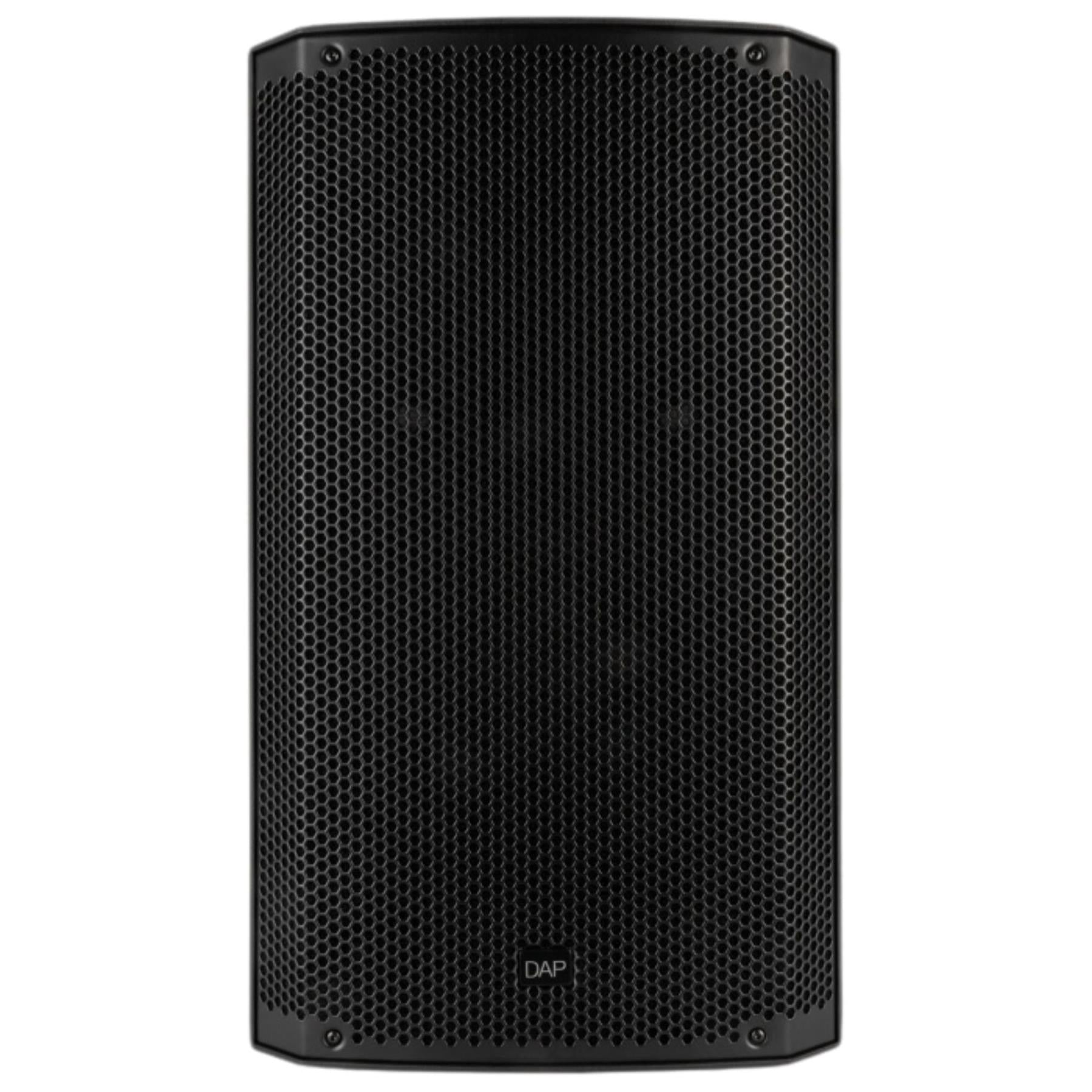

The NGA-12A is a compact and powerful active loudspeaker designed for both mobile and installed audio applications. Featuring a 12-inch woofer and 1.4-inch compression driver, it delivers a wide frequency response with high output and clarity. Powered by a 1000 W RMS Class D amplifier, it combines strong performance with portability. Integrated DSP processing, Bluetooth 5.3 streaming, and app control provide flexible sound shaping and easy operation, making it suitable for live sound, DJs, events, and installations.
Features
12-inch active 2-way loudspeaker with high output performance
1000 W RMS Class D amplifier with 2000 W peak power
Wide frequency range from 46 Hz to 20 kHz
Maximum SPL of 128 dB for high-impact sound
Bluetooth 5.3 streaming with True Wireless Stereo pairing
Built-in DSP with 4 selectable modes
Advanced audio processing including crossover, EQ, delay, and limiting
3-band EQ with adjustable frequency, Q factor, and EQ type
App control via iOS and Android for remote adjustment and preset management
Two combo inputs supporting mic, line, and Hi-Z sources
Balanced XLR output for linking additional speakers
Lightweight and portable design suitable for mobile and installed use

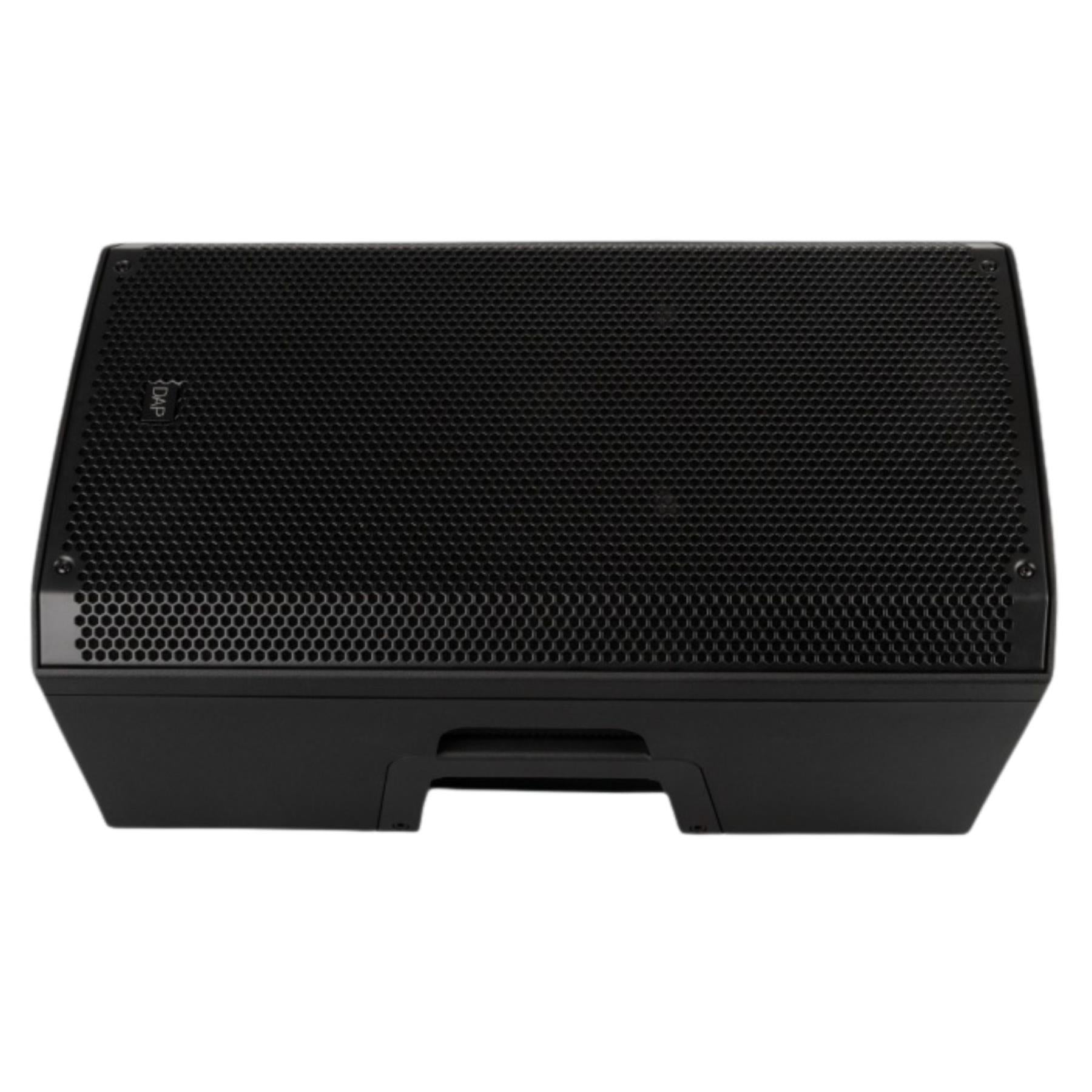

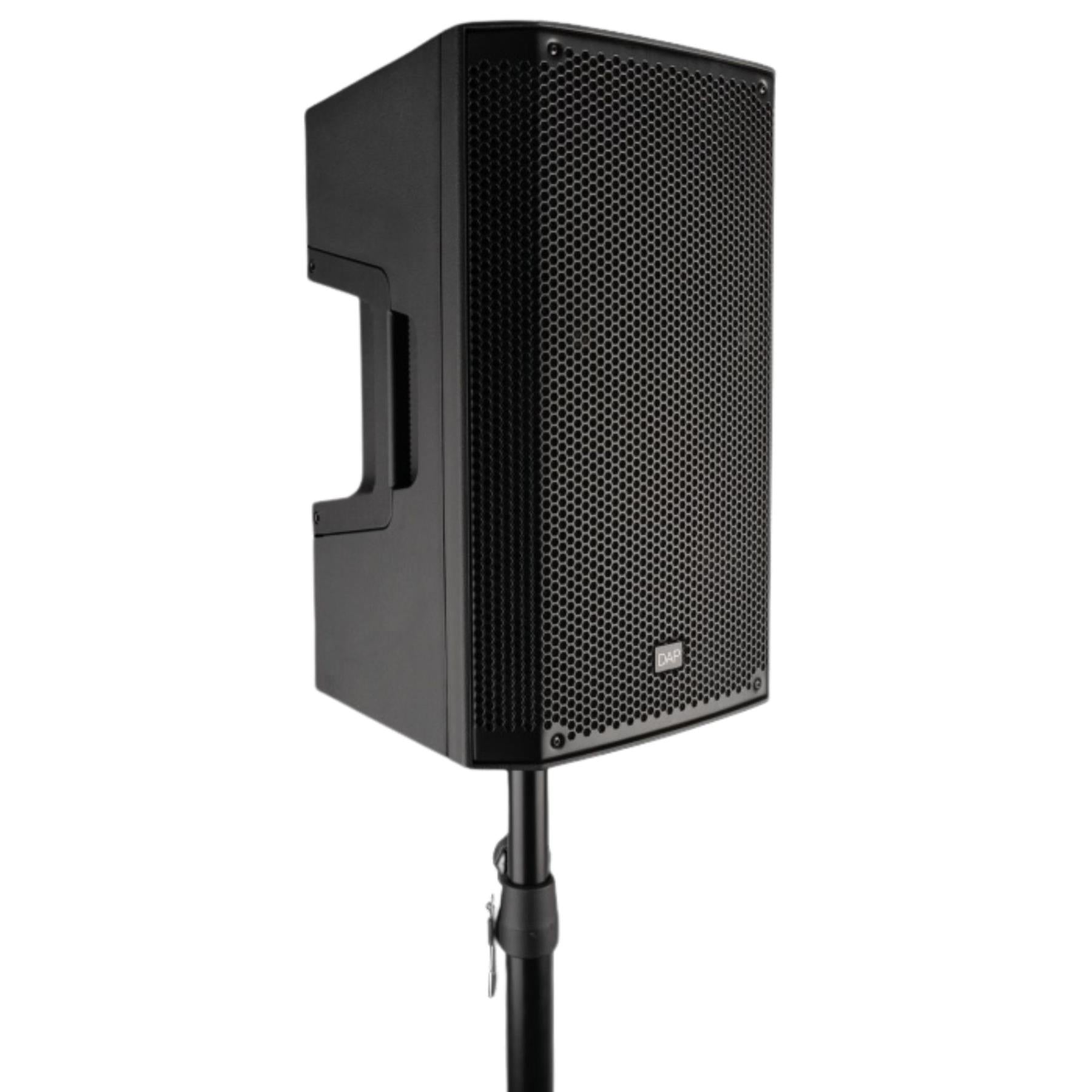

Can be used as a floor monitor or pole-mounted speaker
Specifications
Power output: 1000 W RMS, 2000 W peak
Low frequency driver power: 650 W
High frequency driver power: 350 W
Frequency response (-10 dB): 46 Hz – 20 kHz
Frequency response (-3 dB): 53 Hz – 20 kHz
Maximum SPL: 128 dB
Sensitivity: 96 dB (1W/1m)
Crossover frequency: 2000 Hz
THD: <0.15%
Signal-to-noise ratio: >85 dB
Amplifier class: Class D
Speaker Components
Woofer: 12" with 3" voice coil, ferrite magnet
Compression driver: 1" with 1.4" voice coil, ferrite magnet
Dispersion: 90° x 60°

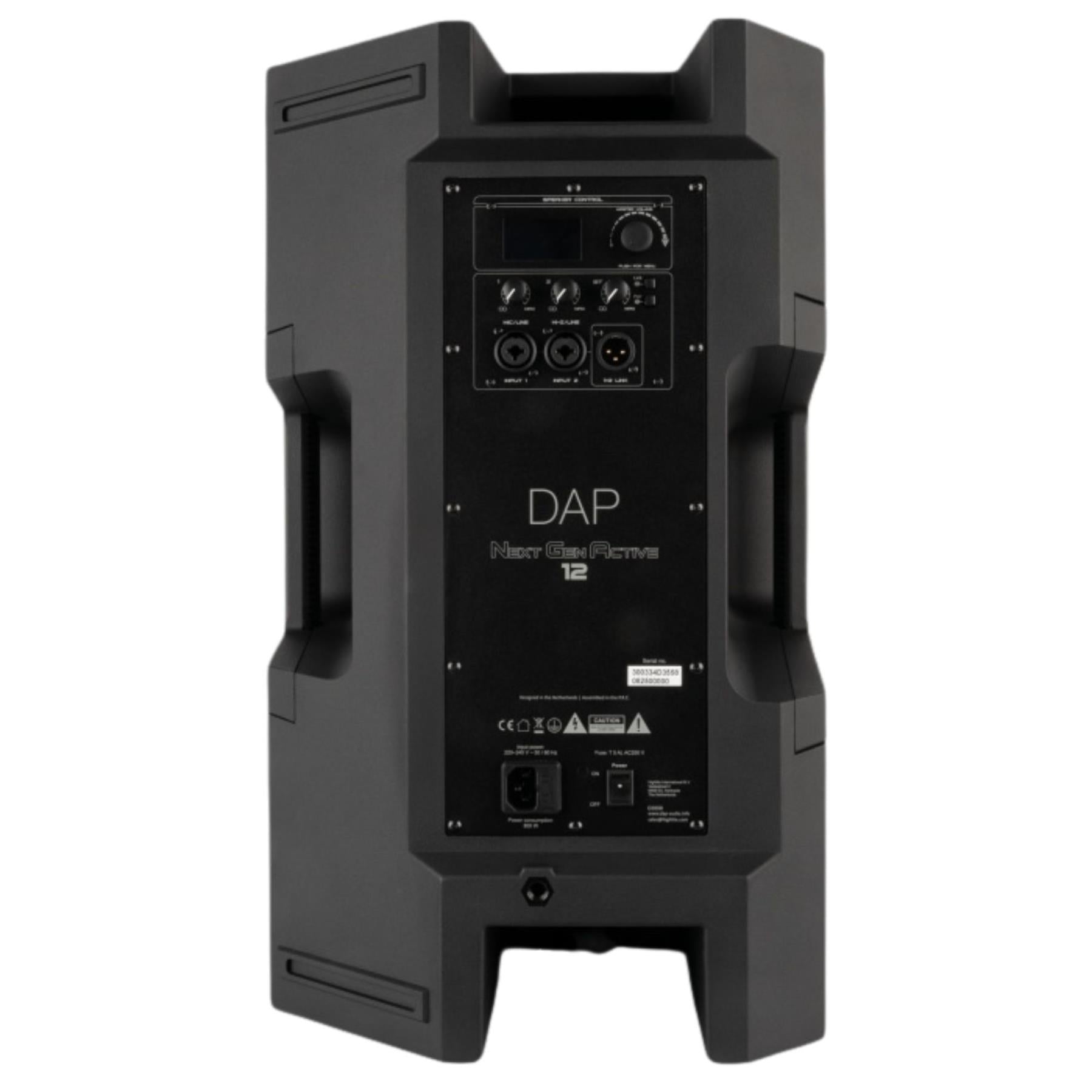

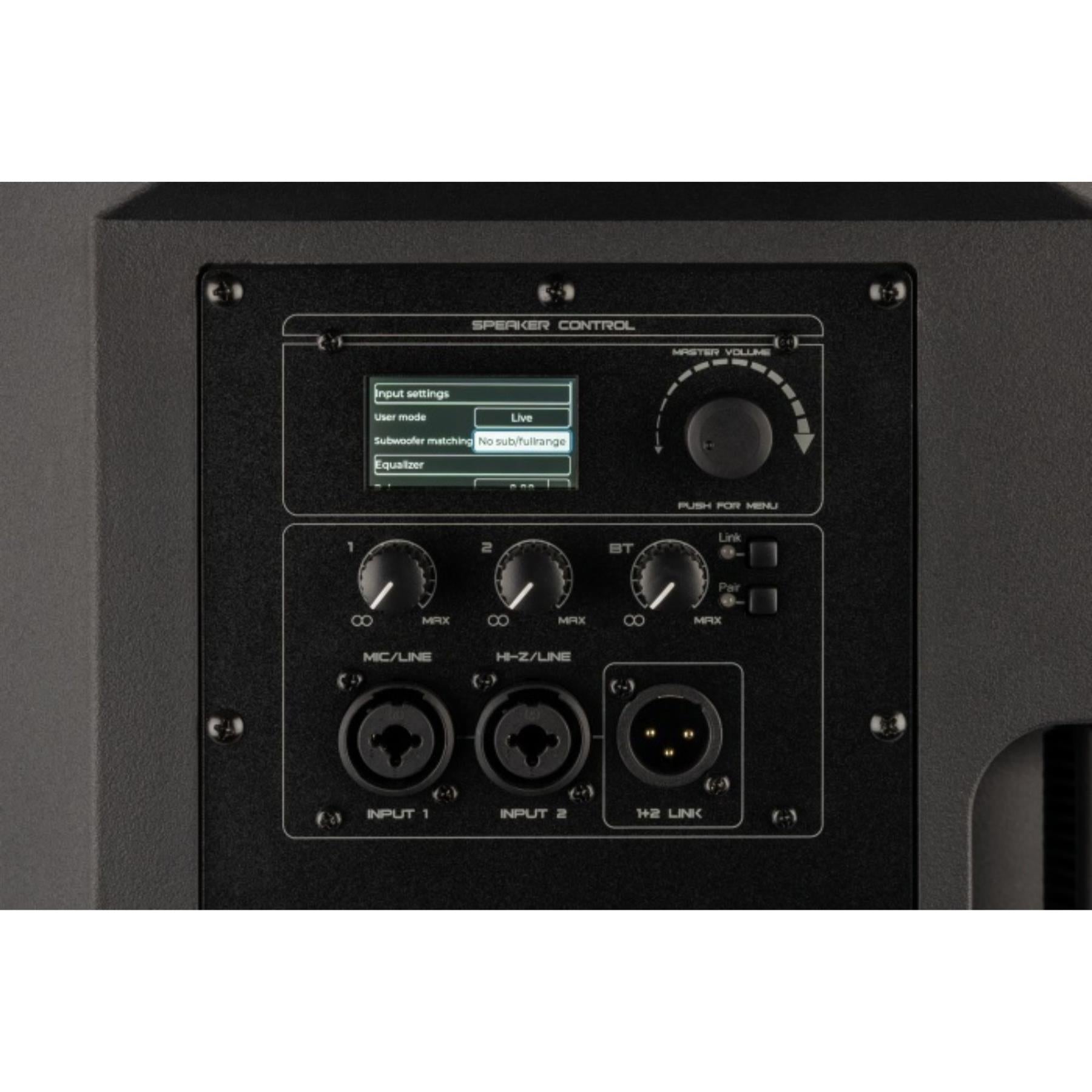

Connectivity and Control
Inputs: 2 x combo XLR/6.3 mm jack (mic/line/Hi-Z)
Output: 1 x XLR link output
Bluetooth: Version 5.3 with TWS
Display: 1.9" TFT
Control: Onboard DSP and mobile app

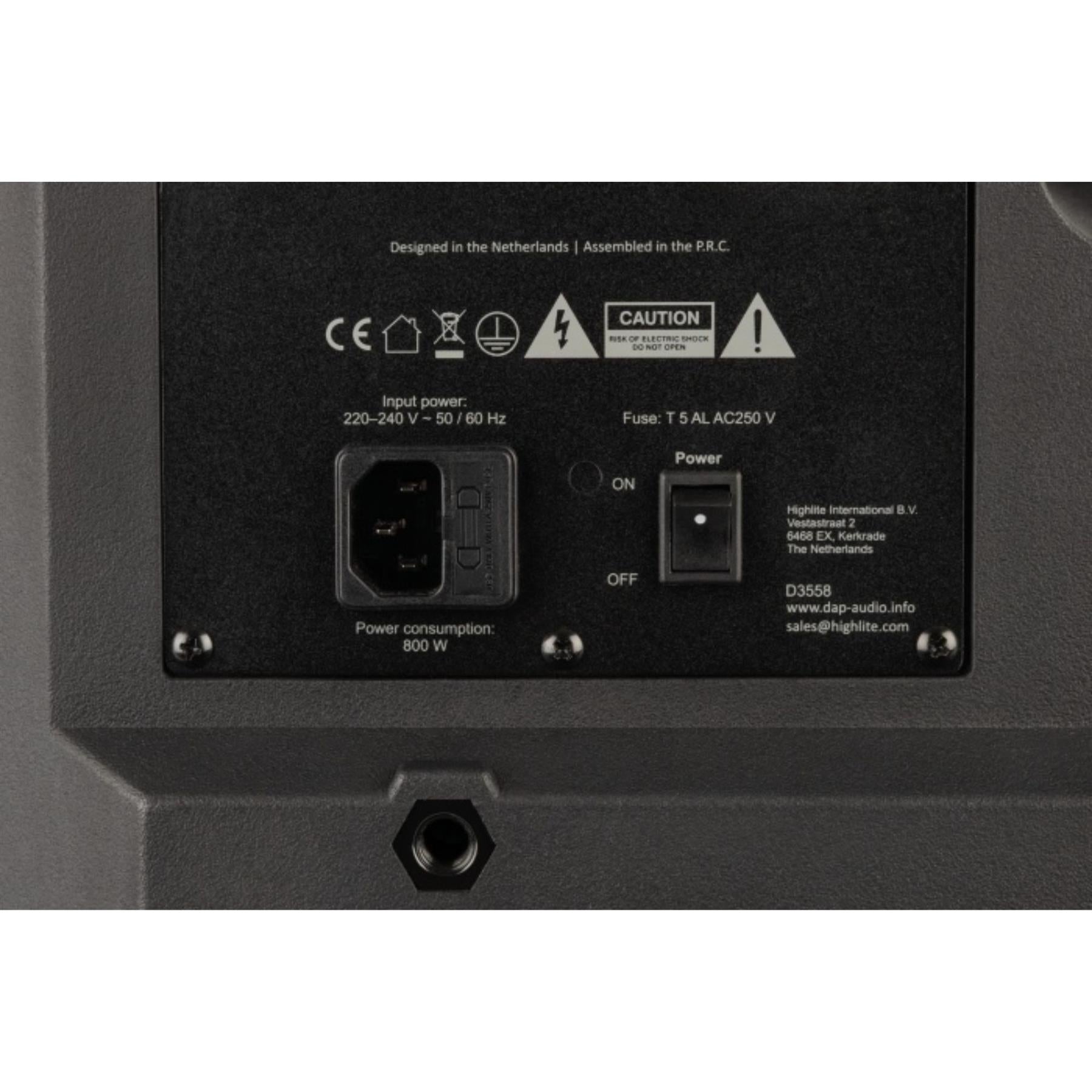

Electrical
Power supply: 220–240 V AC, 50/60 Hz
Power consumption: 800 W
Fuse: 5 A
Power connection: IEC
Mechanical
Enclosure: Polypropylene
Grille: Steel
Colour: Black

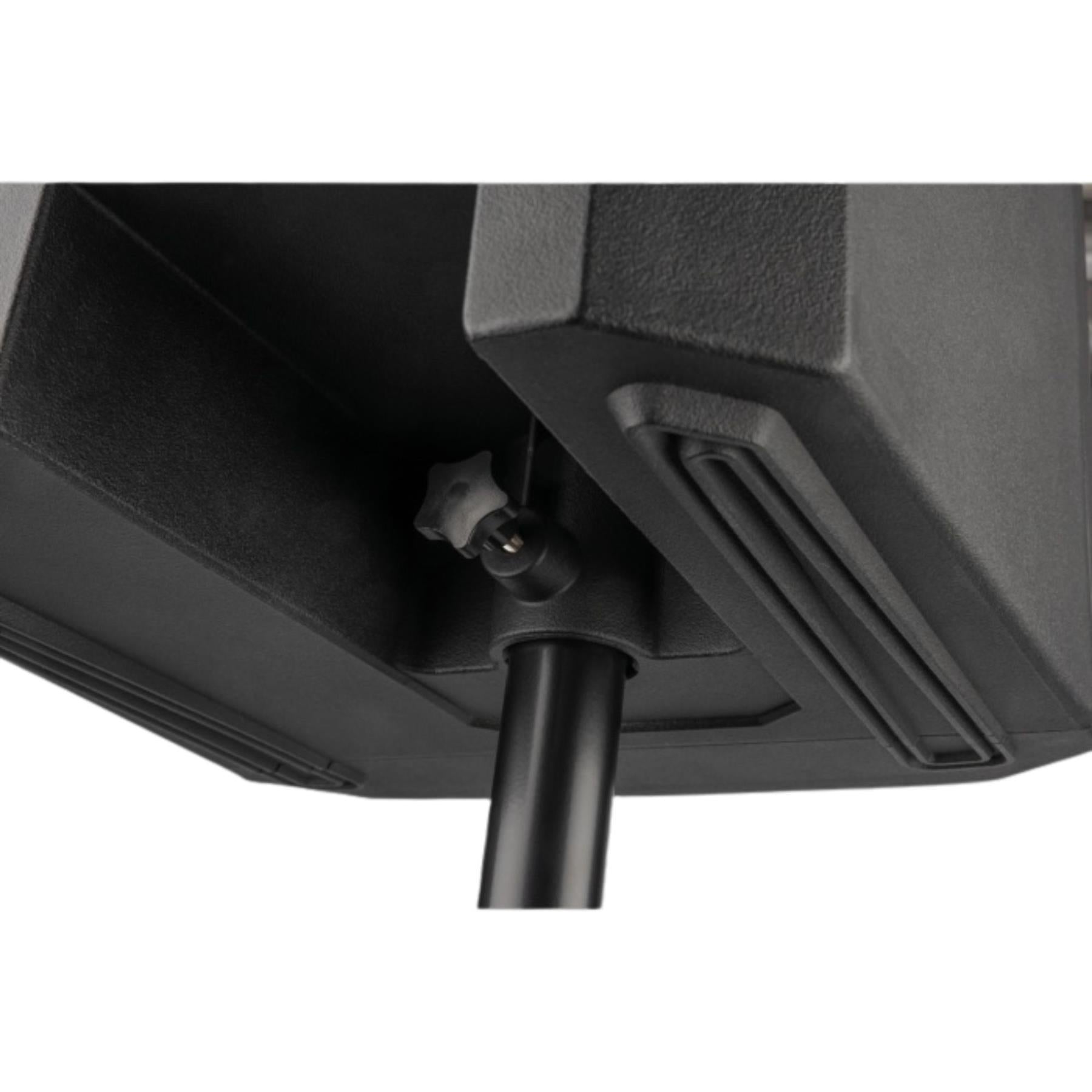

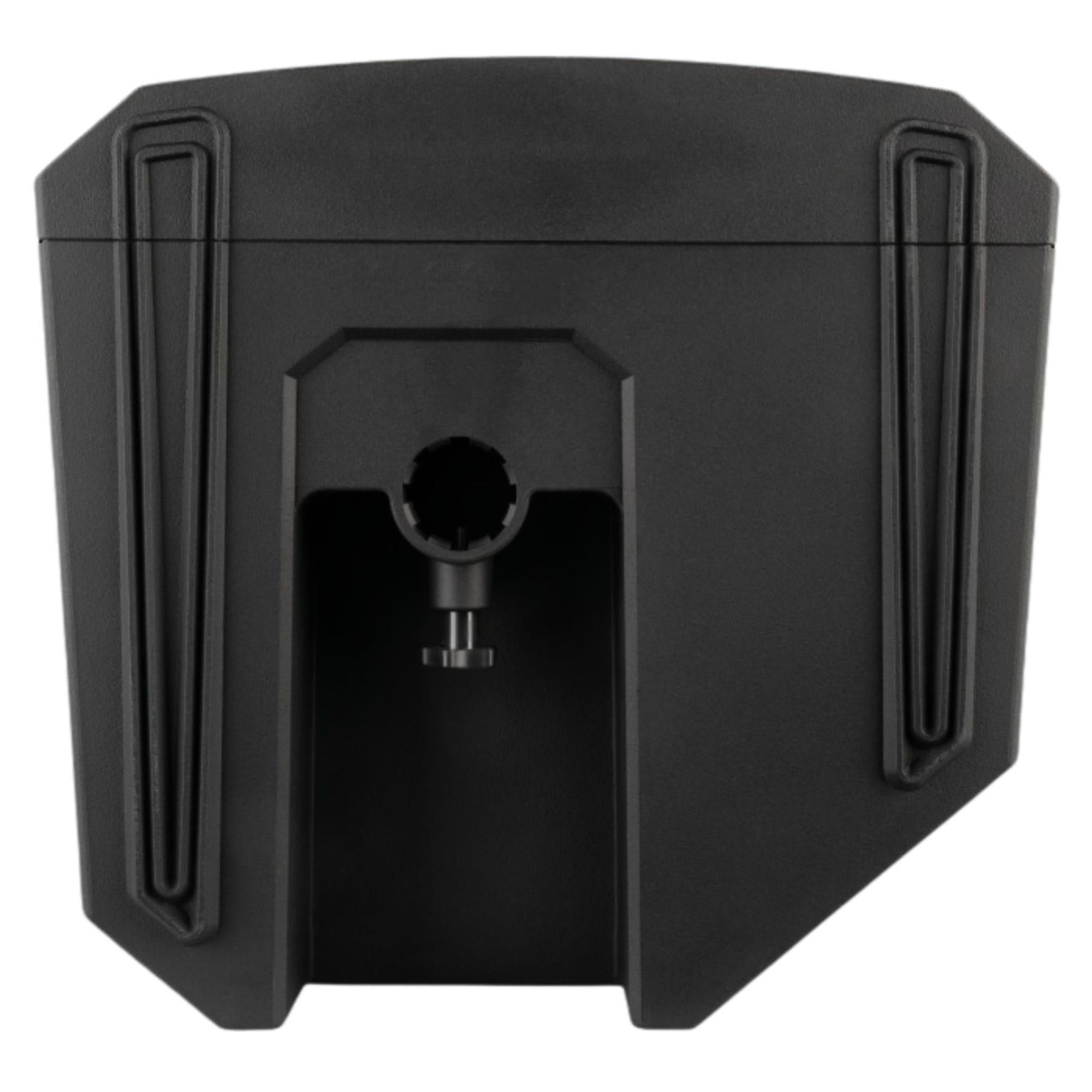

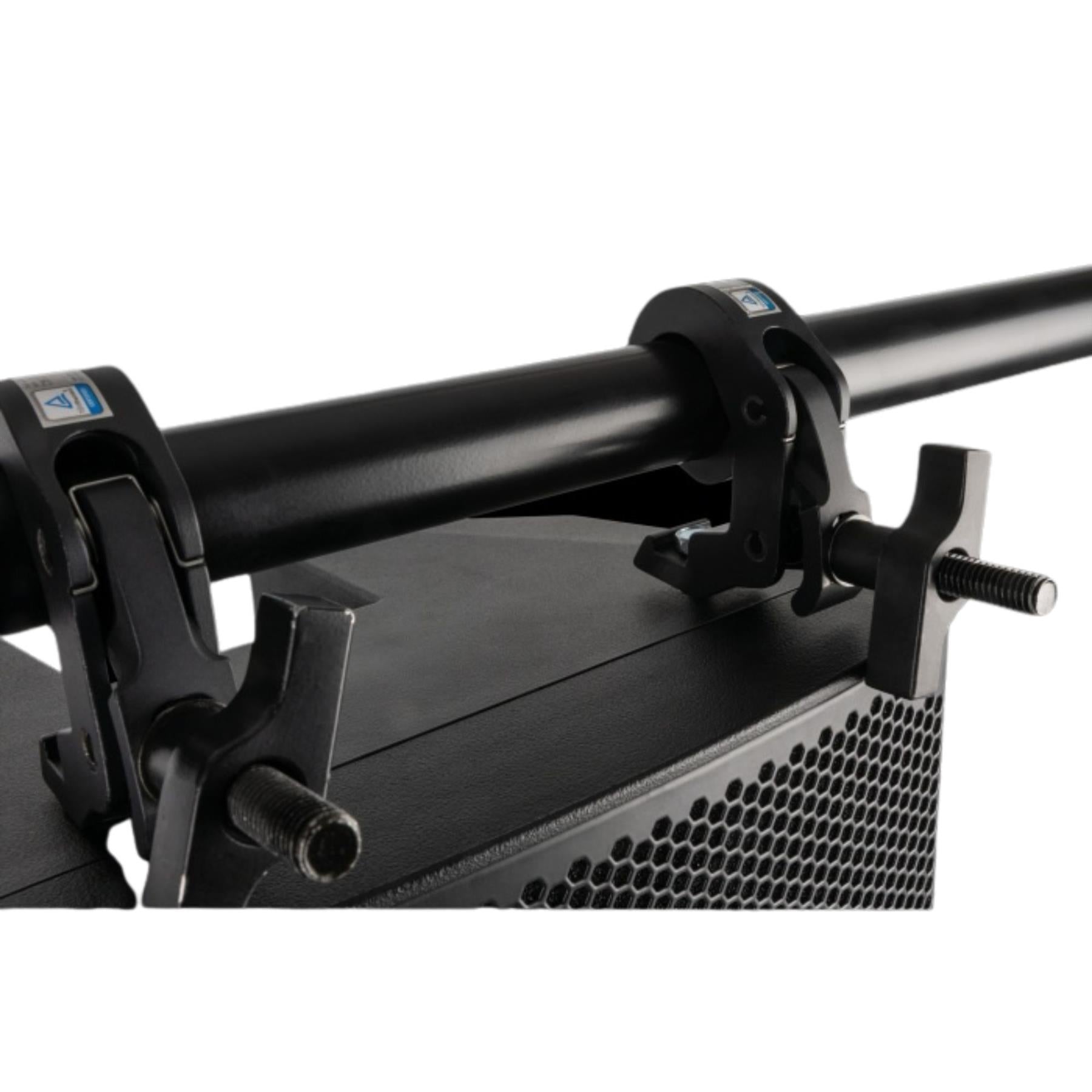

Mounting: 35 mm pole mount, M10 rigging points
Monitor use: Yes
Dimensions and Weight
Dimensions (H x W x D): 615 x 365 x 353 mm
Weight: 16.64 kg
Environmental
IP rating: IP20
Operating temperature: -20°C to 50°C
Protection
Protection circuits: Clip limiter, overload, thermal
Indicators: Bluetooth pairing LED
Included
Power cable (IEC)
