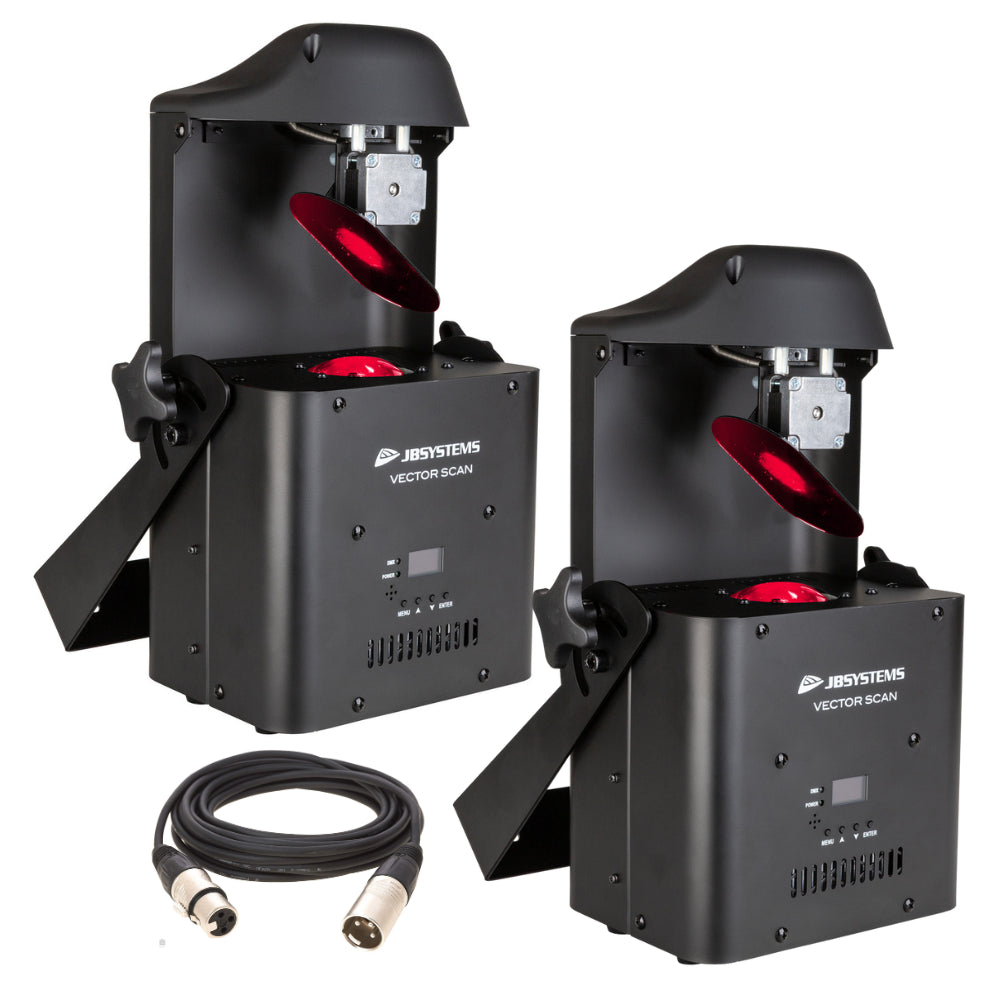

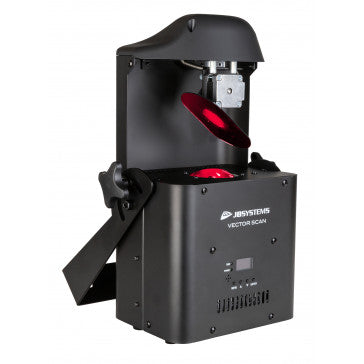

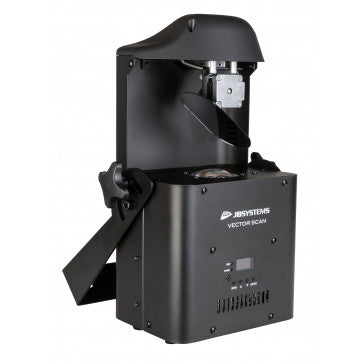

2x JB Systems Vector Scan 100W LED Scanner

This bundle includes two units of the JB Systems Vector Scan, a powerful LED scanner system designed for vibrant, high-energy lighting effects at events, clubs, and mobile DJ setups. Featuring a 100W white LED engine, each unit delivers sharp beams with excellent output and consistent performance.

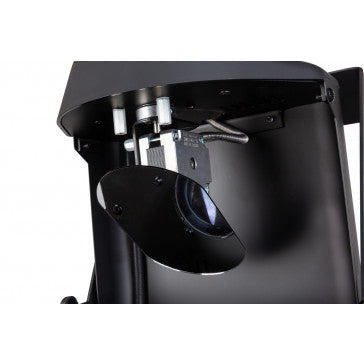

Equipped with a motorised focus, a 3-facet prism, and a rotating gobo wheel with 7 patterns, these scanners deliver a wide range of effects. The colour wheel includes 8 vivid colours plus open, and the motorised focus enables beam precision. Both scanners offer a range of operational modes including DMX (5, 8, or 14 channels), standalone sound or automatic mode, and master/slave synchronisation for cohesive multi-fixture shows.

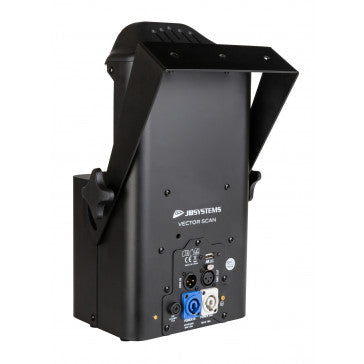

Each unit includes an OLED menu display for intuitive configuration and features PowerCON-compatible inputs/outputs and 3-pin XLR DMX connections. With optional wireless DMX compatibility via the WTR-DMX dongle, these scanners can seamlessly integrate into wired or wireless lighting setups.

This bundle also includes a FREE DMX lead, so you can connect and sync your fixtures straight out of the box.

Specifications (Per Unit)

Light Source
LED Type: 100W white LED
Gobo Wheel: 7 rotating gobos + open
Colour Wheel: 8 colours + open
Prism: 3-facet rotating prism
Beam Angle: 18°
Motorised Focus: Yes
Dimming: 0–100%
Strobe: Multiple effects

Control
Control Modes: DMX, sound-active, auto, master/slave
DMX Channels: 5, 8, or 14
Display: OLED with navigation buttons
Wireless DMX: Compatible with optional WTR-DMX dongle

Connections
DMX: 3-pin XLR in/out
Power: PowerCON-compatible in/out

Physical
Power Input: 100–240V AC, 50/60Hz
Power Consumption: 130W
Mounting: M12
IP Rating: Indoor only
Colour: Black

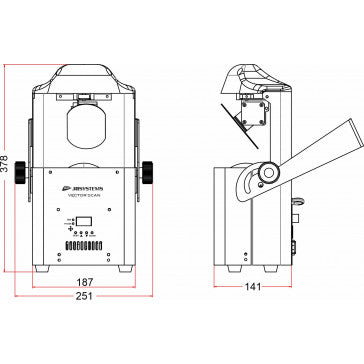

Dimensions (H x W x D): 37.8 x 25.1 x 14.2 cm
Weight: 5.5 kg (per unit)
