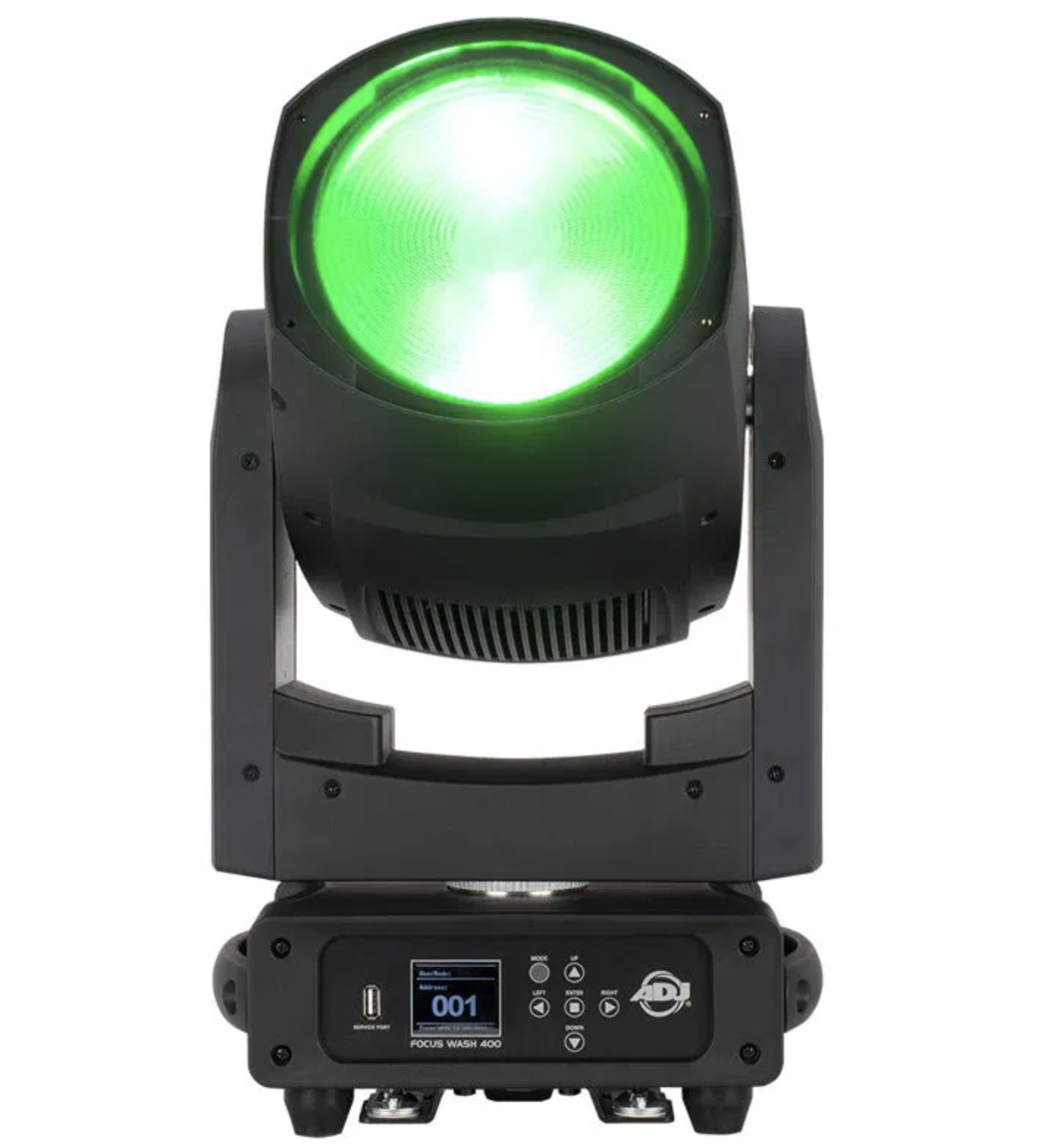

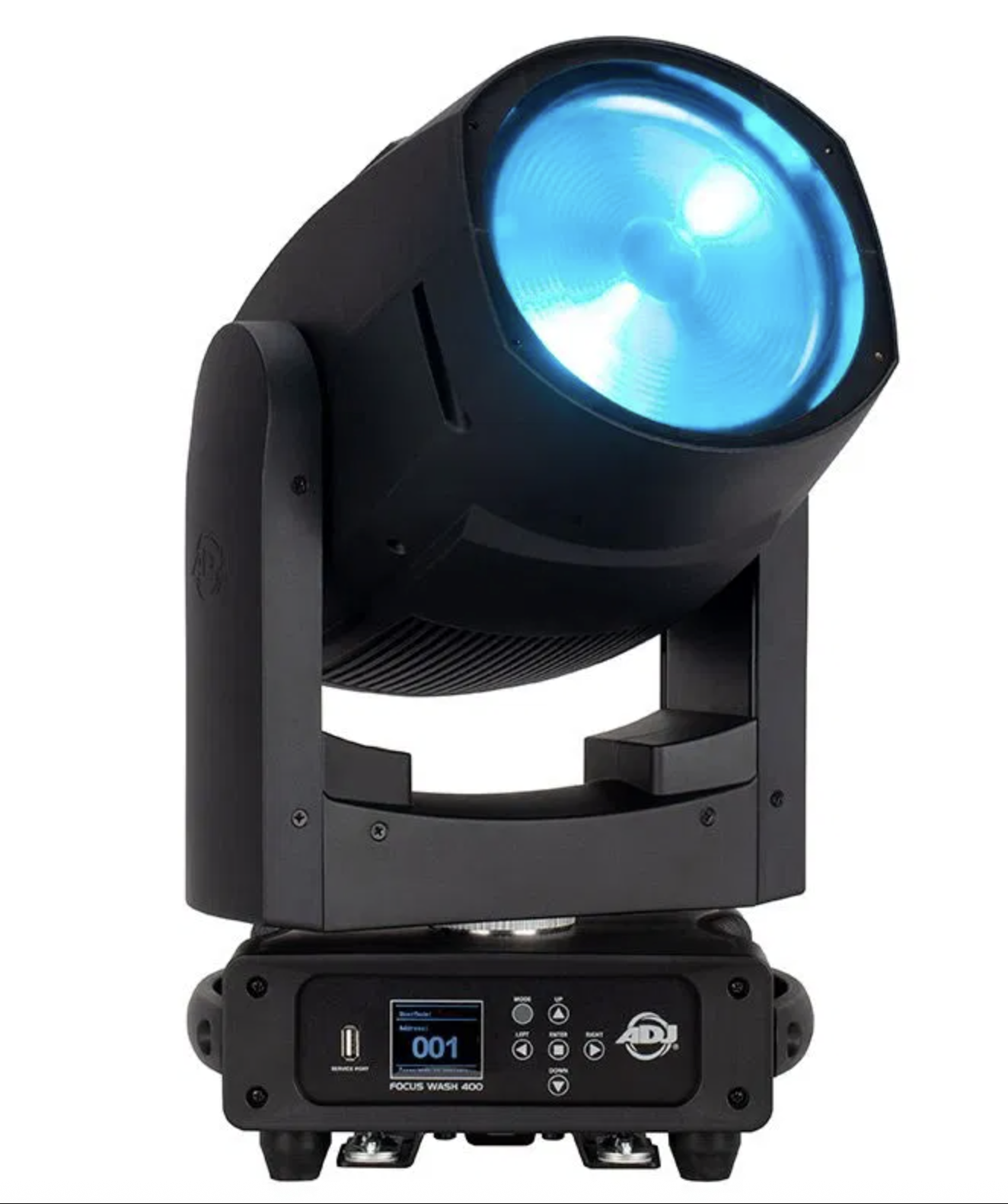

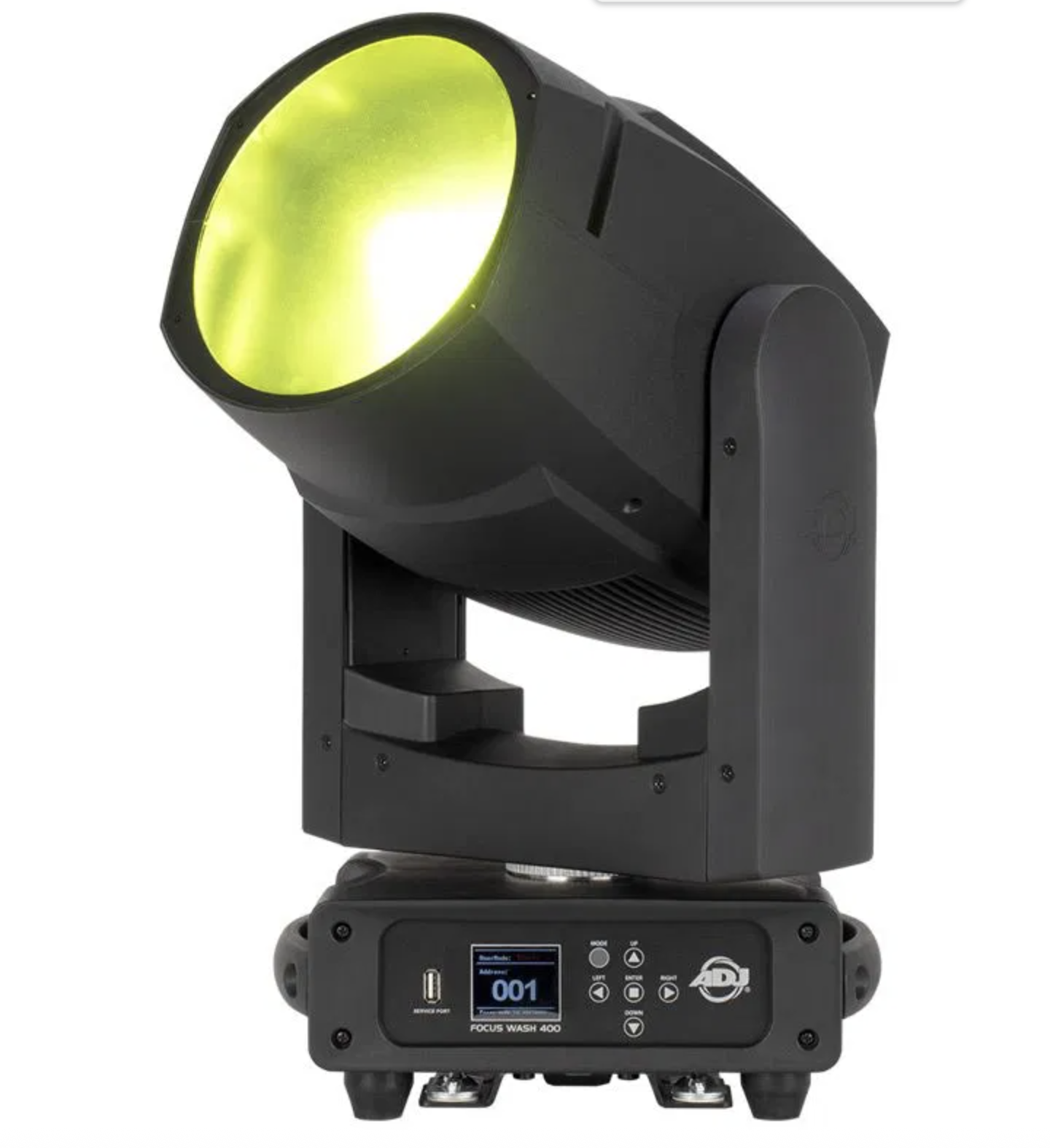

ADJ Focus Wash 400 Moving Head 400W RGBACL

Description

The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 9 to 43° motorized zoom produces an even field light output.

Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white colour temperature control from 2700K - 10000K, as well as, preset white colour macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY colour mixing channel which allows users to choose any hue on a colour picker.

The FOCUS WASH 400’s unique colour engine produces a high CRI of 92+ for bright whites and a CRI R9 of 87.3 to help make red tones more vibrant. The fixture also includes 16-bit pan / tilt movement, RGBACL colour mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.

The fixture comes standard with IP65 locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, colour LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.

Source:
400W RGBACL LED engine
7783 lumen output
730 lux at 5 m at 43°
4451 lux at 5 m at 9°
Average lifetime approximately 50,000 hours

Optics:
Zoom range 9–41°
Field angle 19–54°
Fresnel lens
Motorized zoom

Control:
DMX-512 protocol
Five DMX channel modes: Basic (17), Standard (22), Extended (24), CMY Standard (18) and CMY Extended (24)
RDM compatible (Remote Device Management)
16-bit dimming from 0–100%
Six dimming modes: Standard, Stage, TV, Architectural, Theatre and Stage 2
Four dimming curves: Linear, Square, Inverse Square and S-Curve
Various strobe effects
LCD menu display with six-button control
Three fan settings: Auto, High and Low Noise

Colours:
RGBACL colour mixing (Red, Green, Blue, Amber, Cyan, Lime)
CRI 94
Preset colour temperatures 2700K, 3200K, 4000K, 5600K and 6500K

Construction:
Metal casting with ABS housing

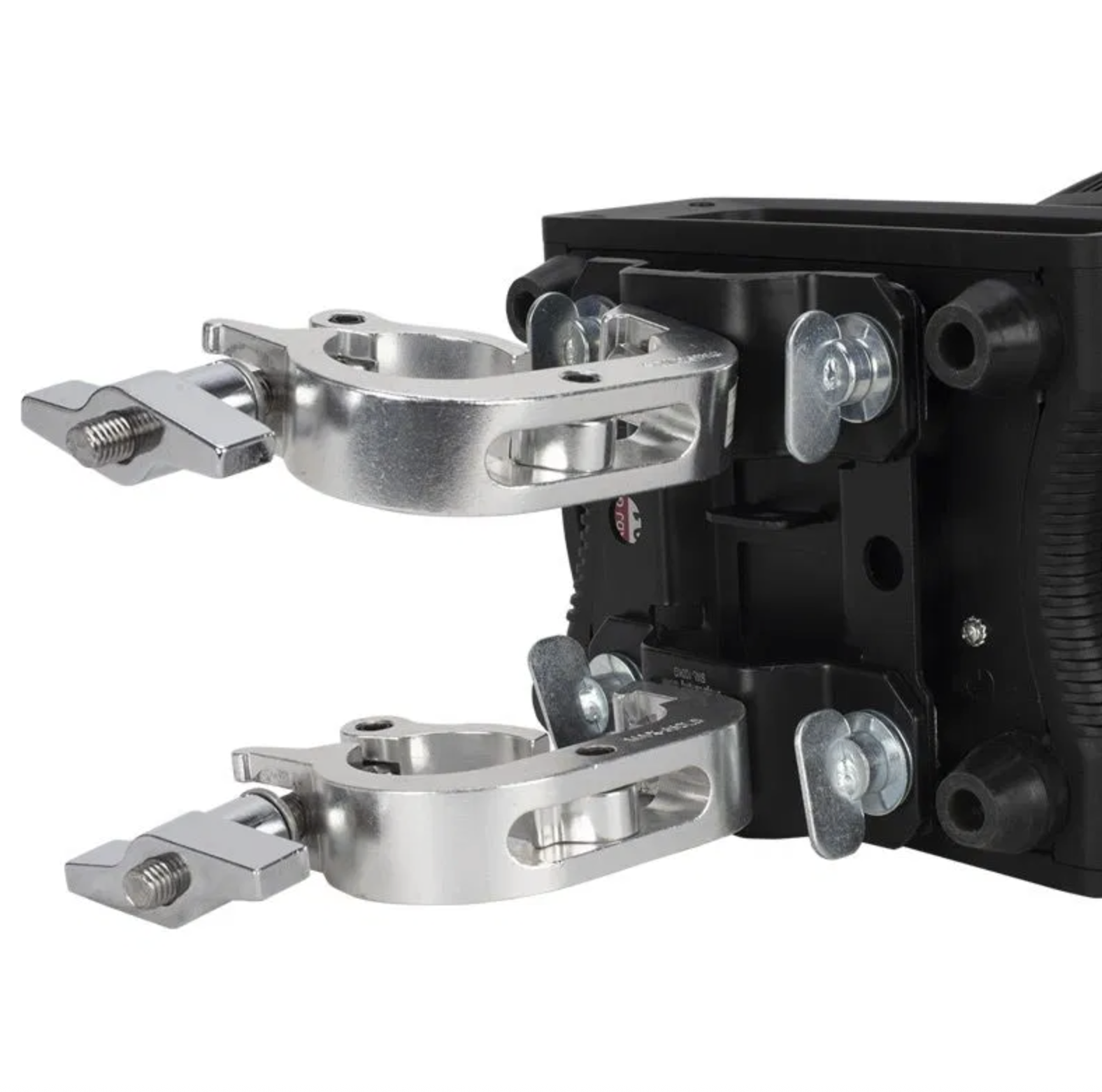

Omega bracket with quick locks

Electrical:
Multi-voltage 100–240 V, 50/60 Hz
Power draw 438 W

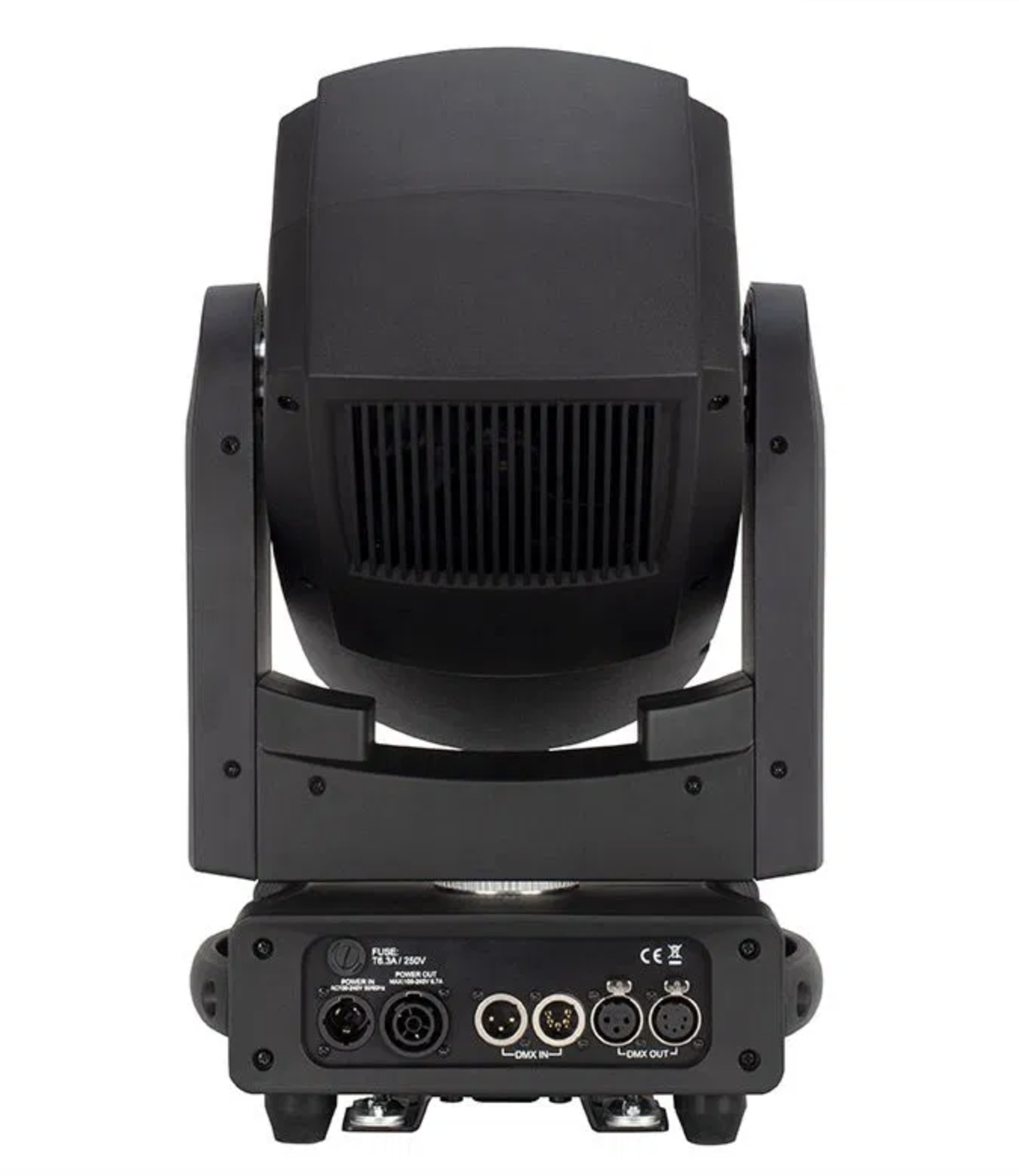

Connections:
Locking 3-pin and 5-pin DMX in/out
IP65 locking power in/out

Dimensions and weight:
Dimensions 213 × 278 × 568 mm
Weight 10.7 kg

Included accessories:
Snoot
One 40° linear lens
Two omega brackets
Safety cable
IP65 locking power cable
