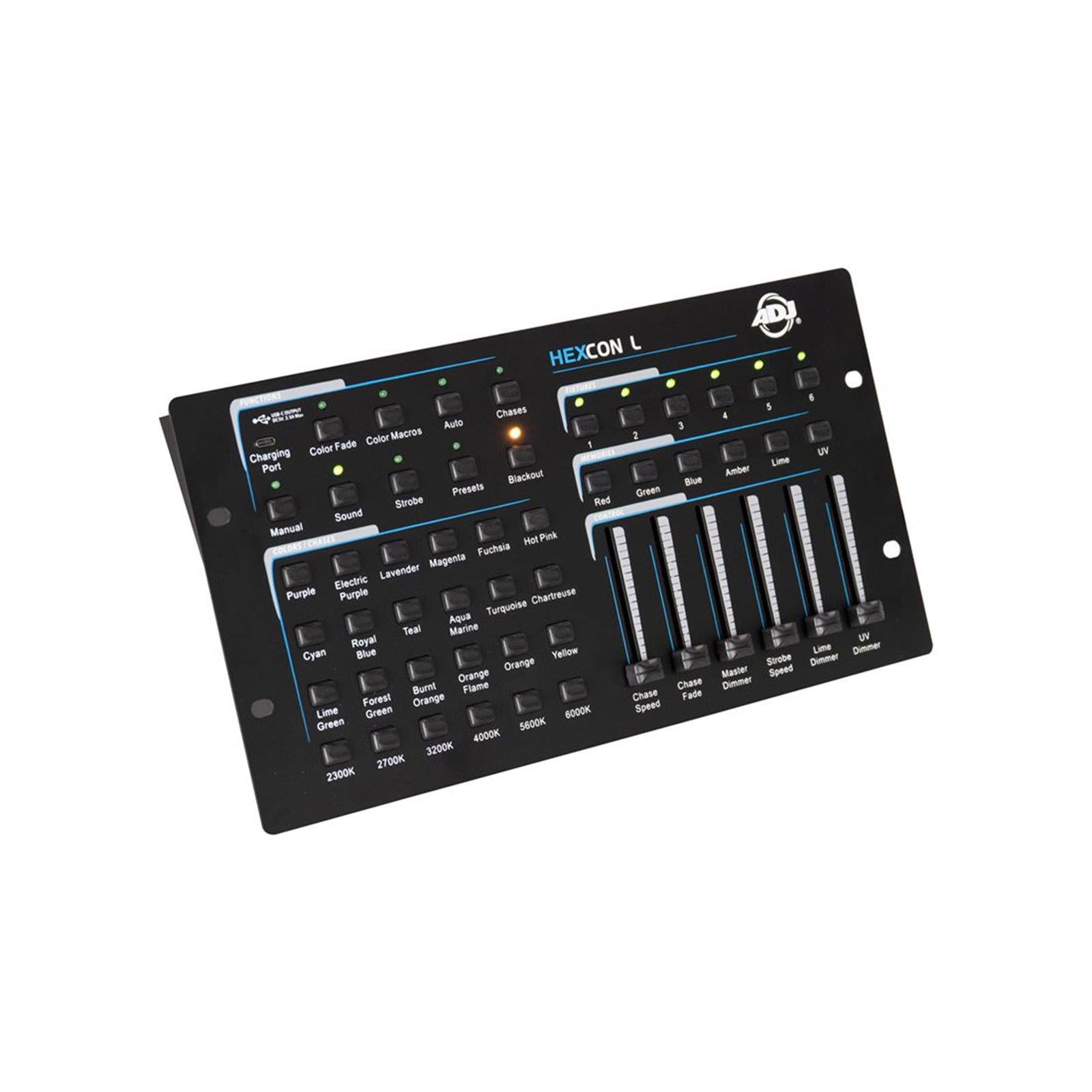

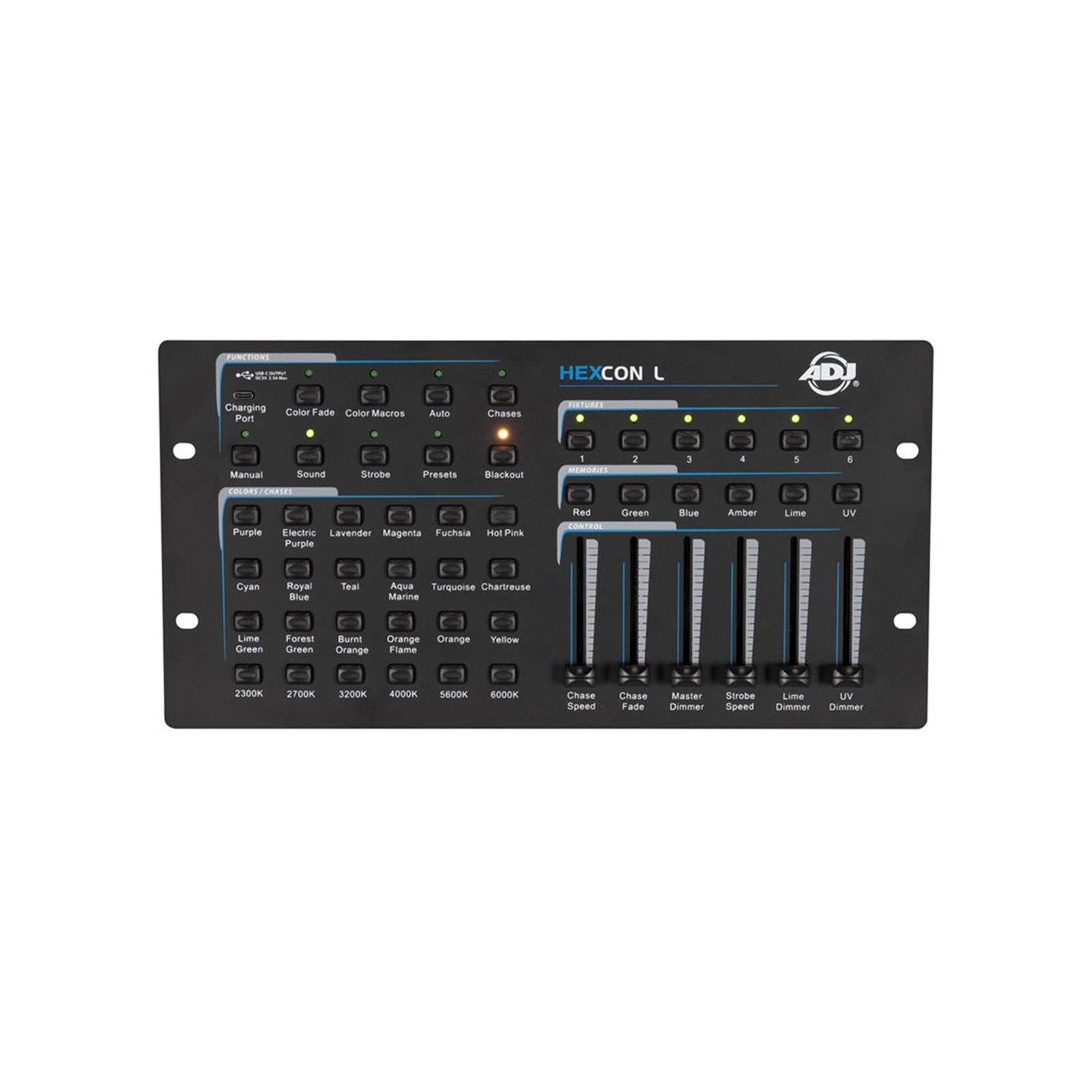

ADJ HEXCON L 36-channel DMX controller

Description:

The ADJ HEXCON L is a compact and intuitive 36-channel DMX controller designed for seamless control of RGBAL+UV HEX Series LED fixtures. Ideal for DJs, venues, and lighting professionals, it provides hands-on control over colour mixing, effects, and playback modes without the complexity of larger lighting desks.

With dedicated controls for up to six fixtures or fixture groups, the HEXCON L allows precise adjustment of colour intensity, chase programs, dimming, and strobe effects. Featuring 30 direct-access colour presets alongside 6 user-programmable presets, it enables quick scene recall and efficient operation in live environments.

Designed for practical use, the controller includes multi-function faders for real-time adjustments, an internal microphone for sound-active mode, and quick-access function buttons for essential lighting effects. Its USB-C powered design and compact form factor make it a versatile and portable solution for on-the-go lighting control.

Features:

Type: 36-Channel DMX Lighting Controller
Compatibility: ADJ RGBAL+UV HEX Series LED Fixtures

Fixture Control: Up to 6 Fixtures or Fixture Groups
Presets: 30 Direct-Access Colour Presets, 6 User-Programmable Presets

Faders: 6 Multi-Function Faders (Intensity, Chase Speed, Fade, Dimming, Strobe)
Control Modes: Colour Fade, Colour Chase, Colour Macro, Auto, Sound Active, Strobe, Manual, Presets

Effects: Variable Strobe, On-the-Fly Speed & Fade Control
Audio: Internal Microphone with Adjustable Sensitivity

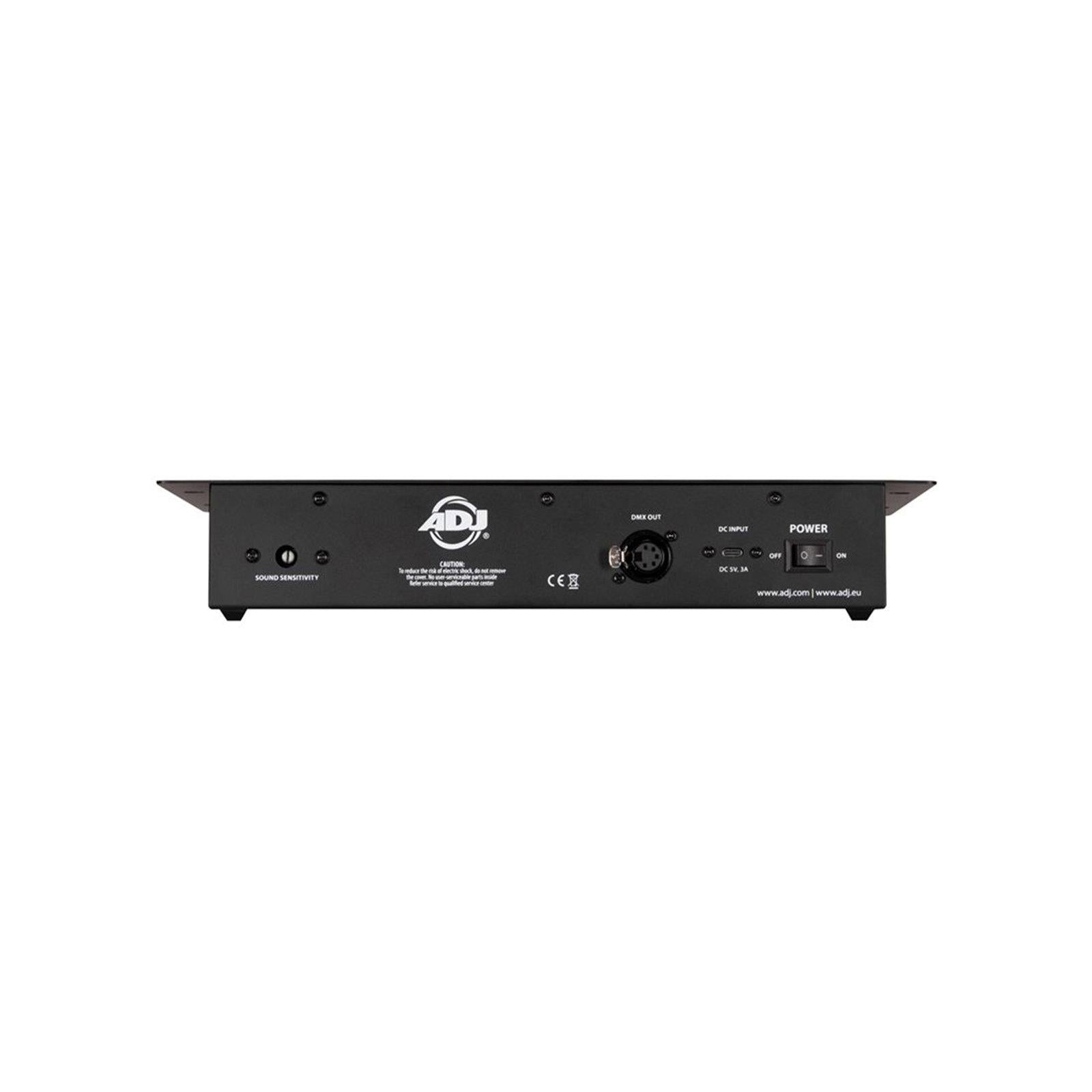

Outputs: 5-Pin XLR DMX Output
Connectivity: USB-C Charging Port

Application: Portable lighting control for DJs, events, and installations

Specifications:

Power Input: 5V DC 3A
Power Consumption: 15W
IP Rating: IP20
Strobe Rate: 0.33Hz–11Hz
Operating Temperature: -20°C to 40°C
Storage Temperature: -30°C to 45°C
Dimensions (L x W x H): 360 x 183 x 69mm
Weight: 1.74kg
