ADJ WMS2 LED Video Panel Screen Poster 1m x 0.5m

Description:

The ADJ WMS2 LED Video Panel represents the highest resolution offering in ADJ’s professional LED range, engineered for seamless integration into a wide variety of fixed installation environments. Ideal for retail displays, museums, boardrooms, digital signage, and entertainment venues, the WMS2 delivers exceptional visual clarity for close viewing applications.

With a fine 2.6mm pixel pitch and a high pixel density of 147,456 pixels per square metre, the WMS2 produces sharp, detailed imagery with excellent colour reproduction. Utilising RGB SMD1515 LEDs, it achieves vibrant output supported by 800 NITS brightness, wide viewing angles, and a high refresh rate for smooth, flicker-free performance.

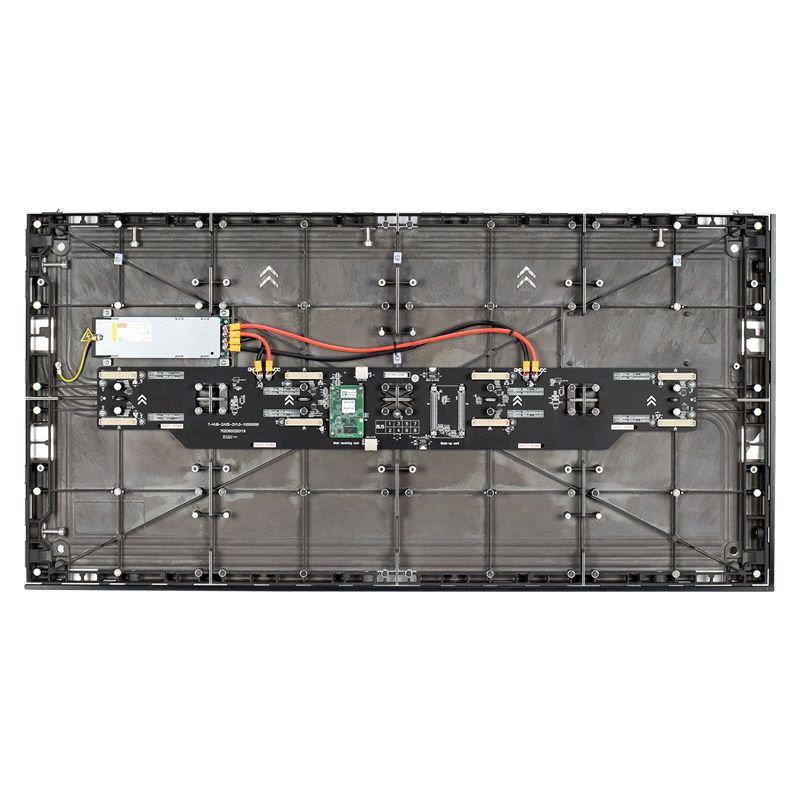

The panel features a 1000 x 500mm cabinet design made up of eight modules, each with a 96 x 96 pixel resolution. A secure locking system allows for precise alignment between panels, while integrated mounting points enable straightforward wall installation or flown configurations. The front-serviceable design ensures quick and efficient maintenance with minimal downtime.

With a slim 33mm profile and lightweight construction, the WMS2 is well suited to permanent indoor installations where space, weight, and visual performance are critical.

Specifications:

Pixel Pitch: 2.6mm
Pixel Density: 147,456 pixels/m²
Panel Resolution: 384 x 192 pixels
LED Type: SMD1515 RGB (Kinglight Copper)
Module Size: 250 x 250mm
Module Resolution: 96 x 96 pixels
Modules per Panel: 8
LED Lifespan: 50,000 hours

Brightness: 800 NITS
Viewing Angle: 160° horizontal / 140° vertical
Grey Scale: ≥14-bit
Refresh Rate: 3840Hz

Installation: Wall mount or flown
Serviceability: Front serviceable

Power Input: 100–240V AC
Max Power Consumption: 350W/m²
Average Power Consumption: 140W/m²

Control System: NovaStar A8s-N receiving card

Environment: Indoor use
IP Rating: IP20
Operating Temperature: -20°C to +40°C
Storage Temperature: -40°C to +80°C
Humidity: 10%–90%

Dimensions:

Cabinet Size: 1000 x 500mm
Cabinet Thickness: 33mm
Weight: 9.5kg

Accessories:

Optional accessories include vacuum tools, power and data cables, rigging bars, wall mount brackets, and frame trims for various video wall configurations
