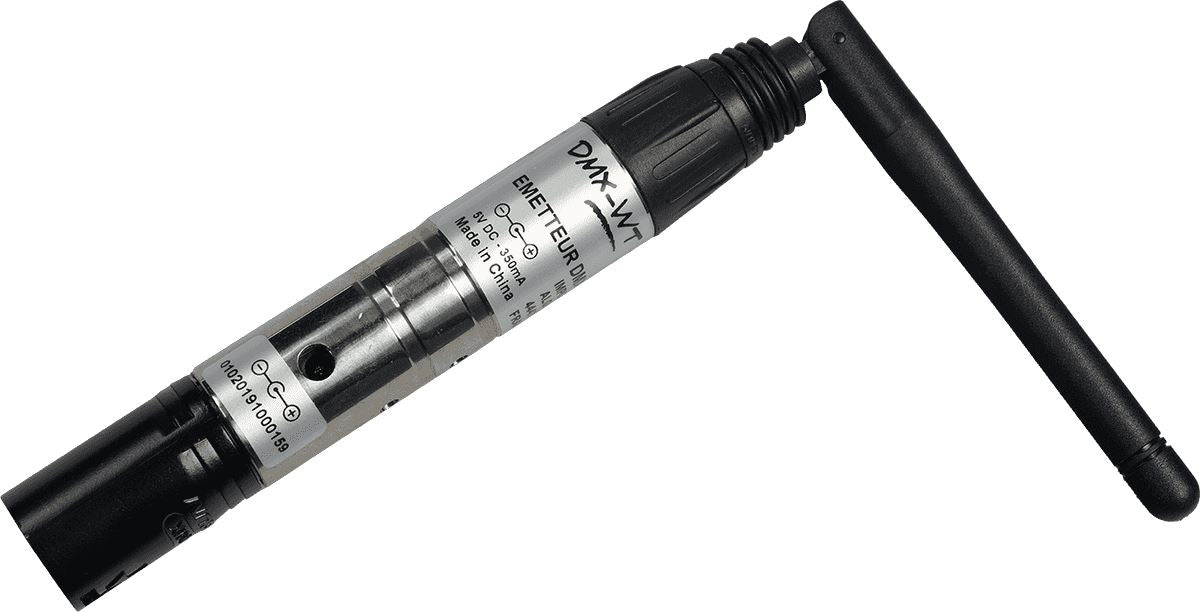

Algam Wireless DMX Transceiver XLR Male

Wireless DMX transmitters and receivers provide a convenient solution for remotely controlling lighting equipment that lacks built-in wireless functionality. Designed for simple and reliable setup, a single receiver connected to the first fixture in a DMX chain enables wireless control of multiple devices simultaneously. The system supports wireless transmission of up to 512 DMX channels per group and allows for the creation of unlimited groups. With memory-based pairing and stable communication, it is ideal for stage, event, and venue lighting applications that demand flexibility without cables.

Features
Enables wireless DMX control for non-wireless lighting fixtures, supports 512 DMX channels per group with unlimited group configurations, long-range transmission of up to 400 meters, operates on the 2.4GHz ISM band with frequency hopping for stable communication, fast data handling via 32-bit ARM DMA transfer, simple plug-and-play setup using XLR 3-pin DMX connection, lightweight and compact design, ideal for stage productions, mobile DJs, and fixed installations.

Specifications
Wireless DMX transmitter
Operating frequency 2.4GHz (ISM band)
Spectrum modulation FHSS, 1100 hops per second
Data transfer protocol DMA – 32-bit ARM
Frequency band 2402 – 2480MHz
Maximum wireless range 400 meters
DMX connection XLR 3-pin male
Supported DMX channels 512 per group
Power supply 5V DC
Power consumption 350mA
Weight 210 g
Supplied with 5V DC power adapter
