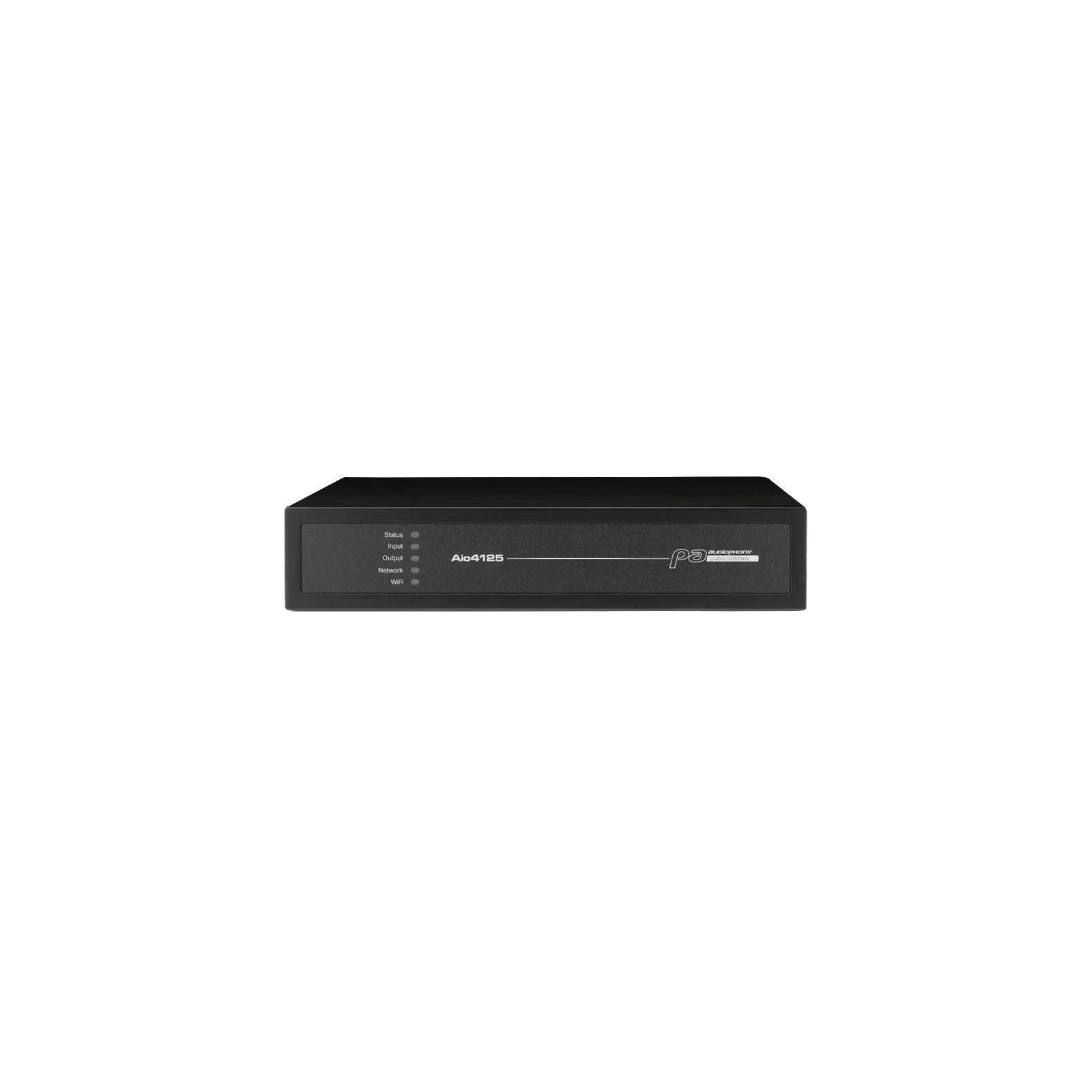

Audiophony Aio4125 Multi-Zone DSP Amplifier

Description

The AUDIOPHONY PA Aio4125 is a compact multi-zone DSP amplifier designed for professional installed audio systems requiring flexible routing, processing, and amplification from a single device. With four 125W amplifier channels, a 4x4 audio matrix, and switchable Lo-Z, Hi-Z, and bridge operation, it is ideal for public areas, commercial spaces, hospitality venues, retail environments, and multi-room installations.

Housed in a 1U half-rack 19-inch format, the Aio4125 integrates mixing, DSP, matrix control, and Class D amplification into a highly space-efficient unit. Pascal UMAC™ amplifier modules provide reliable performance, while advanced DSP processing allows detailed control across input, zone, and output stages.

The amplifier can be configured and managed through an intuitive HTML5 web interface via WiFi or Ethernet, with additional control available through AioCTL compatibility and GPIO connectivity. Its flexible input options, parametric EQ, crossover, compression, limiters, and FIR filtering make it a scalable solution for professional multi-zone audio distribution.

Features

4-channel multi-zone DSP amplifier
4 x 125W output power at 4 Ohms
2 x 250W output power at 100V bridge mode
2 x 250W output power at 8 Ohms bridge mode
4x4 amplified audio matrix
Switchable Lo-Z, Hi-Z, and bridge operating modes
Integrated mixing, DSP, matrix routing, and amplification
Pascal UMAC™ Class D amplifier modules
Triple-level DSP processing for input, zone, and output control
5-band and 10-band parametric EQ
Crossover, compression, limiters, and FIR filtering

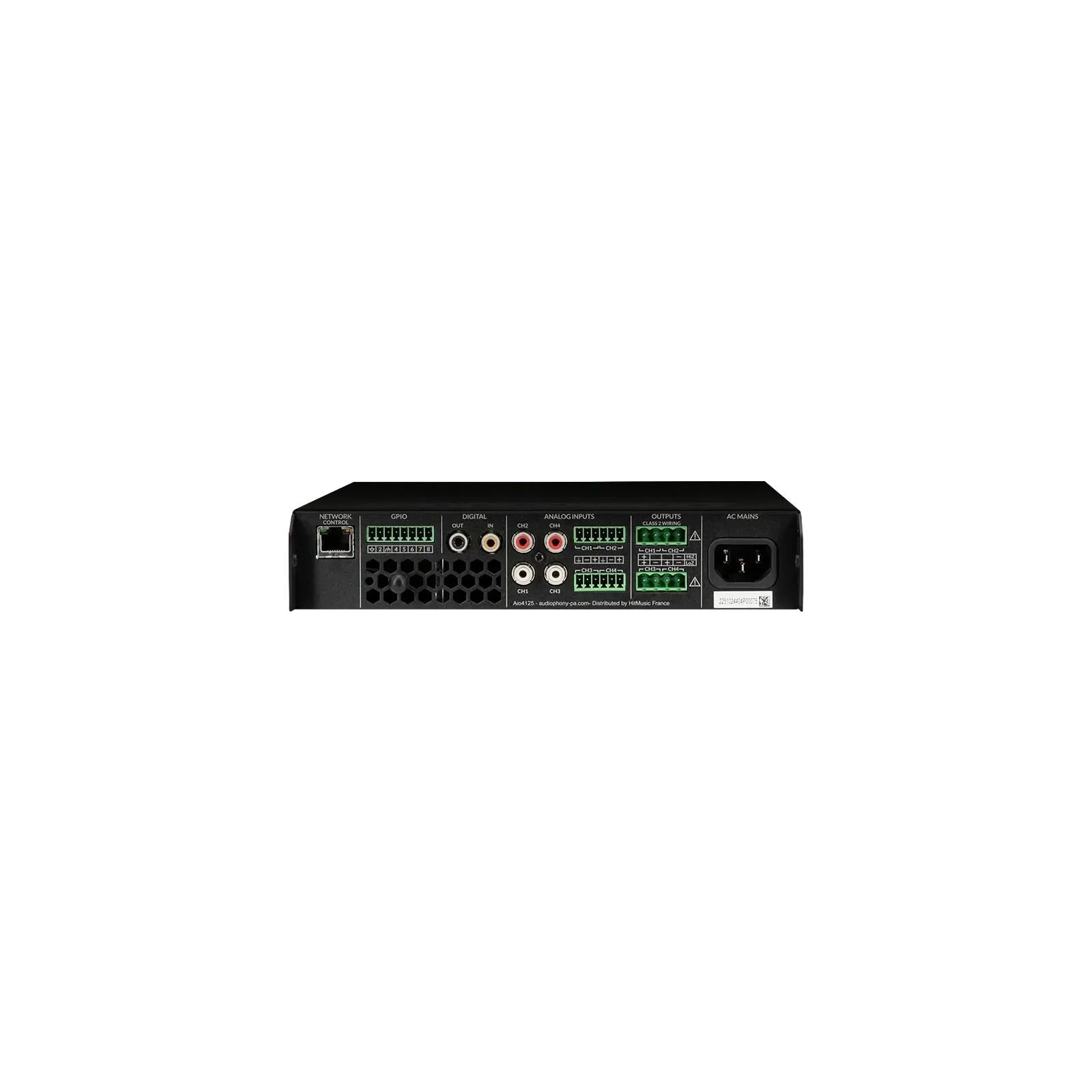

4 analogue inputs with balanced Euroblock and unbalanced RCA connections
Adjustable input sensitivity
S/PDIF digital input and output
Intuitive HTML5 web interface
WiFi and Ethernet control
Compatible with AioCTL control systems
8-pin GPIO connectivity
Compact 1U half-rack 19-inch format
Ideal for installations up to 4 zones
Professional scalable solution for public and commercial areas
Supplied with power cable, Euroblock connectors, rubber feet, and documentation

Specifications

Brand : AUDIOPHONY PA
Product name : Aio4125
Product type : Multi-zone DSP amplifier
Amplifier type : Class D
Amplifier modules : Pascal UMAC™
Channels : 4
Matrix : 4 x 4
Output power at 4 Ohms : 4 x 125W
Output power at 100V bridge mode : 2 x 250W
Output power at 8 Ohms bridge mode : 2 x 250W
Operating modes : Lo-Z, Hi-Z, Bridge
Inputs : 4 analogue inputs
Analogue input connections : Balanced Euroblock, unbalanced RCA
Input sensitivity : Micro, -10dBu, +4dBu, +14dBu
Digital audio : 1 x S/PDIF input and output
DSP processing : Input, zone, and output
Equalisation : 5-band and 10-band parametric EQ
DSP functions : Crossover, FIR 512 taps, compression, limiters
THD+N : < 0.05% from 20Hz to 20kHz
Signal-to-noise ratio : > 106dB
Control interface : HTML5 web interface
Network control : WiFi and Ethernet
External control : AioCTL compatible
GPIO : 8-pin GPIO
Display : No
Rack format : 19-inch 1U half-width rack
Rack units : 1U
Power supply : 100 – 240V AC
Maximum power consumption : 700W
IP rating : Indoor
Energy label : No
Housing colour : Black
Dimensions : 220 x 44 x 319 mm
Dimensions : 22 x 4.4 x 31.9 cm
Weight : 2.8 kg
Supplied accessories : Power cable, Euroblock connectors, rubber feet, documentation
