ChamSys GeNetix GN2 2-Port Ethernet DMX Node for Art-Net USB

Description

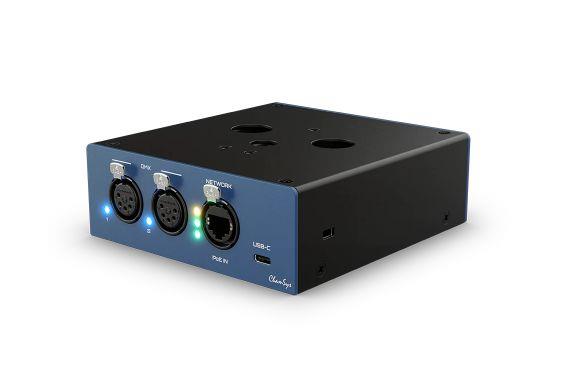

GeNetix Node 2 is a two-port Ethernet-DMX node that is compatible with any console supporting Art-Net and sACN. GeNetix Node 2 can also be used as a USB interface for MagicQ PC systems, unlocking MagicQ into reduced mode when connected via its USB-C or Network port.

Configuration is simple, whether done locally via its in-built display, remotely with its onboard web server or from the console. Powered by either PoE or its USB-C port, this versatile device is at home in many different environments as a standalone interface, truss-mounted in the rig via its M12 receiver or installed via its DIN rail mount.

GeNetix Node 2 supports Art-Net, sACN, RDM and supports both DMX input or output from its two DMX ports.

Features

2 RDM DMX Ports supporting Input and Output
Supports Art-Net & sACN
Webserver for remote configuration

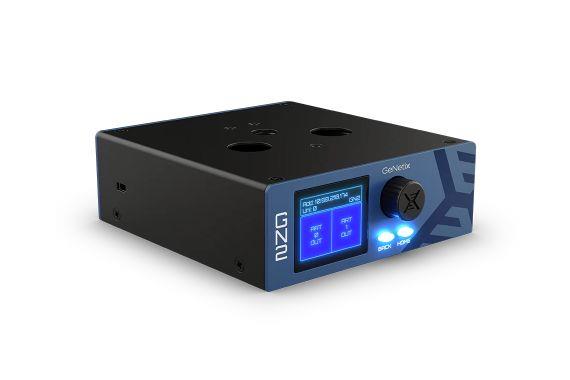

In-built display and encoder for local configuration
Can be USB or PoE powered
Unlocks MagicQ PC Systems into Reduced Mode via either USB or Network

Specifications

Hardware Specifications
RDM Direct DMX Ports: 2
Network Ports: 1
PoE Input: Yes (Port 1)
USB Ports: 1 USB-C
Kensington Security Lock Fixing: Yes
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Software Specifications
Art-Net/sACN: Yes
ChamNet Support: Yes
Configurable DMX Timings: Yes
Web Server: Yes
DMX Redundancy Support: Yes
User Scene Store: Yes
Included Accessories
Neutrik powerCON TRUE1 Power Cable: 1
DIN Rail Mount Clip: 1
USB A-C Cable: 1
Physical & Dimensions
Width: 125mm (4.92 inches)
Depth: 133mm (5.23 inches)
Height: 44mm (1.73 inches)
Weight: 0.85 KG (1.87 lb)
