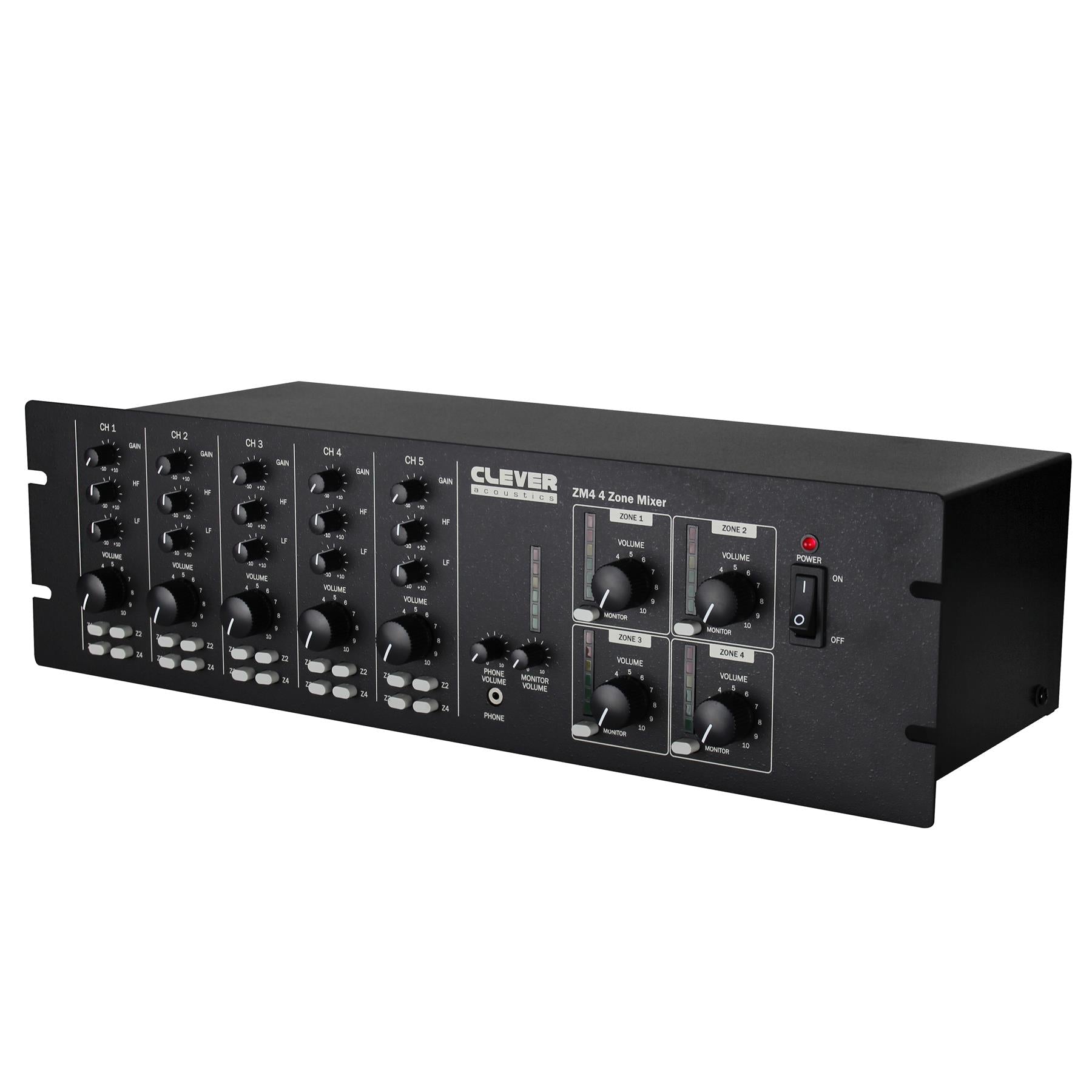

Clever Acoustics ZM4 4-Zonen-Mischpult, Hintergrundbeschallungssystem, Mischpult

£209.99
£209.99

Der ZM 4-Zonenmischer ist ideal für Systeme, in denen mehrere Zonen erforderlich sind und mithilfe einer externen Verstärkung verstärkt werden. Der ZM 4 wurde für den Einsatz in Schulen, Kirchen, Unterhaltungsstätten oder Gewerbegebäuden entwickelt und verfügt über fünf Eingangskanäle mit jeweils wählbarem unabhängigem Ausgangsrouting, Eingangsverstärkung, Höhenbass und Lautstärkereglern.

Verkäufer: Clever Acoustics
SKU: 148-CRAM34
Icon Out of Stock Ausverkauft
iFrame
×

Der ZM 4-Zonenmischer ist ideal für Systeme, in denen mehrere Zonen erforderlich sind und mithilfe einer externen Verstärkung verstärkt werden. Der ZM 4 wurde für den Einsatz in Schulen, Kirchen, Unterhaltungsstätten oder Gewerbegebäuden entwickelt und verfügt über fünf Eingangskanäle mit jeweils wählbarem unabhängigem Ausgangsrouting, Eingangsverstärkung, Höhen, Bässen und Lautstärkereglern. Die Eingangskanäle 1 bis 4 verfügen über XLR/Klinken-Kombibuchsen, jeweils mit Line/Mic/Mic+ Phantom-Auswahl, und Kanal 5 über einen Stereo-Line-Level-Eingang. Vier Ausgangszonen verfügen jeweils über LED-VU-Anzeigen, Monitorauswahl und Lautstärkeregler. Die integrierte Monitorfunktion, die für jeden Zonenausgang auswählbar ist, verfügt über einen 1-W-8-Ω-Lautsprecherausgang, der für die Ansteuerung eines Lautsprechers vor Ort am ZM 4-Zonenmischer geeignet ist.

Spezifikationen
3 Jahre Garantie
Vier Ausgangszonen jeweils mit Pegelregelung und Monitorauswahl
Fünf Eingangskanäle:
Die Kanäle 1–4 sind über XLR/Klinken-Kombibuchsen mit jeweils Line/Mic/Mic+Phantom-Auswahl verfügbar
Kanal 5 verfügt über einen Phono-Stereo-Line-Pegel-Eingang
3 HE, 19-Zoll-Rackmount-Gehäuse
Eingangsverstärkung, Höhen, Bässe und Pegelregler
Wählbares Ausgangsrouting für alle Eingangskanäle
Monitorfunktion mit Pegelkontrolle und LED-VU-Meter
Ausgang für Monitorlautsprecher: 1W, 8Ω
Kopfhörerausgang mit Pegelregelung
Telefon-/Paging-Eingang (Zone wählbar) mit einstellbarem Pegel
Prioritätseingang für Telefon und Mikrofon1 (Musik-Stummschaltung)
MIX-Ausgang mit Line-Pegel
Eingangsempfindlichkeit/Impedanz: CH1–3: 5 mV/4 kΩ (Mikrofon), 100 mV/10 kΩ (Leitung) über Kombi-XLR/6,35-mm-Buchse (1/4 Zoll).
Phantomspeisung: 15V
CH4-5: 100 mV/30 kΩ (Line), unsymmetrischer Stereo-Phono
TEL. Paging – 40 mV – 1,5 V/5 kΩ unsymmetrische Schraubklemmen
Frequenzgang: 20Hz-22kHz (±2dB)
THD: <0,03 % (@1kHz 1W Ausgang)
Stromverbrauch: 22 W (max.)
Stromversorgung: 110–240 V ~ 50/60 Hz Wechselstrom oder 24 V Gleichstrom
Sicherung: T3,15A 250V

Maße
135 x 484 x 210 mm

Gewicht
4,6 kg
