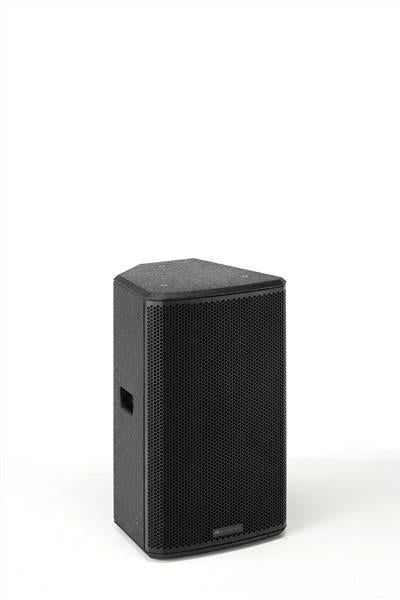

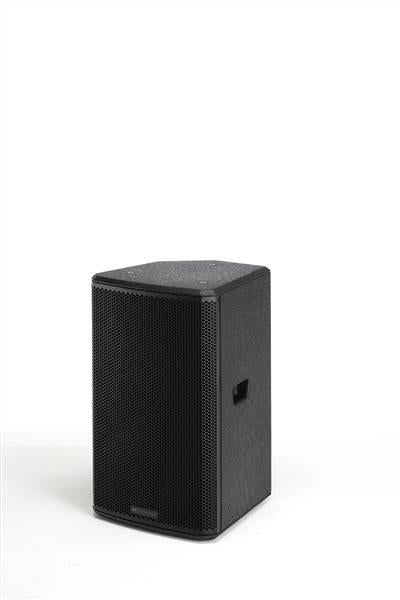

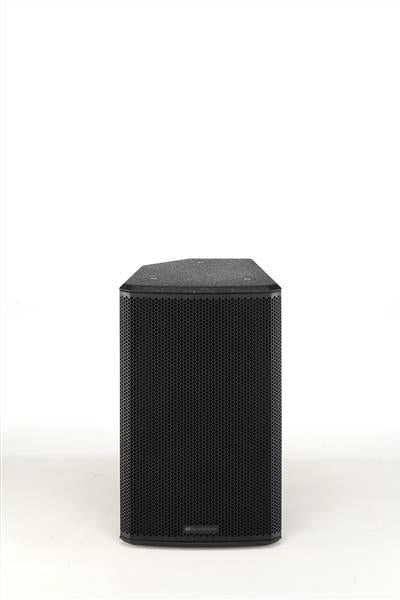

db Technologies LVX P12 2-Way Passive Speaker

Description:

This 2-way passive speaker is designed for professional audio applications, delivering powerful and detailed sound for speech, background music, and live performance in medium to large venues. With a maximum SPL of 127 dB, it provides strong output and clarity across a wide frequency range, making it suitable for both portable and fixed installations.

Featuring a 90° x 60° dispersion pattern with a rotatable horn, the speaker ensures consistent high-frequency coverage whether mounted vertically or horizontally. This flexibility allows for precise sound distribution in a variety of installation and live sound environments.

Constructed from durable plywood, the cabinet offers a clean and installation-friendly design. Integrated side handles, multiple rigging points, and a standard pole mount provide ease of transport, positioning, and secure installation.

Features:

Type: 2-Way Passive Speaker
Maximum SPL: 127 dB
Impedance: 8 Ohms

Driver: 12" LF Driver with 2" Voice Coil
HF: 1" Compression Driver with 1.35" Voice Coil

Dispersion: 90° x 60° Rotatable Horn
Monitor Angle: 40° for Stage Use

Power Handling: 800 W Peak

Inputs: Speakon Input and Output

Construction: Plywood Cabinet
Handles: 2 Side Handles
Mounting: 36 mm Pole Mount

Rigging: 12 x M8 Points
Application: Live Sound, Installations, Background Music

Specifications:

Frequency Response (-10 dB): 65 Hz – 21 kHz

Dimensions (W x H x D): 360 x 610 x 360 mm
Weight: 15.1 kg
