DMT Video Poster Mobile LED poster display screen HDMI Wifi USB

Description

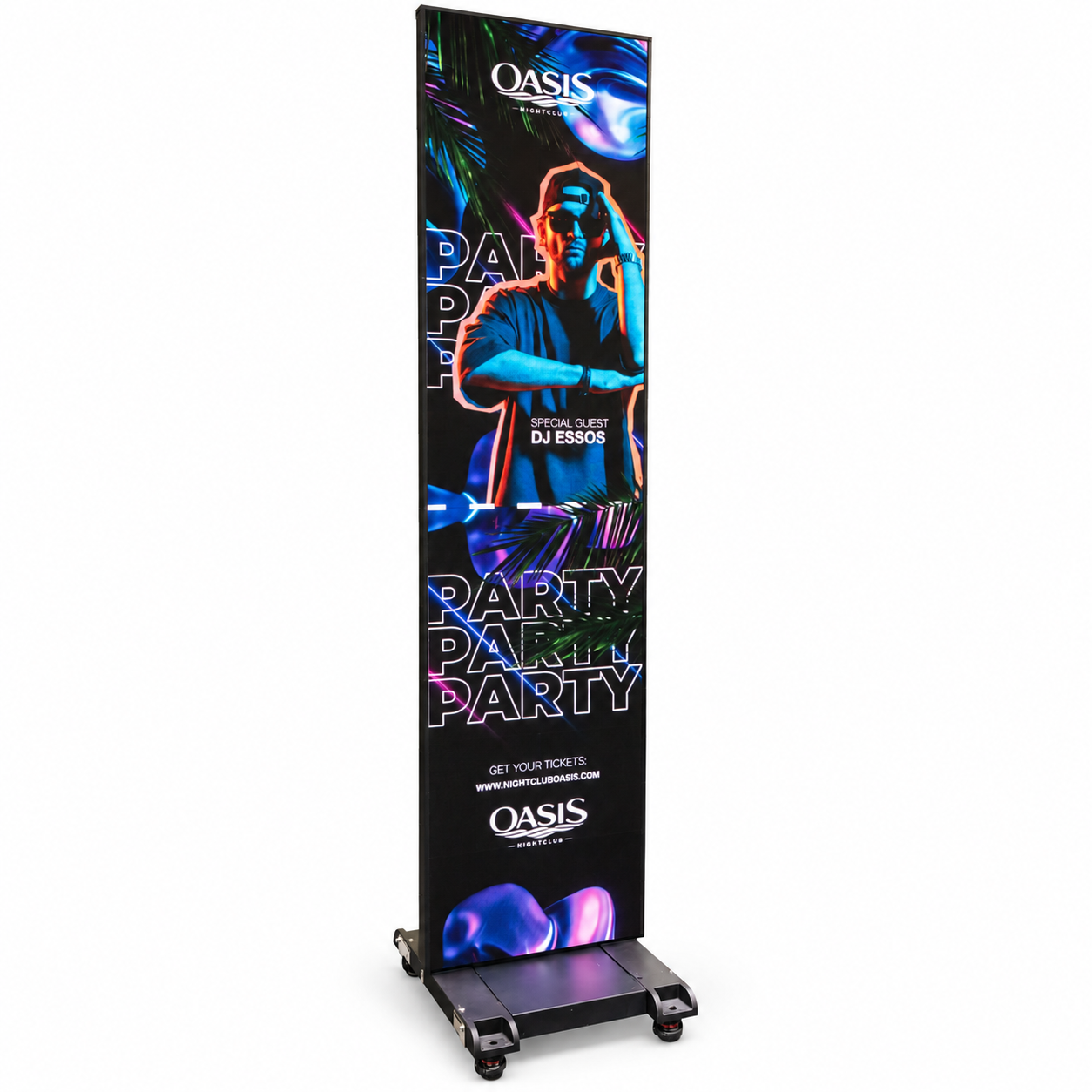

The Video Poster - 1.9 is a mobile LED video display designed for digital signage, presentations and temporary installations. It combines a slim, foldable LED screen with a robust base that houses an integrated Novastar AD20 LED processor, including scaling functionality and a built‑in media player. Content can also be played directly via HDMI or USB, without the need for an external controller. The AD20 is also compatible with Novacloud, enabling you to upload your content to a free cloud account and control your screens remotely.

With a 1.9 mm pixel pitch, the display offers a screen resolution of 256 x 1024 pixels and a high refresh rate of up to 7,680 Hz, ensuring smooth video playback and flicker-free performance. The screen delivers a brightness of 1000 nits.

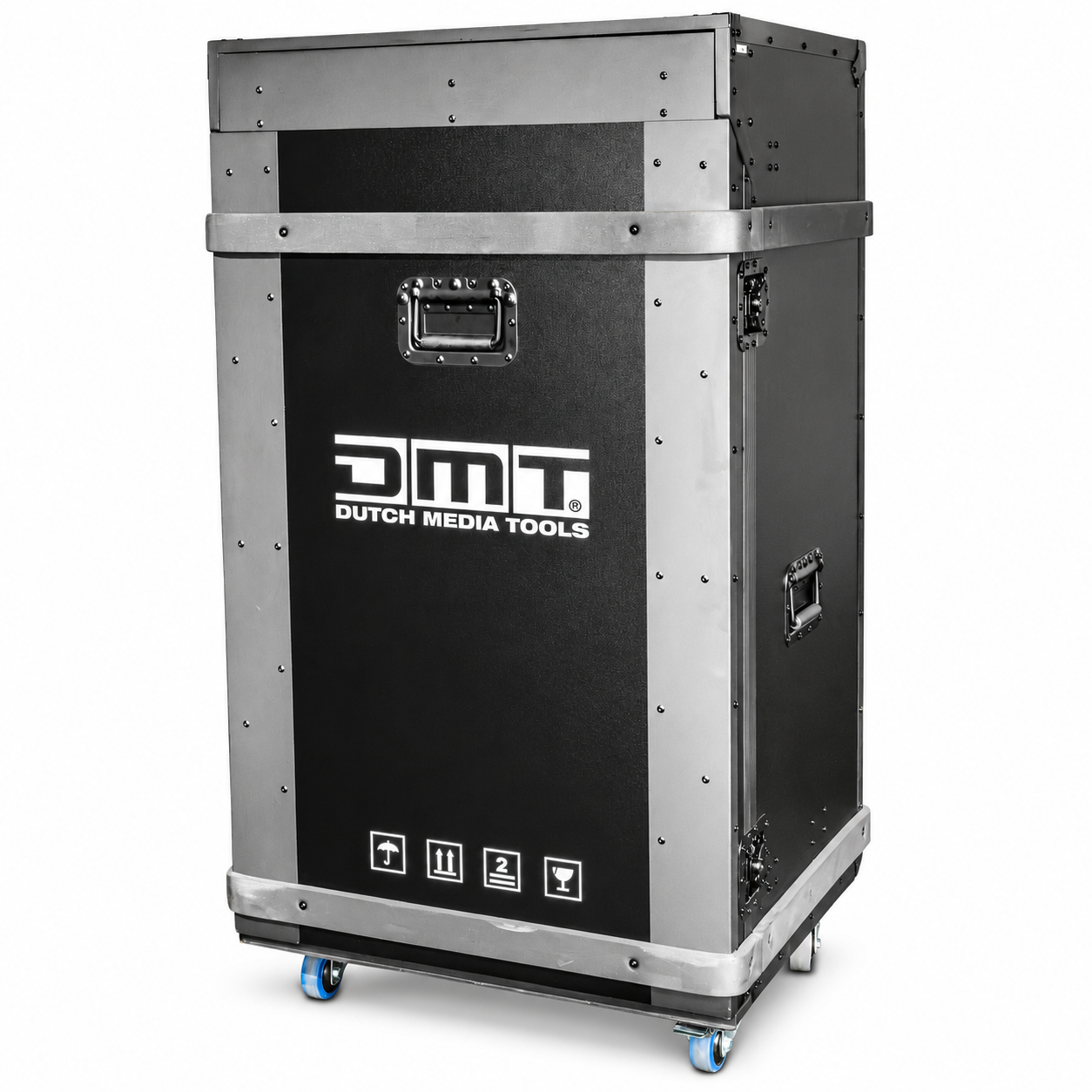

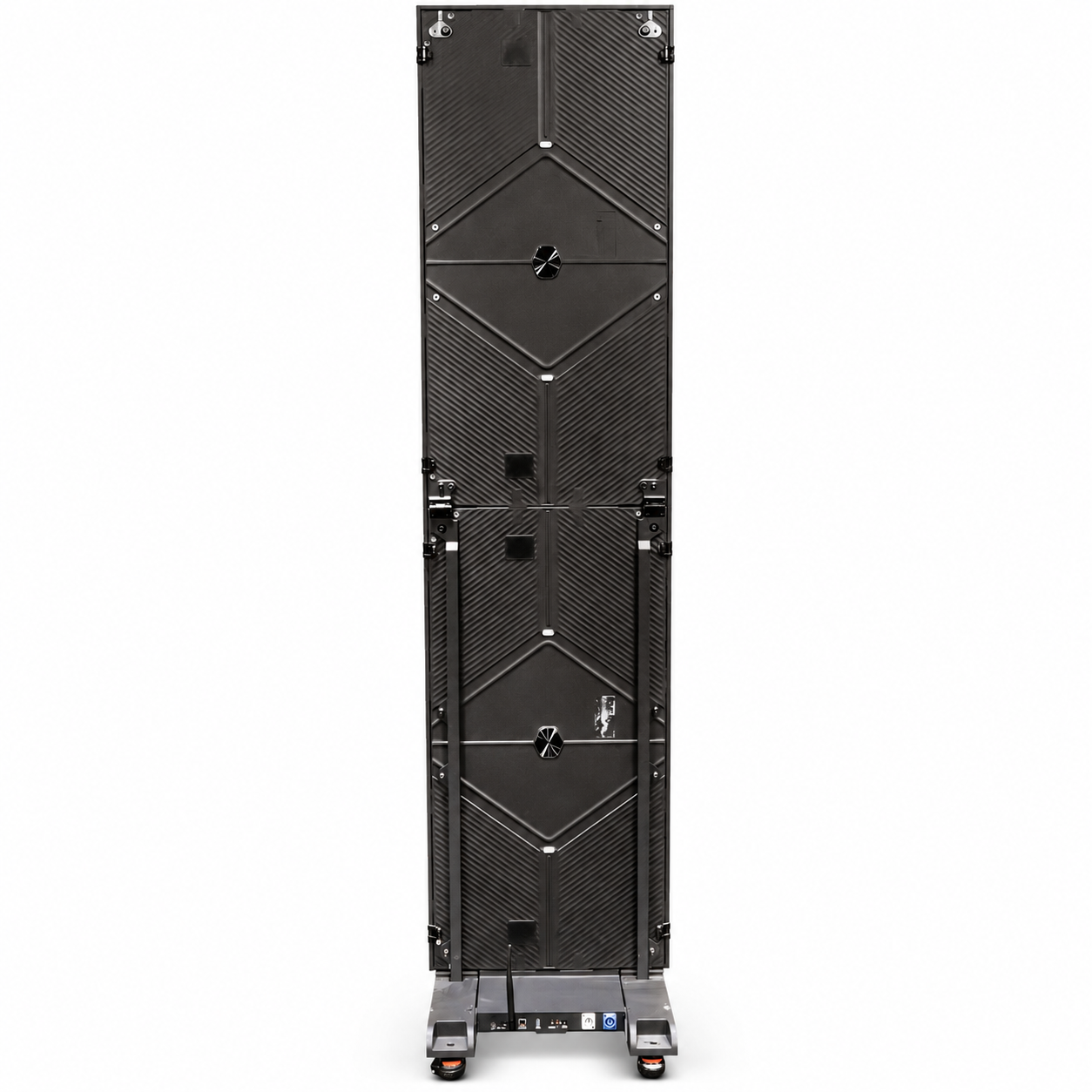

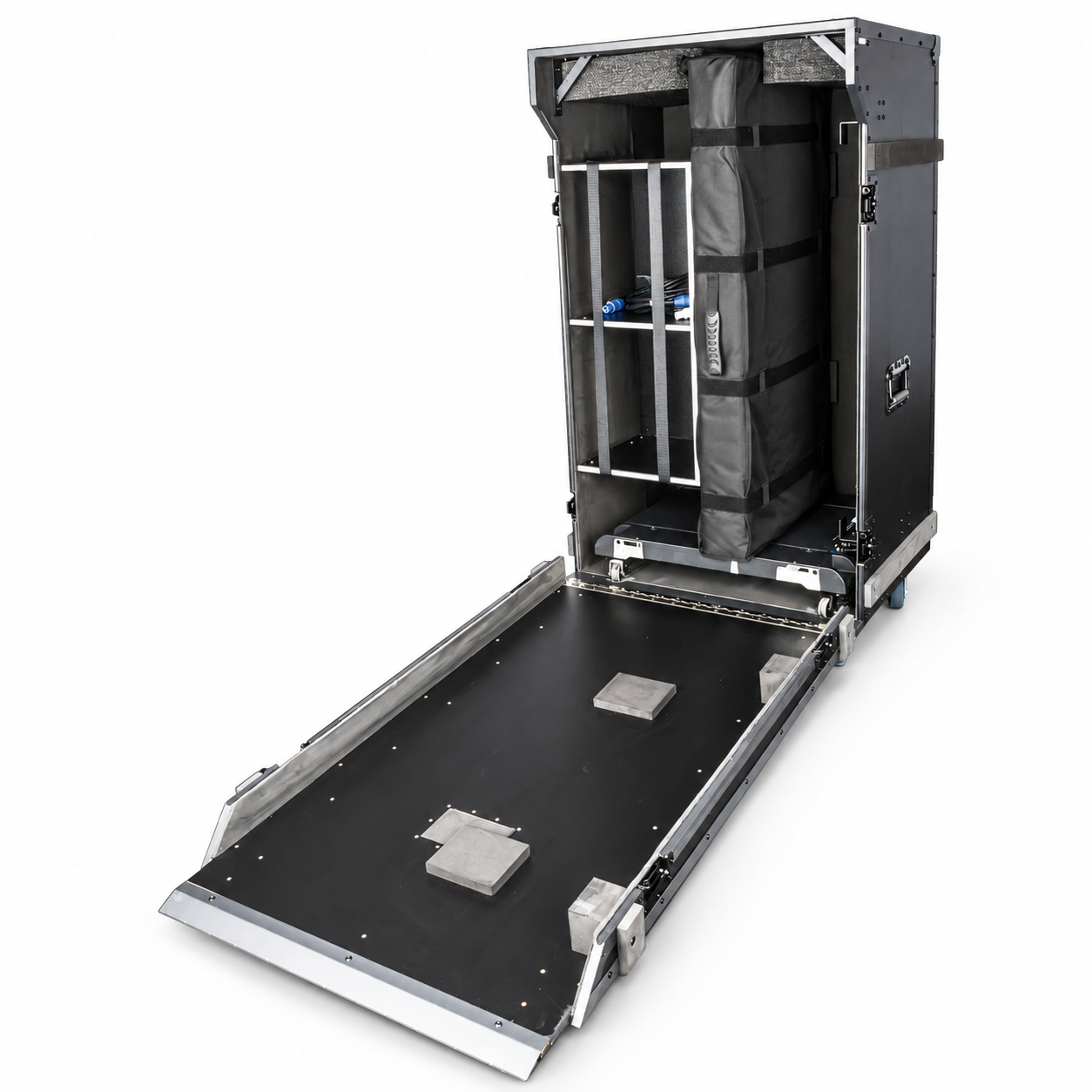

The video poster can be used as a standalone display, but is also designed for fast and precise multi‑screen setups. Multiple units can be linked together to form a larger, seamless LED wall for presentations or events. A recessed hinge system and optimised cabinet structure ensure accurate alignment when connecting screens. Thanks to its foldable design, the screen is compact during transport and quick to deploy on site. The screen is fully front-serviceable. A flight case is included for safe transport and storage.

Pixel Pitch (Horizontal)
1.9 mm (0.075″)
Pixel Pitch (Vertical)
1.9 mm (0.075″)
Cabinet Resolution (Horizontal)
256 px
Cabinet Resolution (Vertical)
1024 px
Module Resolution (Horizontal)
128 px
Module Resolution (Vertical)
128 px
Viewing Angle (Horizontal)
160 °
Viewing Angle (Vertical)
160 °
Minimum Viewing Distance
1.9 m (6.234 ft)

Brightness
1000 nits
Control and Programming
Control System
Novastar
Screen Refresh Rate
7680 Hz

Power Supply
100-240 V AC 50/60 Hz
Power Consumption
520 W
Power Consumption Average
260 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
Data Connector In
etherCON, HDMI, RJ45, USB
Data Connector Out
etherCON, HDMI, RJ45, USB
Mechanical Specifications
Cabinet Width
519 mm (20.433″)
Cabinet Height
2139 mm (84.212″)
Cabinet Depth
588 mm (23.15″)
Module Width
250 mm (9.843″)
Module Height
250 mm (9.843″)
Weight
31 kg (68.343 lb)
IP Rating
IP20 (indoor use only)

Included Items
Included Cables
CAT-5 Cable, HDMI-HDMI cable, Power Pro Cable
Included Accessories

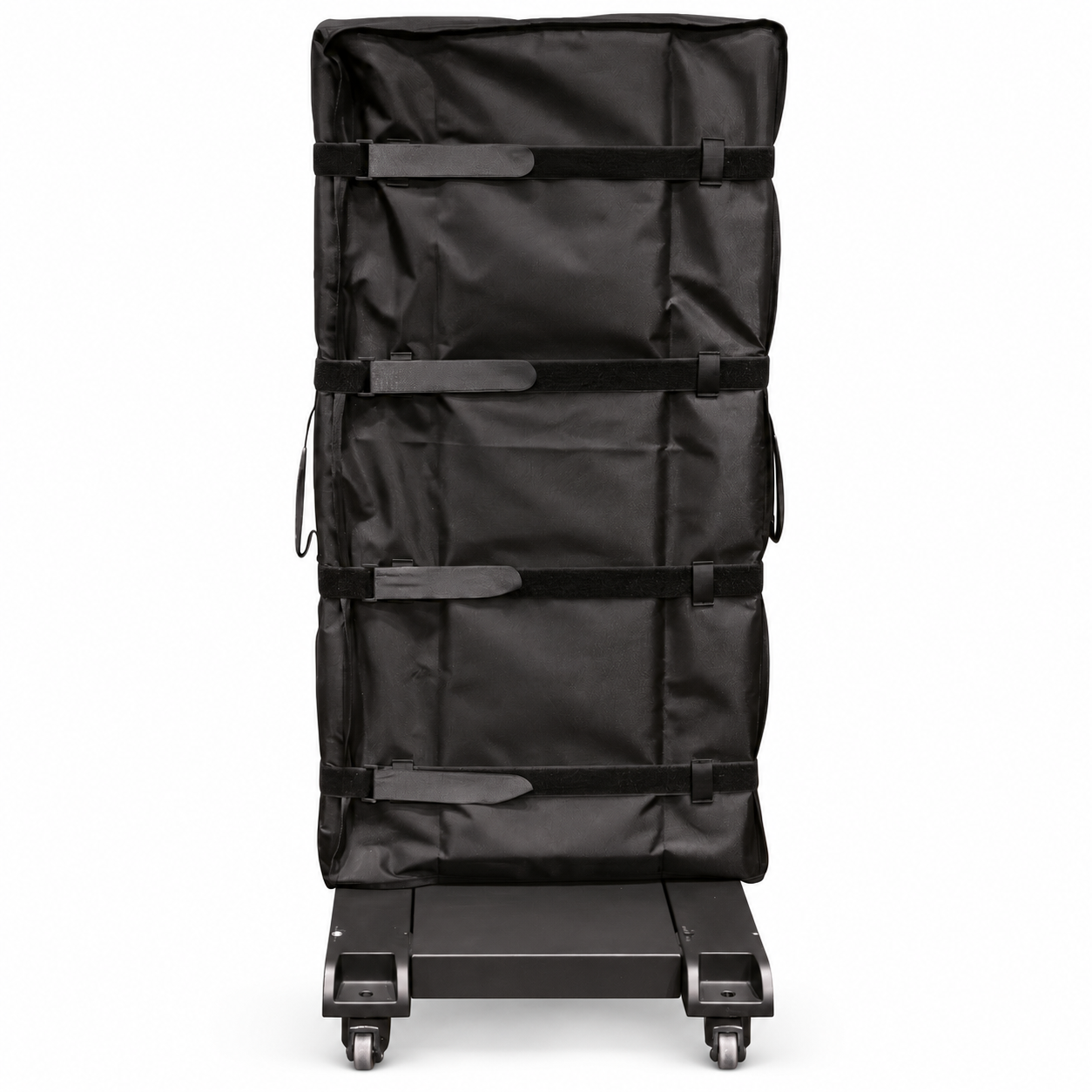

Dustcover, Front Service Vacuüm Tool, Tool Kit, WiFi antenna
