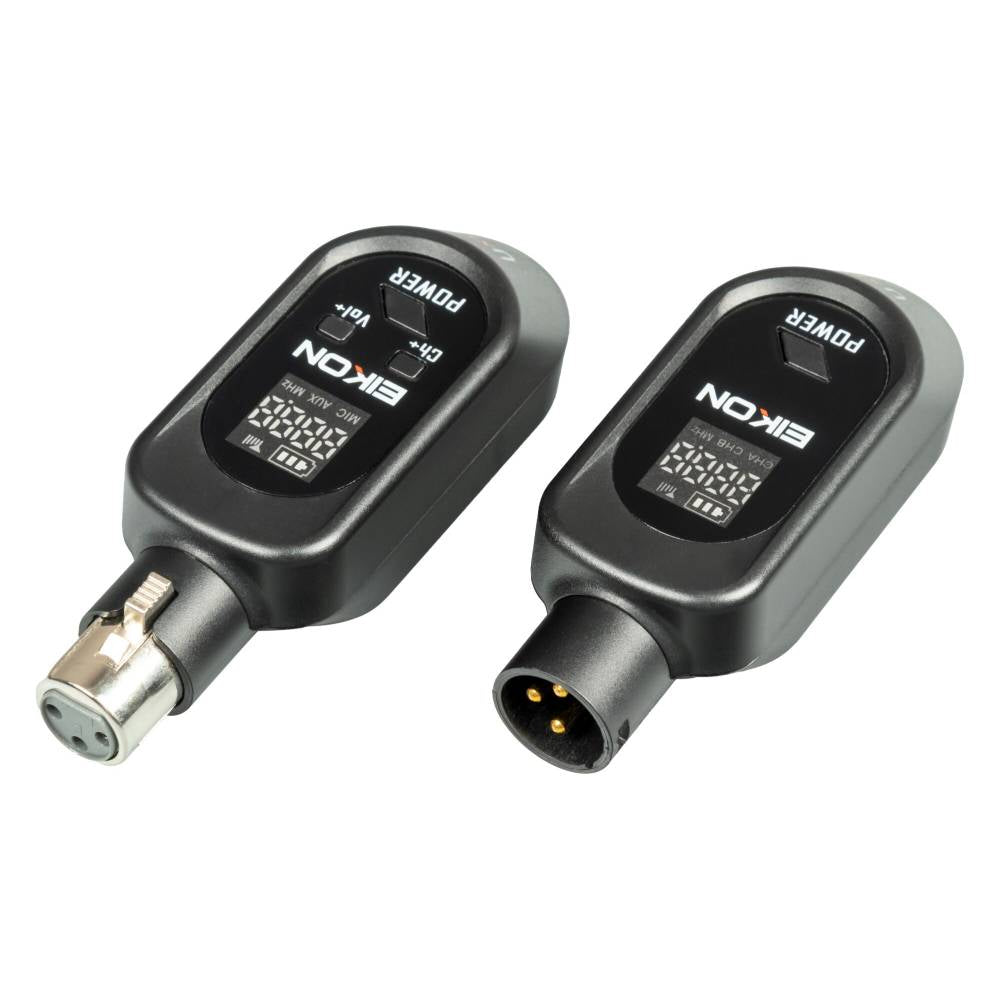

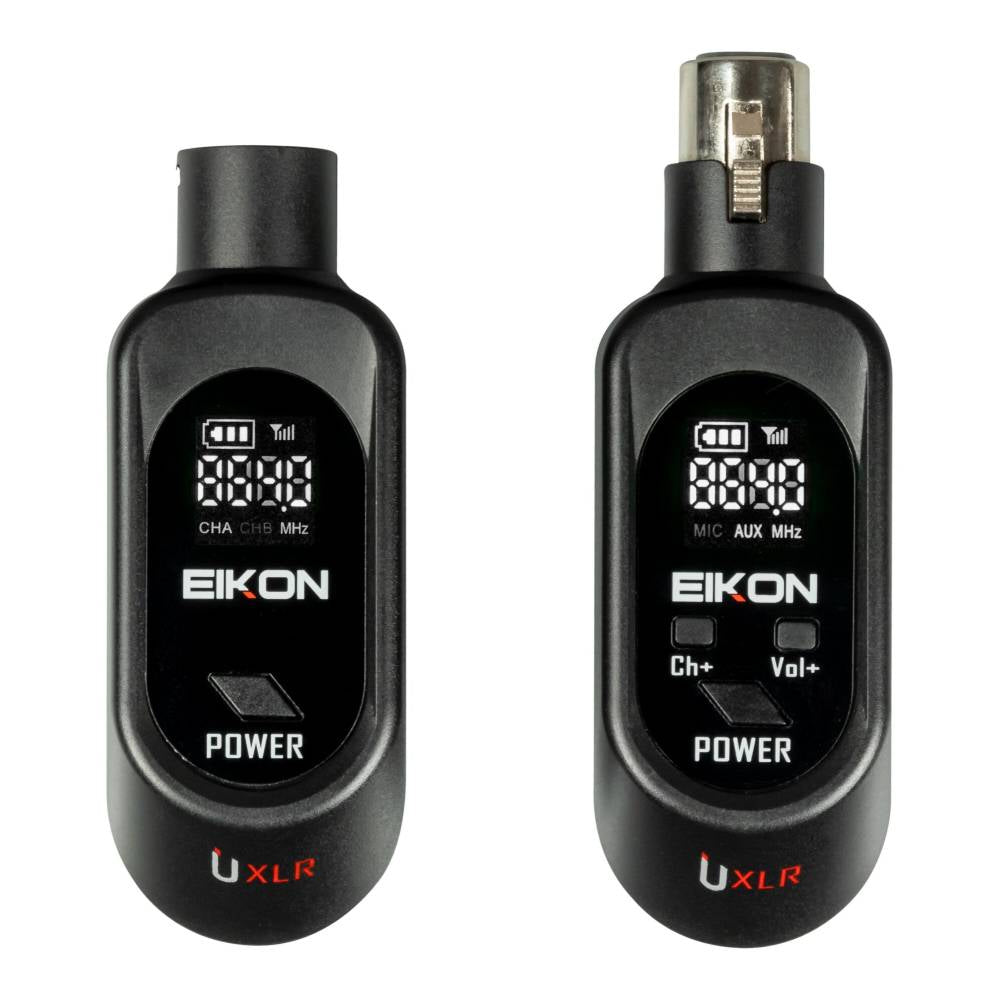

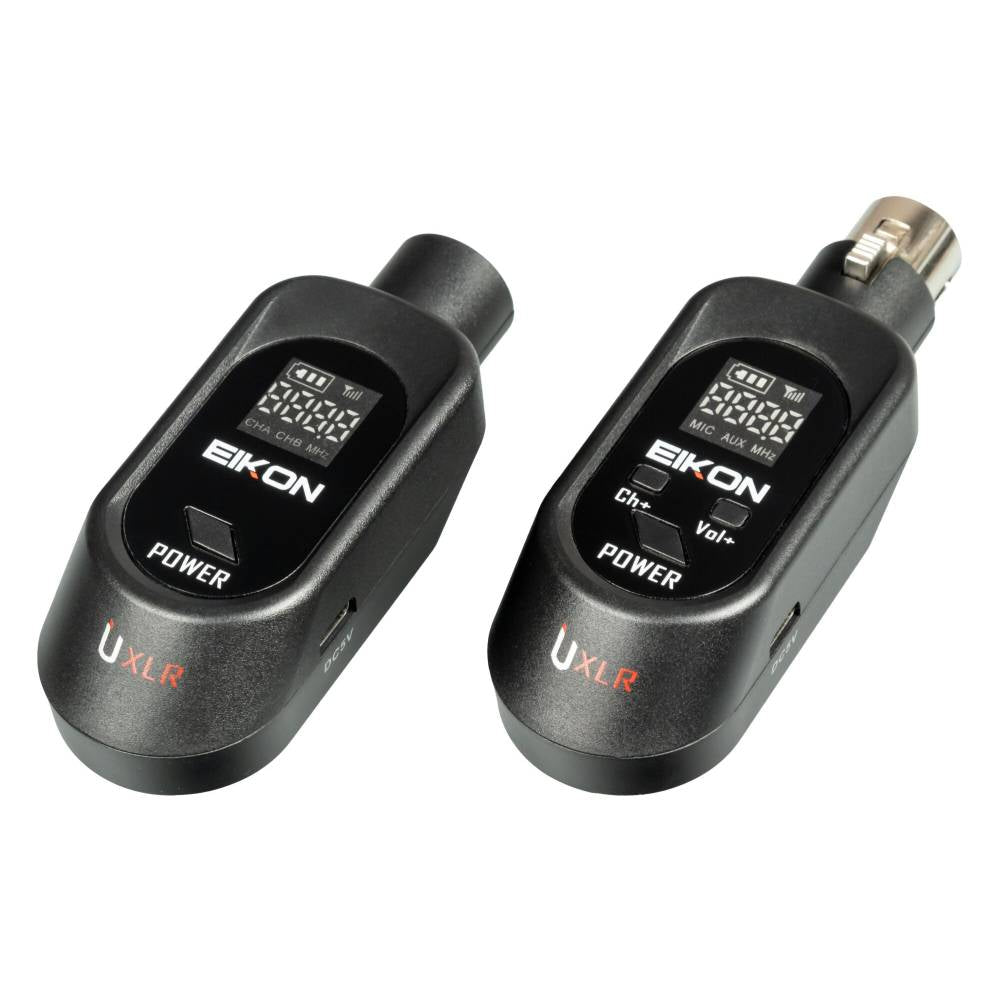

Eikon UXLR UHF Wireless XLR Audio Transmission System

The Eikon UXLR is a compact and versatile UHF PLL wireless audio system designed to transmit high-quality audio via XLR connections. The system includes a female XLR transmitter, a male XLR receiver, and a USB-C charging cable, all supplied in a durable EVA case. With support for dynamic and condenser microphones, it features dual input sensitivity and Phantom Power capability, making it an ideal tool for both live sound and mobile setups. Available in two UHF frequency ranges, the UXLR delivers stable signal performance with low latency and up to 5 hours of battery life, offering a truly wireless solution for professional audio connectivity.

MIC / LINE input sensitivity selection
UHF Quartz locked DQPSK modulation
Transmits balanced or unbalanced XLR signals
Phantom Power support for condenser microphones
Up to 30 metres range
Built-in 3.7V/800mA lithium battery
Up to 5 hours autonomy
Includes USB-C charging cable

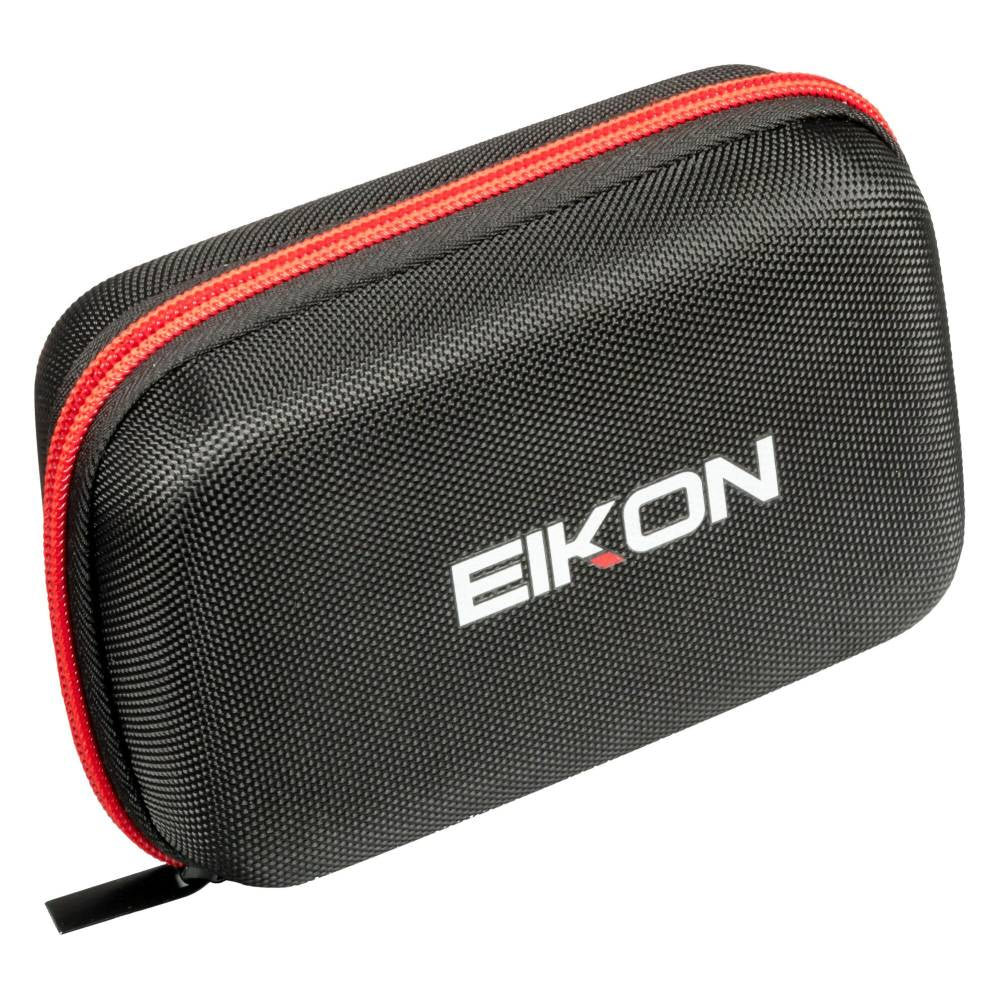

Supplied in EVA protective case

UXLR – UHF PLL Transmitter
RF Channels: 16 or 30 presets (band dependent)
RF Frequency Band: 863–865 MHz or 568.500–580.100 MHz
RF Frequency Stability: ±0.002%
Oscillation Mode: PLL Synthesized
Modulation Type: DQPSK
Output Power: 10mW
Sub-harmonic: <40 dB
Operating Current: 130 mA
Battery: 3.7 V / 800 mA lithium (built-in)
Charging: USB-C 5V / 3 hrs
Operating Time: 3 to 5 hours
Weight: 0.10 kg

UXLR – UHF PLL Receiver
RF Channels: 16 or 30 presets (band dependent)
RF Frequency Band: 863–865 MHz or 568.500–580.100 MHz
RF Frequency Stability: ±0.005%
Oscillation Mode: PLL Synthesized
Modulation Type: DQPSK
Receiving Sensitivity: < -98 dBm
Receiving Range: up to 30 metres
Audio Dynamic Range: 106 dB
THD Distortion: < 0.5%
S/N Ratio: > 102 dBA
Operating Current: 85 mA
Battery: 3.7 V / 800 mA lithium (built-in)
Charging: USB-C 5V / 4 hrs
