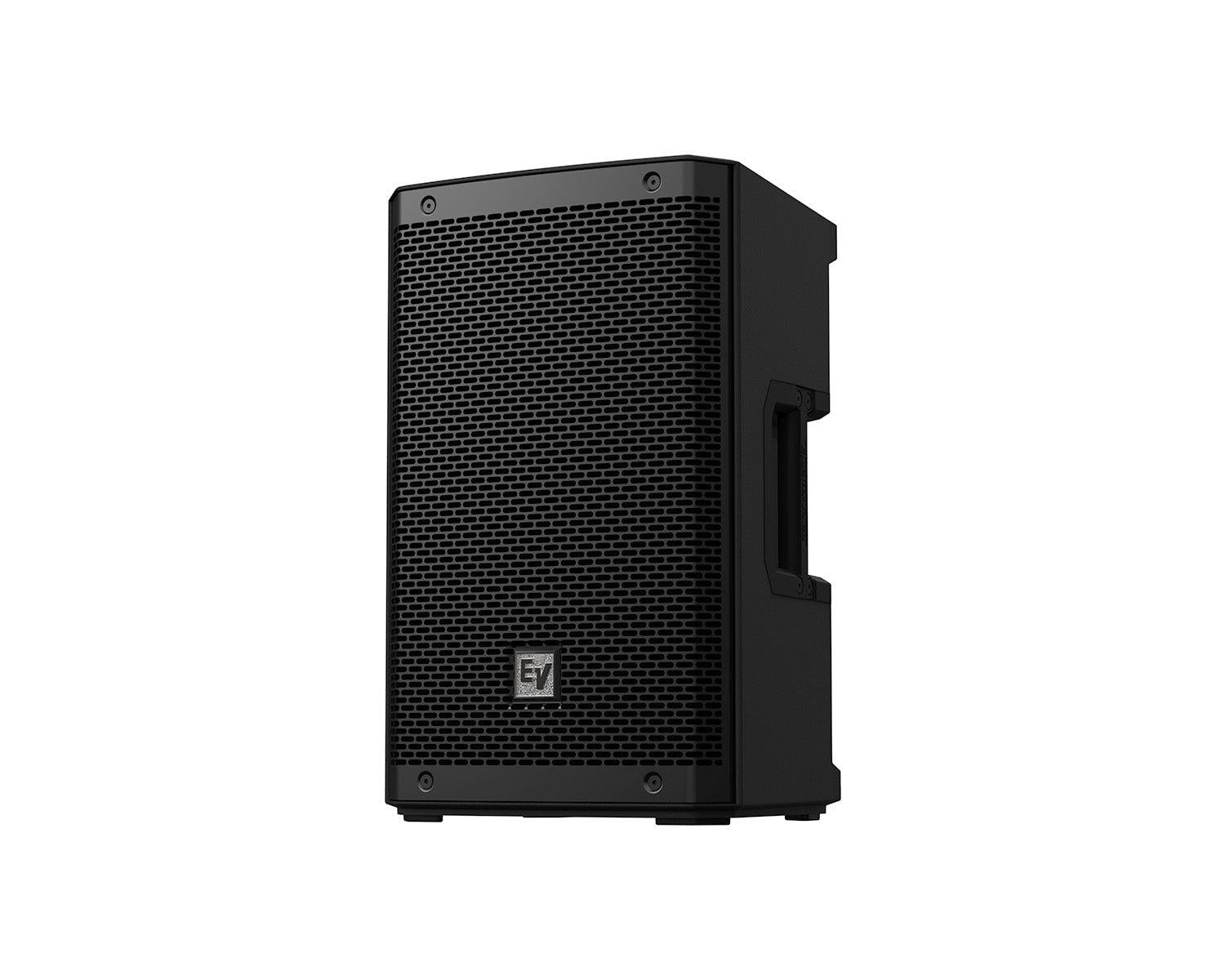

Electro-Voice ZLX8-G2 8" Passive Speaker Black

Description

The Electro-Voice ZLX-8-G2 is a next-generation passive loudspeaker designed to deliver professional audio performance in a compact and portable format. As part of the ZLX-G2 series, it builds on the success of previous models with improved output, extended frequency response, and enhanced usability. Featuring Electro-Voice’s patented Signal Synchronized Transducers (SST) design, it provides consistent coverage, improved bass response, and efficient acoustic performance, making it ideal for live sound, installations, and portable PA systems.

Features

Compact 8-inch passive 2-way loudspeaker for professional applications
Enhanced output and extended frequency response over previous generation
SST waveguide design for consistent coverage and improved bass performance
90° x 60° dispersion for controlled sound distribution
Robust and ergonomic enclosure for portability and durability
Dual NL4 connectors wired in parallel for flexible system integration
Optimised for use with Dynacord DSP amplifiers and SONICUE software
Suitable for live sound, installations, and portable PA setups

Specifications

Power handling: 250 W continuous, 1000 W peak
Frequency response (-3 dB): 67 Hz – 20 kHz
Frequency range (-10 dB): 55 Hz – 20 kHz
Maximum SPL: 124 dB
Sensitivity: 90 dB (1W/1m)
Impedance: 8 ohms
Crossover frequency: 2 kHz
High-pass frequency: 60 Hz
Dispersion: 90° x 60°

Speaker Components

LF driver: 8" (WECA2088) with ferrite magnet
HF driver: 1.4" compression driver (DH-1K) with titanium diaphragm

Connectivity

Input connectors: 2 x NL4 (parallel wired)

Construction

Design: Compact, durable enclosure
Application: Portable PA and installation use

Dimensions and Weight

Dimensions (H x W x D): 459.6 x 289.9 x 280.5 mm
Weight: 10.15 kg
