EUROLITE LED IP PIX Strobe Light FROST 5pin

Description

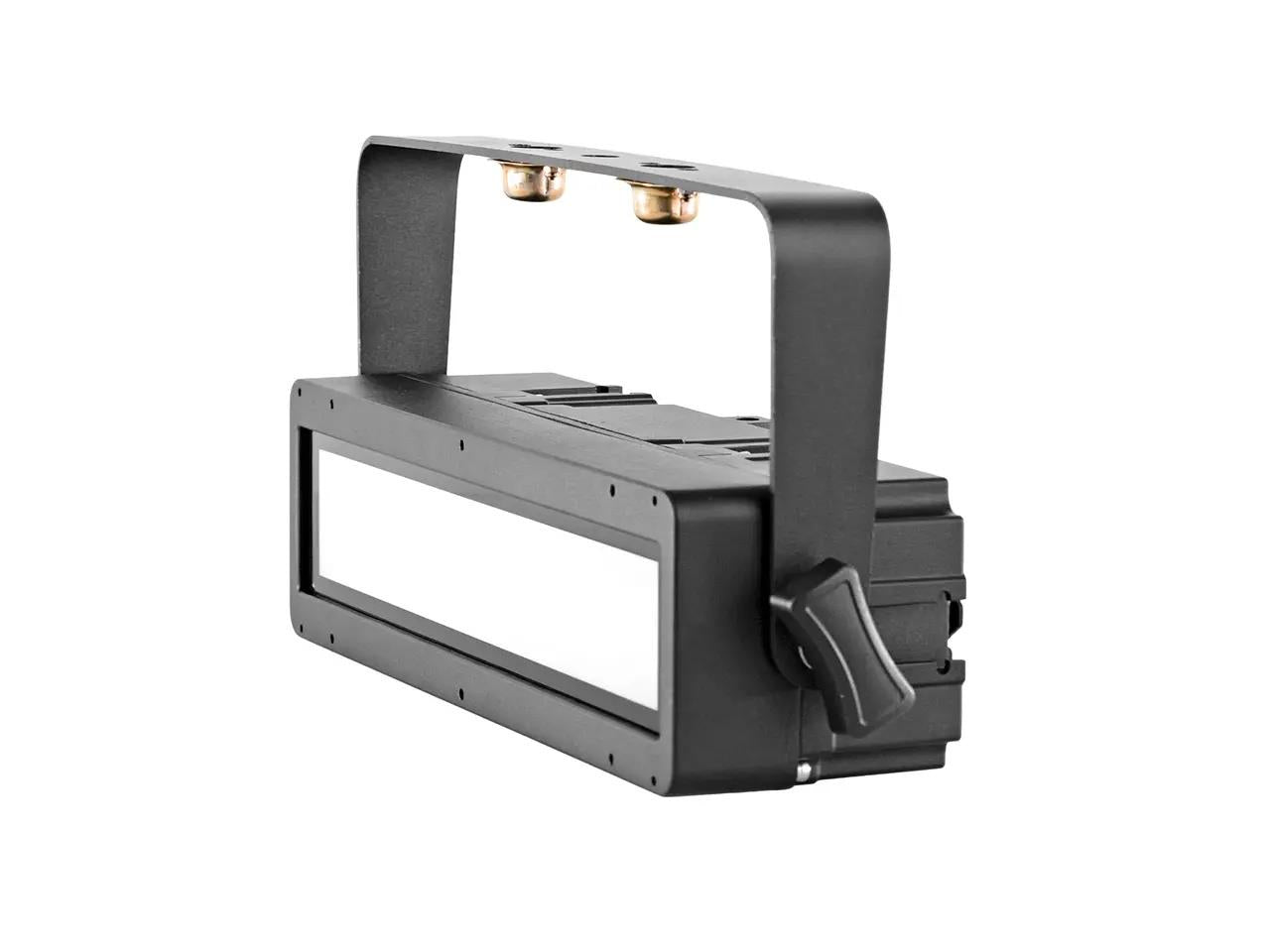

The Eurolite LED IP PIX Strobe FROST is a versatile professional lighting fixture designed for strobe, wash, ambient, and animation effects in both indoor and outdoor environments. Featuring an electronically controlled frost filter, the fixture can dynamically widen the beam angle via DMX control, providing additional creative flexibility for stage productions, architectural lighting, events, and installation work.

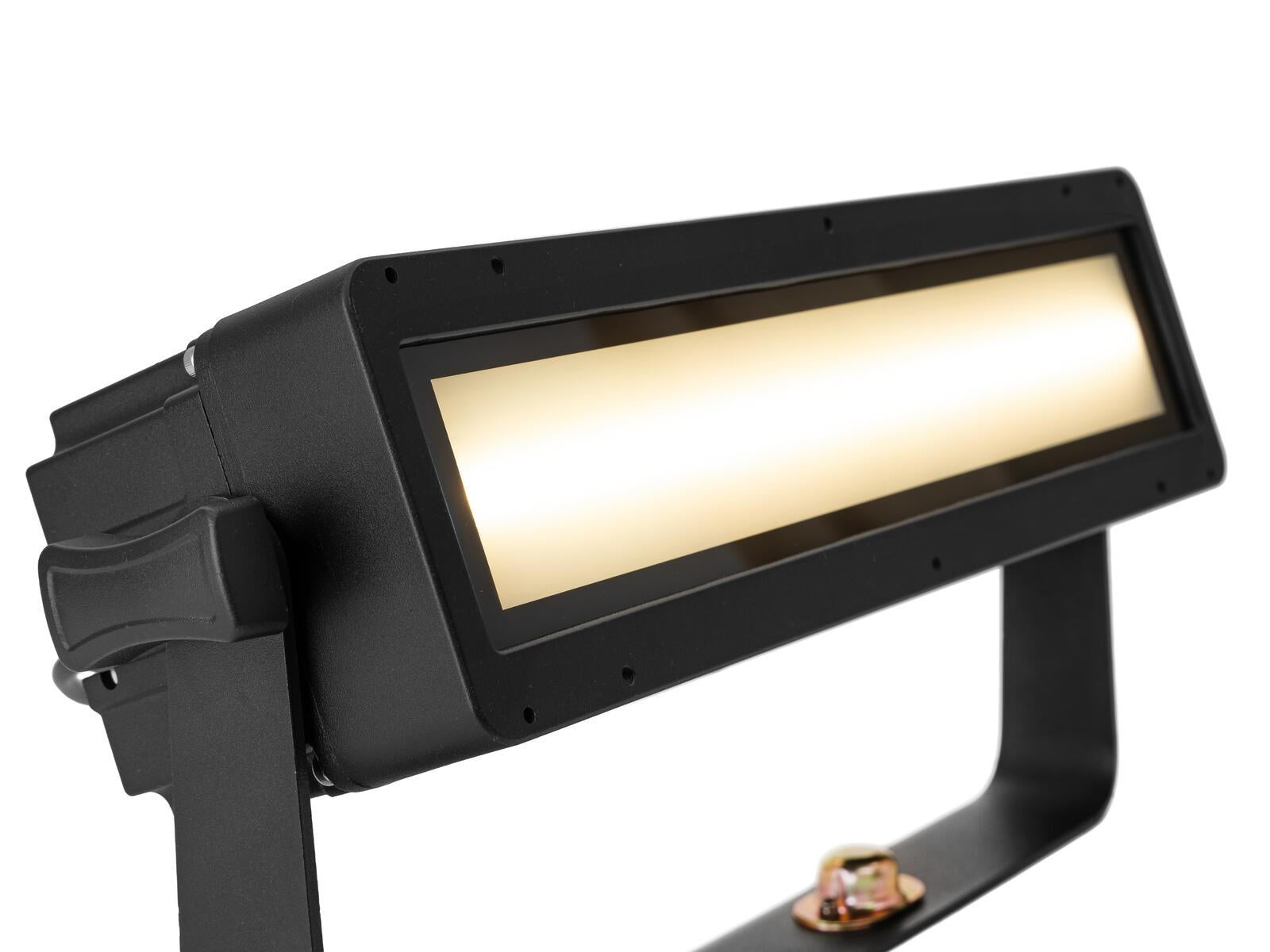

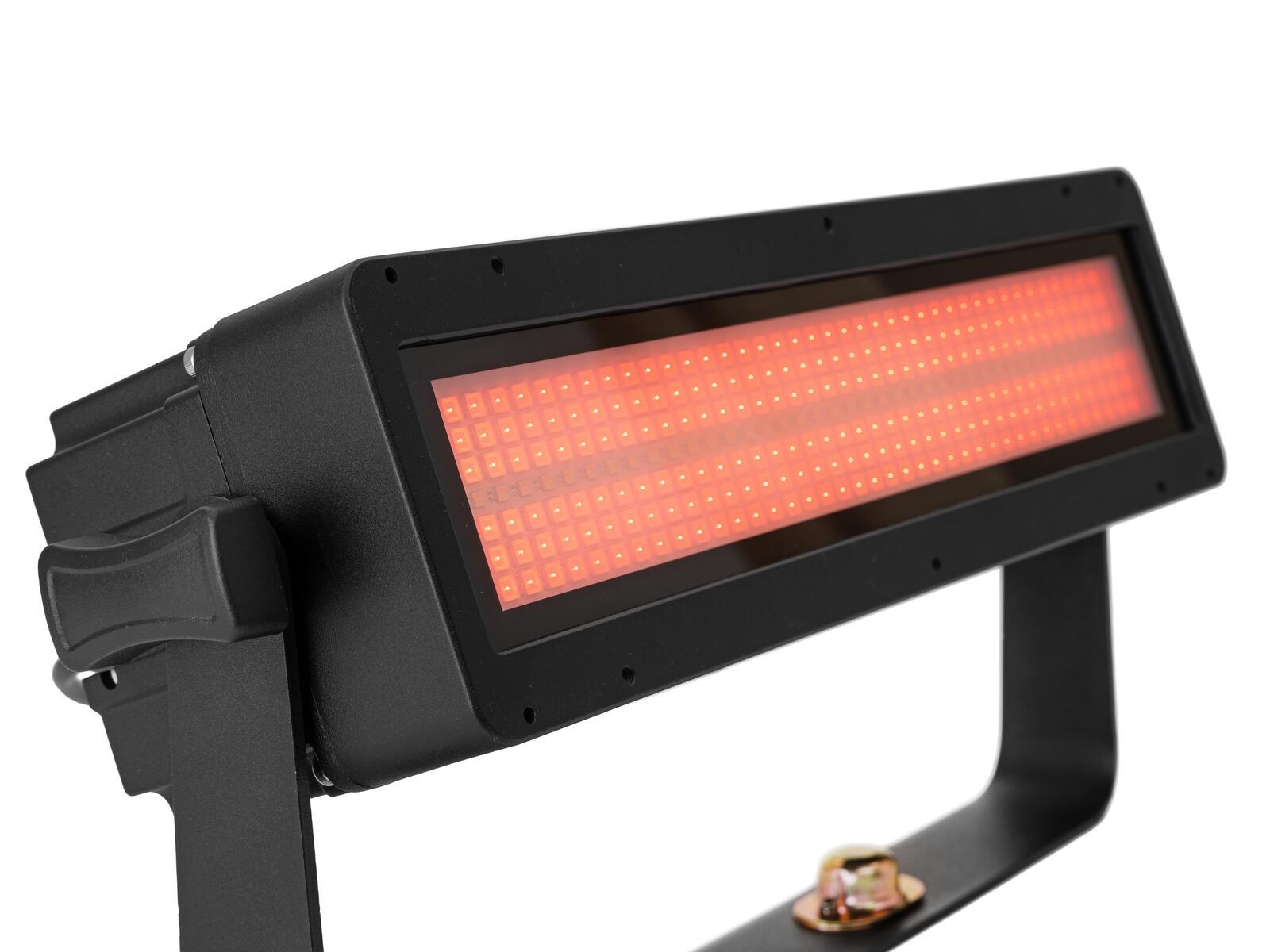

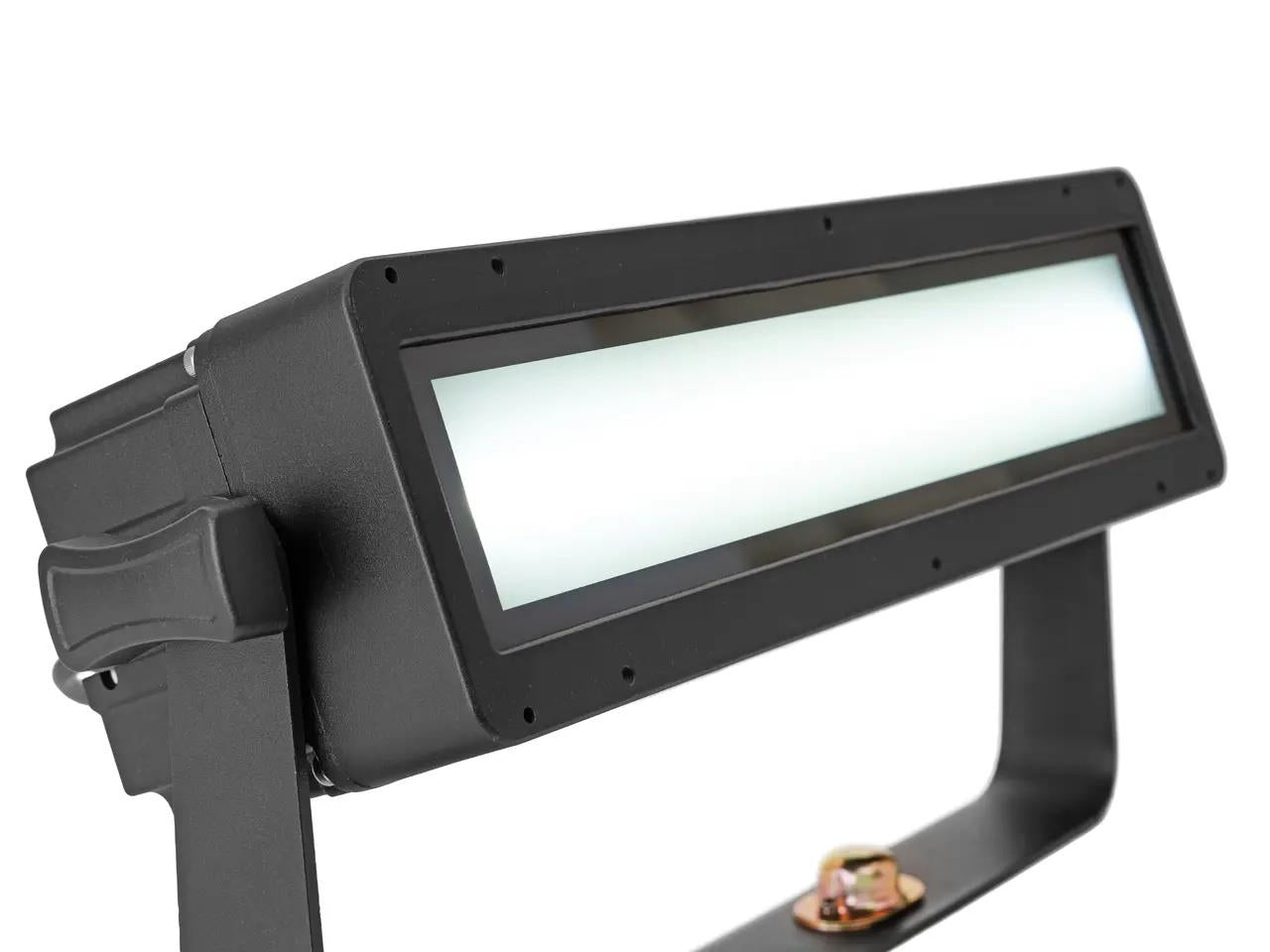

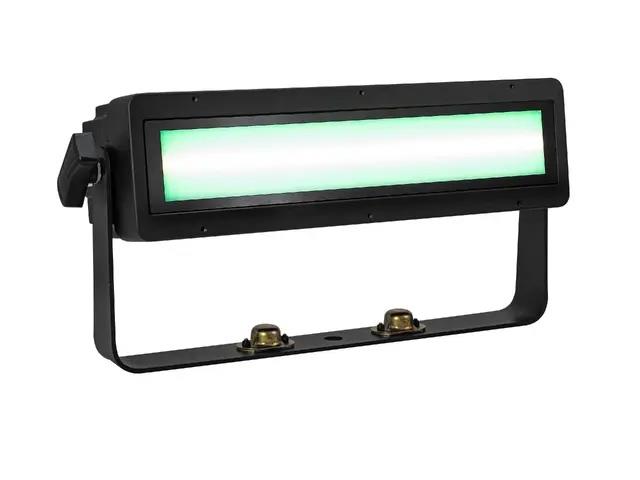

The fixture combines a bright central white LED strip with RGB LED sections above and below, allowing vibrant colour washes, dynamic pixel effects, adjustable white tones, and smooth colour animations. The central CW/WW LEDs are divided into four controllable segments, while the RGB LEDs are arranged into eight individually controllable segments for detailed pixel mapping and effect programming.

Designed for professional touring and installation use, the housing supports seamless tool-free clustering between multiple fixtures. The fanless convection-cooled design ensures completely silent operation, while the IP65-rated sealed housing protects against dust and water for reliable outdoor performance. Multiple control options, integrated programs, and compatibility with wireless and advanced lighting control systems make it suitable for concerts, theatres, clubs, rental applications, and architectural installations.

Features

Electronic frost filter with stepless DMX-controlled adjustment
240 x 0.5 W RGB LEDs arranged in 8 controllable segments
40 x 1 W CW/WW LEDs arranged in 4 controllable segments
Adjustable colour temperature from 3200 K to 6600 K
Direct selection of 35 preset colour temperatures
Wide 120° beam angle for wash and ambient coverage
Suitable for strobe, wash, ambient, and animation effects
Stepless dimming and colour mixing control
Adjustable program speed, colour animations, and running effects
20 integrated show programs
DMX, stand-alone, sound-to-light, and master/slave operation
DMX fail modes including blackout, hold, auto, and manual
Tool-free seamless fixture clustering system
Silent fanless operation using passive convection cooling
IP65-rated housing for indoor and outdoor use

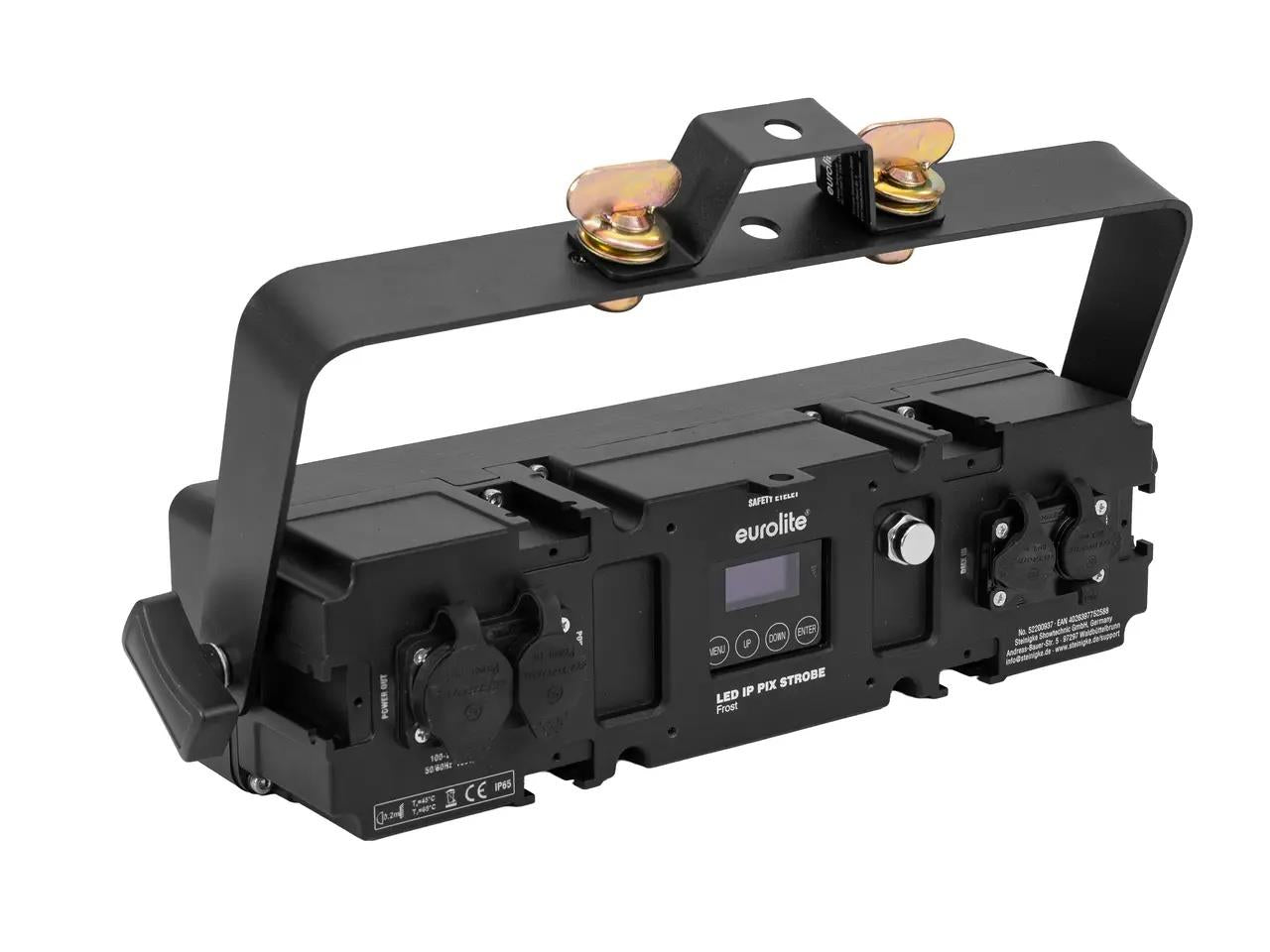

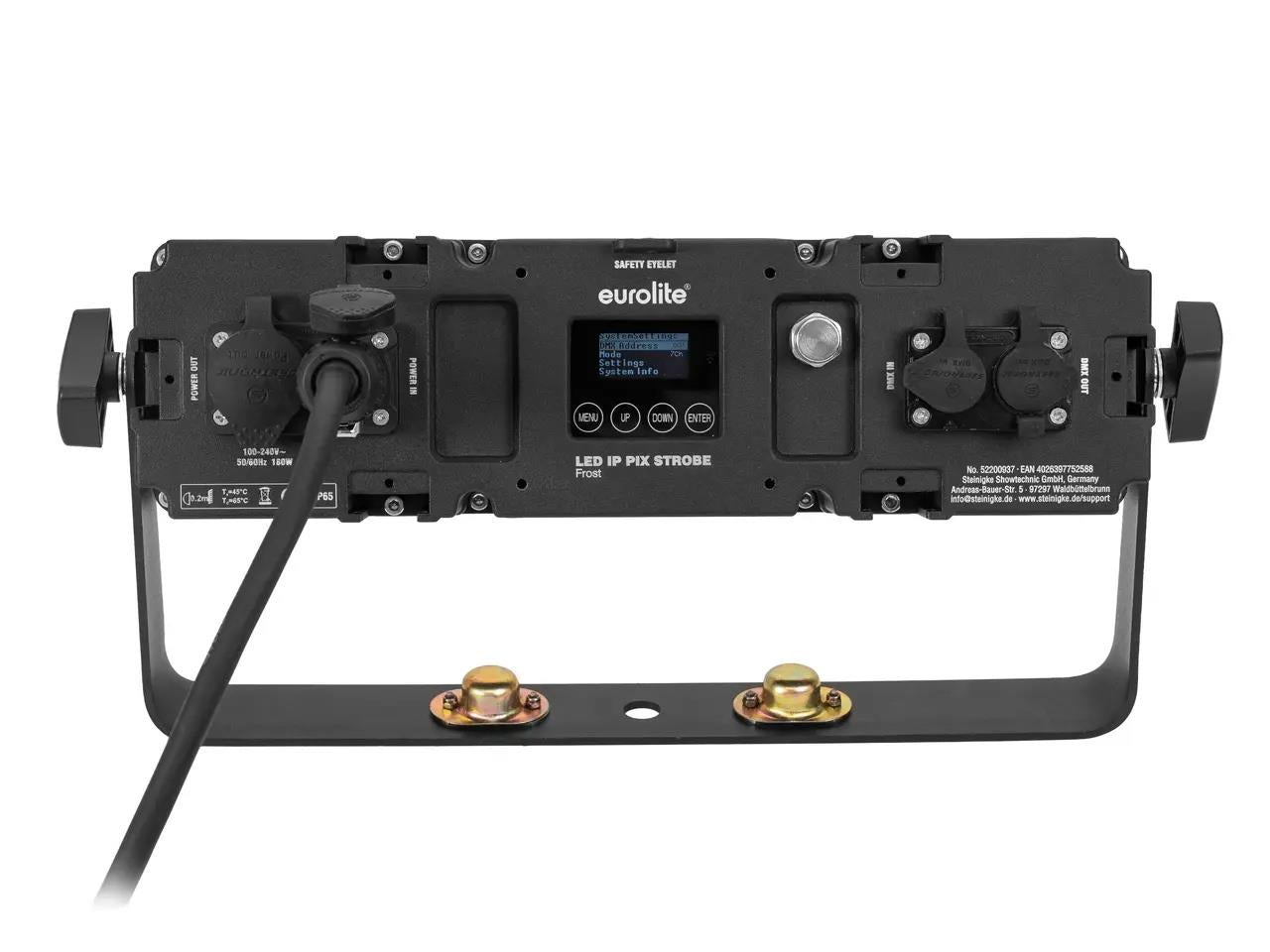

Monochrome OLED display for configuration and operation
Compatible with Light Captain and GDTF (GrandMA3)
SEETRONIC power and signal connectors
Power linking capability for up to 8 units
Supplied with mounting bracket and omega bracket

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 180 W
IP rating: IP65
Protection class: Class I
Light source: 240 x 0.5 W SMD 5050 RGB LEDs
Additional light source: 40 x 1 W SMD 3030 CW/WW LEDs
LED segmentation: 8 RGB segments and 4 CW/WW segments
Flash rate: 1 – 25 Hz
Beam angle: 120°
Colour temperature: 3200 K – 6600 K
CRI: 80 Ra
DMX channels: 7, 11, 19, 25, 26, 32, 33, or 35 selectable
DMX input: 5-pin XLR IP connector
DMX output: 5-pin XLR IP bypass connector
Control modes: Stand-alone, sound-to-light, master/slave, DMX
DMX fail modes: Blackout, hold, auto, manual
Cooling system: Passive convection cooling
PWM frequency: 4000 Hz
Display: Monochrome OLED display
Power linking: Up to 8 units
Lamp life: 50000 hours
Housing material: Metal
Housing finish: Black matte
Mounting options: Suspension or stand mounting
Included mounting hardware: Mounting bracket and omega bracket
Connector type: SEETRONIC
Cable length: Approx. 1.2 m
Dimensions: 380 x 108 x 176.5 mm
Weight: 3.73 kg
Noise level: Class 0 (silent operation)
