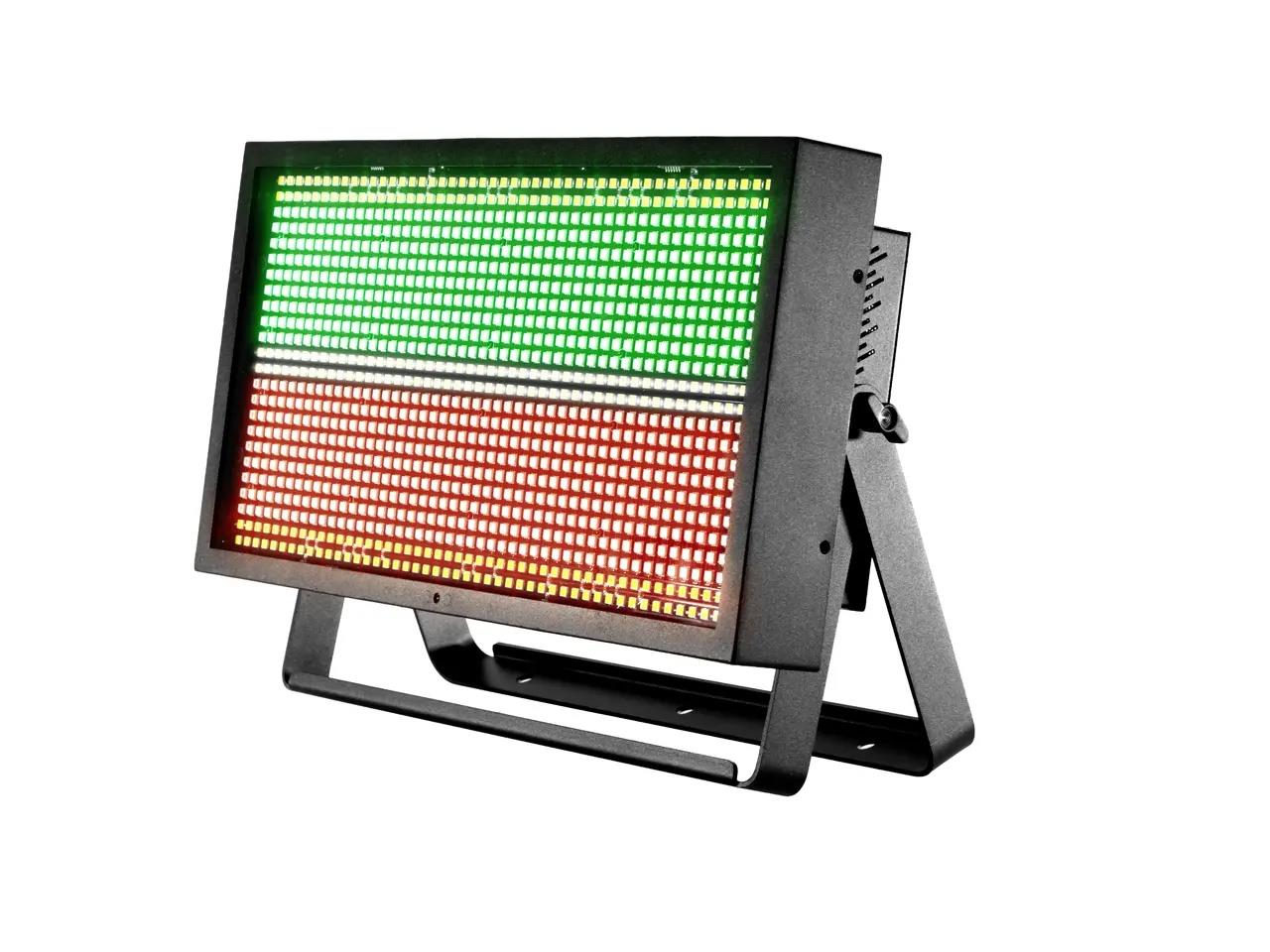

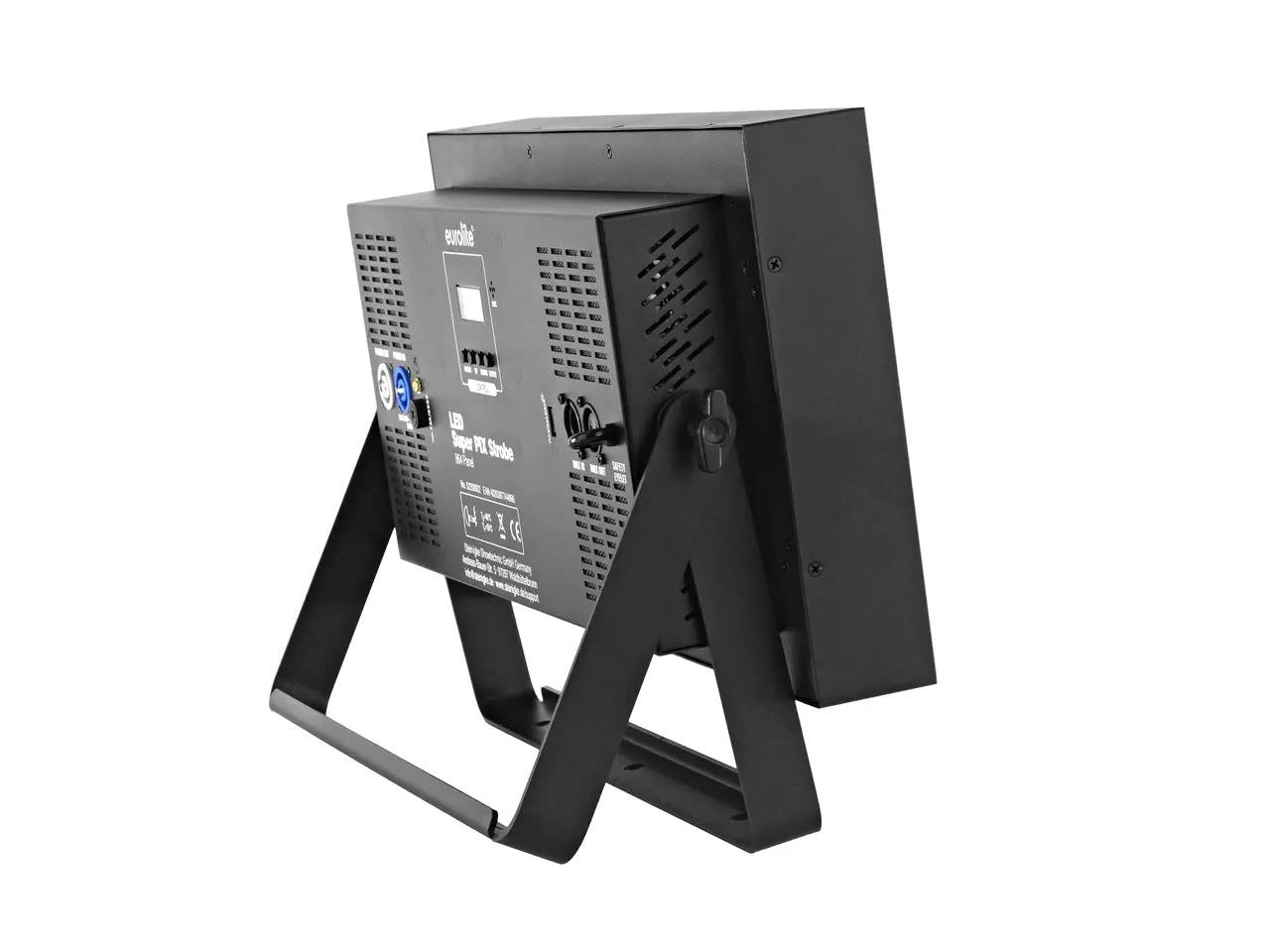

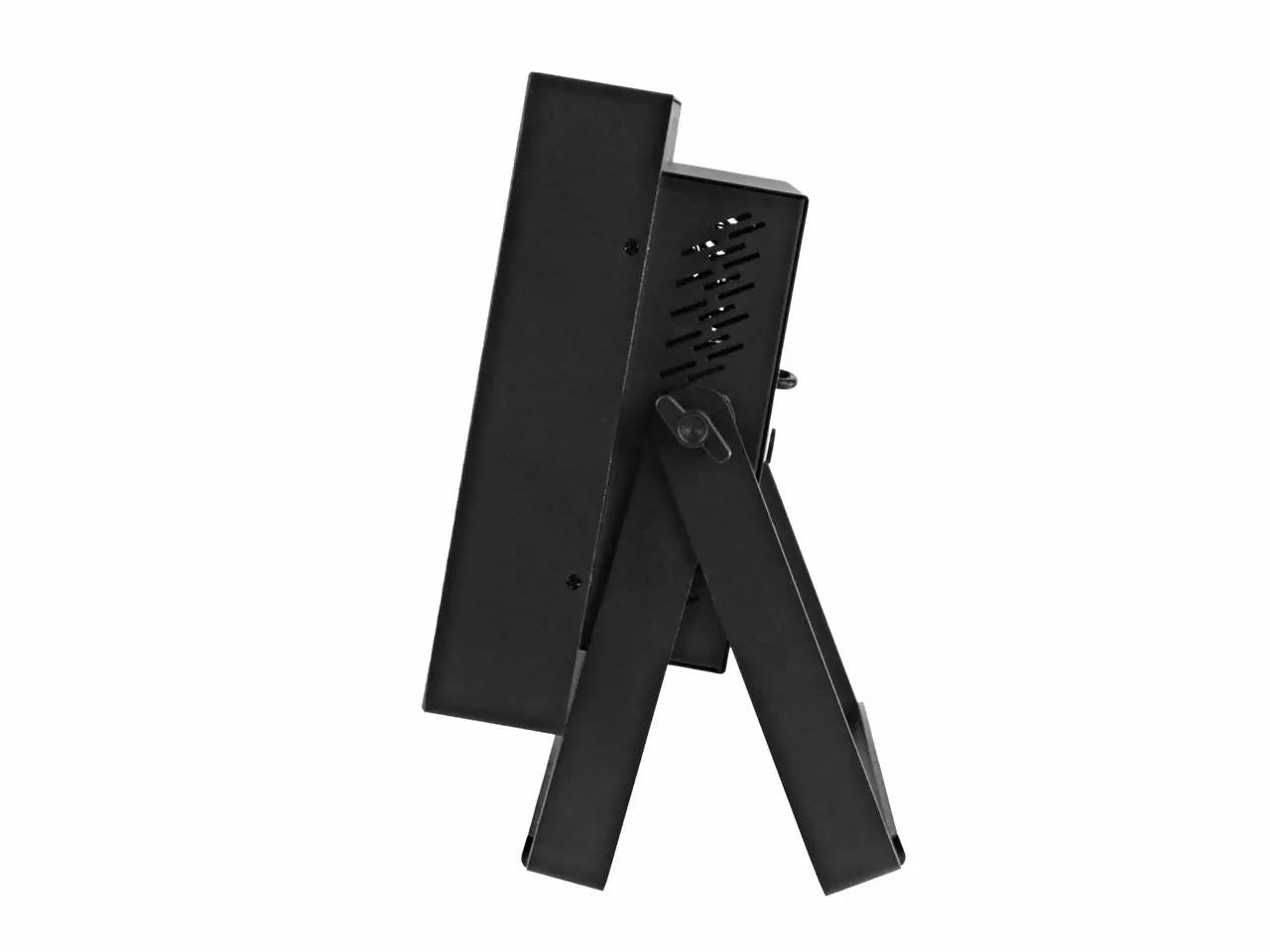

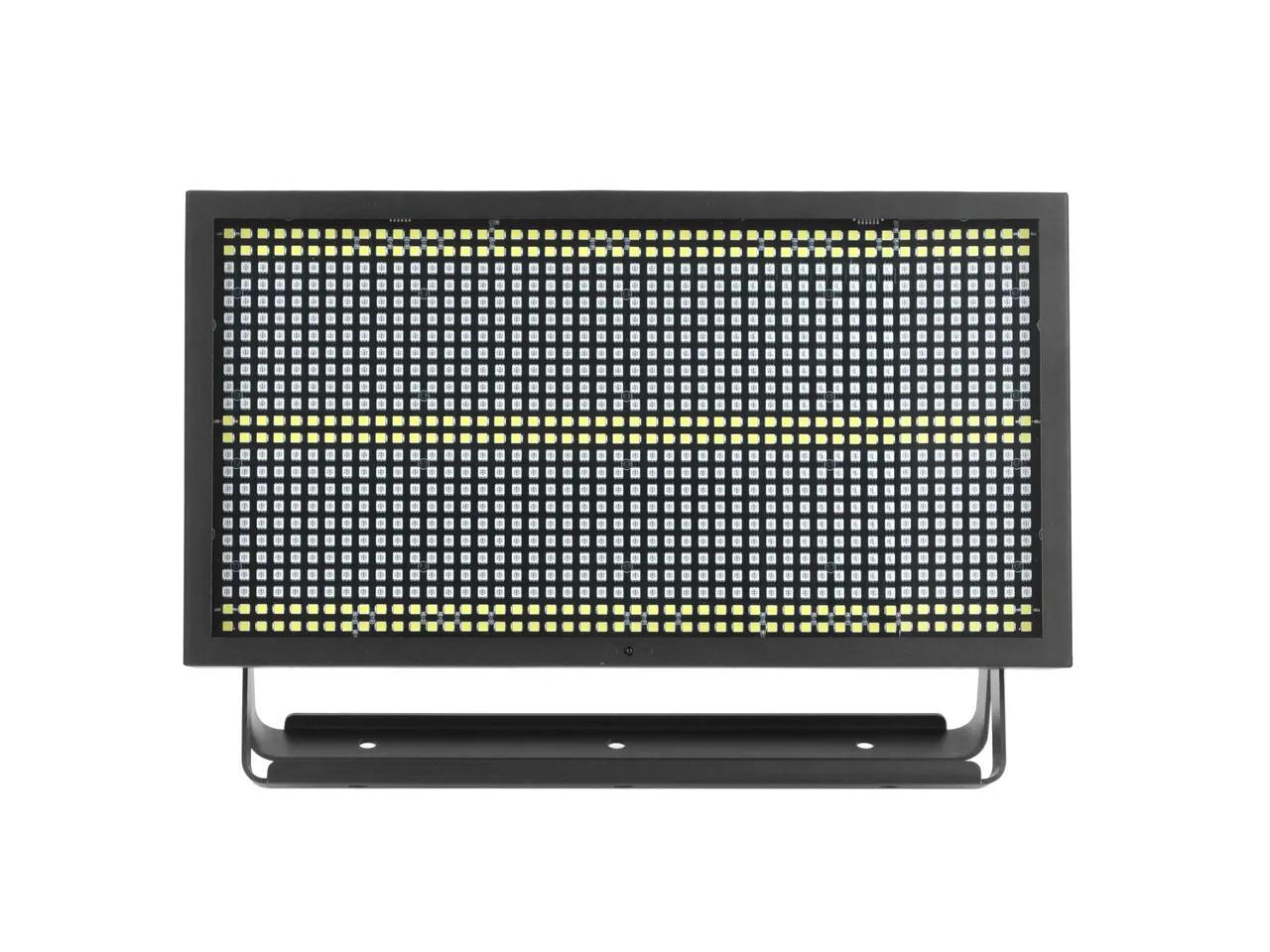

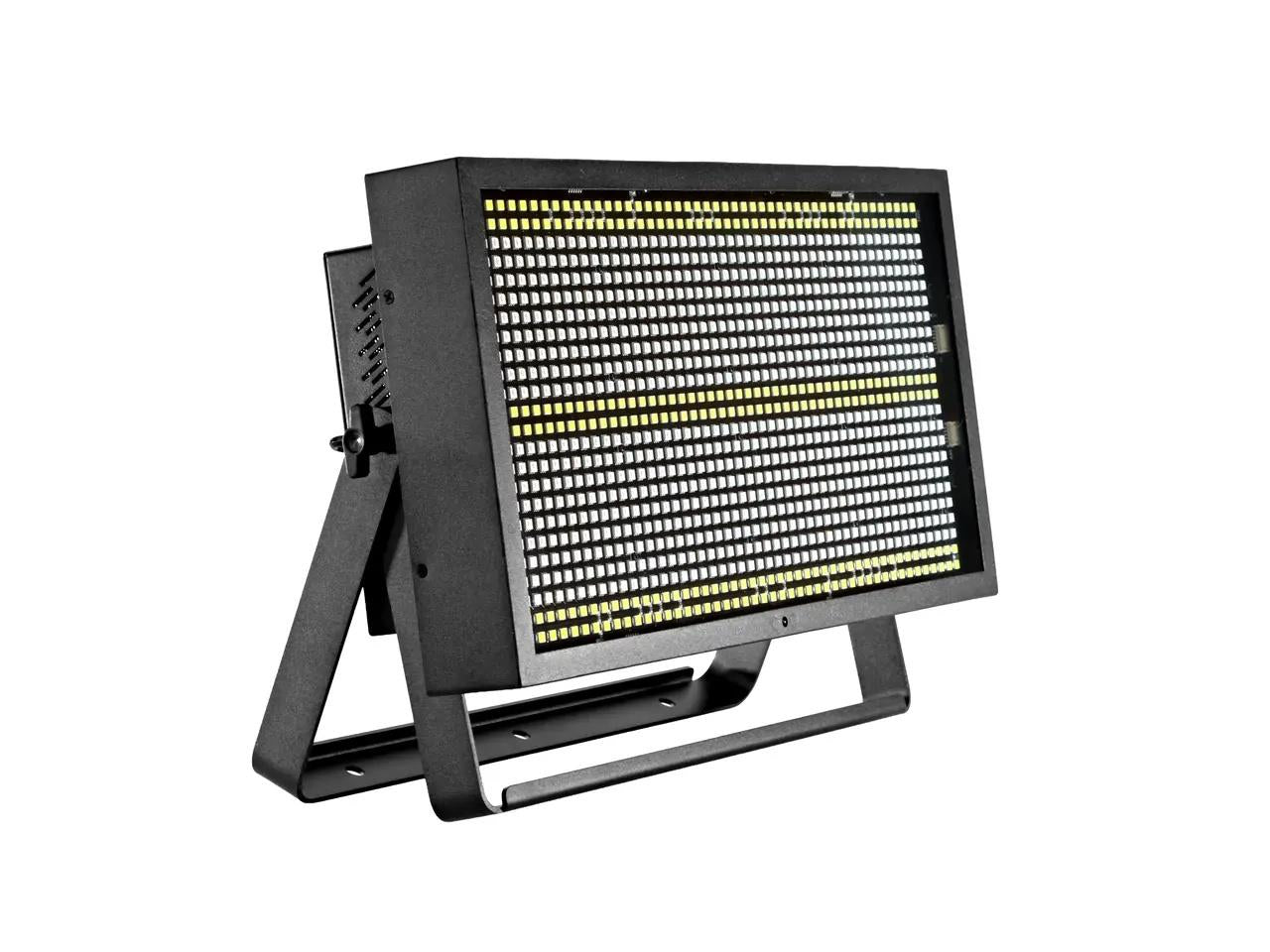

EUROLITE LED Super PIX Strobe 864 Panel

Description

This multifunctional LED fixture combines strobe, floodlight, and blinder effects into a single high-output unit, making it ideal for stages, clubs, and event production. Featuring a powerful array of RGB and cold white LEDs arranged across 11 independently controllable segments, it delivers vibrant colour washes alongside intense white strobe effects. The wide 120° beam angle ensures broad coverage, while flexible control options and built-in programs allow for both simple operation and advanced programming.

Features

Multifunctional strobe, floodlight, and blinder in one fixture
864 RGB LEDs for vibrant colour mixing and wash effects
288 cold white LEDs for powerful strobe and blinder output
11 total segments with independent control for dynamic effects
8 RGB segments and 3 cold white segments controllable separately
Wide 120° beam angle for large area coverage
Electronic dimmer with smooth output control
Integrated strobe and ambient lighting effects
7 built-in show programs for stand-alone operation
Direct colour selection with 18 preset colours

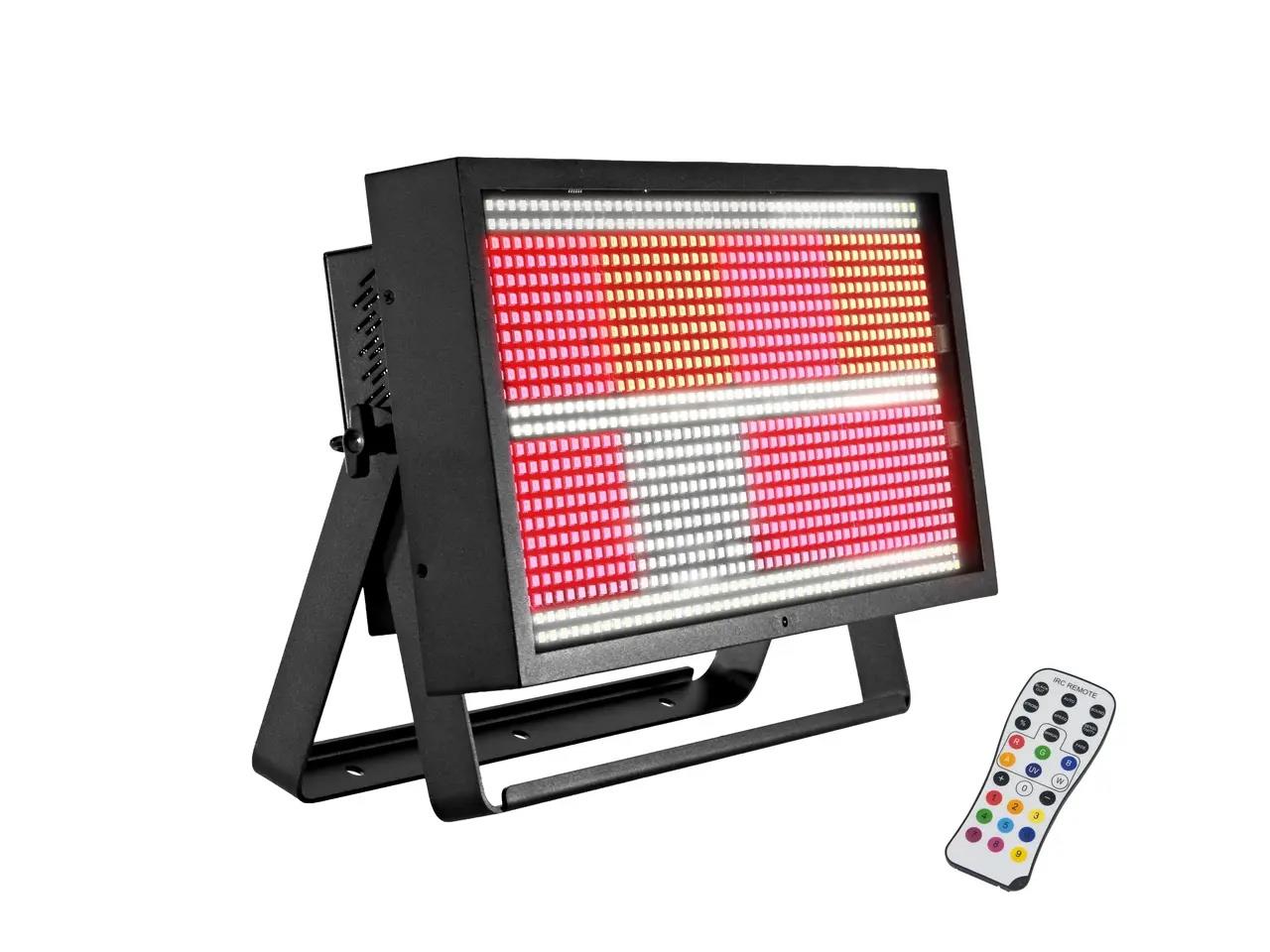

Multiple control options including DMX, stand-alone, sound-to-light, and IR remote
Compatible with QuickDMX, W-DMX, and CRMX wireless control via USB (optional)
Flicker-free operation with high PWM frequency
Adjustable DMX fail modes including blackout, hold, full on, static, and auto
Robust housing with double bracket for flexible mounting
Power linking capability for up to 8 units

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 200 W
IP rating: IP20
Protection class: Class I
Light source: 864 x 0.2 W RGB LEDs and 288 x 0.5 W cold white LEDs
Beam angle: 120°
Flash rate: 0.5 – 20 Hz
DMX channels: 4, 6, 7, 9, 16, or 32 selectable

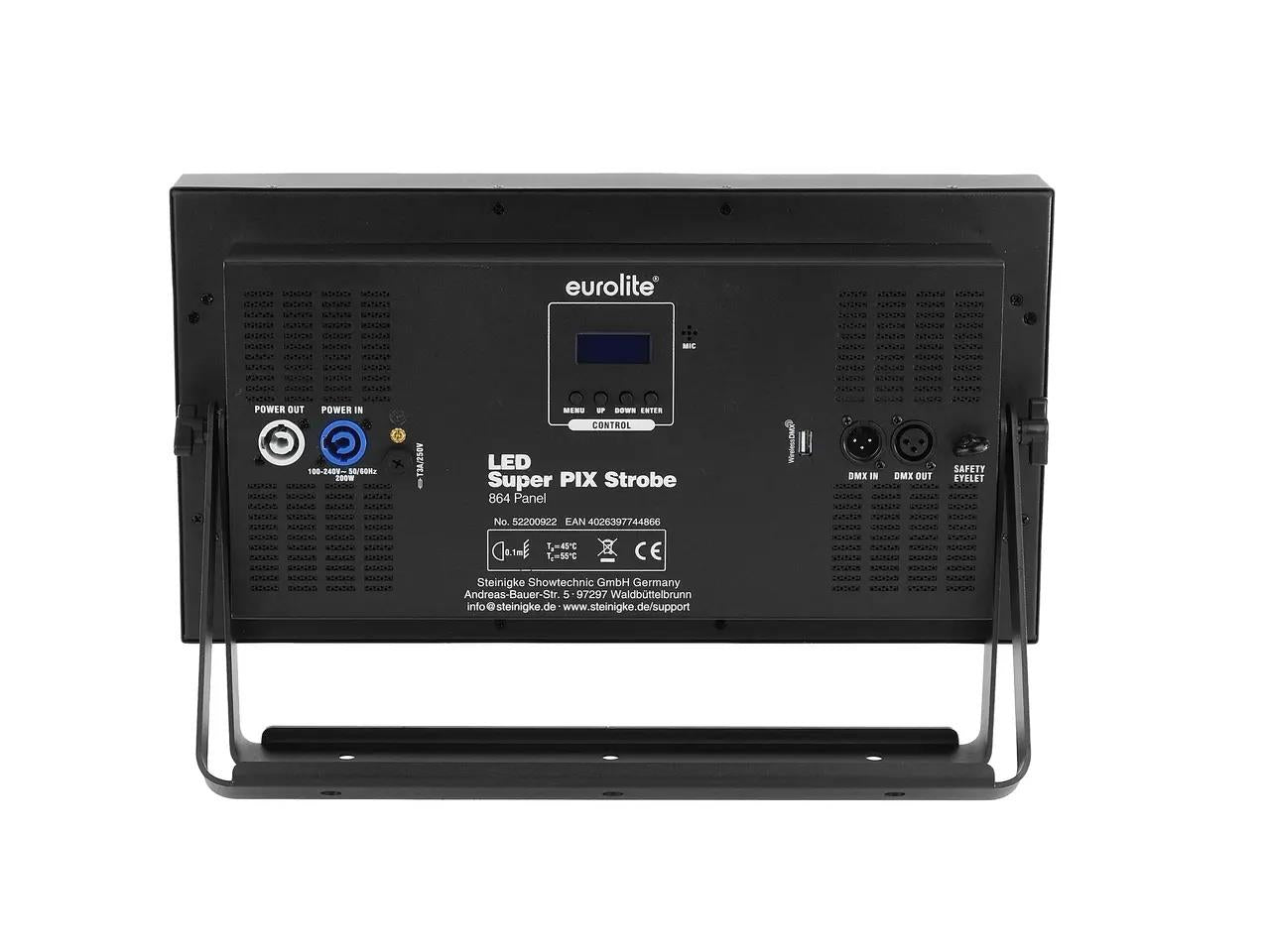

DMX connections: 3-pin XLR input and output
Control modes: Sound-to-light, stand-alone, DMX, master/slave, IR remote, optional wireless DMX via USB
Cooling: 4 internal fans
PWM frequency: 7700 Hz
Lamp life: 50000 hours
Housing material: Metal
Colour: Black
Display: LCD
Mounting: Double bracket with Ø10 mm mounting holes
Dimensions (W x D x H): 467 x 120 x 324 mm
Weight: 6.30 kg
