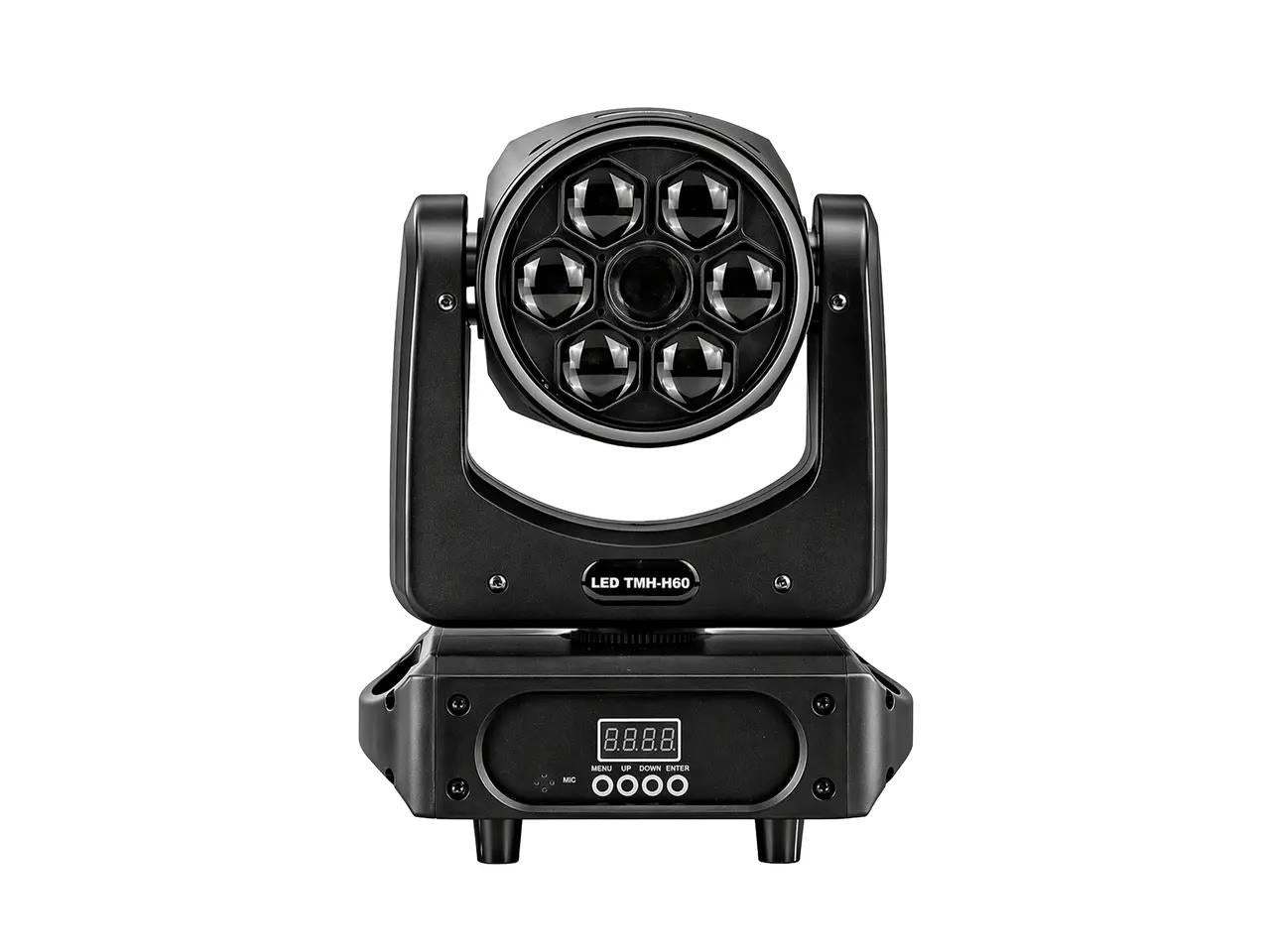

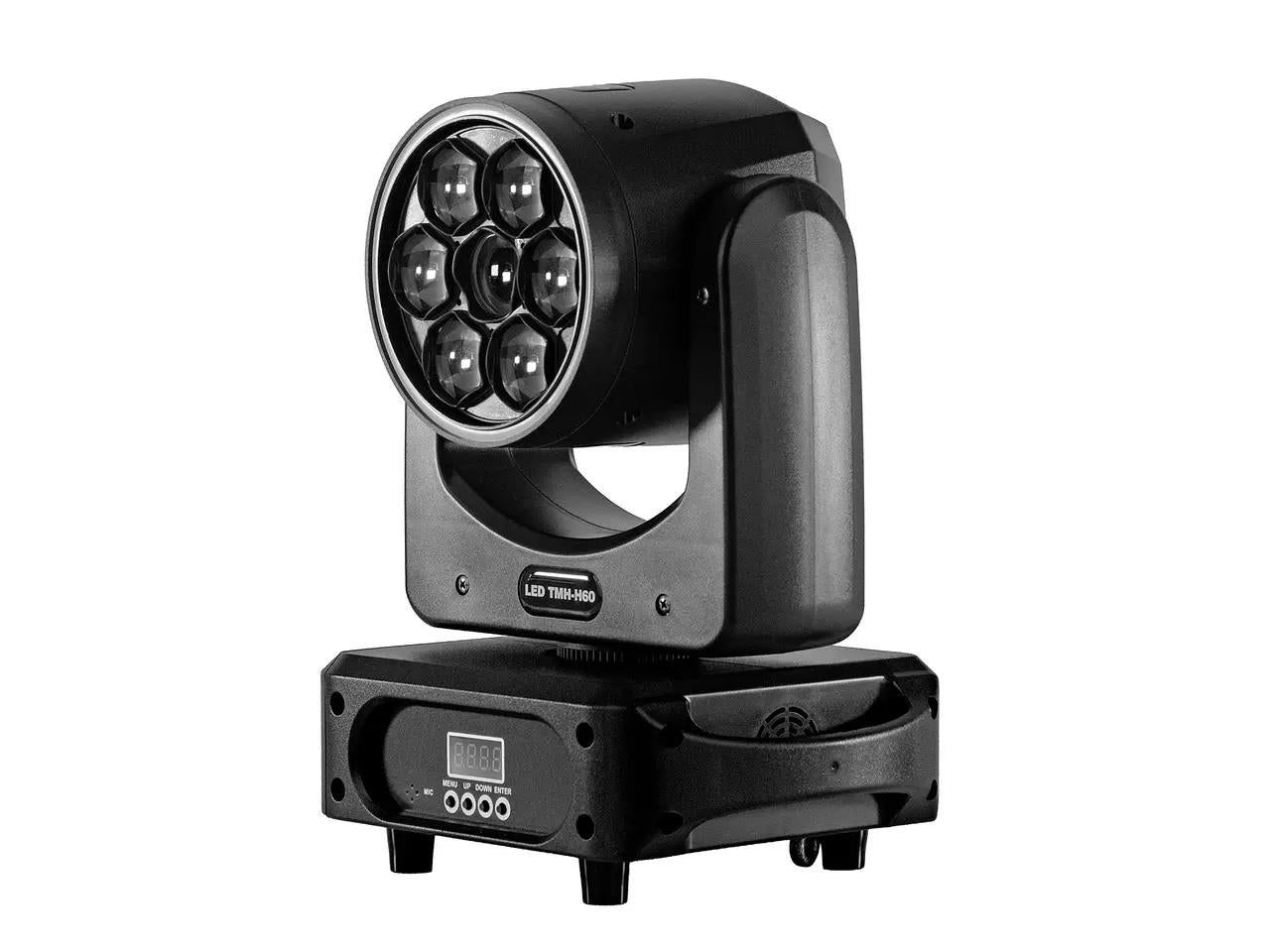

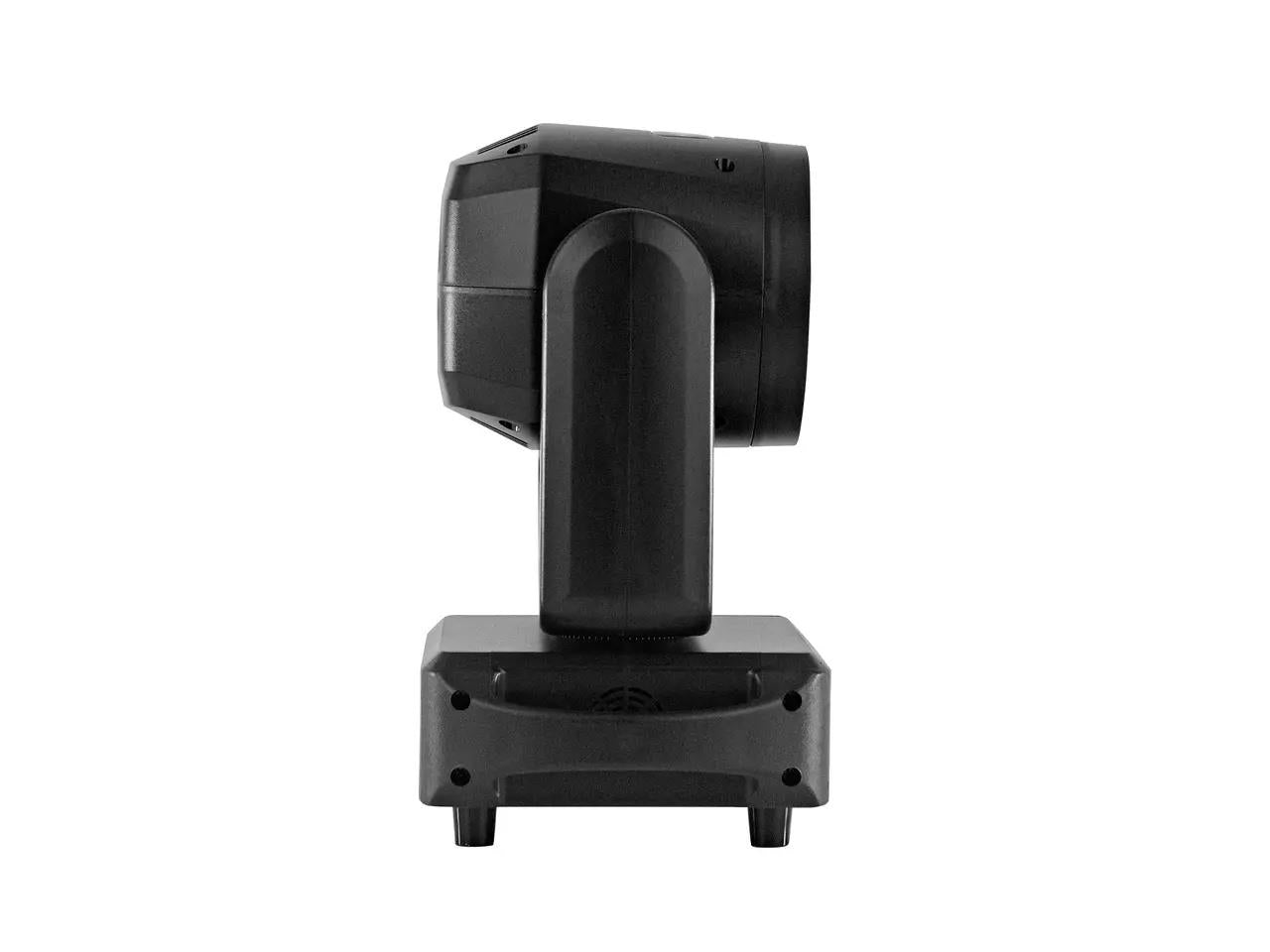

EUROLITE LED TMH-H60 Hybrid Moving Head Spot/Flower 60W RGBW

Description

The EUROLITE LED TMH-H60 Hybrid is a compact multi-effect moving head fixture combining spot projections, flower beam effects, and animated RGB ring effects within a single versatile lighting unit. Designed for clubs, mobile DJs, weddings, stages, bars, and event productions, the fixture delivers dynamic and layered lighting effects while maintaining a compact and lightweight form factor.

At the centre of the fixture is a powerful 60W cold white COB LED paired with a colour wheel and static gobo wheel for sharp spot projections and aerial beam effects. Surrounding the central lens are six additional RGBW LED lenses that generate rotating flower effects and sweeping beam patterns, creating immersive looks in haze and atmospheric environments. A further outer ring of RGB LEDs adds animated hypno ring effects and colourful visual accents for additional creative possibilities.

The three integrated effects can be used independently or combined to create highly varied light shows. With pan and tilt movement, lens rotation, gobo shake, standalone and DMX operation, optional wireless DMX compatibility, and flicker-free performance, the TMH-H60 Hybrid is suitable for both simple plug-and-play setups and advanced programmed productions.

Features

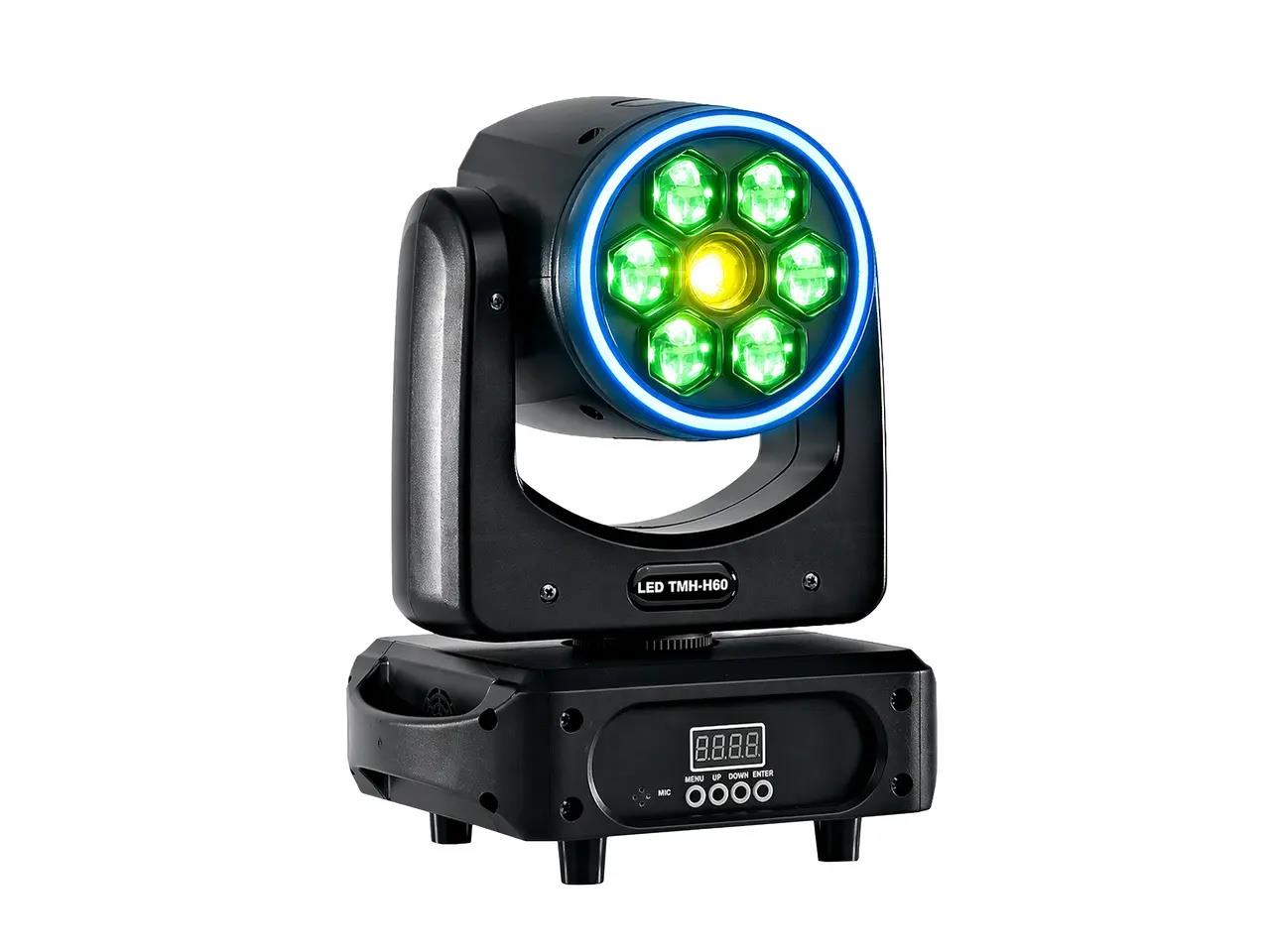

Hybrid moving head with spot, flower, and hypno ring effects
60W cold white COB LED spot source
6 x 10W RGBW LEDs for flower beam effects
24 x RGB LEDs for animated hypno ring effects
Colour wheel with 7 dichroic colours plus open
Half-colour functionality
Static gobo wheel with 7 gobos plus open
Gobo shake effect
Rotating lens assembly for dynamic beam movement
14° beam angle for focused projections
Pan and tilt movement with 16-bit positioning
Standalone, sound-active, DMX, and master/slave operation
Optional QuickDMX, W-DMX, and CRMX wireless DMX support
Flicker-free operation for video environments
Selectable DMX fail modes including hold and blackout
Low-noise temperature-controlled cooling system
Supplied with omega bracket
Compatible with Light’J, Light Captain, and Colorchief control systems

Specifications

Brand : EUROLITE
Product name : LED TMH-H60 Hybrid
Product type : Hybrid moving head spot and flower effect
Main light source : 1 x 60W COB cold white LED
Secondary LEDs : 6 x 10W RGBW LEDs
Hypno ring LEDs : 24 x 0.2W RGB LEDs
Beam angle : 14°
Pan movement : 540°
Tilt movement : 180°
Positioning : 16-bit resolution
Colour wheel : 7 dichroic colours + open
Gobos : 7 static gobos + open
Effects : Spot effect, flower effect, hypno ring, gobo shake, lens rotation
Flash rate : 1.5 – 17Hz
DMX channels : 16, 26
Control modes : Standalone, sound-to-light, DMX, master/slave
Wireless DMX compatibility : QuickDMX, W-DMX, CRMX via optional USB adapters
DMX fail modes : Hold, blackout
PWM frequency : 10600Hz
Cooling : Temperature-controlled fan at head, low-noise fan at base
Display : 4-digit 7-segment LED display
Power supply : 100 – 240V AC, 50/60Hz
Power consumption : 145W

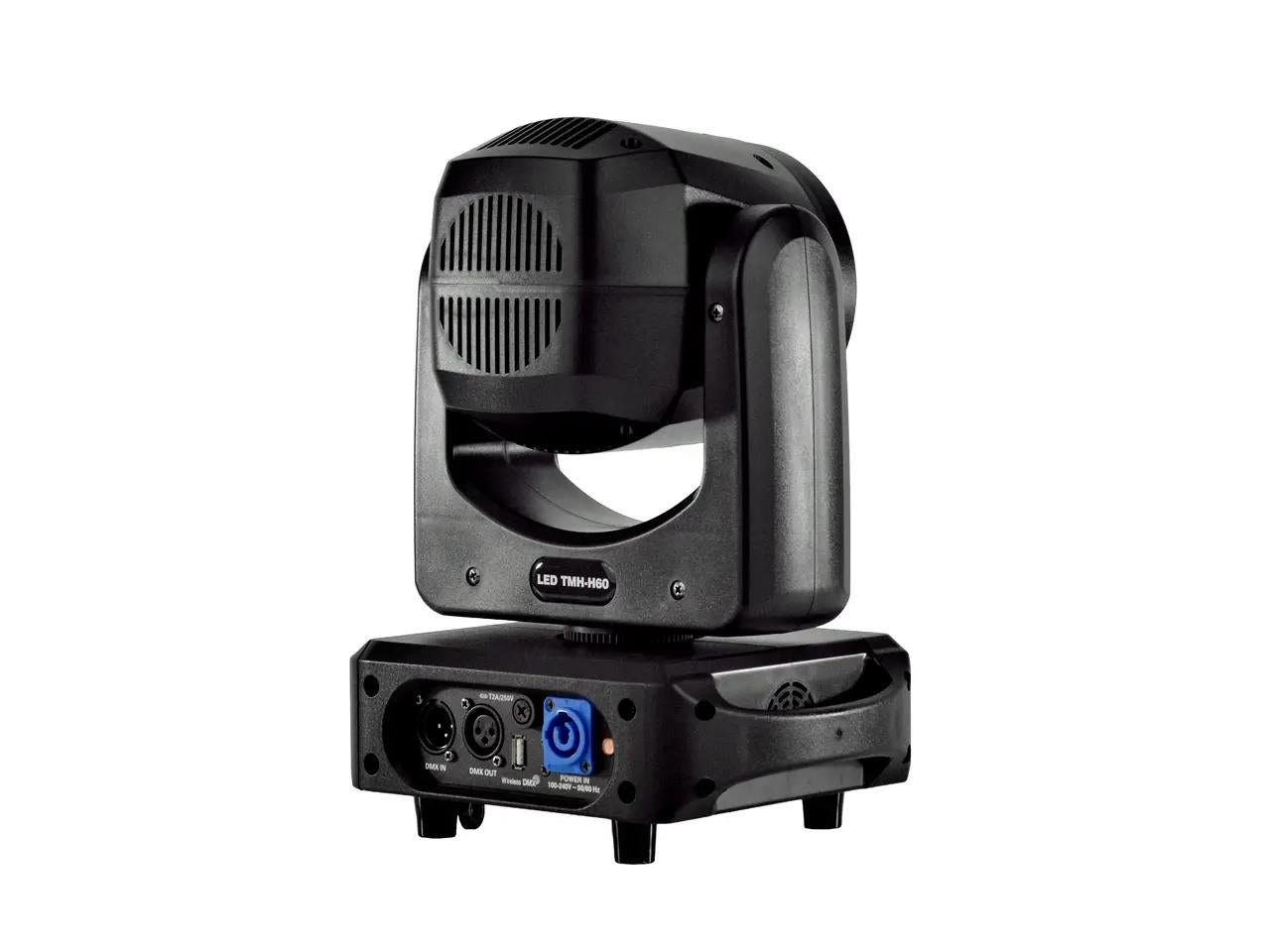

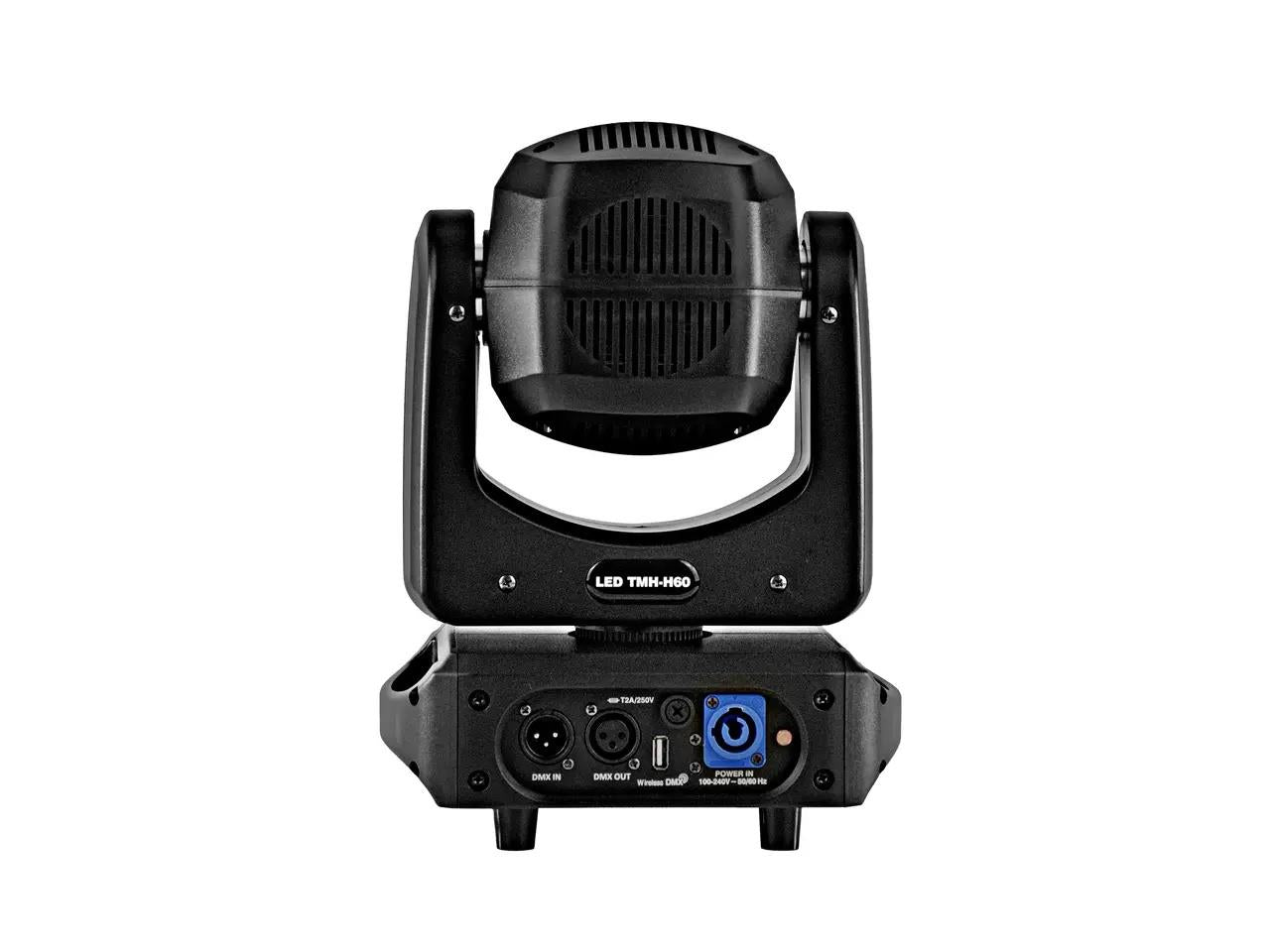

Power connection : P-Con input
DMX connections : 3-pin XLR input and output
USB port : Type A
Protection class : Class I
Mounting : Omega bracket
Housing material : Plastic
Housing colour : Black
Application : Indoor show effect lighting
Dimensions : 23 x 17.5 x 31 cm
Weight : 4.15 kg
Noise classification : Class 2 (slight noise)
