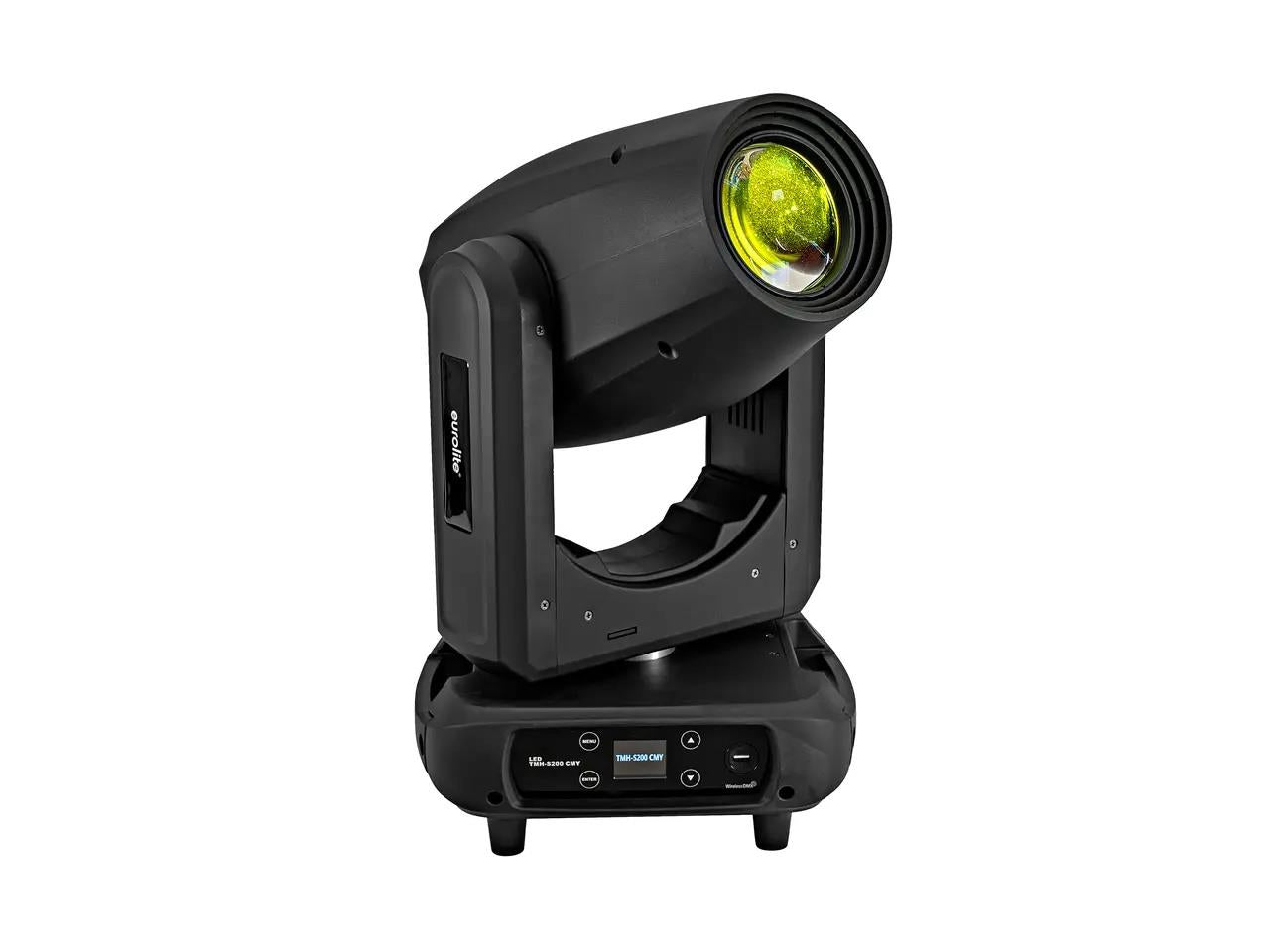

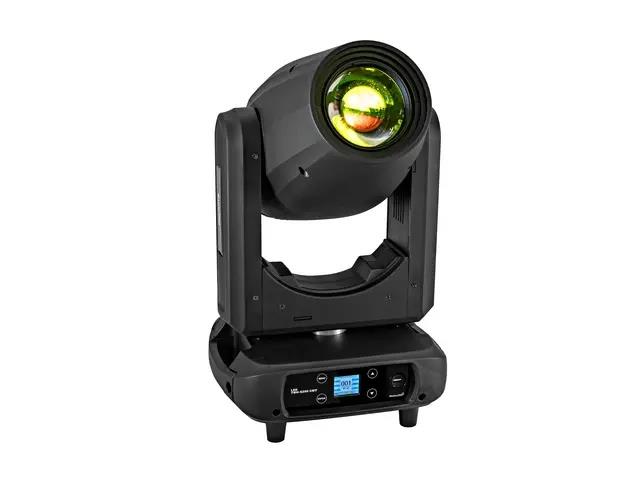

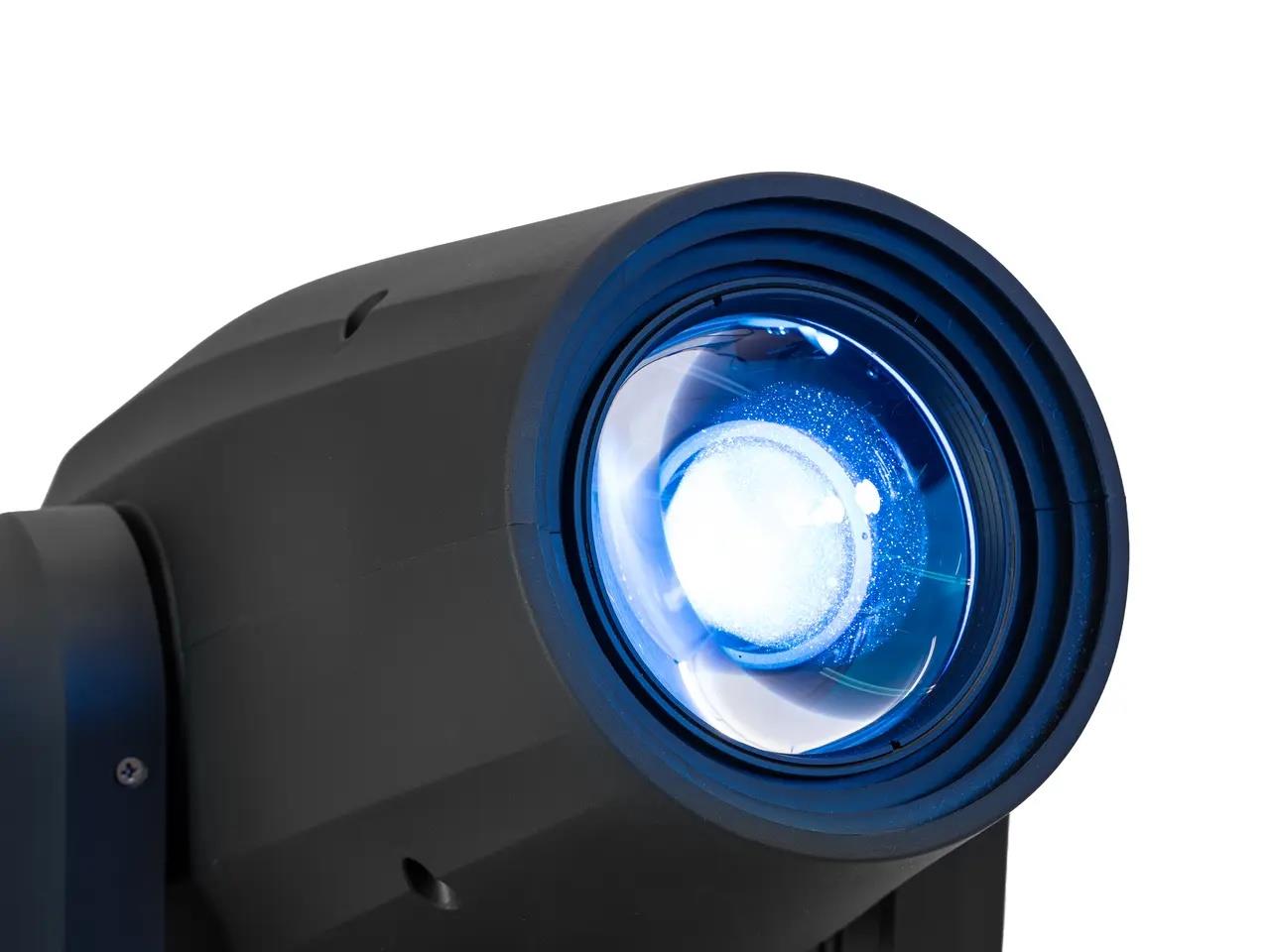

EUROLITE LED TMH-S200 CMY Moving Head Beam/Spot/Wash 200W

Description

The EUROLITE LED TMH-S200 CMY is a versatile hybrid moving head fixture designed for professional stage, club, rental, and event lighting applications. Combining beam, spot, and wash functionality within a single compact fixture, the TMH-S200 delivers powerful output from a 200 W cold white COB LED engine alongside extensive colour, gobo, prism, and zoom capabilities for dynamic lighting design.

Featuring advanced CMY colour mixing with additional CTO correction, the fixture produces virtually unlimited colour variations and smooth transitions, while a dedicated colour wheel with dichroic filters enables split-colour effects and rapid colour changes. The motorised zoom system provides a flexible beam angle range from 4° to 32°, allowing the fixture to operate effectively as a tight beam, crisp spot, or wide wash fixture depending on application requirements.

Creative effects are expanded through two gobo wheels featuring rotating and static gobos, an 8-facet rotating prism, frost filter, motorised focus, and shake effects. Smooth 16-bit pan and tilt movement with automatic position correction ensures accurate positioning during professional programming and live operation. Designed for touring and production environments, the TMH-S200 offers flicker-free output, wireless DMX compatibility, and robust metal construction for reliable performance in demanding applications.

Features

Hybrid moving head beam, spot, and wash fixture
200 W COB cold white LED light source
CMY colour mixing system for unlimited colour variations
Variable CTO colour temperature correction
Motorised zoom with 4° – 32° beam angle
6-colour dichroic colour wheel plus open and CTO filters
Split-colour functionality
7 rotating gobos plus open
9 static gobos plus open
Slot-in gobo system for easy replacement
Gobo indexing and shake effects
8-facet rotating prism
Motorised focus system
Integrated frost filter
Smooth 16-bit pan and tilt positioning
540° pan and 220° tilt movement
Automatic position correction with feedback
Flicker-free operation for video and broadcast applications
PWM frequency up to 23000 Hz
Stand-alone, sound-to-light, DMX, and master/slave modes
Compatible with QuickDMX, W-DMX, and CRMX via optional USB adapters
Power linking for up to 8 fixtures
Suitable for suspended or floor-standing applications
Compatible with Light Captain and GDTF (GrandMA3)
Rugged metal housing with omega bracket mounting system

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 270 W
Protection class: Class I

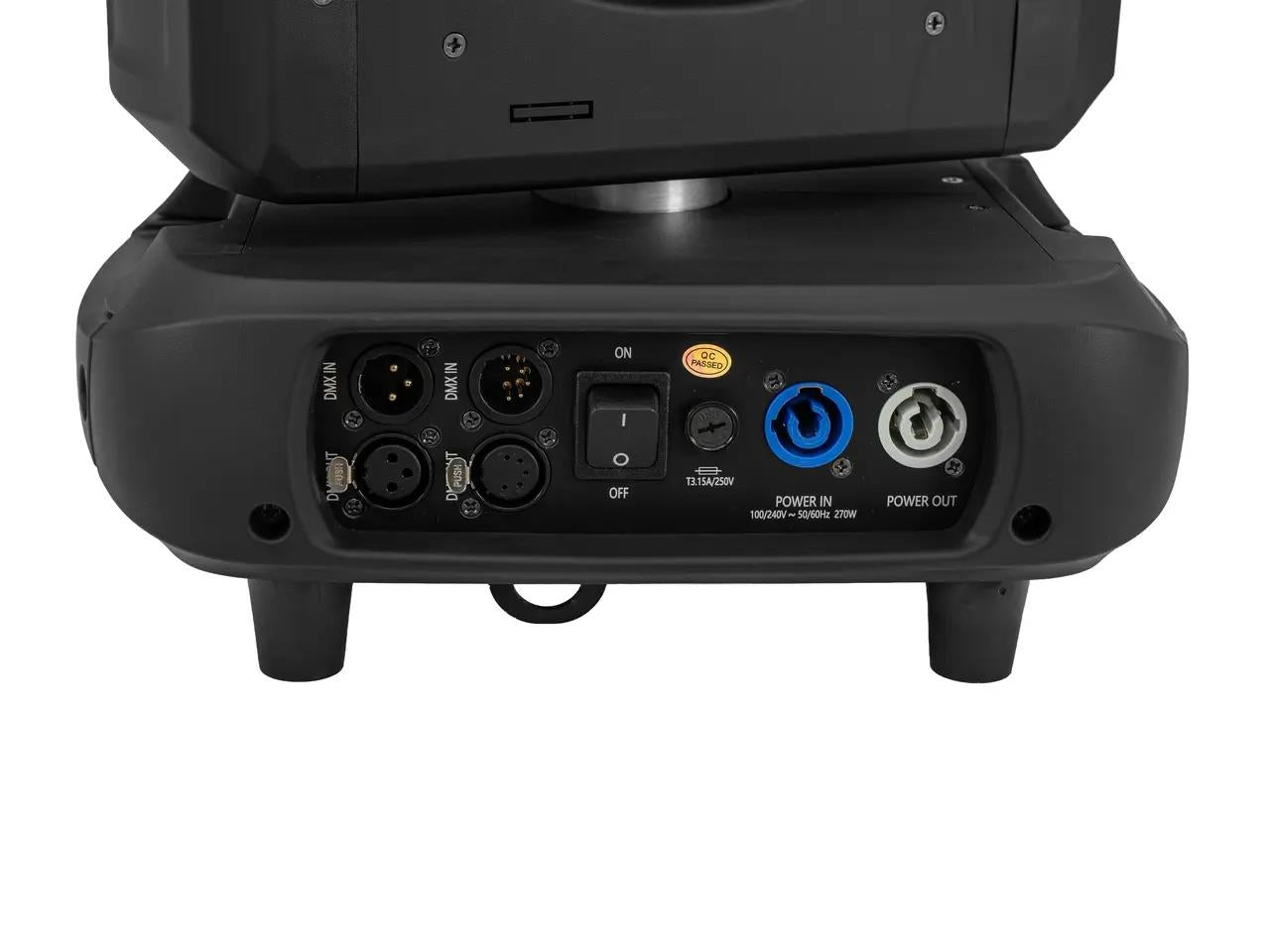

Power input: P-Con (blue) connector
Power output: P-Con (grey) connector
Fuse: 5 x 20 mm, T 3.15 A replaceable fuse
Light source: 1 x 200 W COB cold white LED
Beam angle: 4° – 32°
Flash rate: 1 – 18 Hz
Pan movement: 540° with 16-bit positioning
Tilt movement: 220° with 16-bit positioning
Colour system: CMY + CTO colour mixing
Colour wheel: 6 dichroic filters plus open and CTO
Static gobos: 9 gobos plus open
Rotating gobos: 7 gobos plus open
Gobo size:
Outside diameter: 19.5 mm
Image diameter: 10 mm
Effects:
8-facet rotating prism
Frost filter
Motorised focus
Motorised zoom
DMX channels: 22
DMX input connections:
3-pin XLR
5-pin XLR
DMX output connections:
3-pin XLR
5-pin XLR
Control modes:
Stand-alone
Sound-to-light via microphone
DMX
Master/slave
QuickDMX via USB (optional)
W-DMX via USB (optional)
CRMX via USB (optional)
Cooling:
4 x temperature-controlled fans in head
1 x temperature-controlled fan in base
PWM frequency: 23000 Hz
DMX fail modes: Hold, zero values
Illuminance:
Narrow CW at 3 m: 98862 lx
Narrow CW at 6 m: 25686 lx
Wide CW at 1 m: 31366 lx
Wide CW at 3 m: 3246 lx
Wide CW at 6 m: 812 lx
Lamp life: 20000 hours

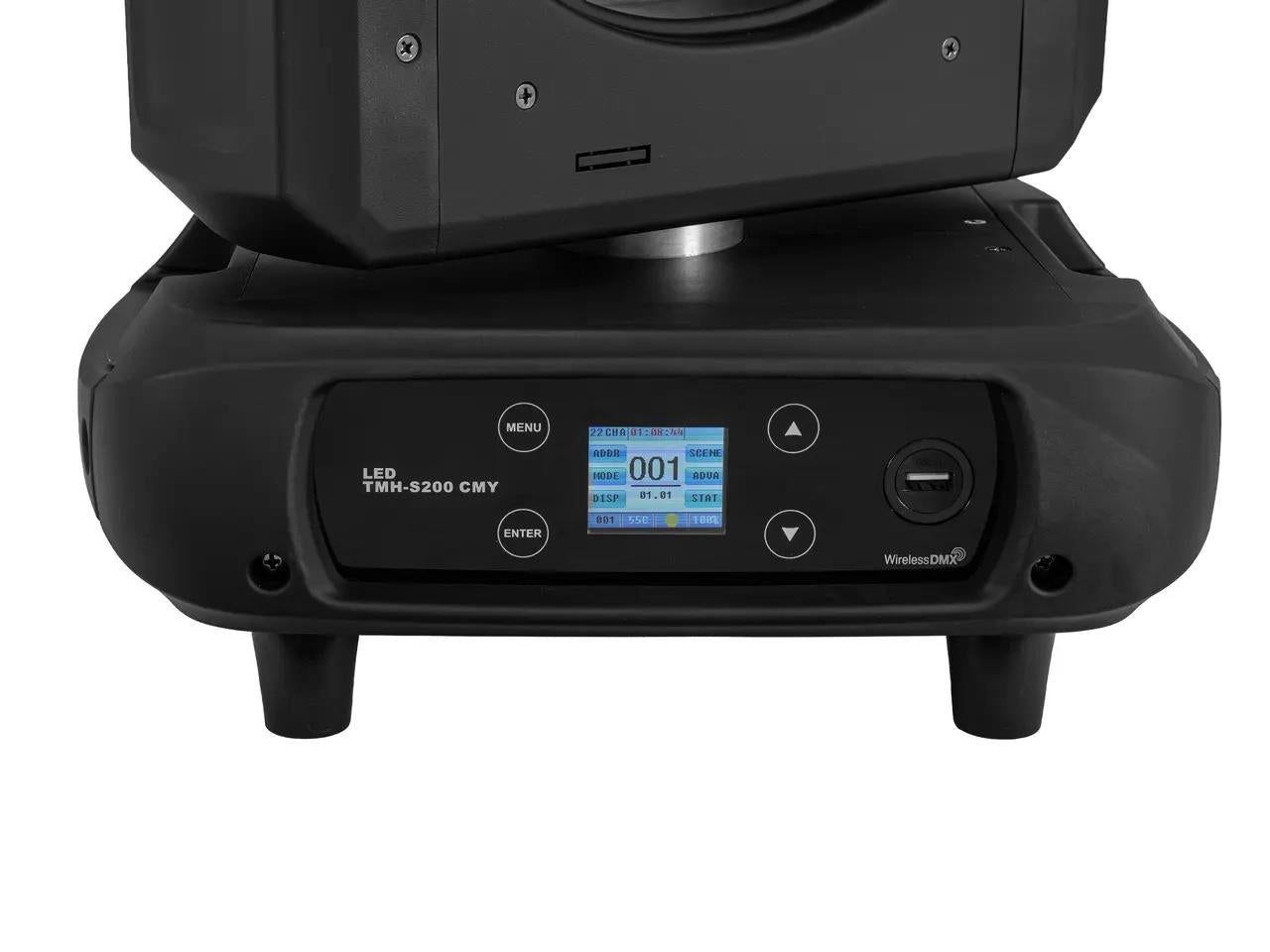

Display: Multicolour LCD
Housing material: Metal
Housing colour: Black

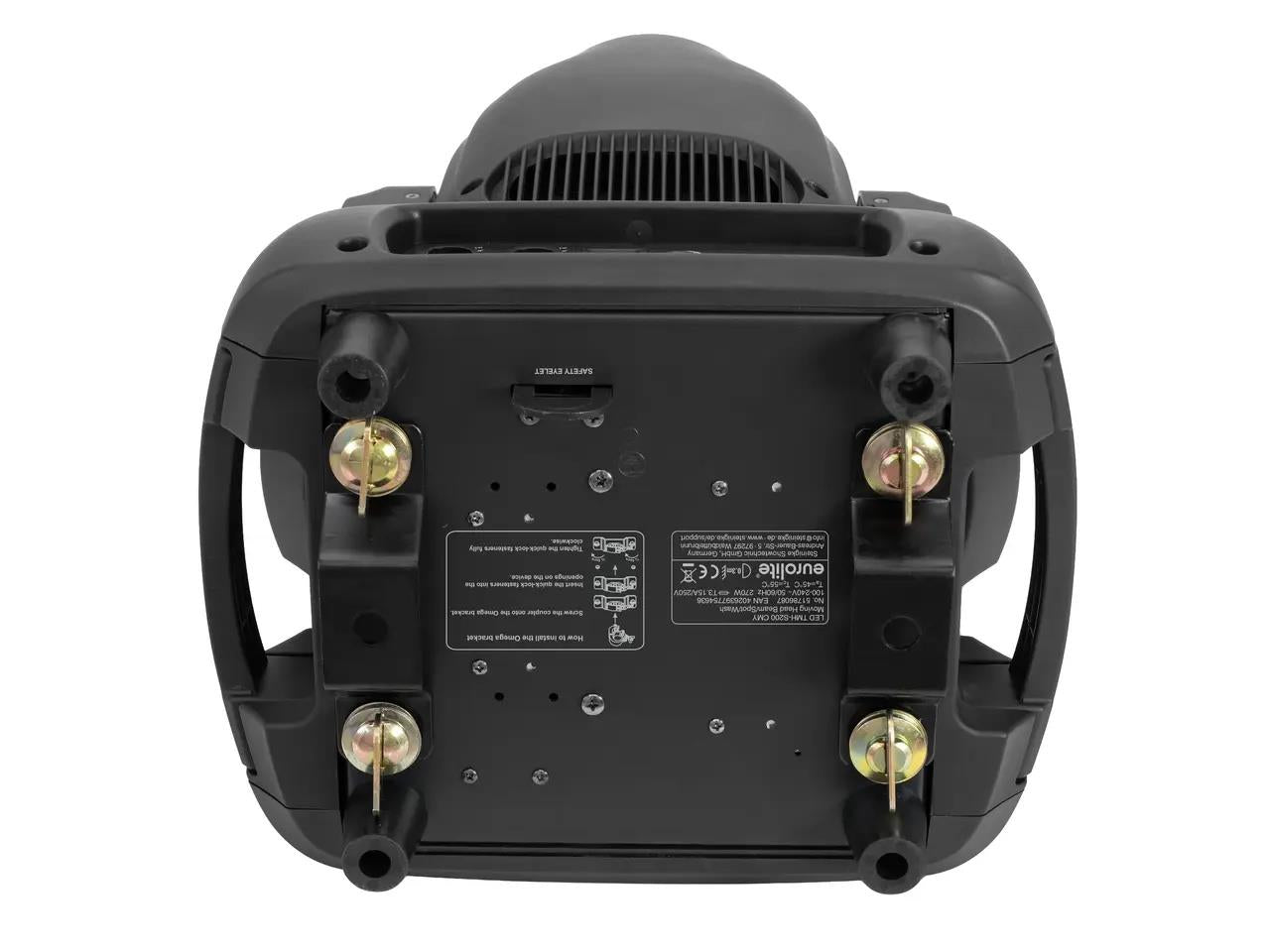

Mounting system: 2 x omega brackets
Transport aids:
2 x carrying handles
4 x rubber feet
Mounting hole diameter: 2 x Ø12 mm
Dimensions (W x D x H): 324 x 255 x 570 mm
Weight: 15.05 kg
Noise classification: Class 2 (slight noise) depending on operating mode

Legal specifications

Special product: Not designed for household room illumination
Intended use: Show effect lighting
