Global Truss F34 Standard Corner 90 Degree Black

Description:

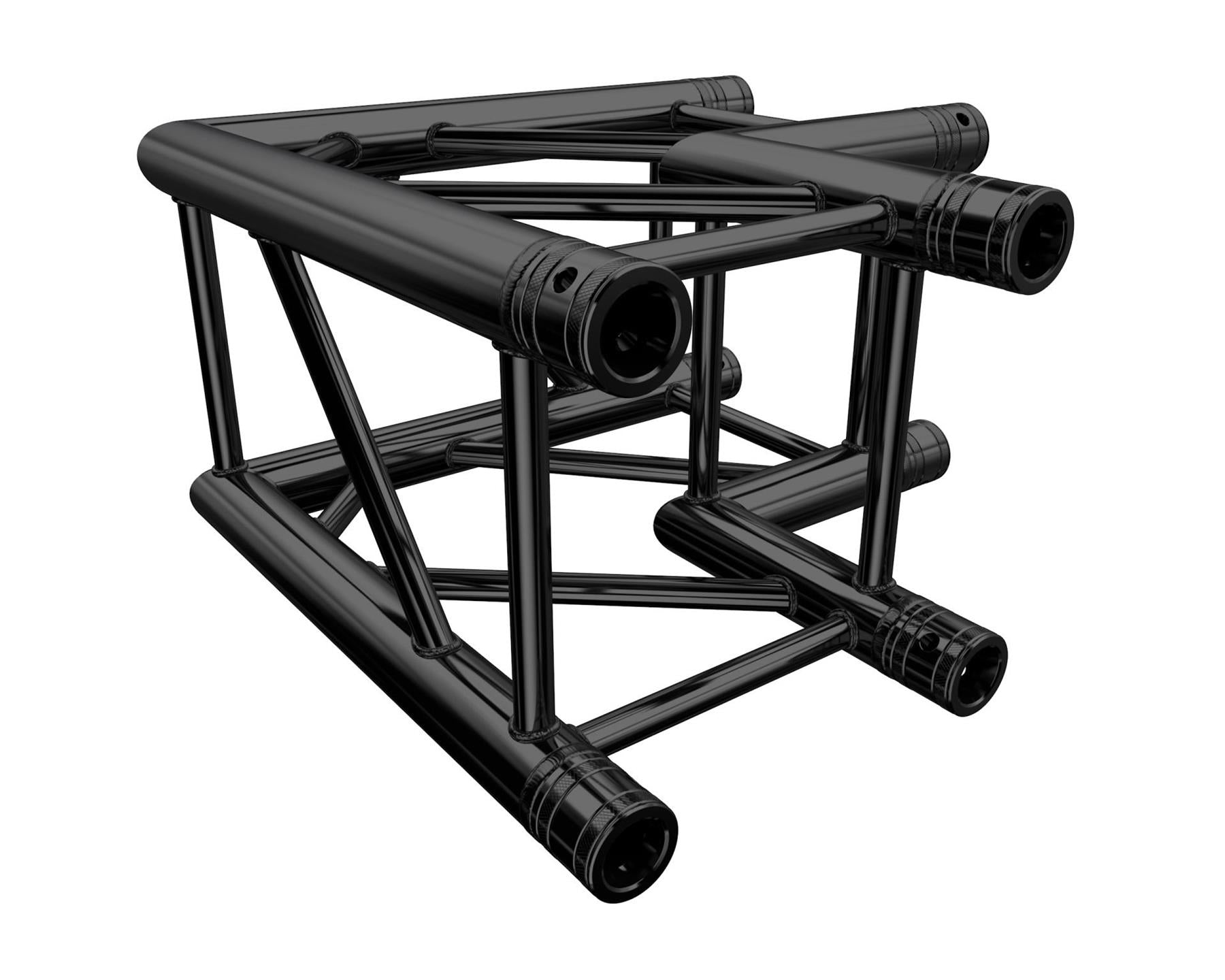

The Global Truss F34 corner section is a versatile 4-point truss component designed for creating angled joins and complex structural configurations. With an external dimension of 290mm, the F34 system is widely used in stage, exhibition, and event environments due to its excellent load capacity relative to its weight and size.

This corner piece enables the construction of custom truss rigs, grids, and multi-directional structures, making it an essential component for flexible rigging designs. Manufactured from high-quality aluminium (Al EN AW-6082 T6), it features 50 x 2mm main tubes and 20 x 2mm diagonal bracing, ensuring strength and durability while maintaining manageable weight.

Finished in a black powder coating, this version provides a clean and professional appearance, ideal for stage and event use. Supplied with conical connectors, pins, and R-clips, it allows for quick, secure, and tool-free assembly.

Please note: this corner section is not TÜV certified.

Features:

Type: 4-Point Corner Truss Section
Series: Global Truss F34
System: F34
Finish: Black powder coated

Construction: Aluminium (Al EN AW-6082 T6)
Wall Thickness: 2mm
Main Tube: 50 x 2mm
Brace Diameter: 20 x 2mm
Edge Dimension: 290mm

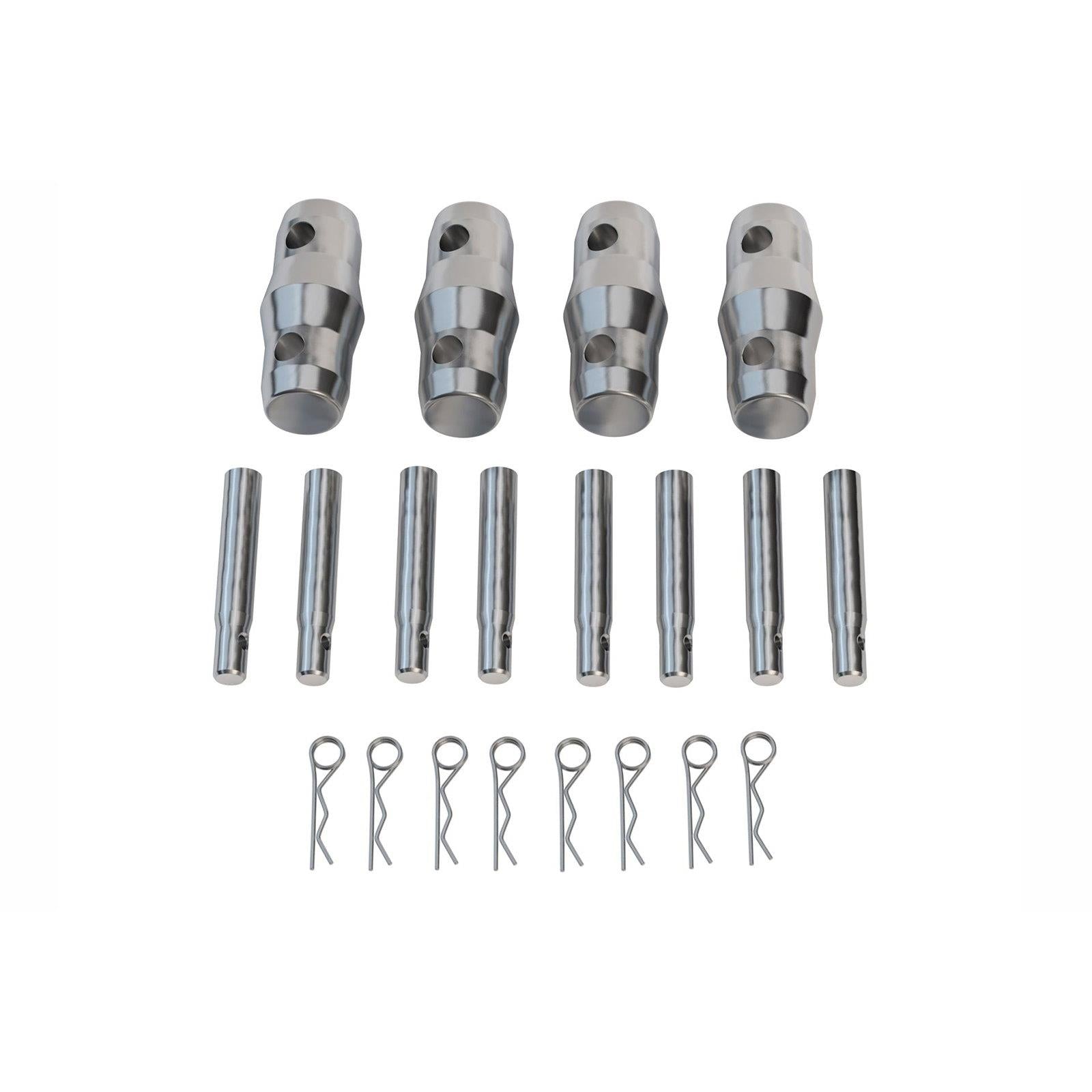

Included Hardware:
4 x Conical connectors
8 x Pins
8 x R-Clips

Application: Stage, events, exhibitions, and custom truss structures
Design: Multi-directional corner for complex builds

TÜV Certification: No

Dimensions (L x W x H): 500 x 500 x 290mm
Weight: 6kg

Shipping Dimensions (L x W x H): 500 x 500 x 300mm
Shipping Weight: 6.7kg
