Global Truss F34 Standard Corner 90 Degreee Round

Description:

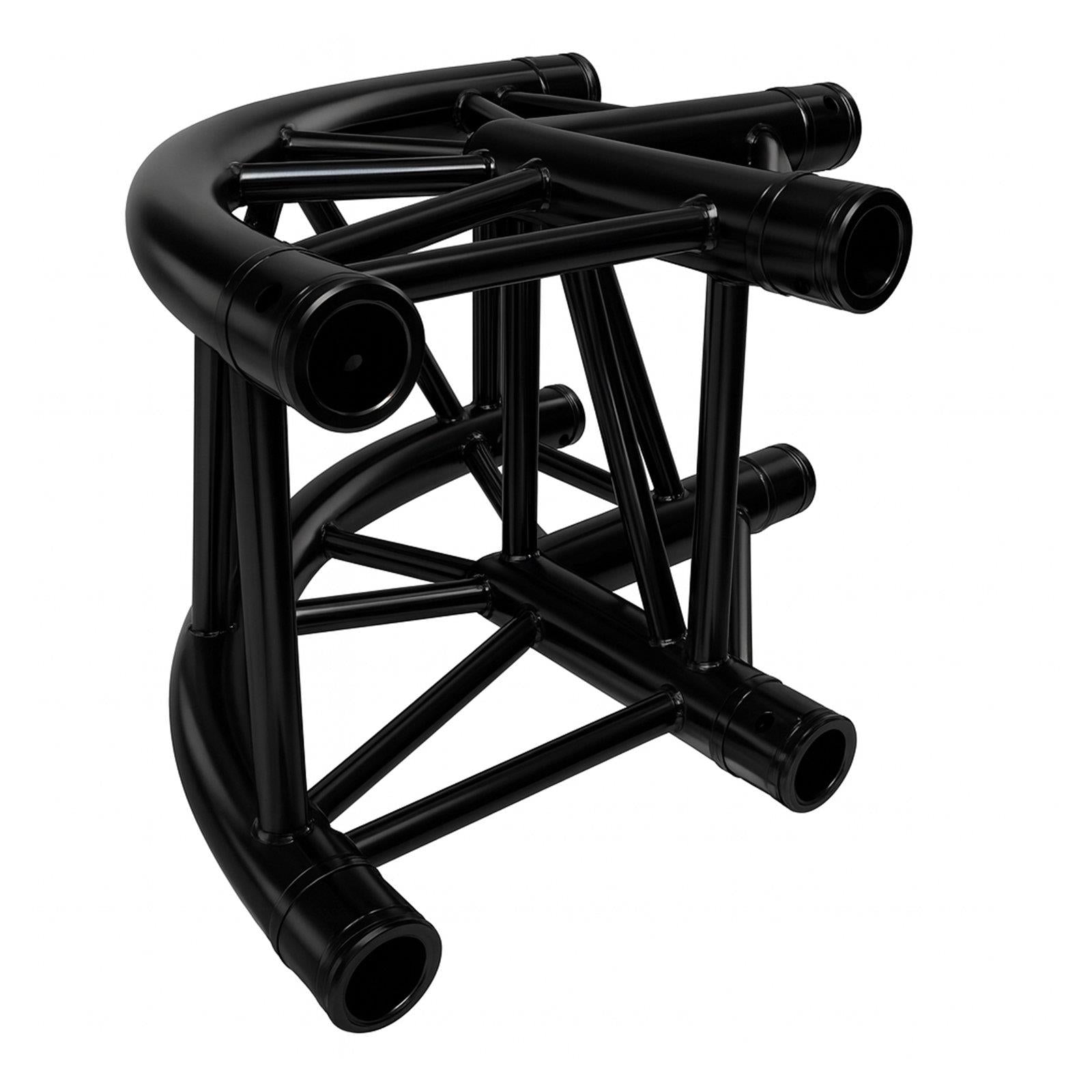

The Global Truss F34 2-way C21 corner is a versatile 4-point truss component designed for creating clean, right-angle connections with a smooth, rounded edge finish. With an external dimension of 290mm, the F34 system is widely used in stage, exhibition, and event structures due to its excellent load capacity relative to its size and weight.

Featuring a 90° rounded edge design, this corner is ideal for applications where a more refined and visually appealing structure is required, such as exhibition stands, stage builds, and display frameworks. It enables precise right-angle joins while maintaining a professional and seamless appearance.

Manufactured from high-quality aluminium (Al EN AW-6082 T6), it utilises 50 x 2mm main tubes and 20 x 2mm diagonal bracing for strength and durability. The black powder-coated finish ensures a discreet and polished look, blending seamlessly into production environments.

Supplied with conical connectors, pins, and R-clips, this corner allows for fast, secure, and tool-free assembly. Please note: this product is not TÜV certified.

Features:

Type: 2-Way 90° Corner (C21 Rounded Edge)
Series: Global Truss F34
System: F34
Finish: Black powder coated

Construction: Aluminium (Al EN AW-6082 T6)
Wall Thickness: 2mm
Main Tube: 50 x 2mm
Brace Diameter: 20 x 2mm
Edge Dimension: 290mm

Design: 2-way 90° rounded edge for clean, professional structures
Number of Points: 4-point

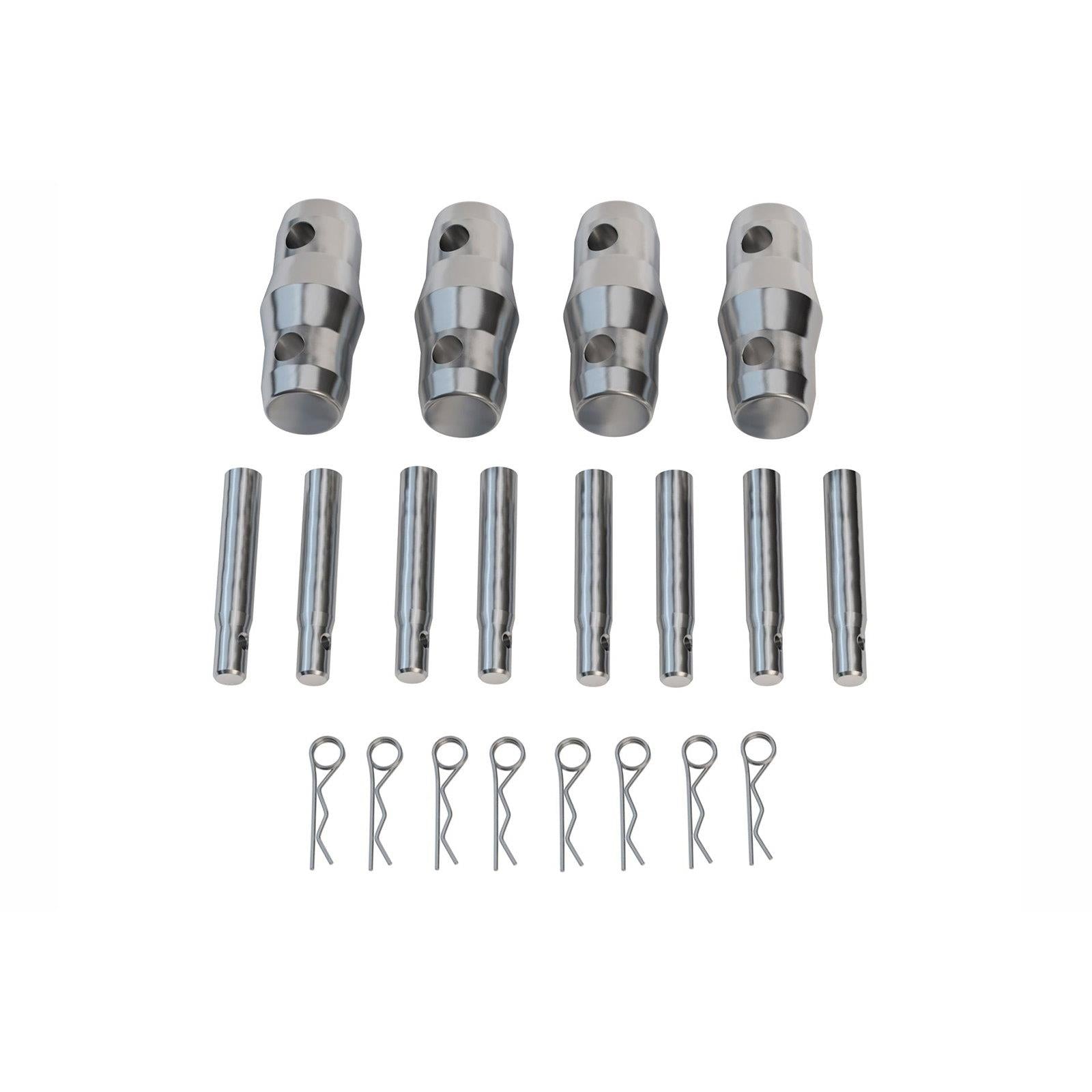

Included Hardware:
4 x Conical connectors
8 x Pins
8 x R-Clips

Application: Stage, events, exhibitions, and display structures
Assembly: Quick and secure conical connection system

TÜV Certification: No

Dimensions (L x W x H): 500 x 500 x 290mm
Weight: 6kg

Shipping Dimensions (L x W x H): 550 x 550 x 300mm
Shipping Weight: 7kg
