Global Truss F34 Standard Corners 5 Way 90 Degree Black

Description:

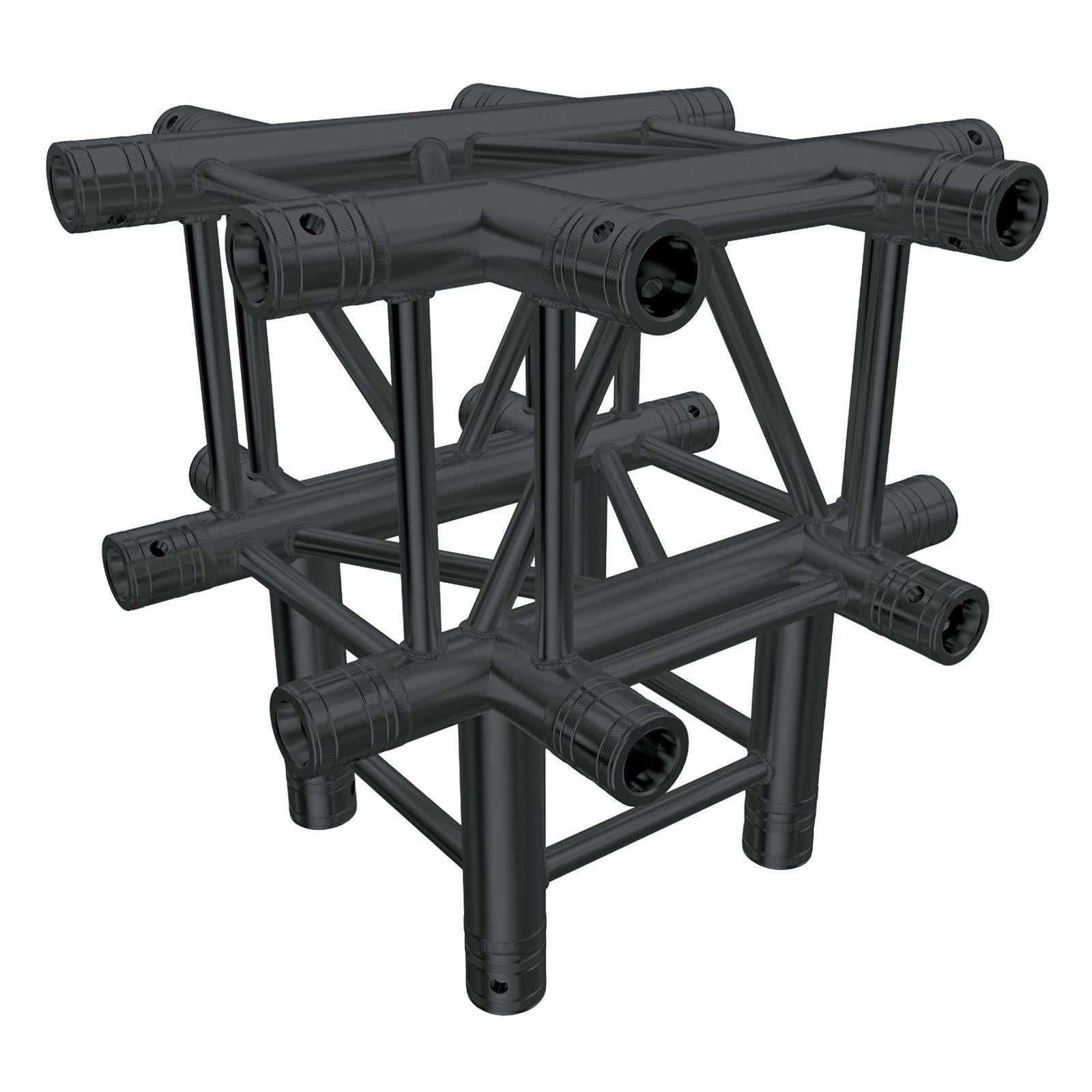

The Global Truss F34 C55 5-way corner is a highly versatile truss component designed for complex, multi-directional rigging applications. Part of the F34 4-point truss system with an external dimension of 290mm, it offers excellent load capacity while maintaining a manageable weight, making it ideal for stage, exhibition, and event structures.

This 5-way corner allows five truss sections to connect simultaneously, providing maximum flexibility for building cube frames, truss grids, exhibition booths, and intricate rigging designs. It is particularly suited to applications requiring multiple connection points and advanced structural layouts.

Constructed from high-quality aluminium (Al EN AW-6082 T6), it features 50 x 2mm main tubes and 20 x 2mm diagonal bracing, ensuring strength, durability, and reliable performance in professional environments. The black powder-coated finish delivers a clean, discreet appearance suitable for stage and event use.

Supplied with conical connectors, pins, and R-clips, this unit allows for fast, secure, and efficient assembly on-site. Please note this product is not TÜV certified.

Features:

Type: 5-Way Corner (C55)
Series: Global Truss F34
System: F34
Finish: Black powder coated

Construction: Aluminium (Al EN AW-6082 T6)
Wall Thickness: 2mm
Main Tube: 50 x 2mm
Brace Diameter: 20 x 2mm
Edge Dimension: 290mm

Design: 5-way connection for complex, multi-directional truss structures
Number of Points: 4-point

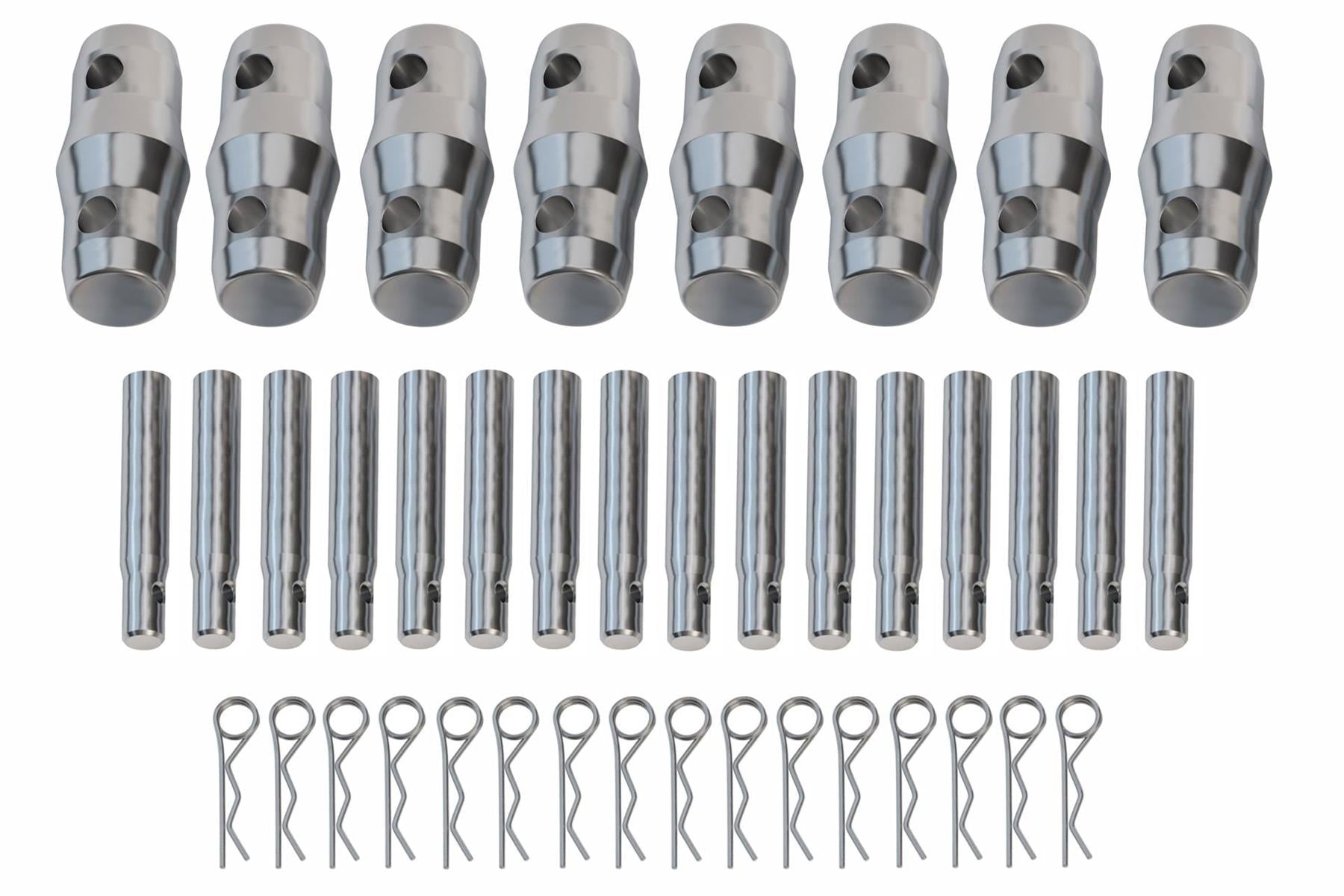

Included Hardware:
8 x Conical connectors
16 x Pins
16 x R-Clips

Application: Stage, events, exhibitions, and advanced truss builds
Assembly: Quick and secure conical connection system

TÜV Certification: No

Dimensions (L x W x H): 500 x 500 x 500mm

Shipping Dimensions (L x W x H): 500 x 500 x 500mm
Shipping Weight: 13.75kg
