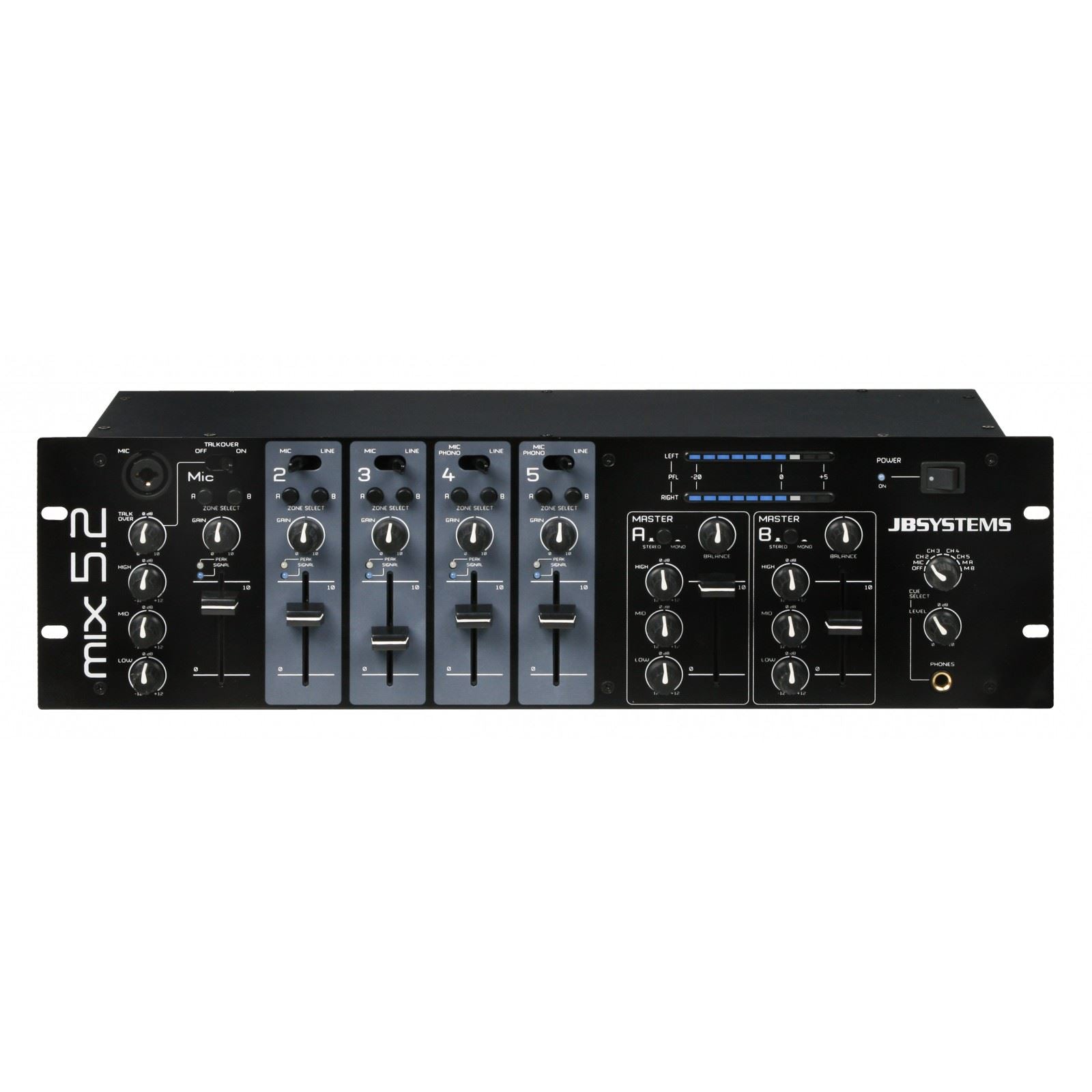

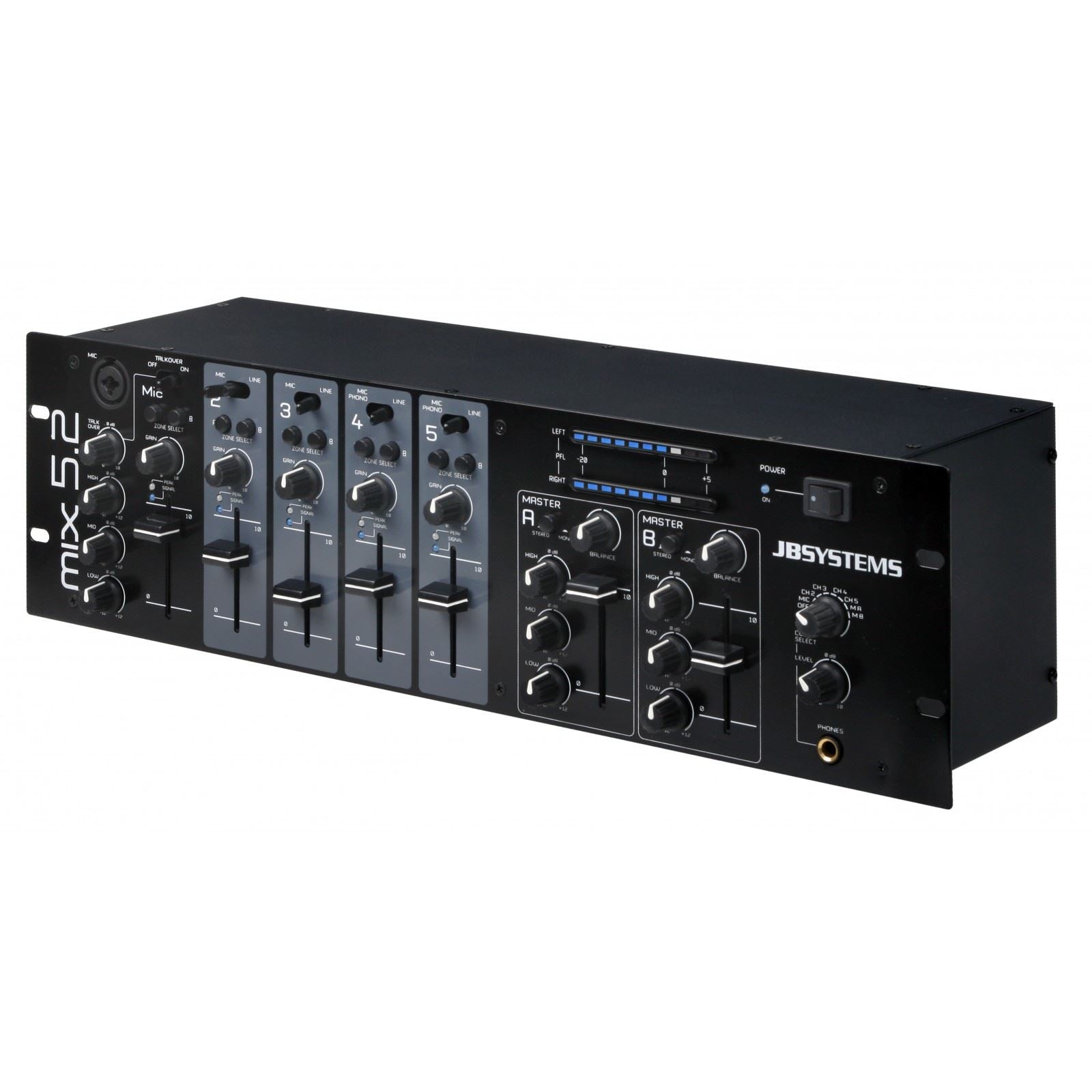

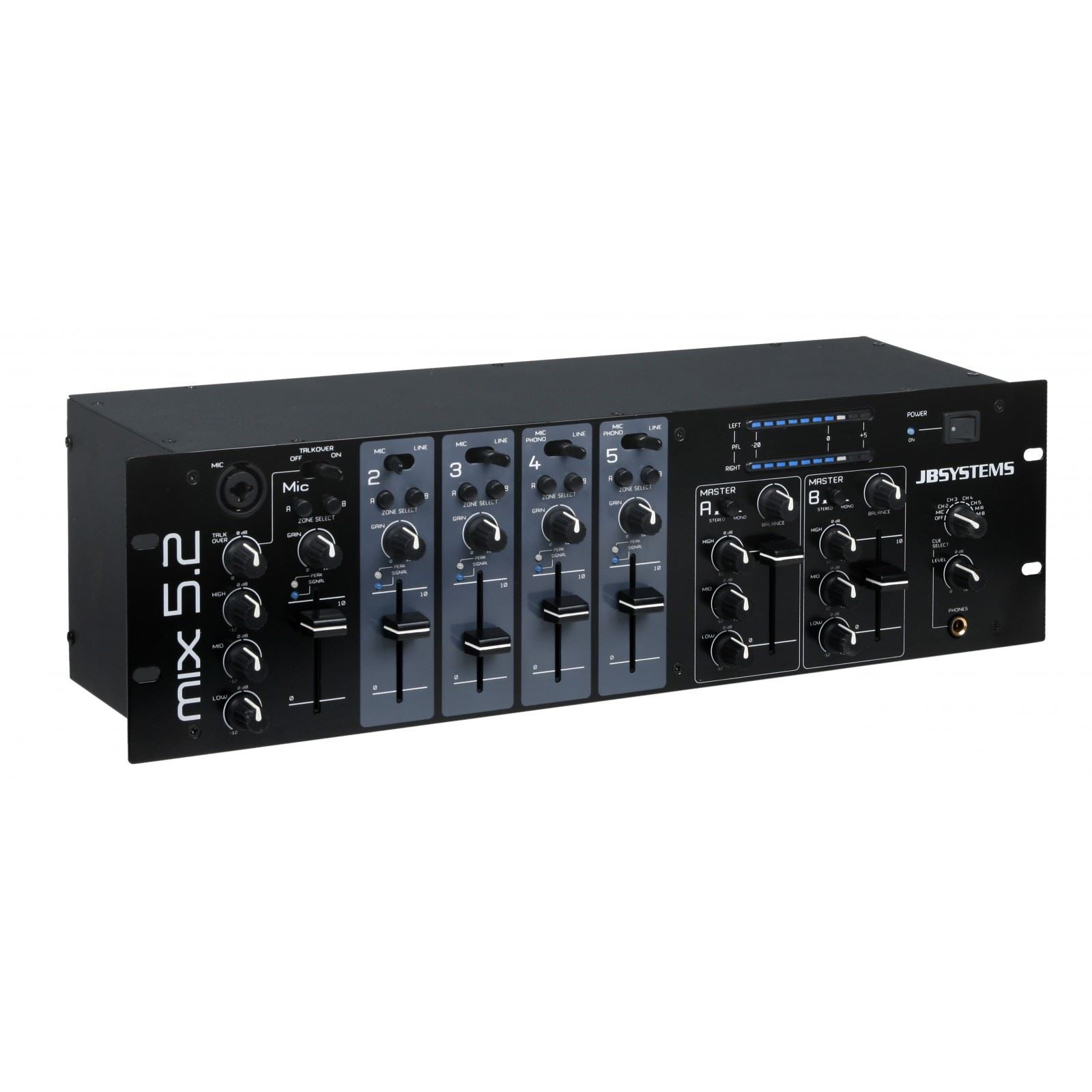

Jb Systems MIX 5.2 Rack 5ch Rack Mixer Dual Zone PA

Description:

This 5-channel mixer with dual independent zones is designed for versatile audio distribution in commercial and installation environments such as bars, clubs, venues, and multi-room systems. It allows flexible routing and control of multiple audio sources across two separate output zones.

Each zone features independent 3-band EQ, balance, volume control, and mono/stereo switching, with both balanced XLR and unbalanced RCA outputs. The mixer supports a wide range of inputs, including 5 balanced microphone inputs, 4 line inputs, and 2 phono inputs, making it suitable for DJs, background music, and live announcements.

A dedicated microphone channel includes adjustable talkover and 3-band EQ, with full zone assignment capability. Each channel can be routed to Zone A, Zone B, or both, with individual gain controls, 45mm faders, and LED indicators for signal presence and peak levels. Additional features such as PFL monitoring, headphone output, and dual independent record outputs ensure professional-level control and monitoring.

Features:

Type: 5-Channel Mixer with Dual Zone Output
Zones: 2 Independent Output Zones

Inputs: 5 x Mic (Balanced), 4 x Line, 2 x Phono

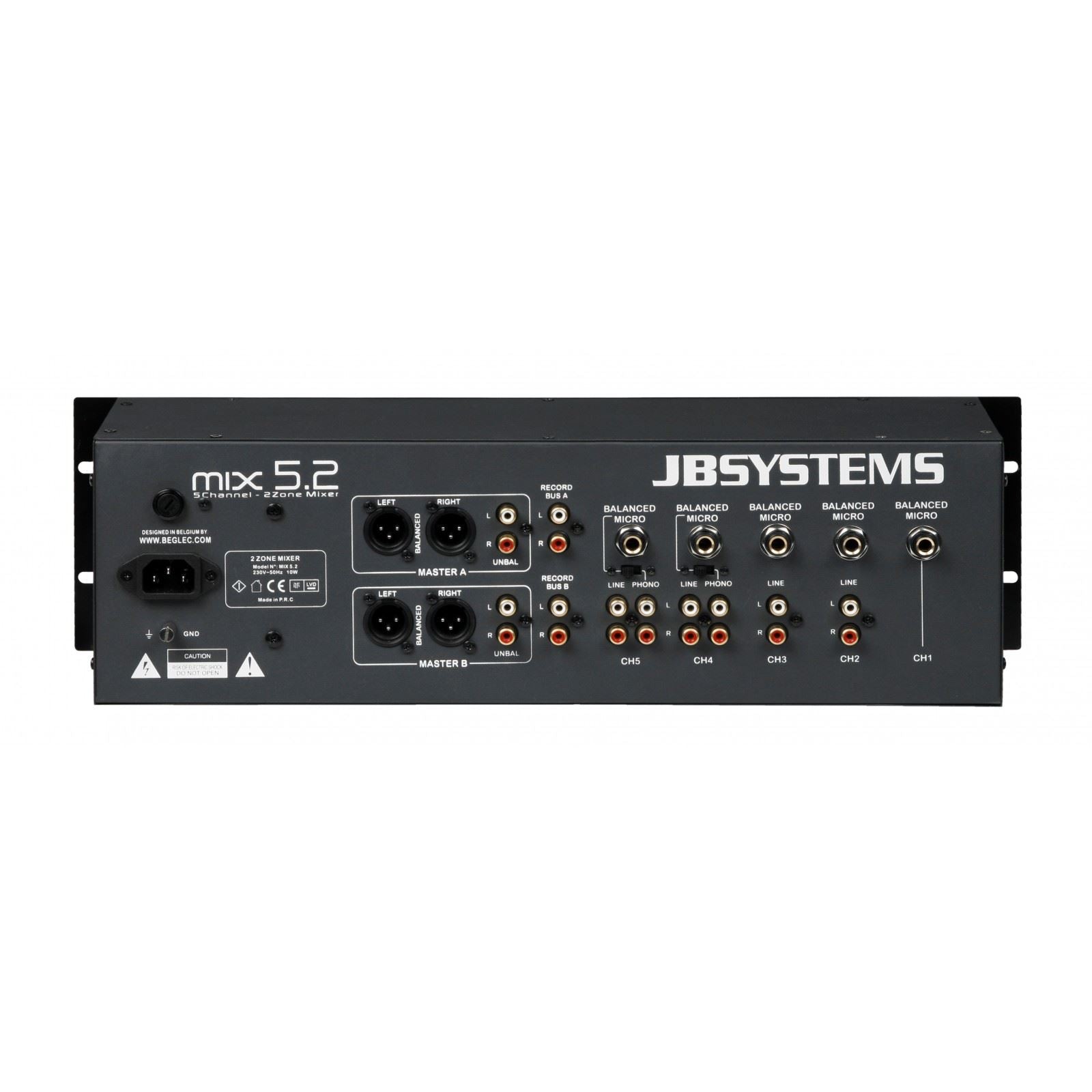

Outputs: Balanced XLR + Unbalanced RCA per Zone

Channel Control: Gain + 45mm Faders on All Channels
Routing: Assignable to Zone A, Zone B, or Both

Microphone Channel: 3-Band EQ + Adjustable Talkover + Zone Assignable

EQ: 3-Band Tone Control per Zone
Monitoring: PFL with Rotary Selector + Headphone Output (6.3mm Jack)

Indicators: Signal Present and Peak LEDs per Channel

Recording: 2 Independent Record Outputs (Excluding Mic/Talkover)

Mounting: 19" Rack Mountable (3U)

Application: Multi-zone audio distribution, DJ and installation use

Specifications:

Frequency Response: 20Hz – 20kHz
Signal-to-Noise Ratio: >85dB

Dimensions: 483 x 134 x 130mm
Weight: 4.5kg

Power Supply: AC 240V, 50Hz
Colour: Black
