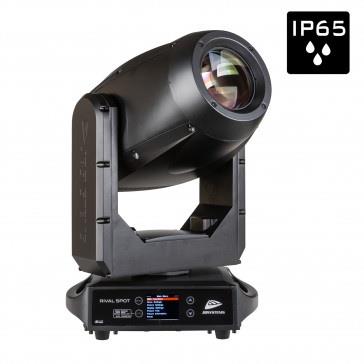

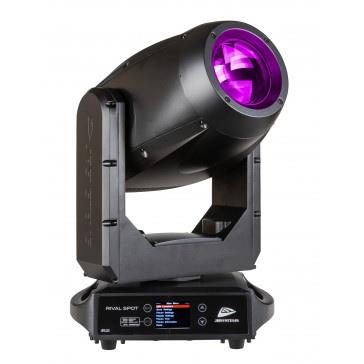

JB Systems RIVAL Spot IP65 Outdoor LED Moving Head 300W

Description

The JB SYSTEMS RIVAL Spot is a compact and powerful IP65-rated moving head spot fixture designed for outdoor stage productions, touring, live events, and entertainment installations requiring versatile beam, spot, and wash effects. As the next evolution of the popular CHALLENGER BSW, the RIVAL Spot features an upgraded 300W LED engine, motorized zoom, motorized focus, and integrated wireless DMX capability in a lightweight weather-protected housing.

Its flexible motorized zoom range from 4.5° to 39° allows the fixture to produce both tight aerial beams and wider projection effects, while dual gobo wheels, colour wheel, rotating prism, and frost filter provide extensive creative possibilities for live productions and programmed shows. The fixture also includes smooth dimming, multiple strobe effects, and standalone or master/slave operation for flexible deployment in professional lighting systems.

Built-in wireless DMX compatibility with WDMX G4 systems simplifies cable-free operation, while the IP65-rated housing ensures reliable use in temporary outdoor environments. With both 3-pin and 5-pin DMX connectivity, included omega brackets, and colour LCD display navigation, the RIVAL Spot is well suited to rental, touring, and fixed installation applications.

Features

300W LED moving head spot fixture
IP65-rated housing for temporary outdoor use
Motorized zoom range from 4.5° to 39°
DMX-controlled motorized focus
Motorized frost filter for wash effects
3-facet rotating prism
10-colour wheel plus open
Separate fixed gobo wheel with 8 gobos plus open
Separate rotating gobo wheel with 8 replaceable gobos plus open
Replaceable rotating gobos with 16mm outer diameter
Smooth 0–100% dimming
Multiple strobe effects
Standalone automatic and sound-active modes
Master/slave synchronisation
Built-in wireless DMX compatible with WDMX G4
DMX control with 5, 17, and 20-channel modes
Colour LCD display for easy setup and navigation
3-pin and 5-pin DMX connectivity
Supplied with omega brackets for mounting

Specifications

Brand : JB SYSTEMS
Product name : RIVAL Spot
Light source : 300W LED
Beam angle : 4.5° – 39.4°
Maximum lumen output : 4175 lm
Lux output : 32502 lux @ 5m (4.5° beam)
Colour temperature : 7800K
CRI : 71
Colour wheel : 10 colours + open
Fixed gobos : 8 + open
Rotating gobos : 8 replaceable + open
Rotating gobo size : 16mm outer diameter, 10mm max pattern
Prism : 3-facet rotating prism
Functions : Motorized focus, motorized zoom, motorized frost
Dimming : 0 – 100%
Control modes : Standalone sound, standalone automatic, DMX, master/slave
DMX channels : 5, 17, 20
Protocols : DMX, Wireless DMX
Wireless DMX : WDMX G4 compatible
Software upgradable : Yes
Display : LCD
Power supply : AC 100 – 240V, 50/60Hz
Power consumption : 320W
IP rating : IP65
Usage : Outdoor / temporary outdoor installation

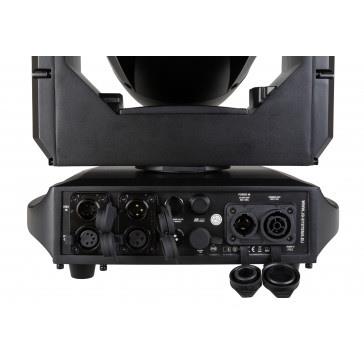

Connections input : 3-pin XLR, 5-pin XLR, Wireless DMX, RDM, PowerCON TRUE1 compatible
Connections output : 3-pin XLR, 5-pin XLR, Wireless DMX, RDM, PowerCON TRUE1 compatible
Mounting : Included omega brackets
Housing colour : Black

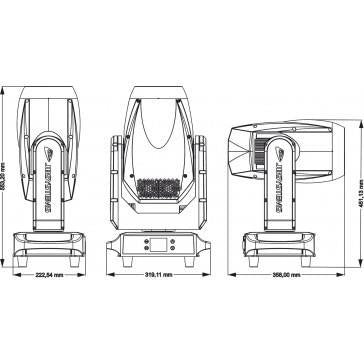

Dimensions : 55.3 x 22.2 x 31.9 cm
Weight : 15 kg
