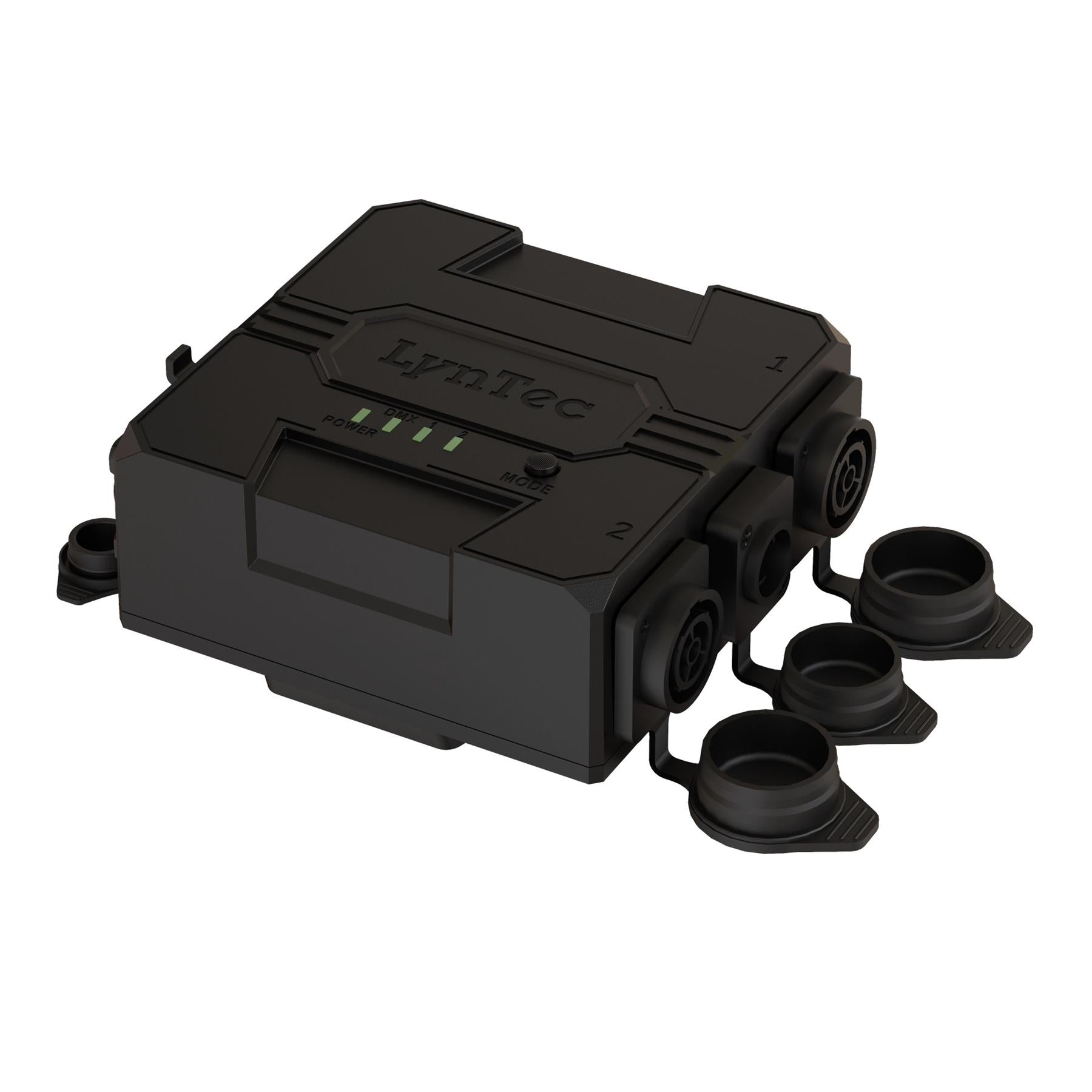

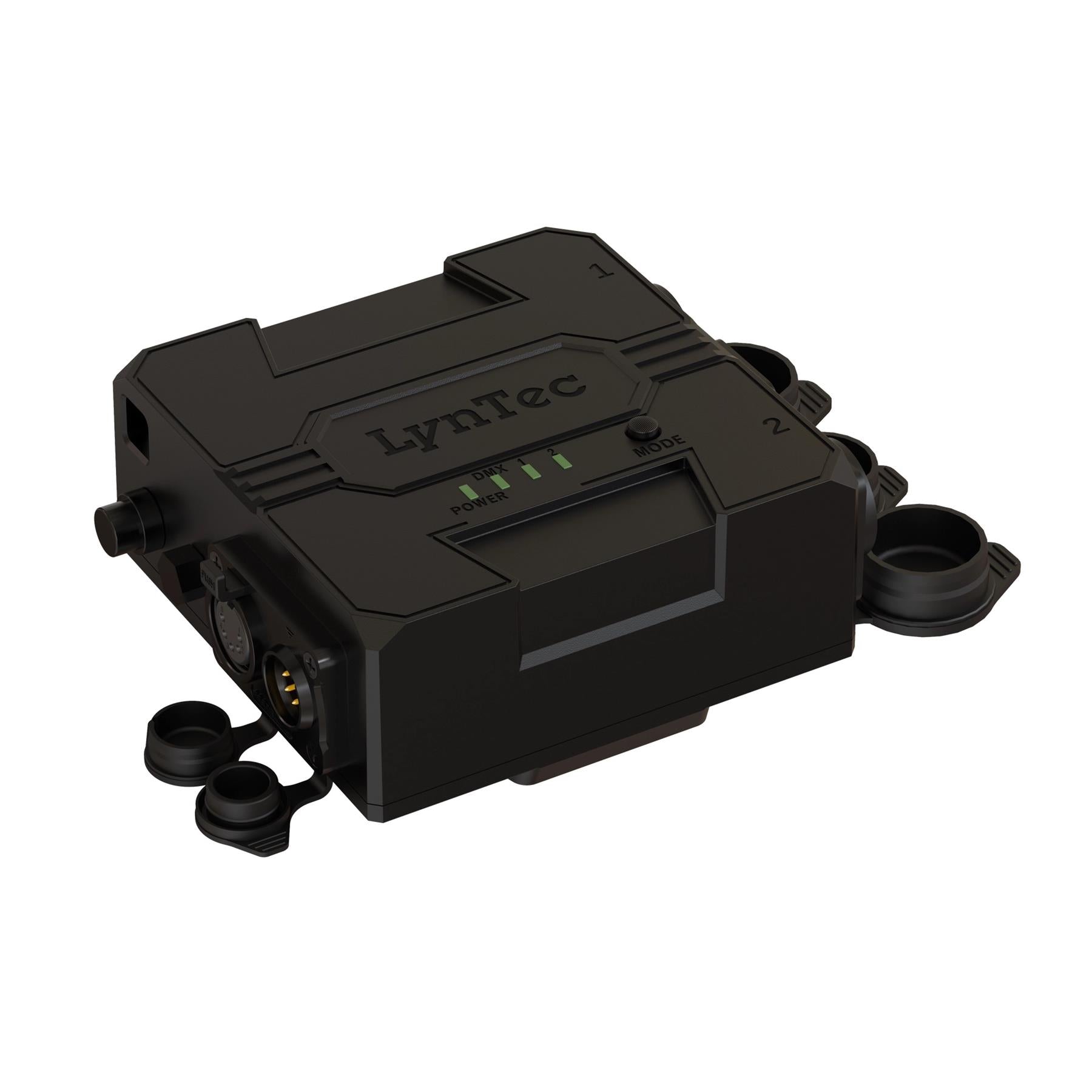

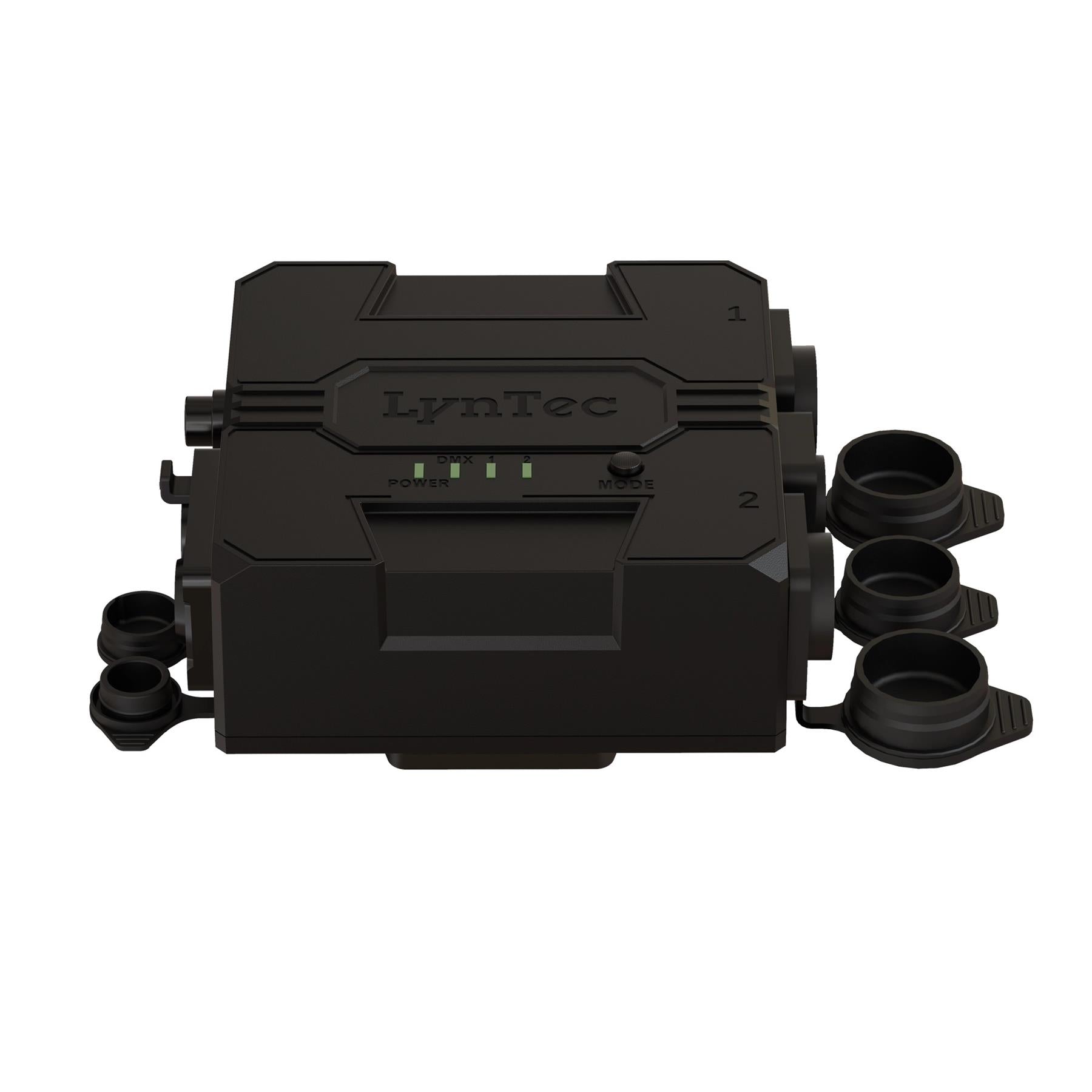

Lyntec DXM Dual Relay DMX Power Switch Pack

The Lyntec DXM Dual Relay is a compact, portable DMX-controlled power switching solution designed for entertainment, AV and architectural lighting applications. Featuring an IP65-rated enclosure, it provides reliable remote power control for lighting fixtures, projectors and other equipment in both indoor and outdoor environments.

With a single 20A input (16A EU) supplying two independently controlled relay outputs, the unit allows convenient power switching without the need to route equipment back to a central power rack. DMX512A and RDM compatibility ensures seamless integration with existing lighting control systems, providing remote switching and configuration.

Built for touring, temporary installations and outdoor events, the DXM Dual Relay features a rugged, lightweight enclosure with flexible mounting options for trussing, walls and scenery. Its convection-cooled design provides quiet operation, while M10 and M12 threaded mounting points allow secure positioning using compatible clamps (sold separately).

Features

Two independently controlled relay outputs from a single power input

20A input capacity (16A EU)

DMX512A and RDM compatible for remote switching and configuration

IP65-rated enclosure for indoor and outdoor applications

5-pin XLR DMX input and thru connections

Compact and lightweight design for portable applications

M10 and M12 threaded mounting points for flexible installation

Suitable for truss, wall mounting and stackable configurations

Convection cooling for silent operation

Ideal for touring, architectural lighting and AV installations

Specifications

Product : Lyntec DXM Dual Relay

Input Voltage : 100–240V AC, 50/60Hz (Auto-Ranging)

Input Service : 20A (16A EU)

Output Channels : 2

Output Control : Independent Mechanical Relay Switching

DMX Channels : 2

Control Protocols : DMX512A, RDM

DMX Input : 5-Pin XLR

DMX Output : 5-Pin XLR (Not Self-Terminating)

Resistive Relay Endurance : 100,000 Operations at 18A / 250V

Inductive Relay Endurance : 100,000 Operations at 1HP / 125V AC

Ballast Relay Endurance : 6,000 Operations at 20A / 277V AC

Electronic Ballast Endurance : 100,000 Operations at 30A / 277V AC

Enclosure : Textured Black Moulded Plastic

Mounting Options : Truss, Wall Mount and Stackable

Mounting Threads : M10 and M12

Cooling : Convection

IP Rating : IP65

Startup Temperature : -20°C to +45°C

Operating Temperature : -30°C to +45°C

Dimensions : 153 x 127 x 57mm

Weight : 0.5kg

Approvals : CE, MET, RoHS, FCC

Regulatory Compliance : UL 508, CSA C22.2 No. 14, cMETus

Warranty : 2 Years
