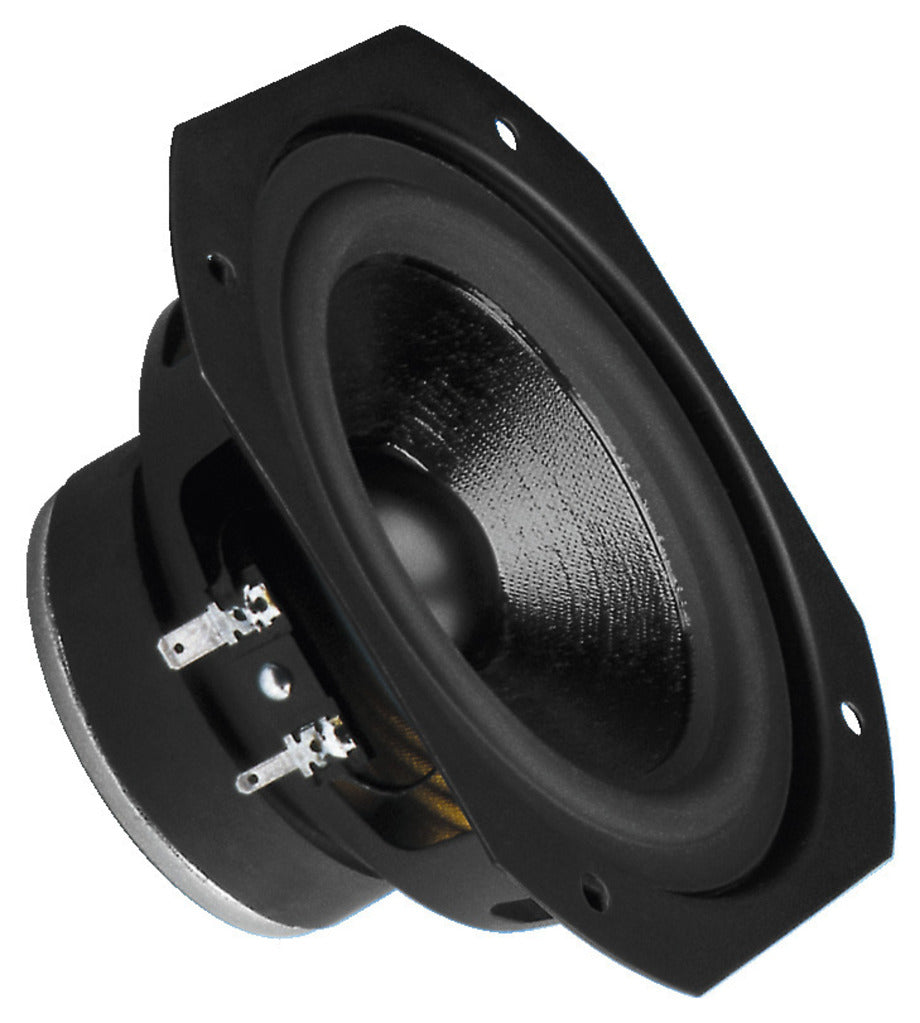

The SPH-130 is a high-quality 5.5" hi-fi bass-midrange driver designed for detailed and dynamic audio reproduction. Featuring a specially coated paper cone, optimised rubber surround, and an extended linear radiation range, this unit is ideal for 2-way systems and D'Appolito configurations. It also performs exceptionally well as a dedicated midrange driver in complex multi-way speaker designs.
Built with a lightweight aluminium voice coil former and a powerful magnet structure, the SPH-130 ensures precise transient response, low resonance, and high efficiency across its operating range. Whether used in custom speaker builds or high-fidelity upgrades, it offers professional-grade performance in a compact size.
Features
Paper cone with special damping coating
Optimised rubber surround for linear response
Wide dispersion with minimal resonance
Ideal for modern 2-way and D’Appolito systems
Can also be used as a midrange unit in 3+ way configurations
Sturdy aluminium voice coil former
High-efficiency magnetic structure
Technical Specifications
Impedance: 8 Ω
Power rating (RMS): 55 W
Peak power: 80 W

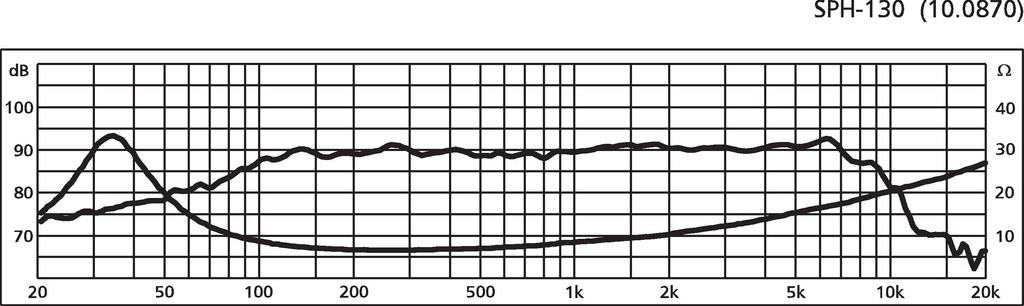

Frequency range: f3 – 6,000 Hz
Resonant frequency (fs): 38 Hz
Sound pressure level (SPL): 89 dB/W/m
Voice coil diameter: 25 mm
Voice coil inductance (Le): 0.5 mH
Voice coil former: Aluminium
Moving mass (Mms): 8.2 g
Mechanical Q (Qms): 1.91
Electrical Q (Qes): 0.39
Total Q (Qts): 0.32
Equivalent volume (Vas): 22 litres
Suspension compliance (Cms): 2.14 mm/N
Force factor (BxL): 5.40 Tm
Linear excursion (XMAX): ±2 mm
Effective cone area (Sd): 80 cm²
DC resistance (Re): 5.7 Ω
Magnet weight: 230 g
Magnet diameter: 72 mm

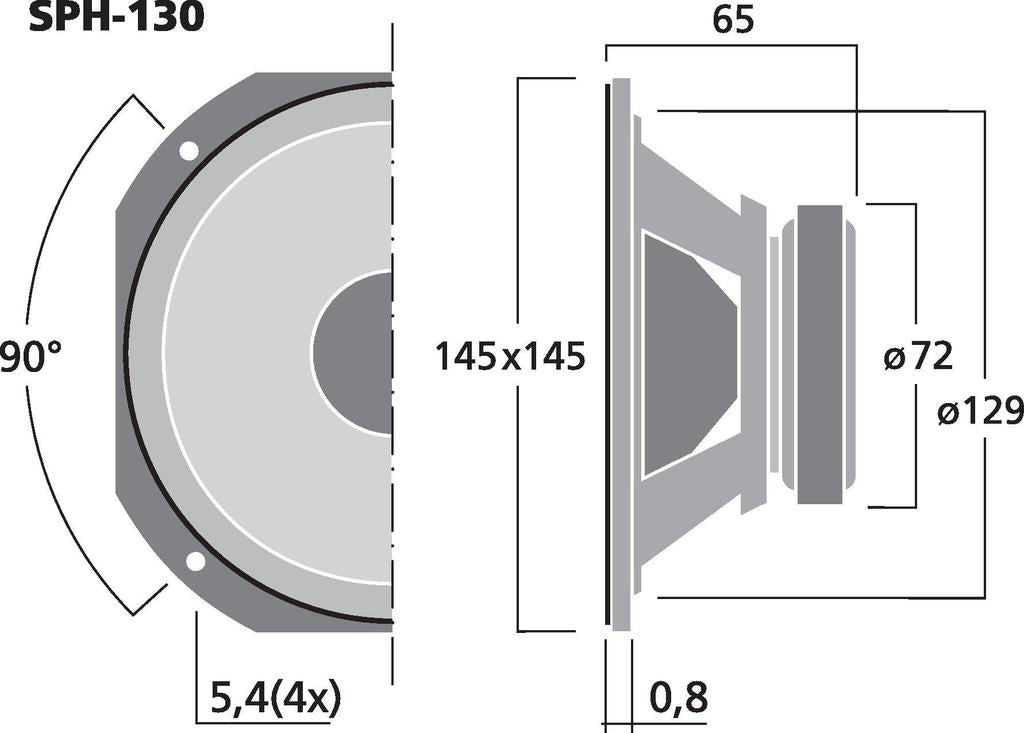

Dimensions & Weight
Mounting cutout: Ø 129 mm
Mounting depth: 64.2 mm
Overall dimensions (W x H x D): 145 x 145 x 65 mm
Net weight: 0.755 kg
Gross weight: 0.81 kg
Colour: Black
Operating temperature: 0–40 °C
Packaging dimensions: 150 x 80 x 150 mm
