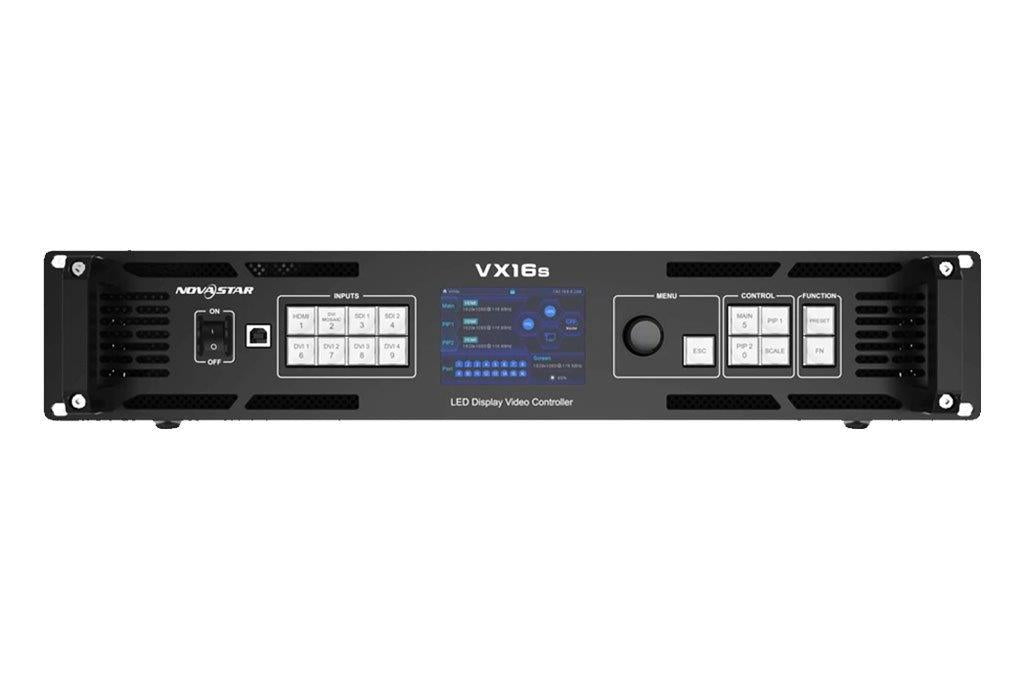

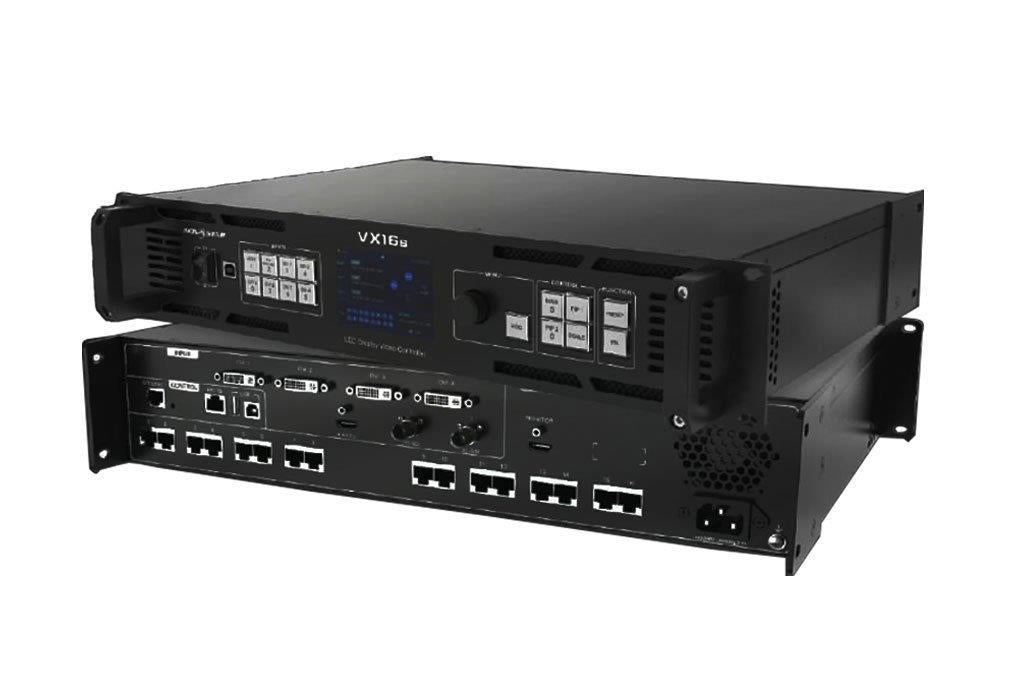

Novastar VX16S All in One Controller

Description:

The NovaStar VX16s is a powerful all-in-one LED display controller that combines video processing, control, and screen configuration into a single unit. Designed for professional environments, it delivers exceptional performance and flexibility for applications such as stage productions, conferences, exhibitions, high-end rental setups, and fine-pitch LED displays.

Supporting Ultra HD 4K×2K@60Hz processing and a maximum load capacity of up to 10,400,000 pixels, the VX16s provides outstanding image clarity and seamless display control. When paired with NovaStar’s V-Can software, it enables advanced image mosaic capabilities and simplifies system operation, making it highly efficient for complex LED setups.

Equipped with a wide range of industry-standard input connectors, including 3G-SDI, HDMI 2.0, and SL-DVI, the VX16s ensures compatibility with a variety of video sources. Its 16 Ethernet output ports allow for extensive screen coverage, while multi-layer support enables flexible content display with a 4K main layer and additional picture-in-picture (PIP) layers.

Advanced features such as DVI mosaic, custom image scaling, EDID management, and device backup functionality provide enhanced control and reliability, ensuring uninterrupted performance in critical applications.

Features:

Type: All-in-One LED Display Controller
Model: VX16s

Processing Capability:
Supports up to 4K×2K @ 60Hz
Maximum Load Capacity: 10,400,000 pixels

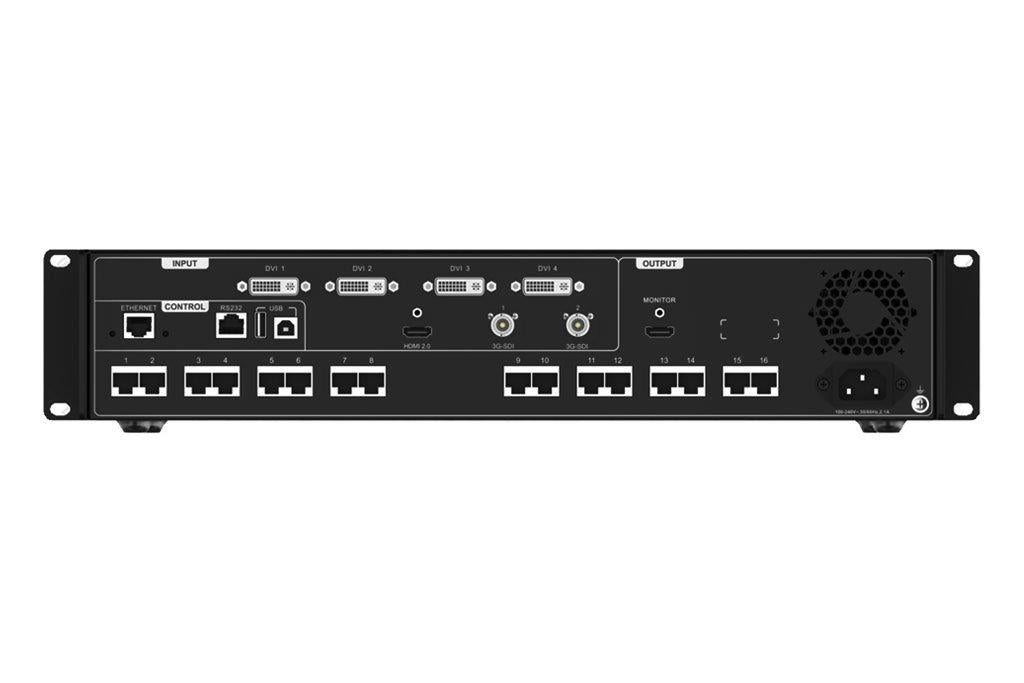

Inputs:
2 x 3G-SDI (interlaced and progressive supported)
1 x HDMI 2.0 (progressive only)
4 x SL-DVI

Outputs:
16 x Ethernet Ports

Layer Management:
1 x 4K×2K Main Layer
2 x 2K×1K PIP Layers
Adjustable Layer Priorities

Frame Rates:
Supports 23.98Hz up to 120Hz

Display Features:
DVI Mosaic (up to 4 inputs combined)
3D Display Support (reduced output capacity when enabled)
Custom Image Scaling (pixel-to-pixel, full screen, custom)

Control & Operation:
Compatible with NovaStar V-Can software
Up to 10 Presets
EDID Management (custom and standard supported)

Reliability:
Device Backup Mode for automatic failover

Application: Stage production, events, conferences, exhibitions, rental, LED installations
