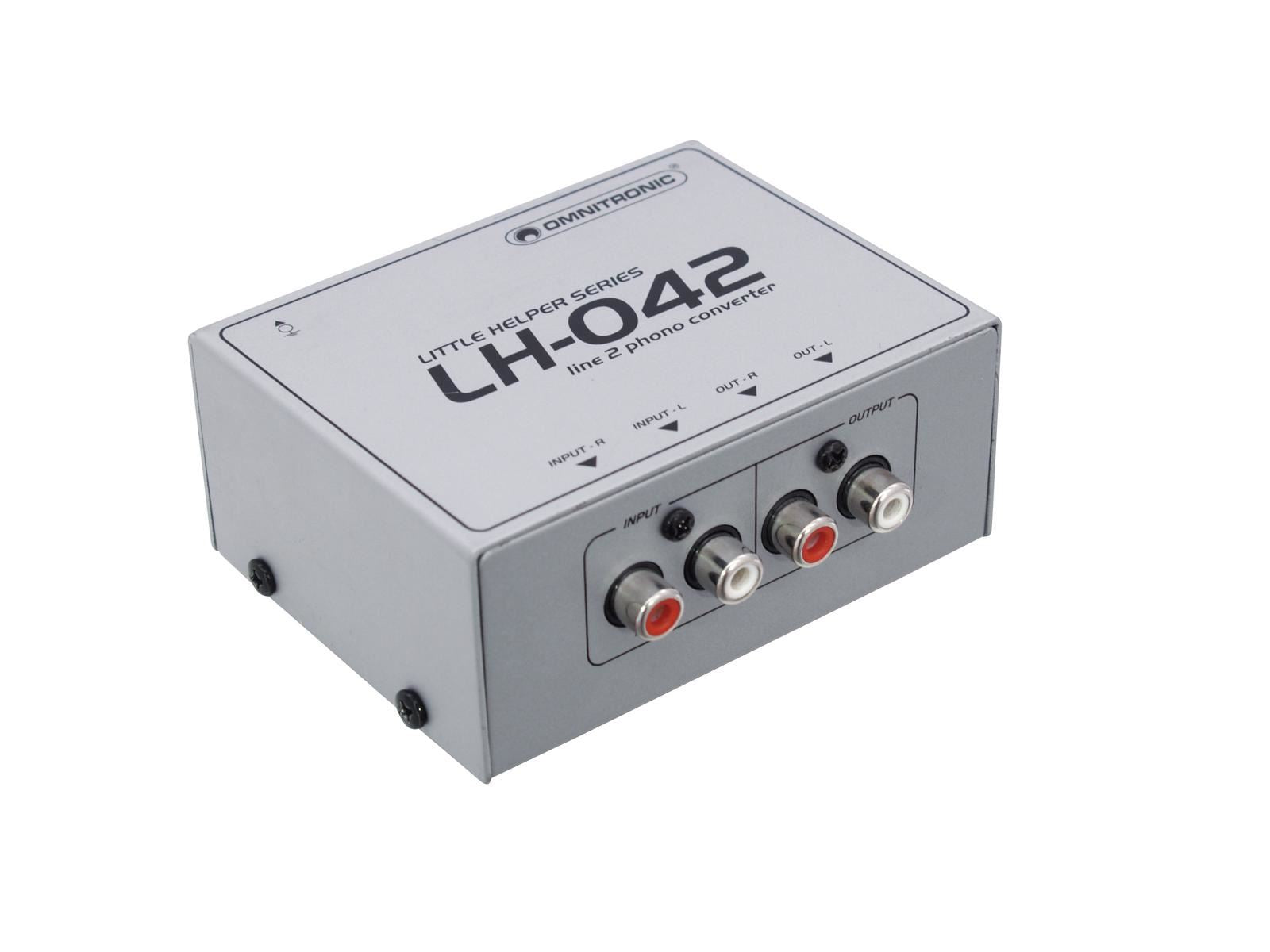

Omnitronic LH-042 Line/Phono Converter

Description

The LH-042 is a passive stereo line to phono converter designed to allow line-level audio sources to be connected to phono inputs on mixers, amplifiers, or recording equipment. It provides a practical solution when all line inputs are already in use, enabling devices such as CD players, MP3 players, or computers to be integrated into existing setups via a phono channel. With no external power required, it offers a simple and reliable way to expand input options.

Features

Passive stereo line to phono converter
Converts line-level signals to phono-level signals
Allows connection of CD, MP3, DVD, or PC audio sources to phono inputs
Ideal for DJs and installations where line inputs are limited
Ground terminal to reduce hum and interference
No external power supply or batteries required
Compact and robust metal housing
Suitable for mobile and fixed installations

Specifications

Frequency range: 10 Hz – 20 kHz
Signal-to-noise ratio: >100 dB
Input impedance: 10 kOhm
Output impedance: 470 Ohm
Gain: -46 dB

Connections

Input: 1 x stereo RCA (line level)
Output: 1 x stereo RCA (phono level)

Construction

Material: Metal
Colour: Silver

Dimensions and Weight

Dimensions (W x D x H): 98 x 92 x 40 mm
Weight: 0.22 kg
