PSSO DDA-2700 MK2 Amplifier 2ch 2000W

Description

This Class TD stereo PA amplifier delivers powerful, efficient performance in a compact 2U rack format, making it ideal for touring rigs, installations, and multi-way PA systems. With up to 2 x 1350 W RMS at 4 ohms, it provides strong, reliable output with excellent impulse stability. The integrated switch mode power supply reduces weight while maintaining high efficiency, and flexible operating modes allow it to adapt to stereo, parallel, or bridged configurations.

Features

Class TD stereo amplifier with high output power and efficiency
Integrated switch mode power supply for reduced weight and compact design
Selectable operating modes including stereo, parallel, and bridged
High impulse stability suitable for live sound and installation use
Built-in limiter and speaker switch-on delay for system protection
Two calibrated level controls for precise channel adjustment
Adjustable input sensitivity for system matching
LED VU meters per channel for signal monitoring
Clip and protect LEDs for real-time status indication
Electronically balanced XLR inputs with XLR link outputs
Lockable speaker outputs plus additional screw terminal connections
Efficient front-to-rear airflow cooling system
Temperature-controlled fan cooling for reliable operation

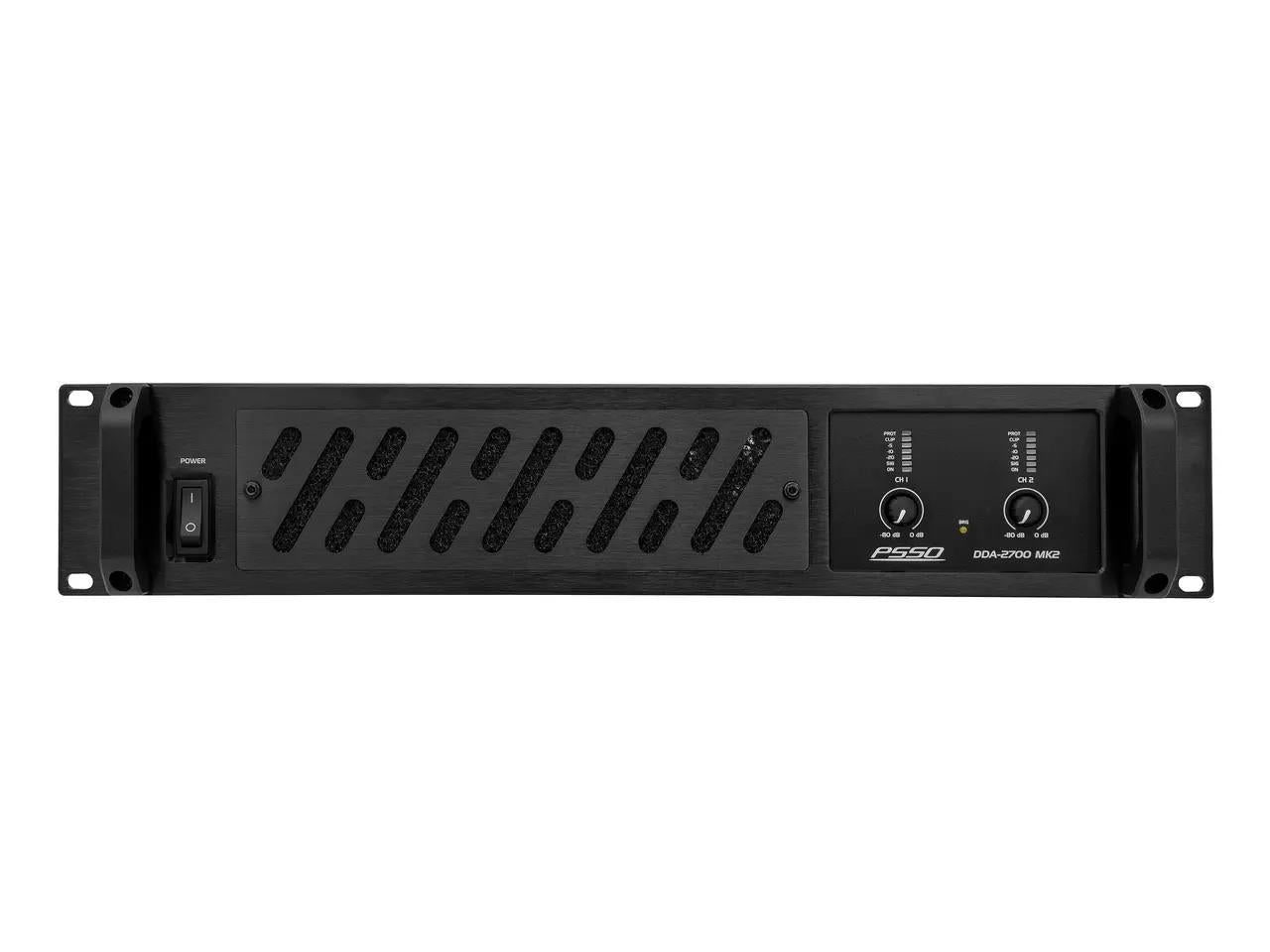

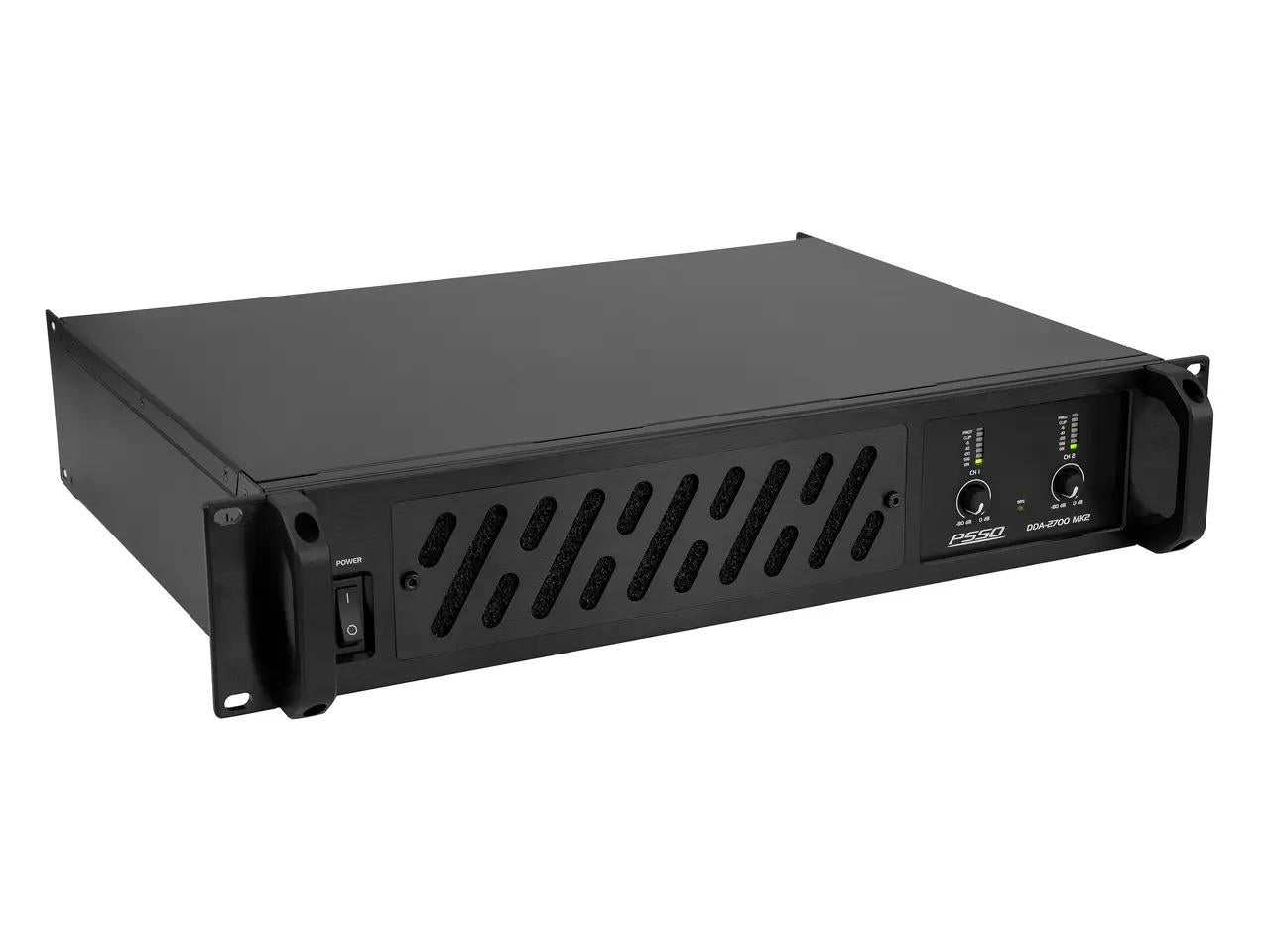

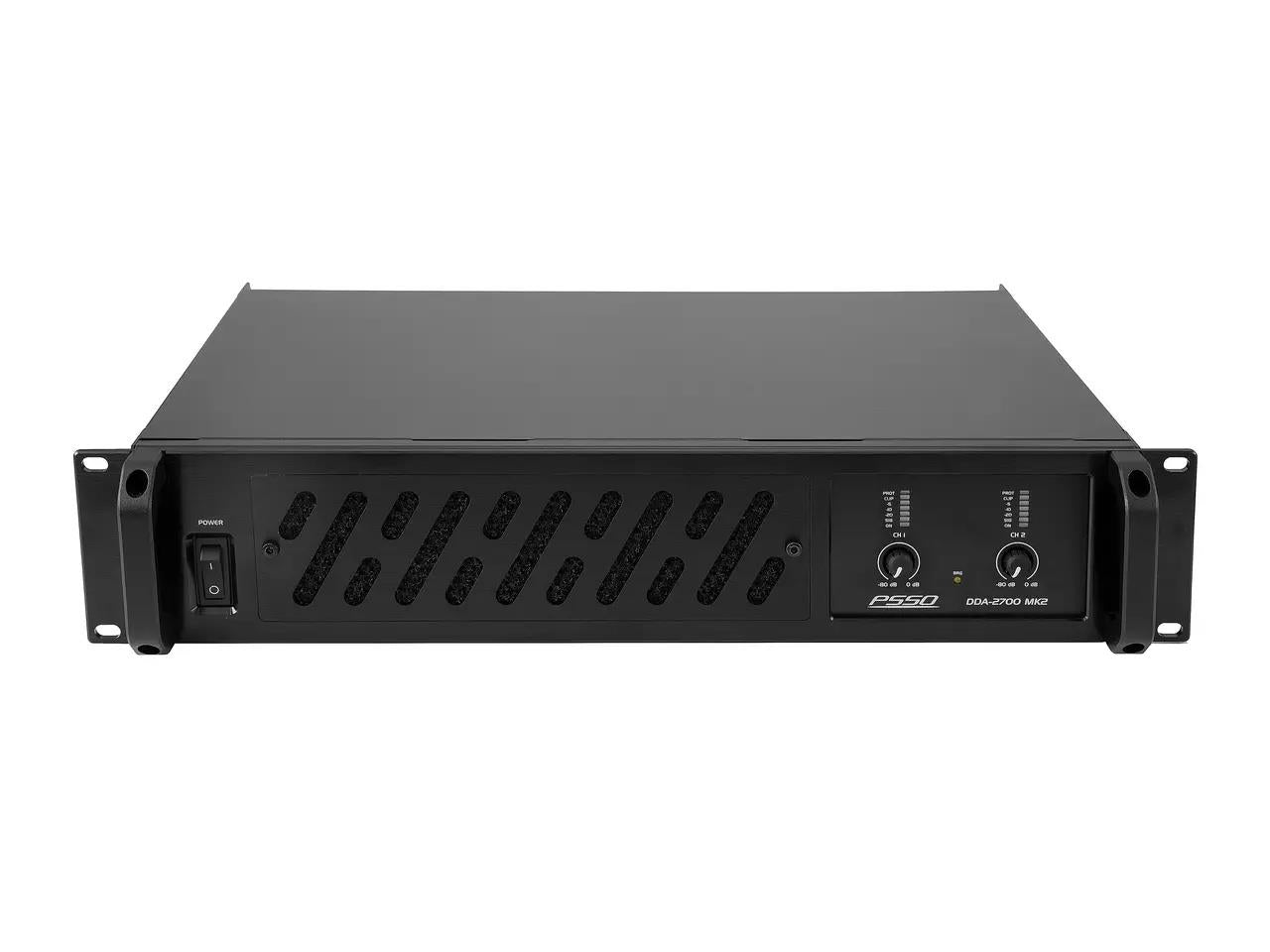

Rugged steel chassis with aluminium front panel
Standard 19-inch rack mountable design in 2U format

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 740 W (1/8 power)
IP rating: IP20
Protection class: Class I
Output power: 2 x 1350 W RMS at 4 ohms
Output power: 2 x 1000 W RMS at 8 ohms
Bridged output power: 1 x 2600 W RMS at 8 ohms
Frequency response: 20 Hz – 20 kHz
Signal-to-noise ratio: >100 dB
Total harmonic distortion: <0.05% at 1 kHz
Gain: 32 dB, 36 dB, 41 dB selectable
Cooling: 2 temperature-controlled fans with front-to-rear airflow
Slew rate: >15 V/µs
Damping factor: >400
Crosstalk: >70 dB
Input sensitivity: 0.775 V, 1.4 V, 2.2 V selectable
Maximum input level: +20 dBu / +9 V

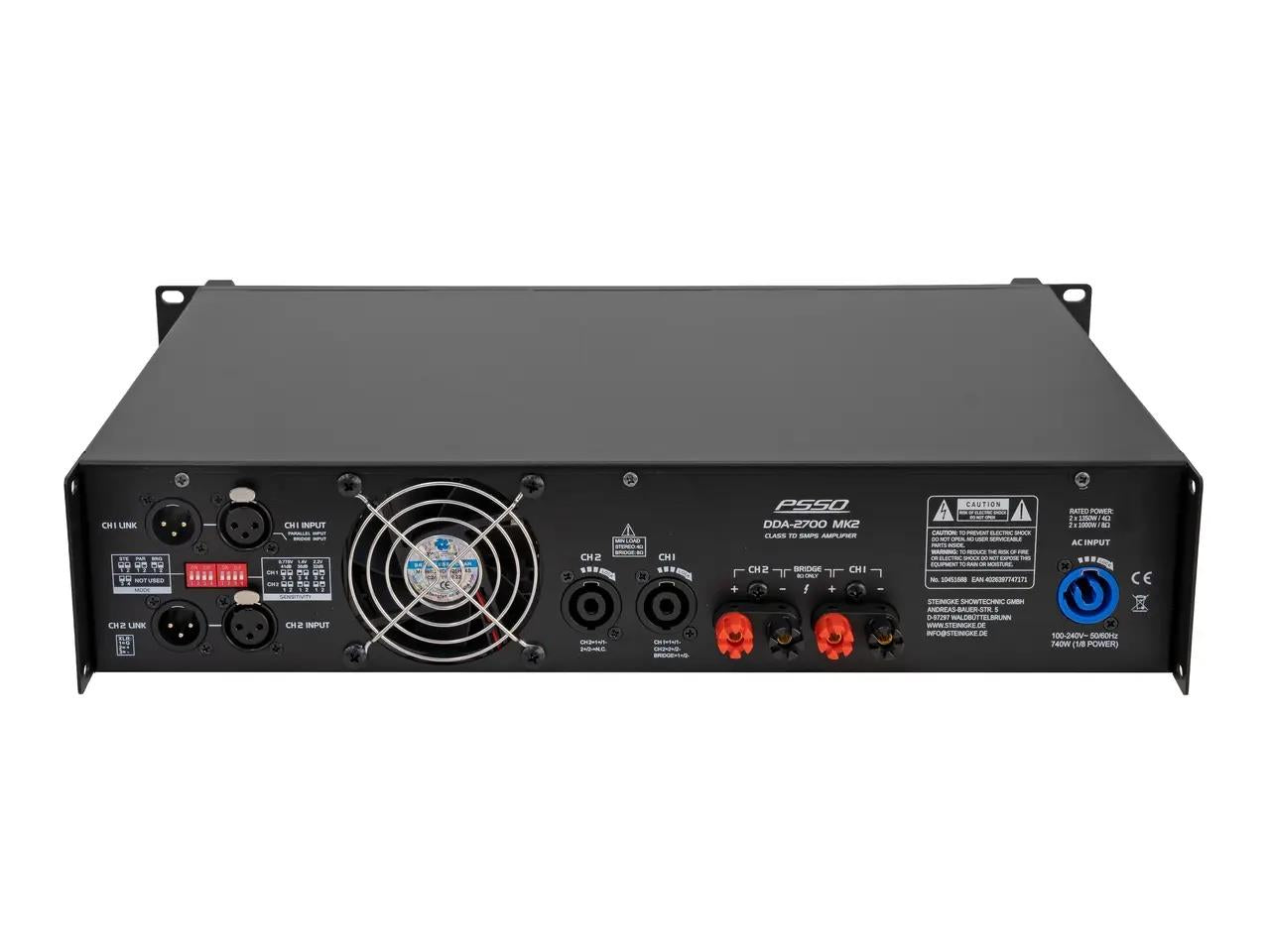

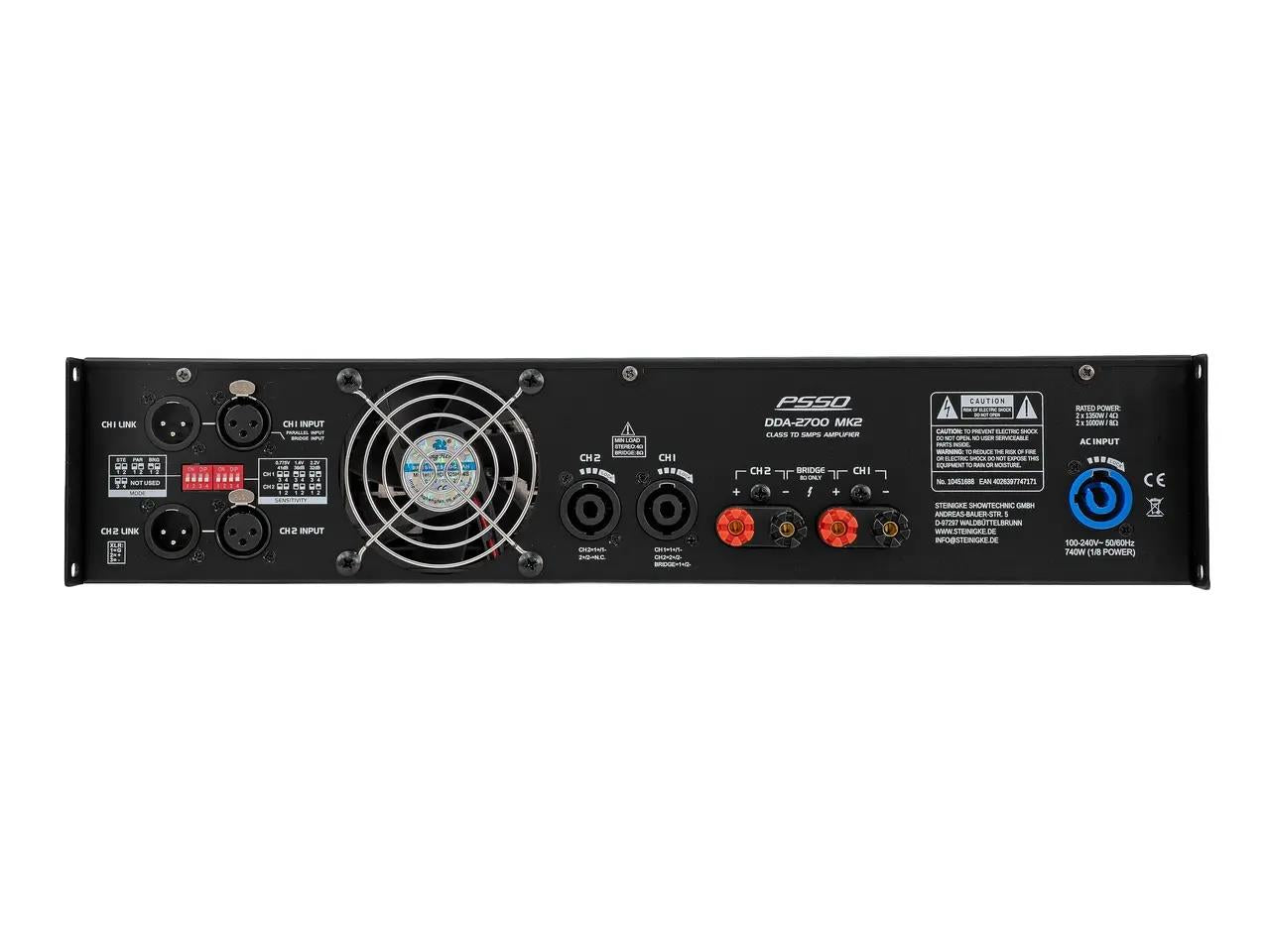

Inputs: 2 x 3-pin XLR (female)
Outputs: 2 x 3-pin XLR (male) link outputs
Speaker outputs: 2 x locking speaker connectors and screw terminals
Controls: Power switch, per-channel level controls, input sensitivity switch, mode selector
Protection circuits: DC, short-circuit, limiter, soft start, thermal, VHF, overload
Indicators: Power, signal, level, clip, protect, bridged
Rack format: 19-inch, 2U
Mounting depth: 33.8 cm
Dimensions (W x D x H): 483 x 340 x 89 mm
Weight: 6.80 kg
