Q Audio Venue Sound QAMP3204 Installation Mixer Amplifier 320W Bluetooth, Media Player

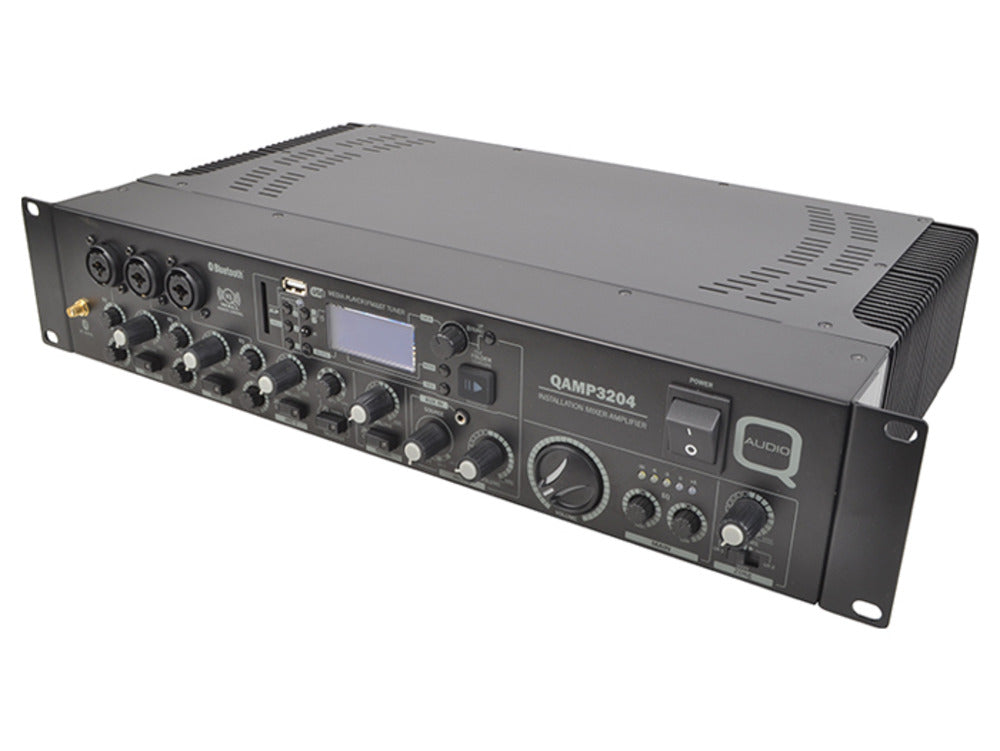

The QAMP3204 from Venue Sound is a powerful and feature-rich 2U rackmount mixer amplifier designed for professional multi-zone audio installations. Offering 320 watts of output power (2 x 100W @ 8Ω or 2 x 160W @ 4Ω RMS), it is perfectly suited for venues such as restaurants, bars, gyms, retail environments, and schools. This versatile unit combines a stereo amplifier, full-featured mixer, Bluetooth receiver, FM tuner, and media player with USB/SD support—all housed in a compact, road-ready chassis. The QAMP3204 includes an onboard jingle player for custom announcements, phantom-powered microphone inputs, and flexible routing options to cover both single- and dual-zone applications.

Features:
320W stereo installation amplifier with 2 x 100W @ 8Ω or 2 x 160W @ 4Ω
Integrated media player with support for MP3 via USB/SD (up to 16GB, 2000 tracks)
Bluetooth receiver, FM tuner with RDS station info, and large LCD display
Front panel 3.5mm AUX input and three rear line inputs with gain control
Three microphone inputs with phantom power, EQ, and isolation transformer on Mic 1
Adjustable auto talk-over function for voice-over-music scenarios
Built-in jingle player for up to three custom announcements (triggered or scheduled)
Chime generator with adjustable volume, external trigger, and user-loadable sound
Two amplifier blocks configurable for stereo, mono master, or mono zone output
Internal 80Hz HPF selectable per amp block for background speaker protection
Dedicated zone output with separate volume control and input source assignment
5-LED output meter and 2-band EQ on master section
Rear panel level limiting and Phoenix-compatible speaker connections
Emergency priority input and output mute contact
Supports remote volume control via optional QWALL panel
Silent, temperature-controlled fan cooling with linear power supply and toroidal transformer
Robust 2U metal rack case with detachable 19" rack ears

Specifications:
Power Output: 2 x 100W @ 8Ω / 2 x 160W @ 4Ω RMS
Total Power: 320W
Frequency Response: 20 Hz – 20 kHz
THD: < 0.05%
S/N Ratio: > 82 dBu (unweighted, 22Hz–22kHz)
Cross Talk: > 65 dB
Inputs: 3 x Mic, 3 x Line, 1 x 3.5mm AUX (front), USB/SD, Bluetooth, FM tuner
Outputs: Binding post speaker outputs, XLR link, stereo Xover out, MOH out
Controls: Volume, 2-band EQ, polarity, low-pass filter, gain, media/jingle/chime settings
Cooling: Temperature-controlled fan
Power Supply: 115/230V AC, 50/60 Hz
Max Power Consumption: 350W
Mounting: 2U 19" rack-mountable (ears detachable)
Dimensions (WxHxD): 483 x 88.5 x 228 mm
Weight: 8.85 kg
