QTX QR12PA Portable PA Speakers with TWS + UHF Wireless Microphone

Description

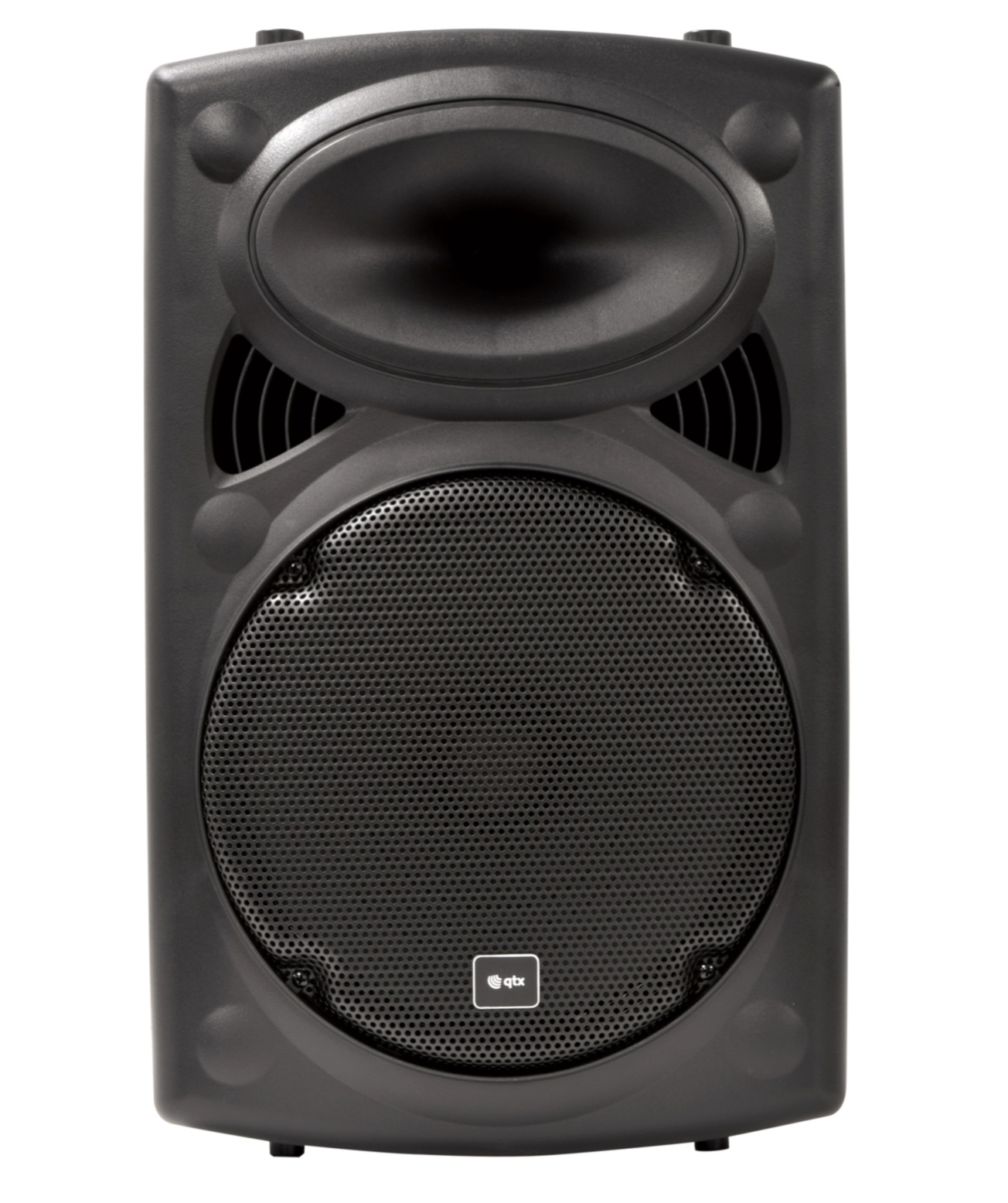

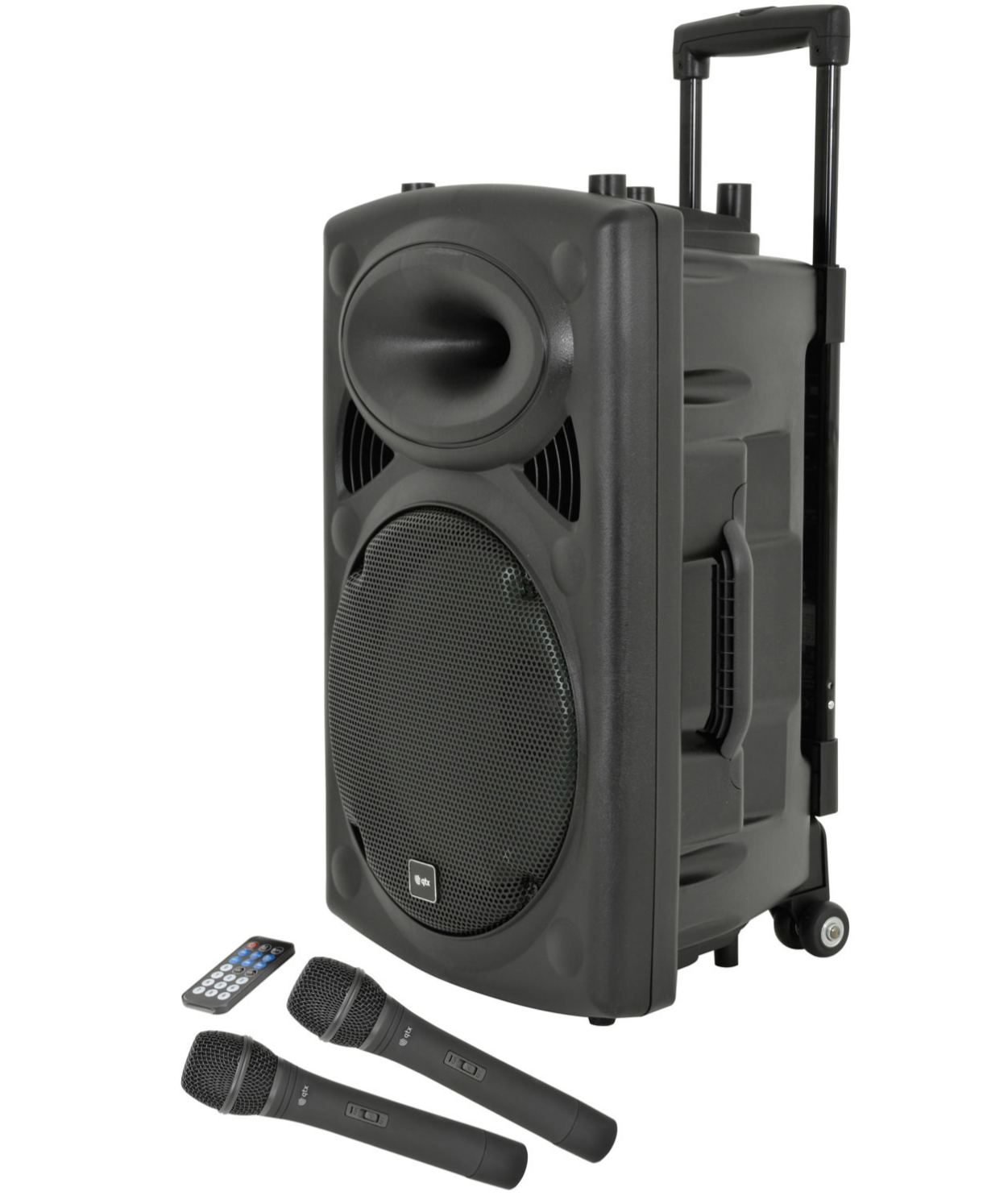

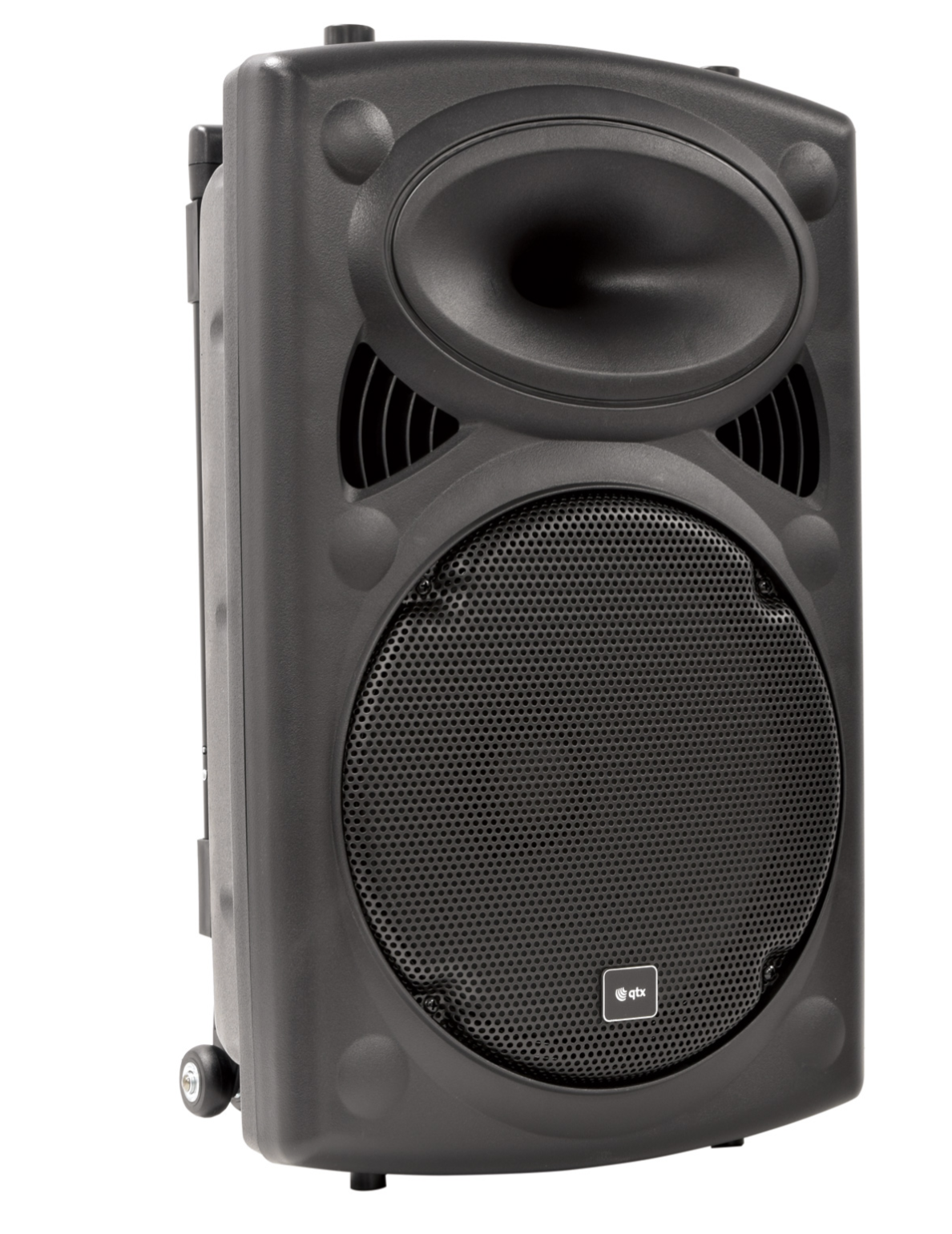

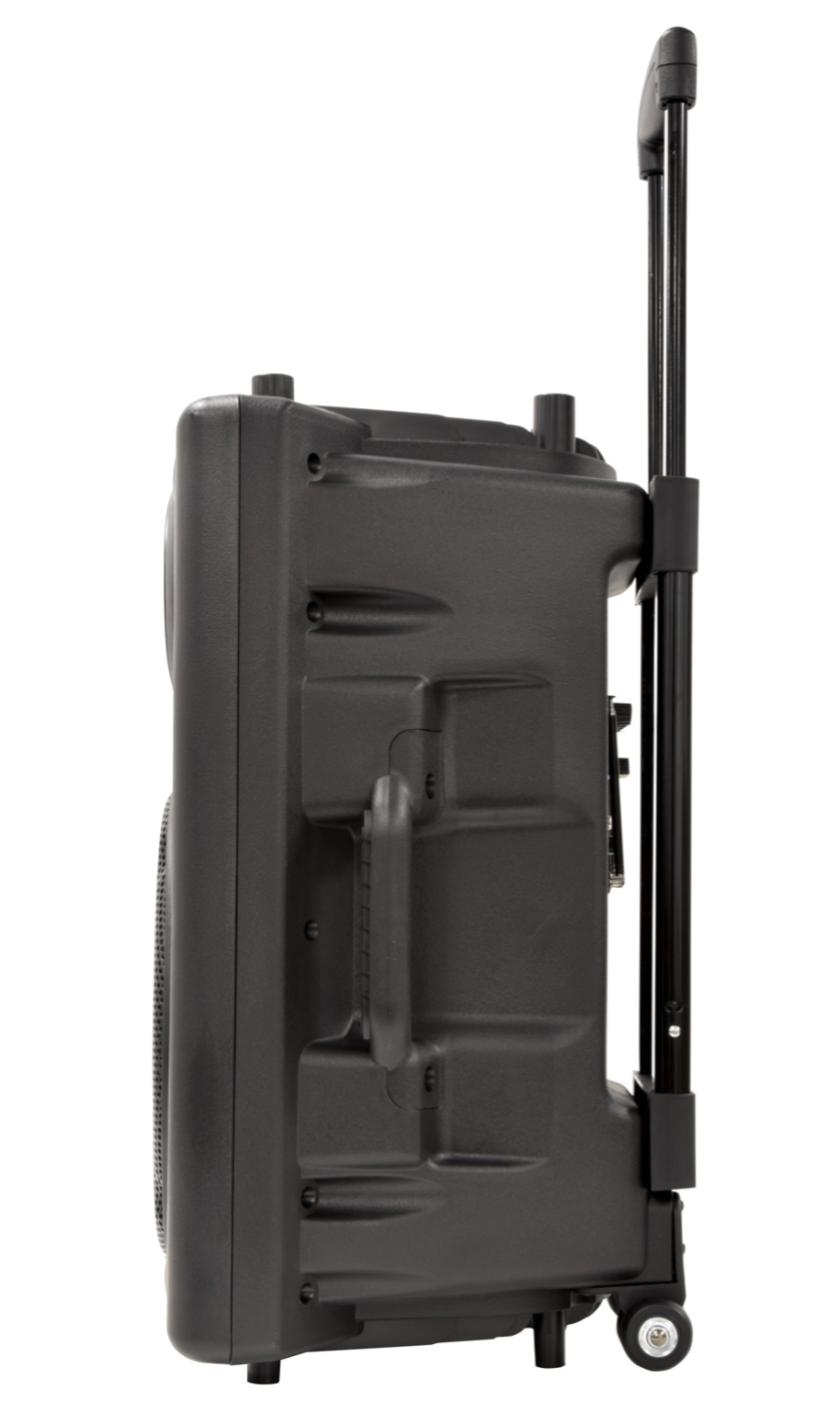

Compact portable PA units based on the QR speaker cabinet. They feature a built-in amplifier that can operate from mains power or an internal rechargeable battery, driving a main speaker and a compression-driven horn. One or two handheld UHF wireless microphones are supplied, with the receiver built into the rear mixer/amplifier section. In addition, there are two wired microphone inputs, an auxiliary line input, and an integrated USB/SD/FM media player with recording function. A Bluetooth receiver is built into the media player, allowing wireless audio playback from a smartphone or tablet, with TWS pairing available to link two QRPA units as a Bluetooth stereo pair. A retractable trolley handle and rear wheels provide easy portability.

UHF handheld microphones are included, with an echo effect available for microphones. The internal audio player includes a recording feature and remote control. The system supports mains or rechargeable battery operation and includes an integral 35 mm pole mount. A built-in trolley facility is provided, along with a switchable VCV microphone override function and TWS wireless pairing. Optional UHF neckband microphones are available under part numbers 178.895UK and 178.896UK.

The power supply supports 220–240 V AC at 50 Hz via IEC connection, 12–15 V DC at 3 A, or internal battery operation. Carrier frequencies are 863.8 MHz and 864.8 MHz. Amplifier output is 50 W + 50 W maximum. The main driver is a 300 mm (12 inch) unit. Dimensions are 570 x 350 x 310 mm, and weight is 14.0 kg. Battery life is up to 8 hours.

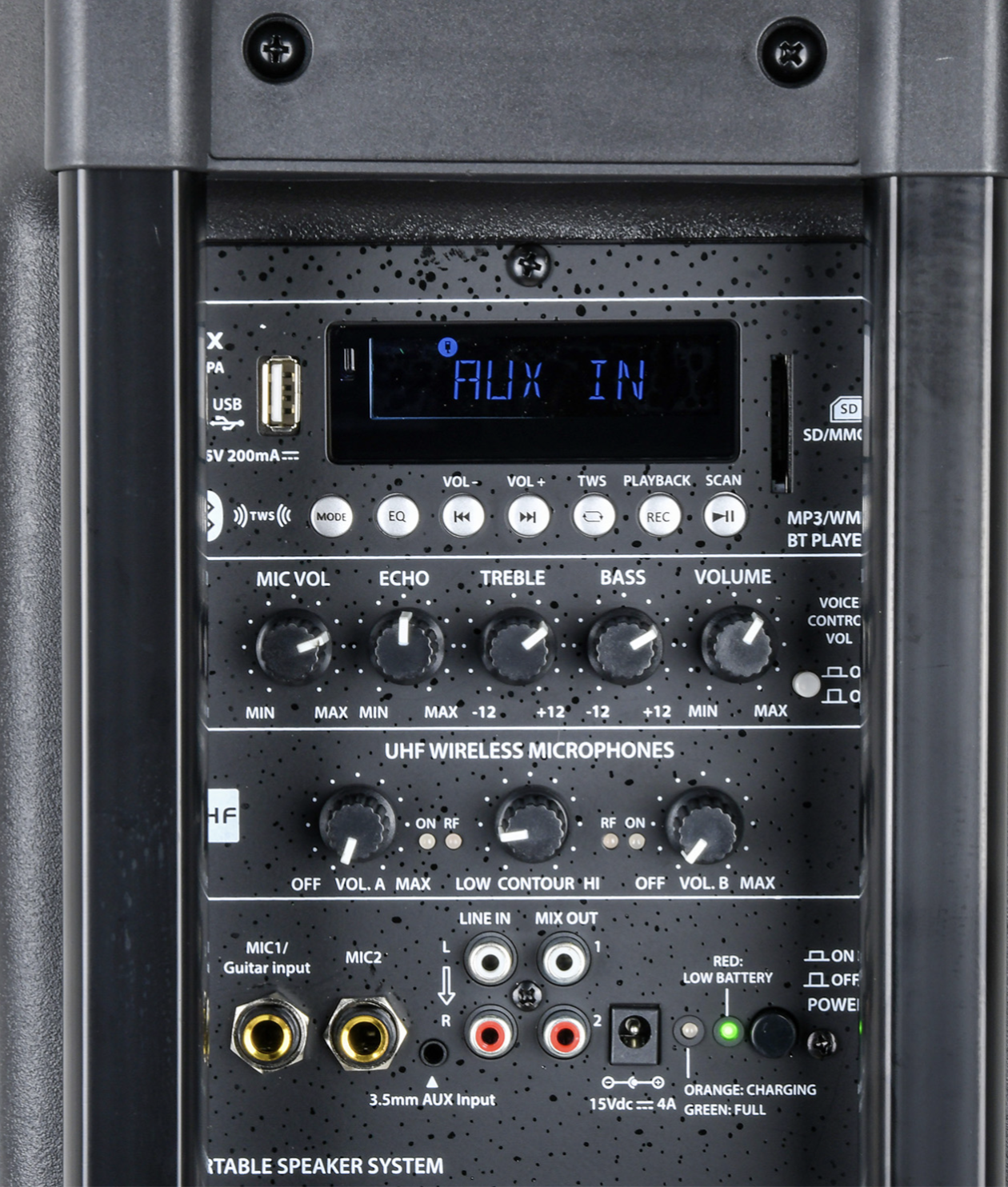

Controls include MIC 1/guitar, MIC 2, echo, bass, treble, master volume, UHF microphone volume, and VCV. Inputs include MIC 1/guitar and MIC 2 on 6.3 mm jack, line input via left and right RCA, and an AUX input on 3.5 mm stereo jack.
