QTX QR15PA TWS Portable PA Speaker with TWS + UHF Wireless Microphones

Description

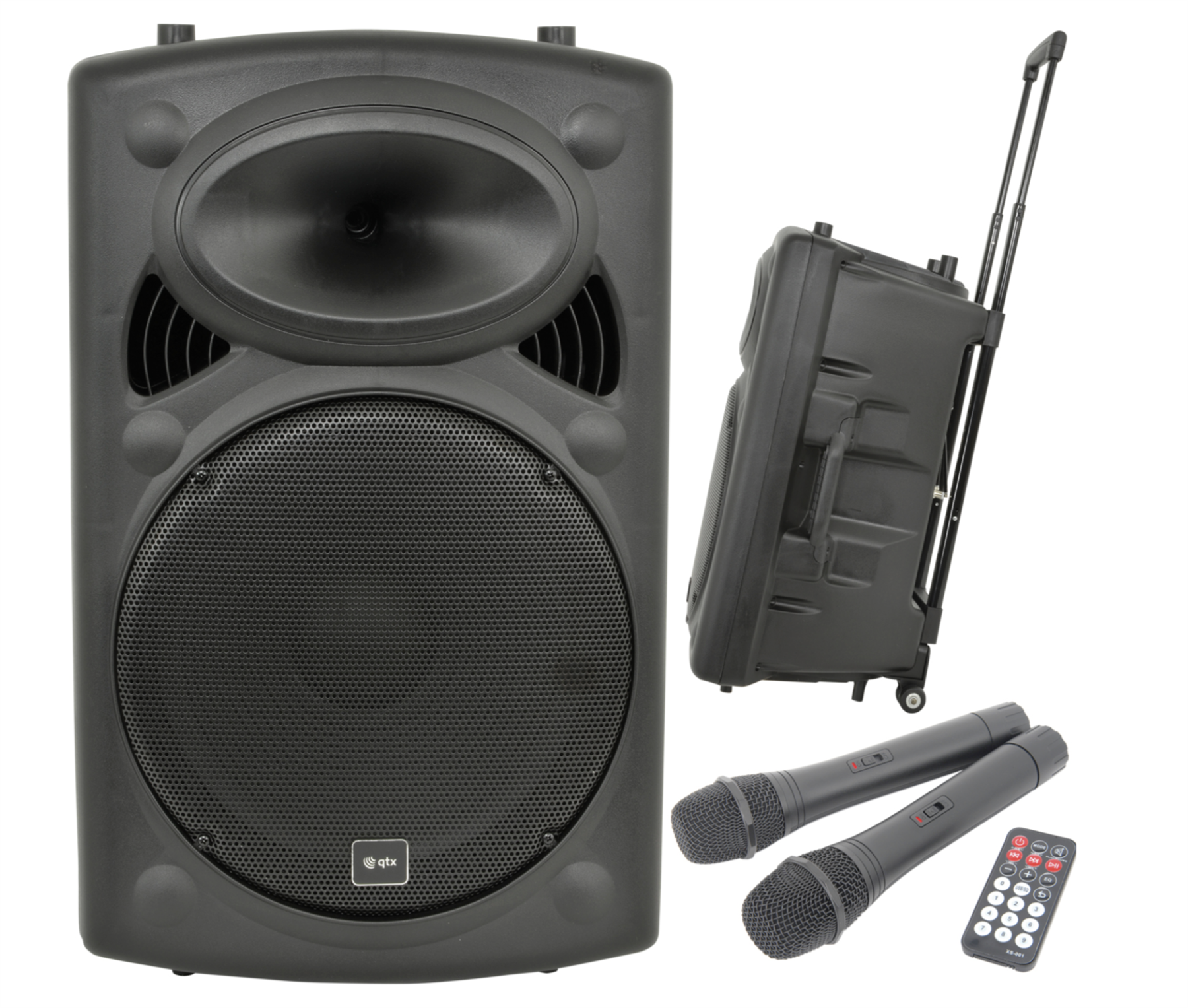

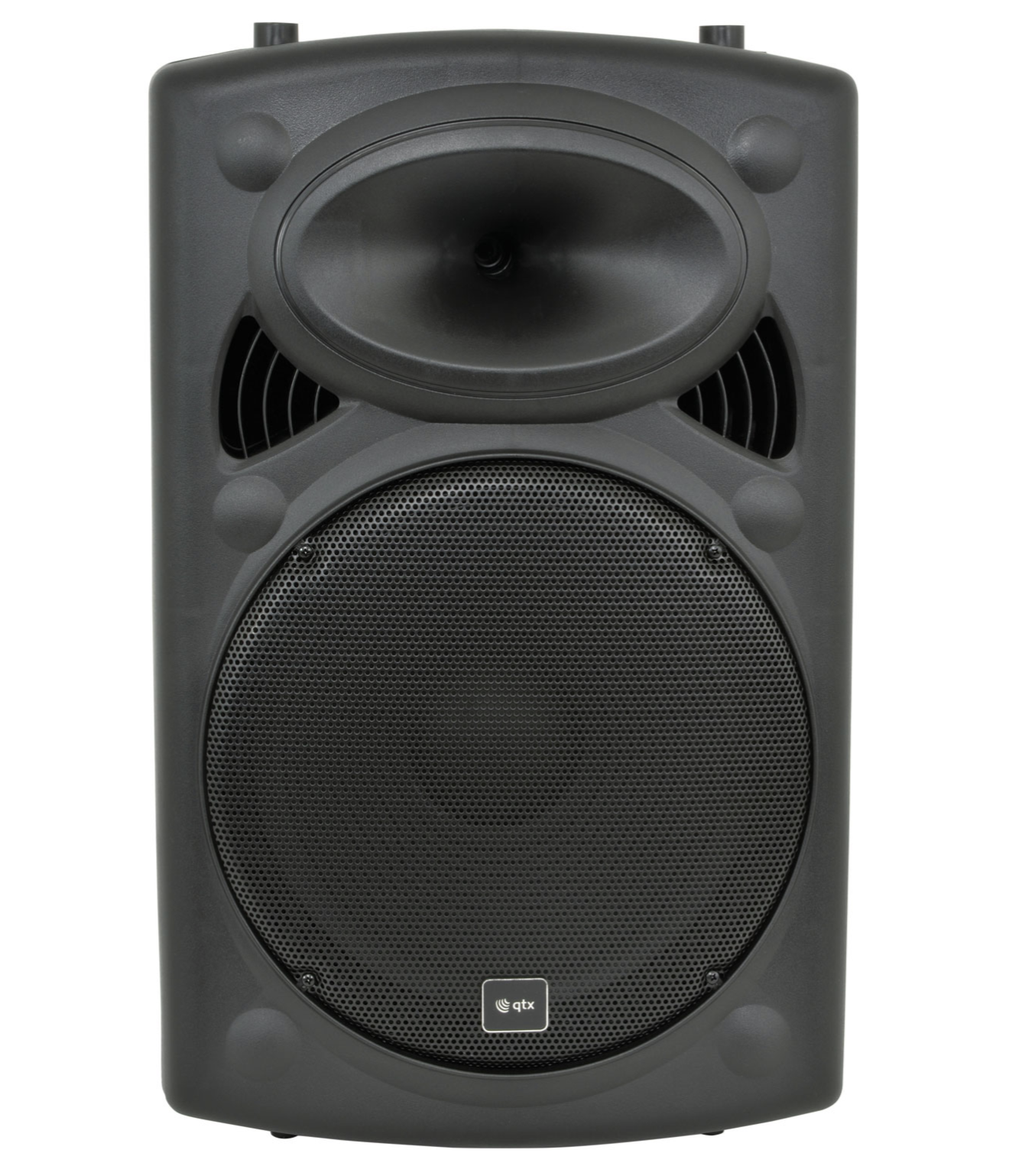

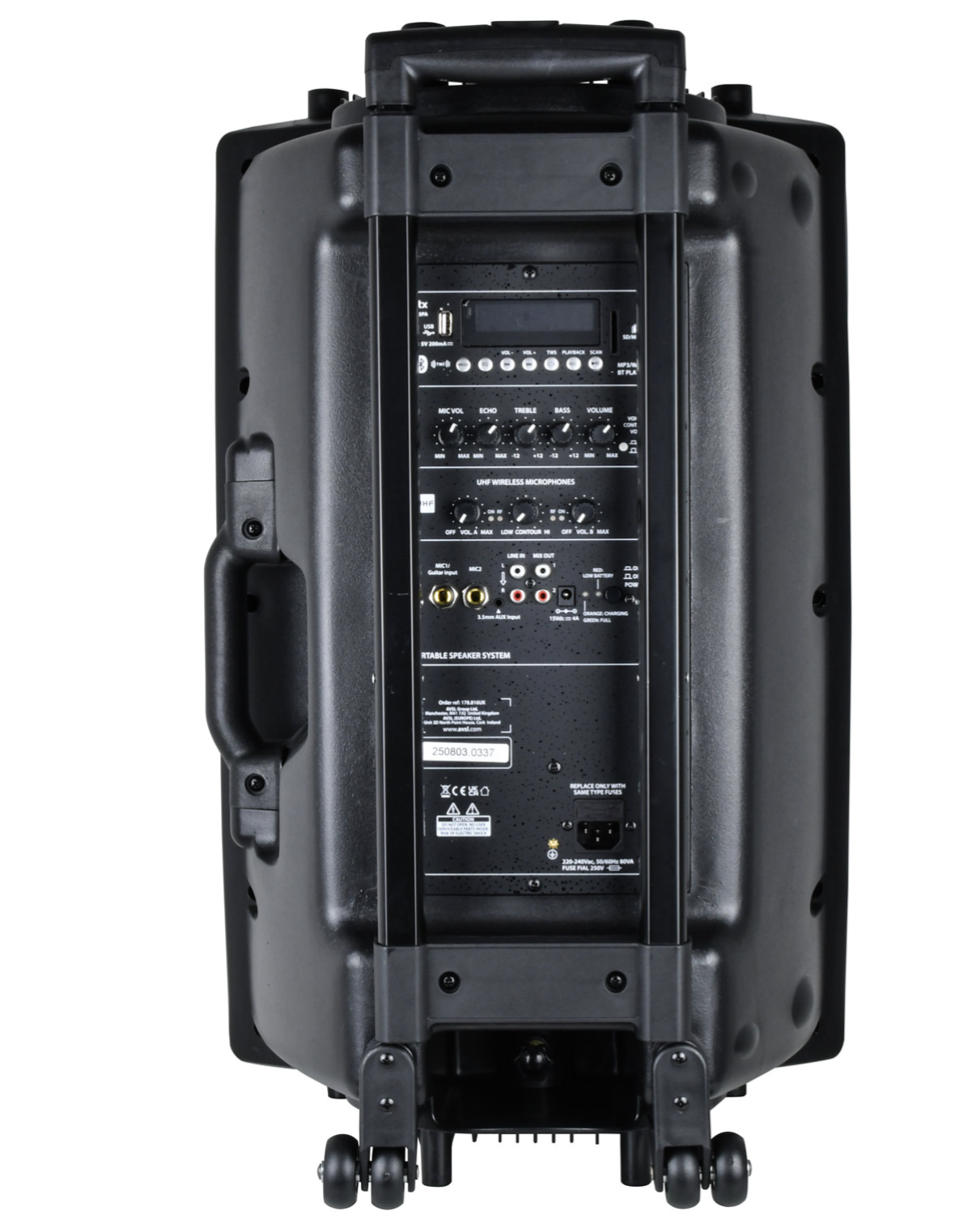

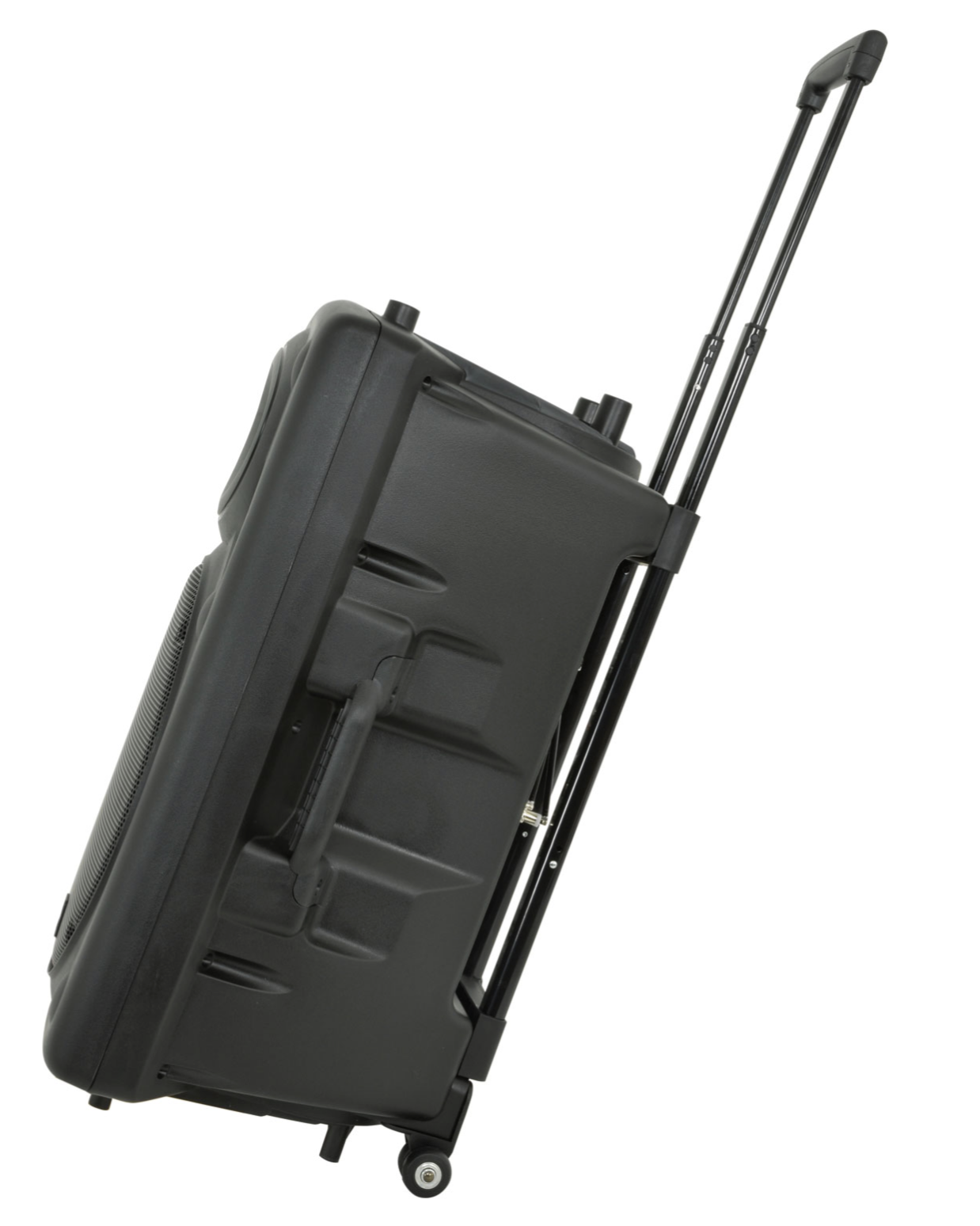

Compact portable PA units based on the QR speaker cabinet. They feature a built-in amplifier that operates from mains power or an internal rechargeable battery, powering a main driver and a compression-driven horn unit. One or two handheld UHF wireless microphones are included, with the receiver built into the mixer/amplifier section at the rear. There are also two wired microphone inputs, an auxiliary line input, and an integrated USB/SD/FM media player with recording function. A Bluetooth receiver is built into the media player, allowing pairing with a smartphone or tablet for wireless audio playback, with TWS pairing to link two QRPA units as a Bluetooth stereo pair. A retractable trolley handle and rear wheels provide easy portability.

UHF handheld microphones are included, and an echo effect is available for microphones. The internal audio player includes a recording feature and remote control. The system supports mains or rechargeable battery operation and includes an integral 35 mm pole mount and built-in trolley facility. A switchable VCV microphone override function is provided, along with TWS wireless pairing. Optional UHF neckband microphones are available under part numbers 178.895UK and 178.896UK.

The power supply supports 220–240 V AC at 50 Hz via IEC connection, 12–15 V DC at 3 A, or internal battery operation. Carrier frequencies are 863.8 MHz and 864.8 MHz. Amplifier output is 50 W + 50 W maximum. The main driver is a 380 mm (15 inch) unit. Dimensions are 685 x 440 x 380 mm, and the unit weighs 18.4 kg. Battery life is up to 8 hours.

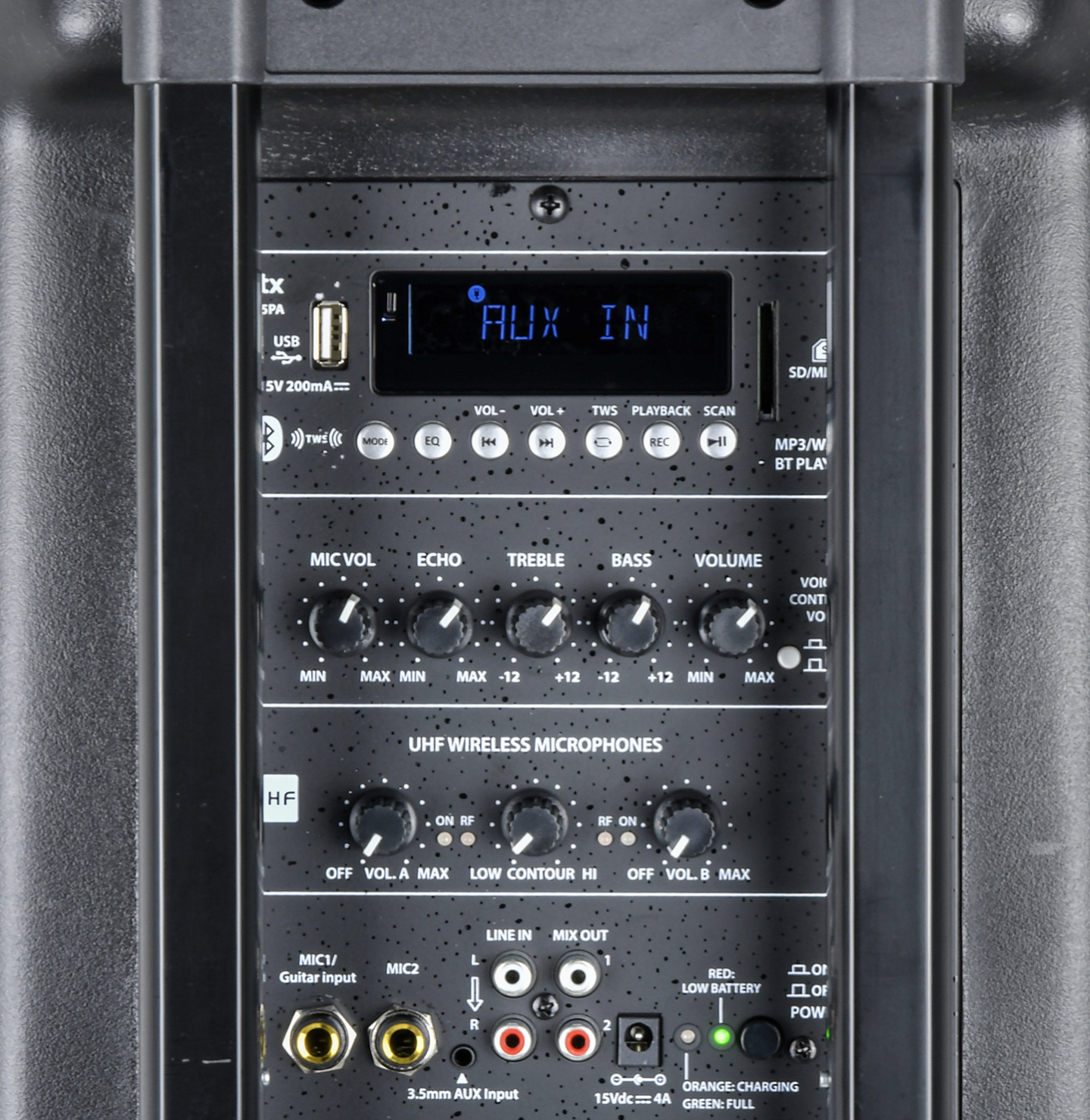

Controls include MIC 1/guitar, MIC 2, echo, bass, treble, master volume, UHF microphone volume, and VCV. Inputs include MIC 1/guitar and MIC 2 on 6.3 mm jack, line input via left and right RCA, and an AUX input on 3.5 mm stereo jack.
