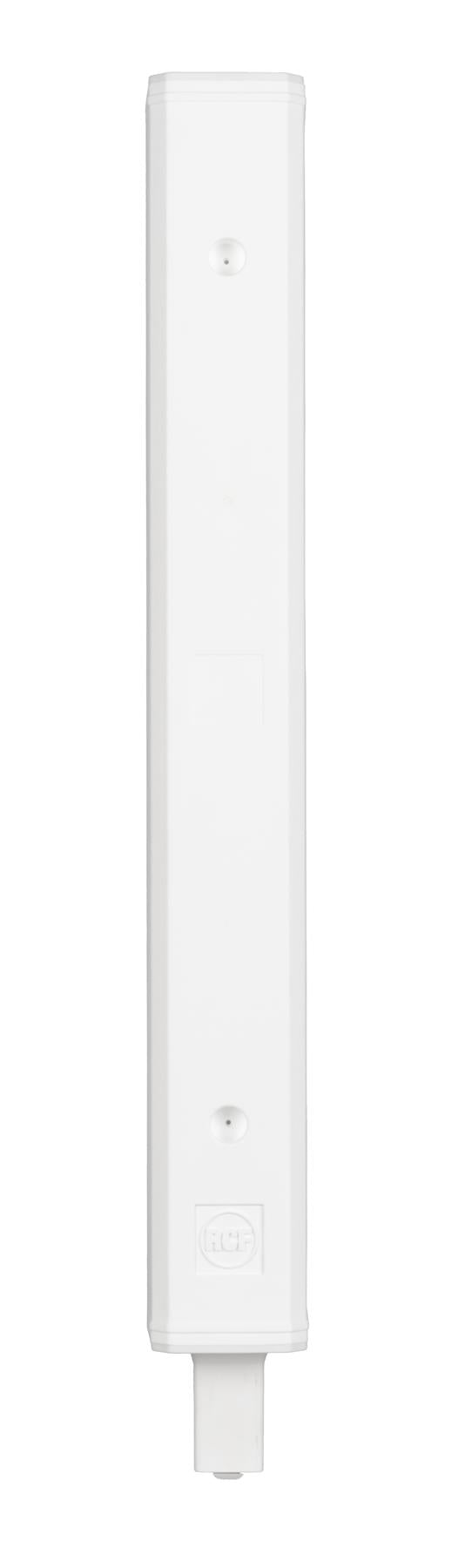

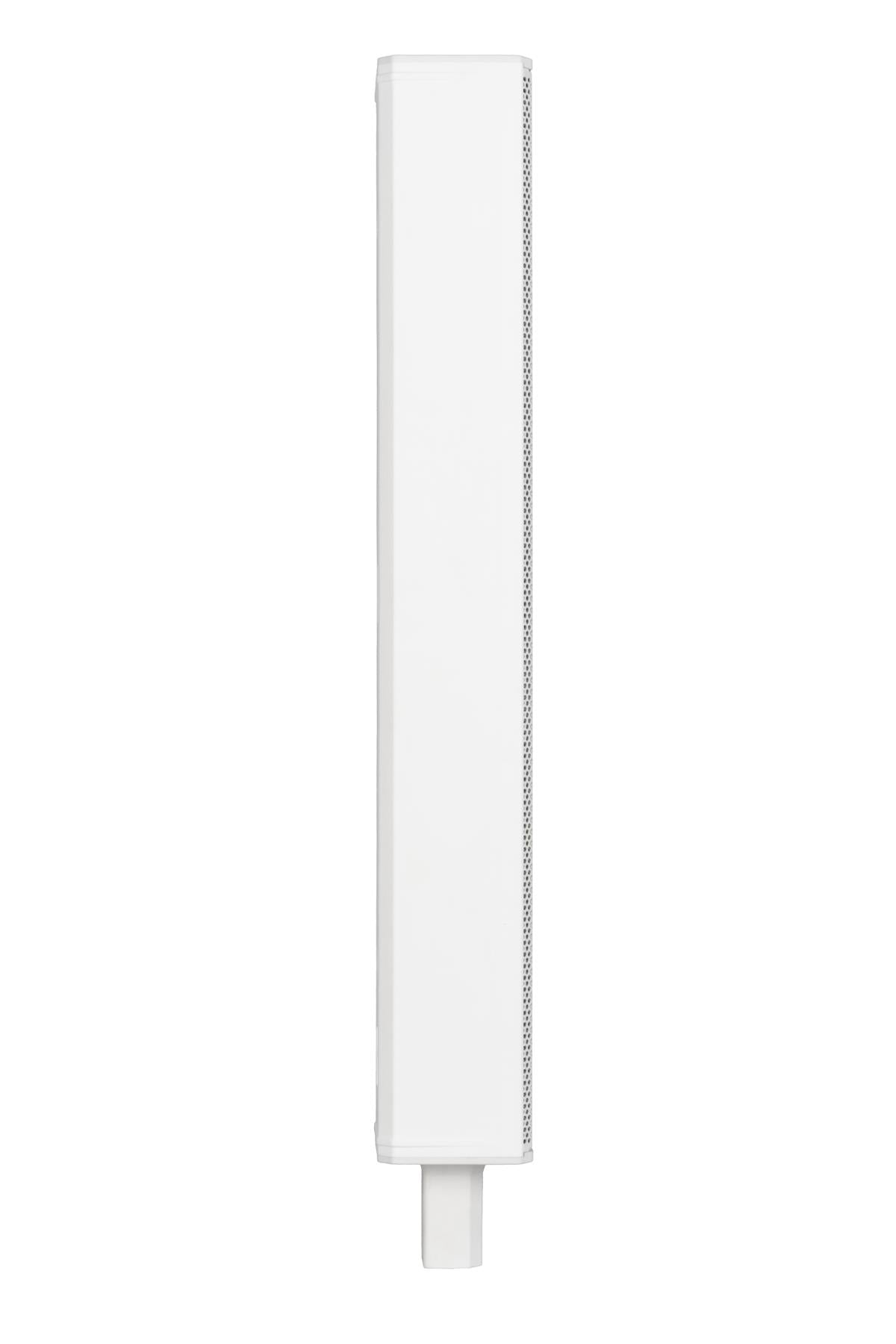

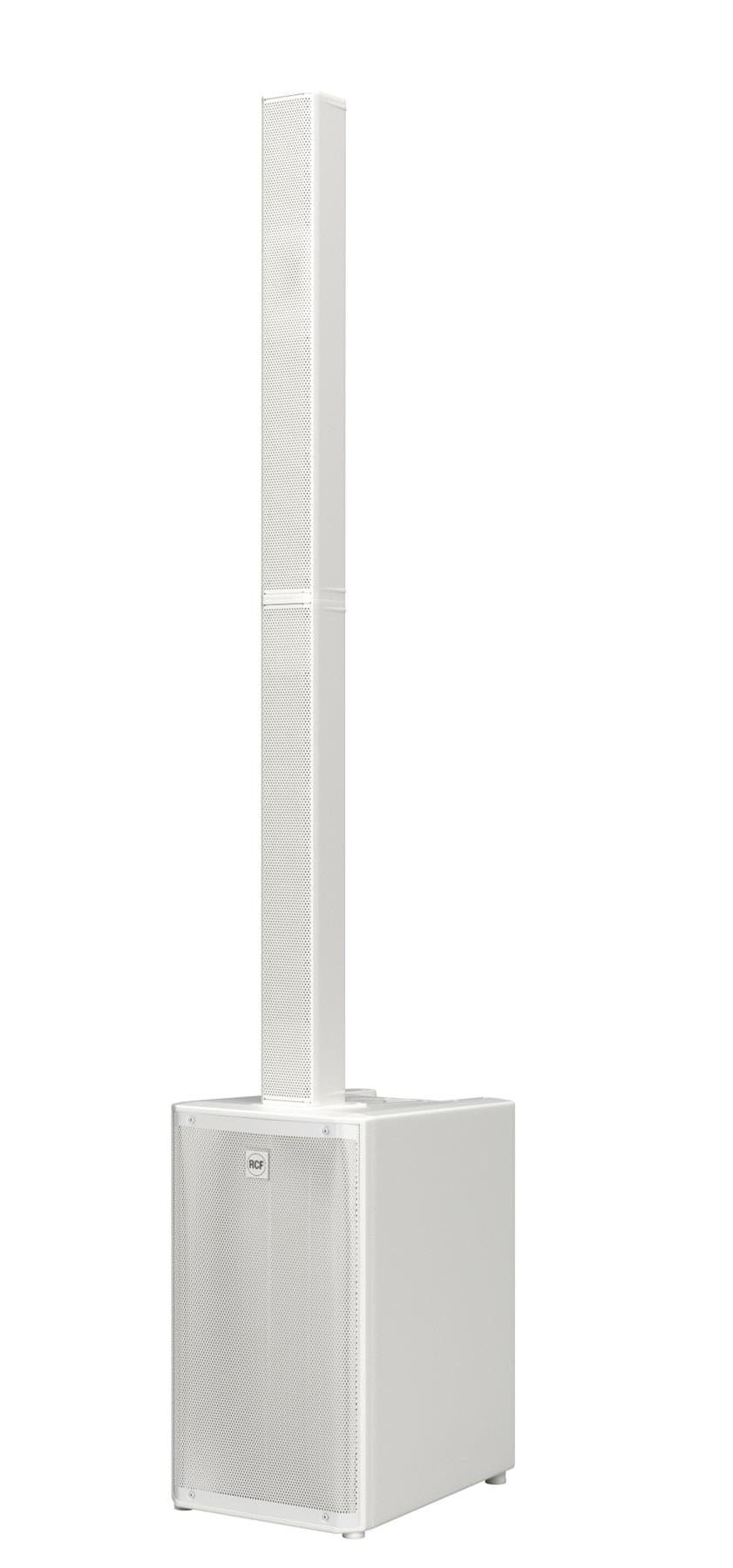

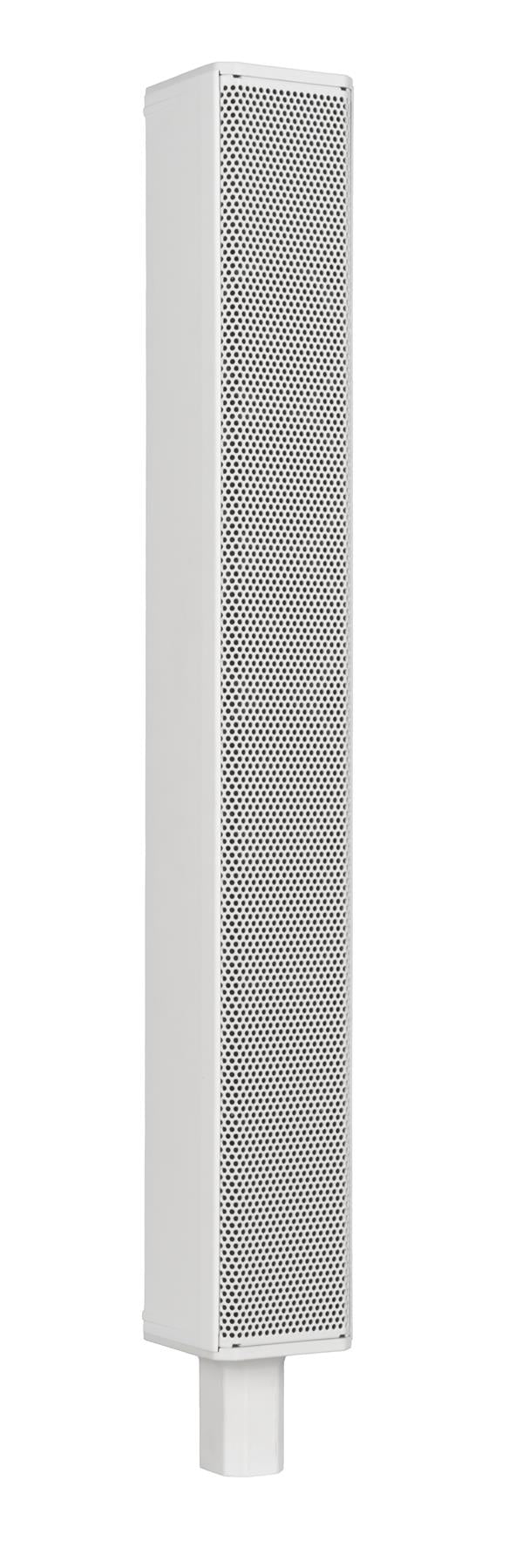

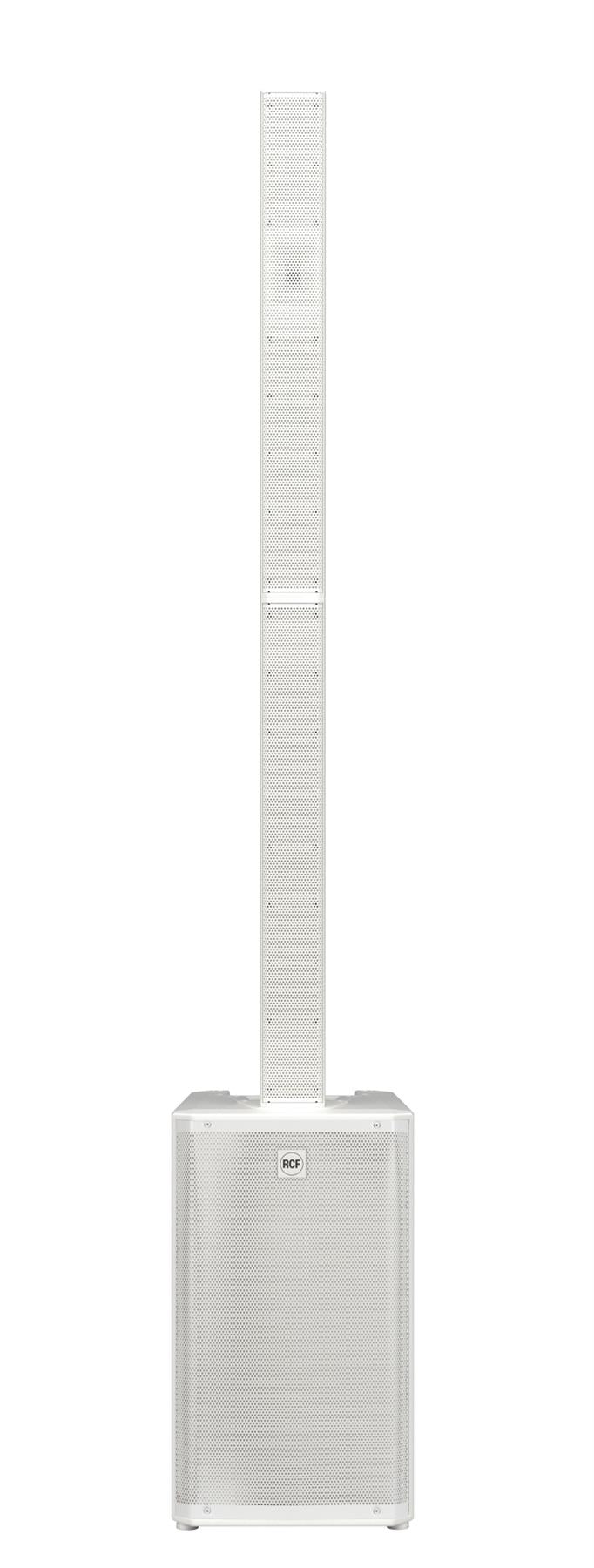

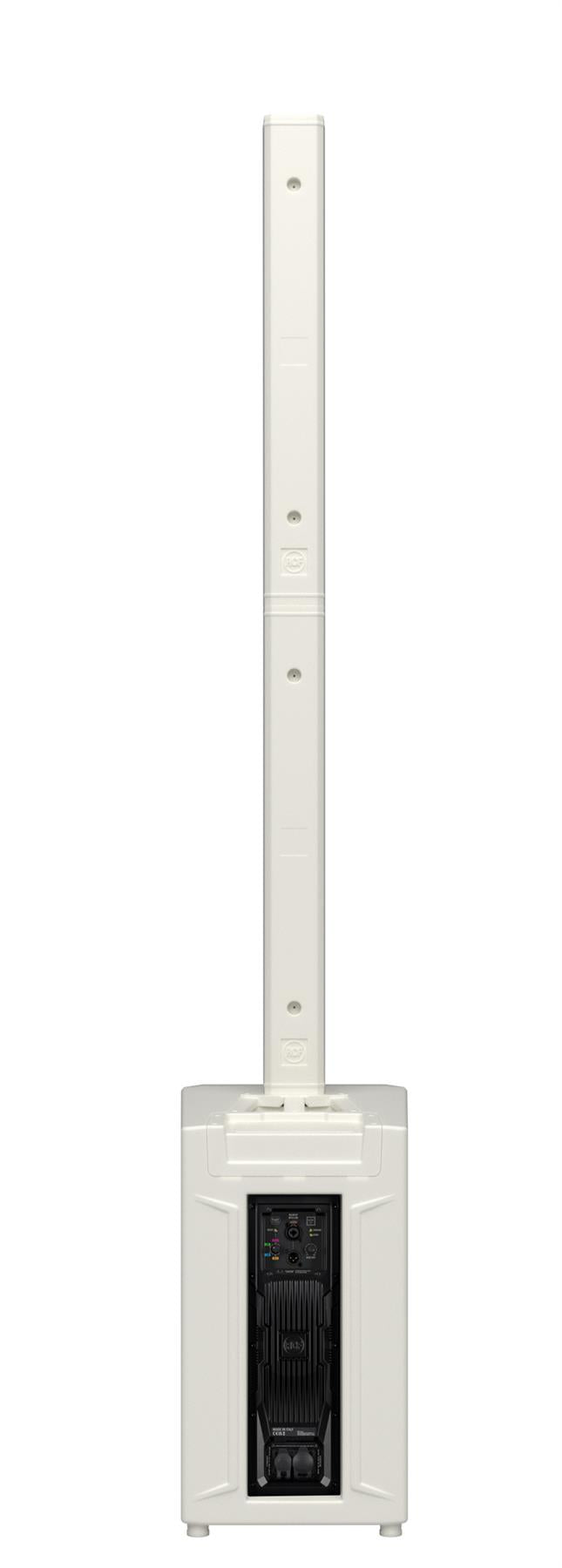

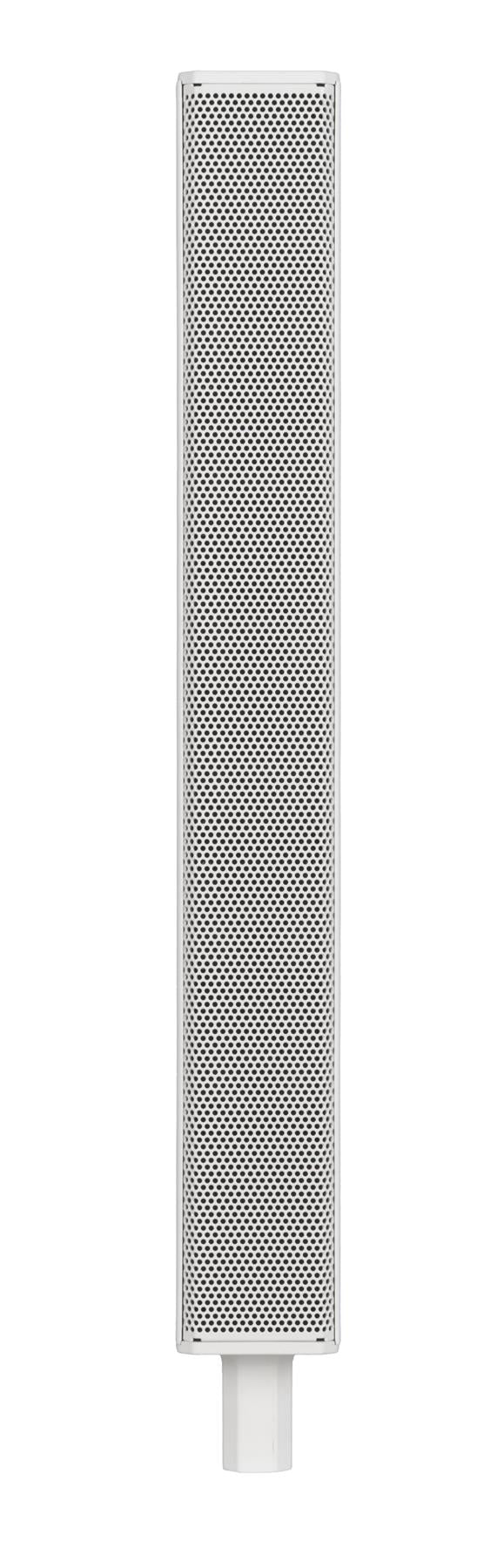

RCF Evox J11 Active Column Speaker White

Description

EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows.

Driven by a 3500W onboard dual-channel Class-D amplifier, EVOX J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

132 dB Max SPL
3500 W Class-D Amplifier - Built-In DSP
1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
12 × 3” Full-Range Neo Transducers
12” High-Power Woofer
Enhanced Coverage And Clarity
Composite Cabinet With Aluminum Stand Mount
Sleek, Road-Ready Design
Top Speaker Padded Carrying Bag Included

Frequency Response - 37 Hz - 20000 Hz
Max SPL @ 1m - 132 dB
Horizontal coverage angle - 120°
Vertical coverage angle 40°
Transducers - Compression Driver 1 x 0.75'' neo, 1.75'' v.c
Fullrange 12 x 3.0'' neo, 1.0'' v.c
Woofer - 1 x 12'', 2.5'' v.c

Input connectors - Combo XLR/Jack
Output connectors - XLR
Input sensitivity - +4 dBu

Crossover Frequencies - 160 Hz/1800 Hz
Protections - Thermal, RMS
Limiter - Soft Limiter
Controls - Volume, Presets: LINEAR/LIVE, CLUB, VOICE

Total Power - 3500 W Peak
High frequencies - 1500 W Peak
Low frequencies - 2000 W Peak

Connections - Powercon TRUE1 TOP IN/OUT
Cabinet/Case Material - PP Composite
Handles - 1 Top
Pole mount/Cap - Quick-fit socket
Grille - Steel
Color - Black, White - RAL 9003

Height
2285 mm / 89.96 inches
Width
400 mm / 15.75 inches
Depth
460 mm / 18.11 inches
Weight
29 kg / 63.93 lbs
